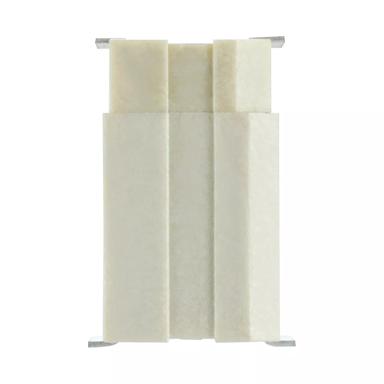

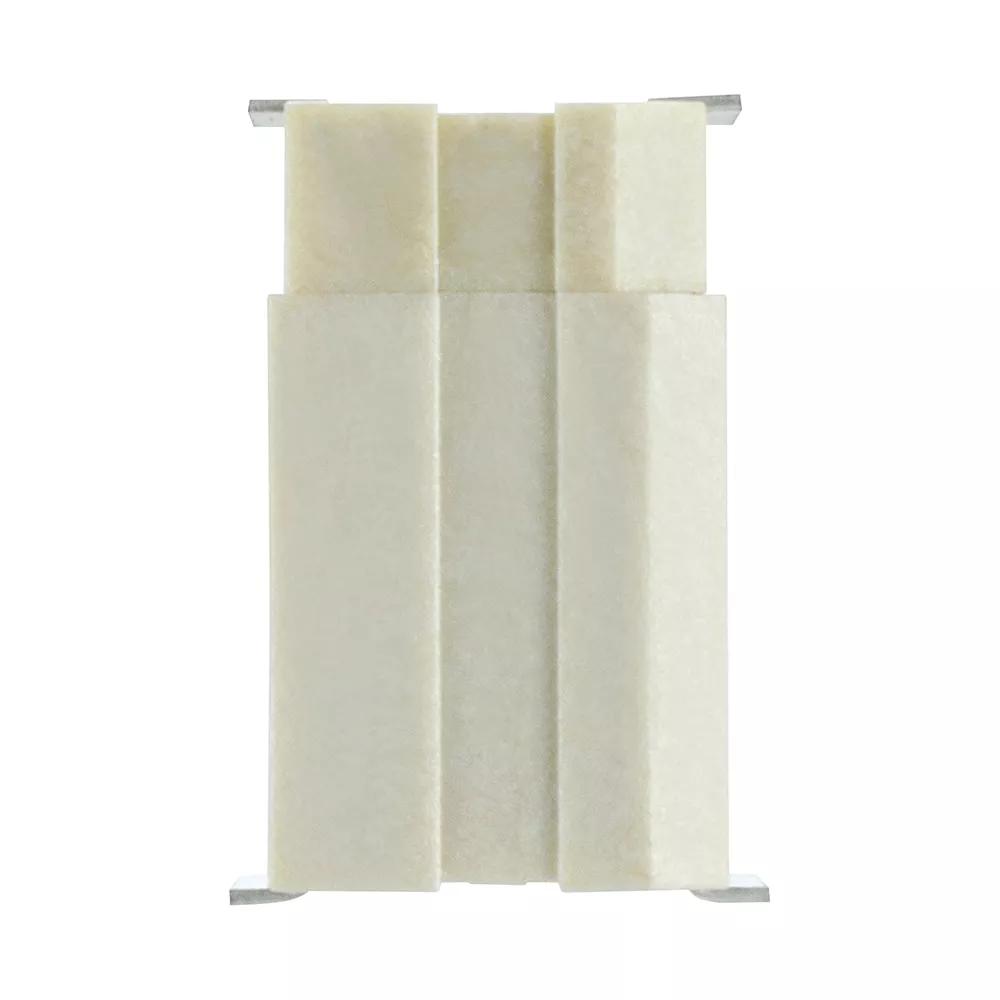

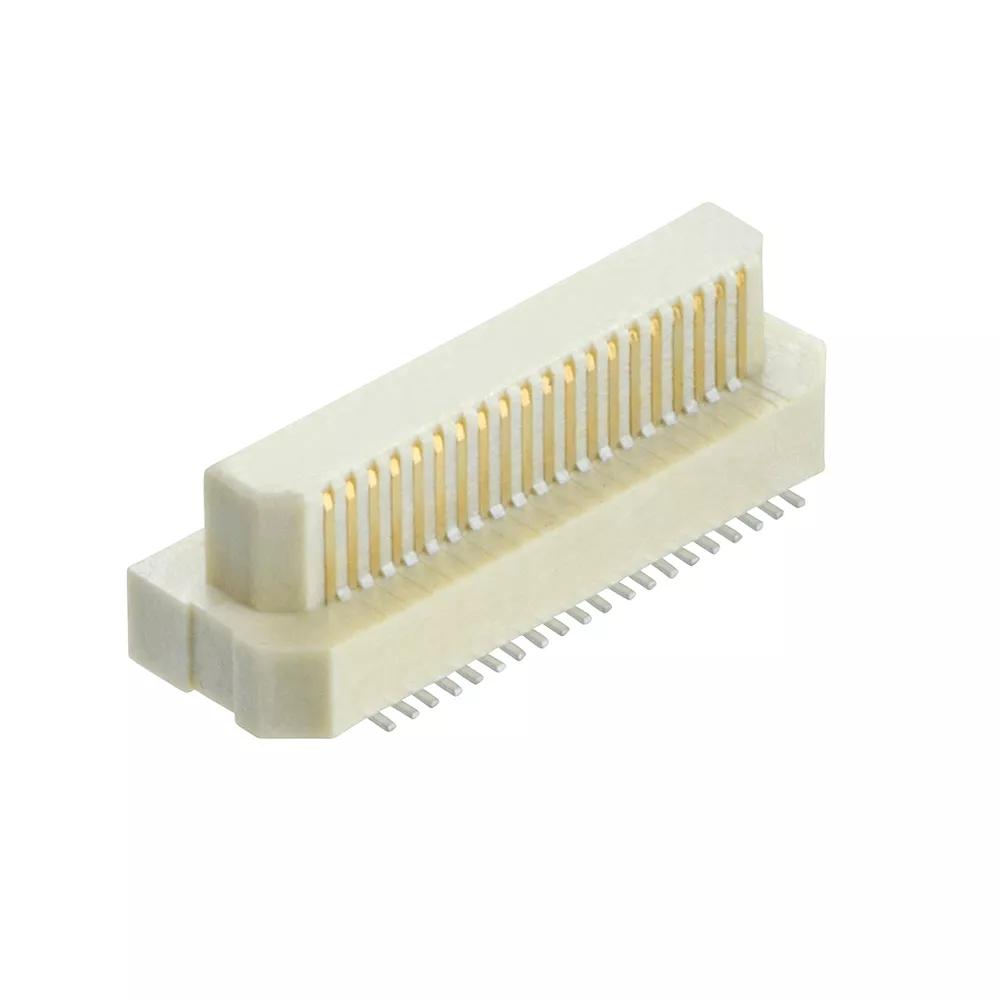

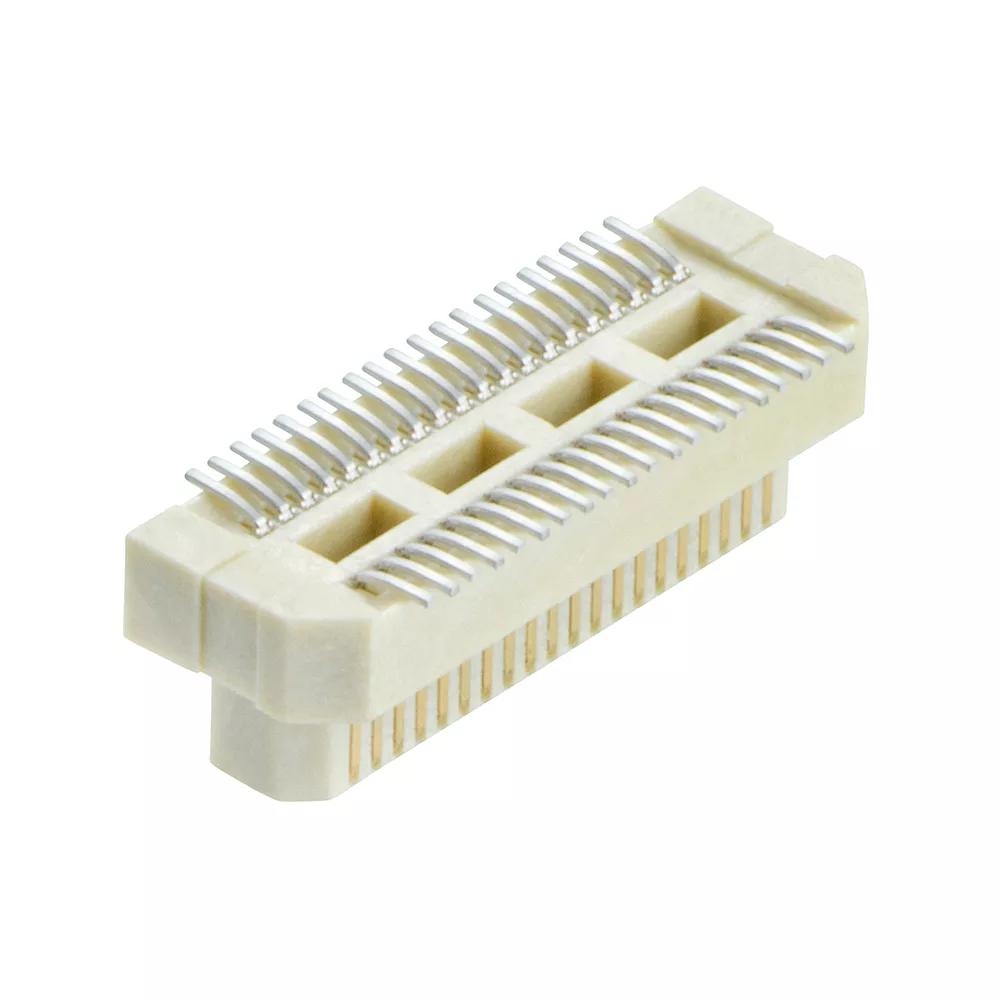

M58-3500442R
20+20 Pos. Male DIL Vertical SMT Conn. (T+R)
0.50mm (0.0197") Pitch PCB Connector - Archer .5
In stock Check availability
3 similar products View products
Traceparts account required
Product Description
- Double Row vertical board-to-board, surface mount plug connector – 40 contacts (20+20).
- High-speed connection with a data rate up to 8GHz, 16Gb/s.
- Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel (pick & place caps not required).
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
0.50mm (0.0197")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Current Rating:
0.5A per contact
Operating Temperature:
-55°C to +85°C
Soldering Data:
Max Solder Temperature: 260°C for 5 seconds
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
40
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Natural
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.27g
Overall Dimensions (L x W x D) in mm:
13.20 x 5.00 x 4.30
Height of Connector above PCB:
4.30mm
Frequently Asked Questions Ask a Question
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
