M58-2800442R
20+20 Pos. Female DIL Vertical SMT Conn. (T+R)
0.80mm (0.031") Pitch PCB Connector - Archer .8
6,046 in stock Check availability
5 similiar products View products
Samacsys account required
No login is required
Product Description

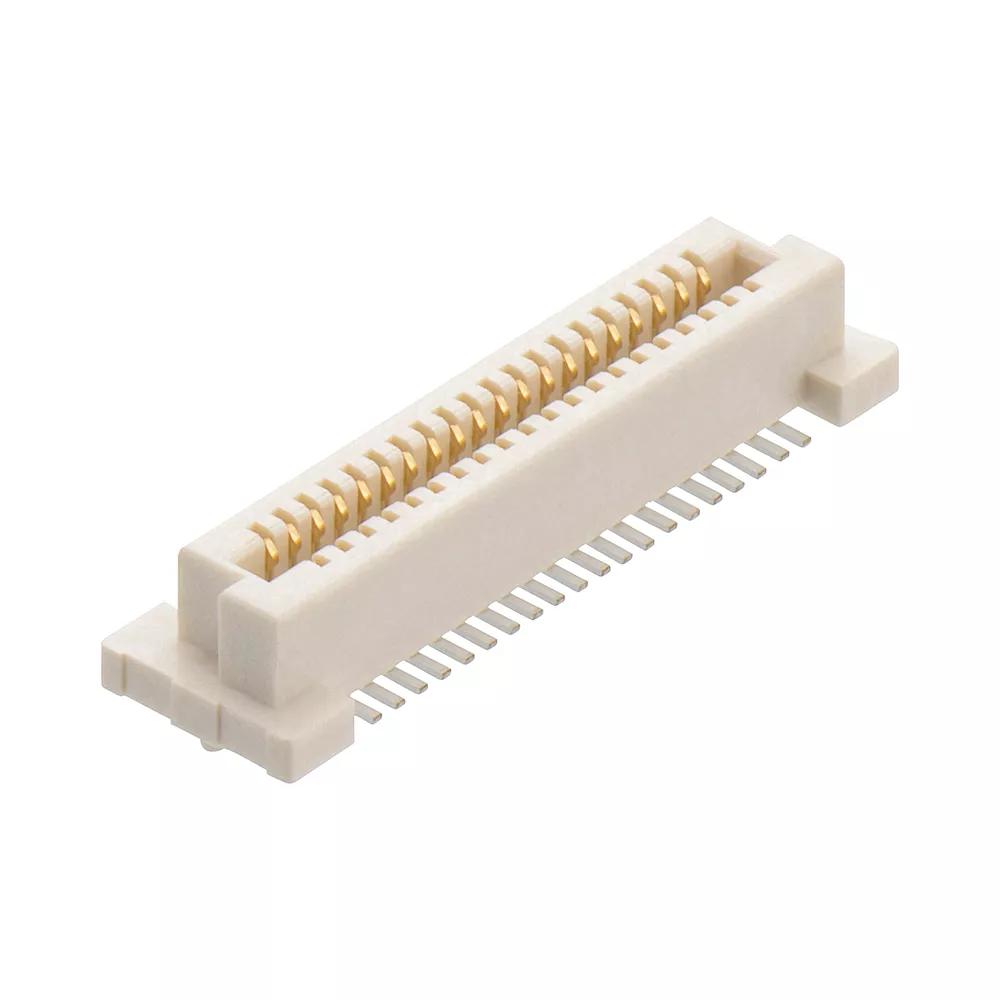

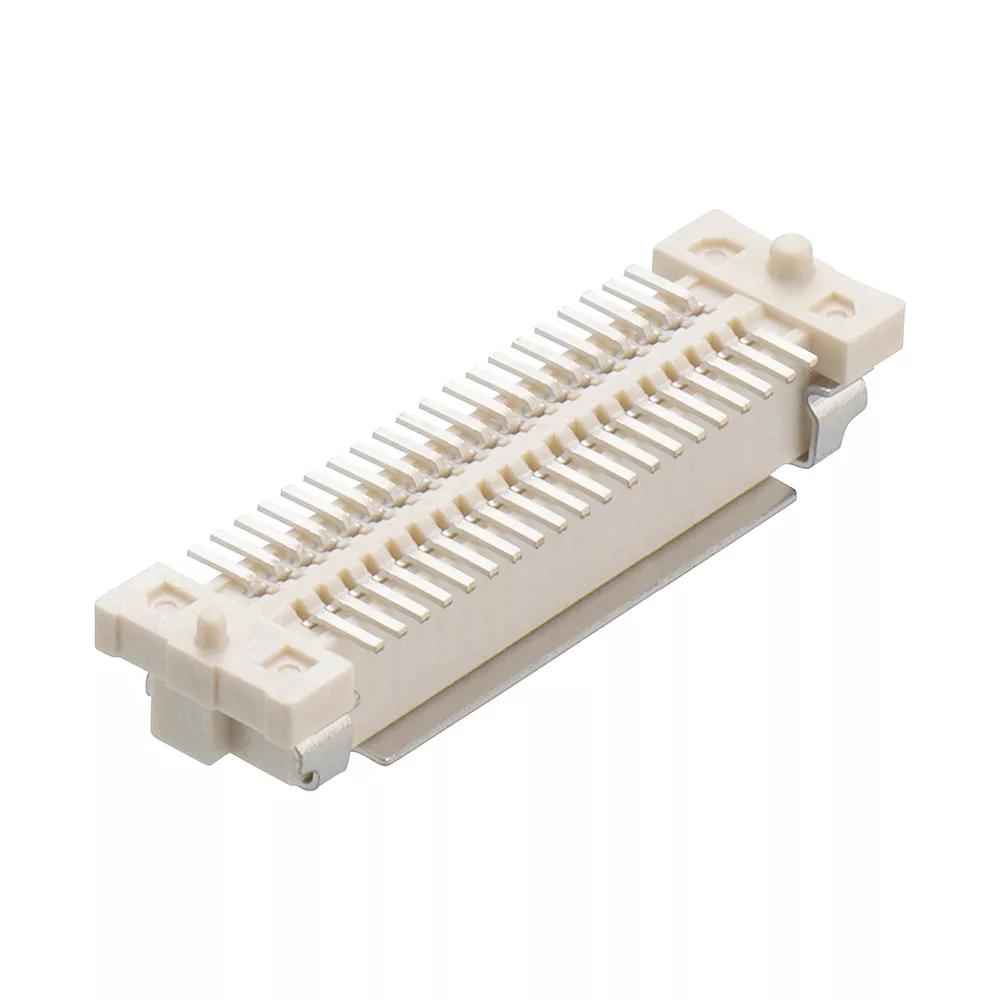

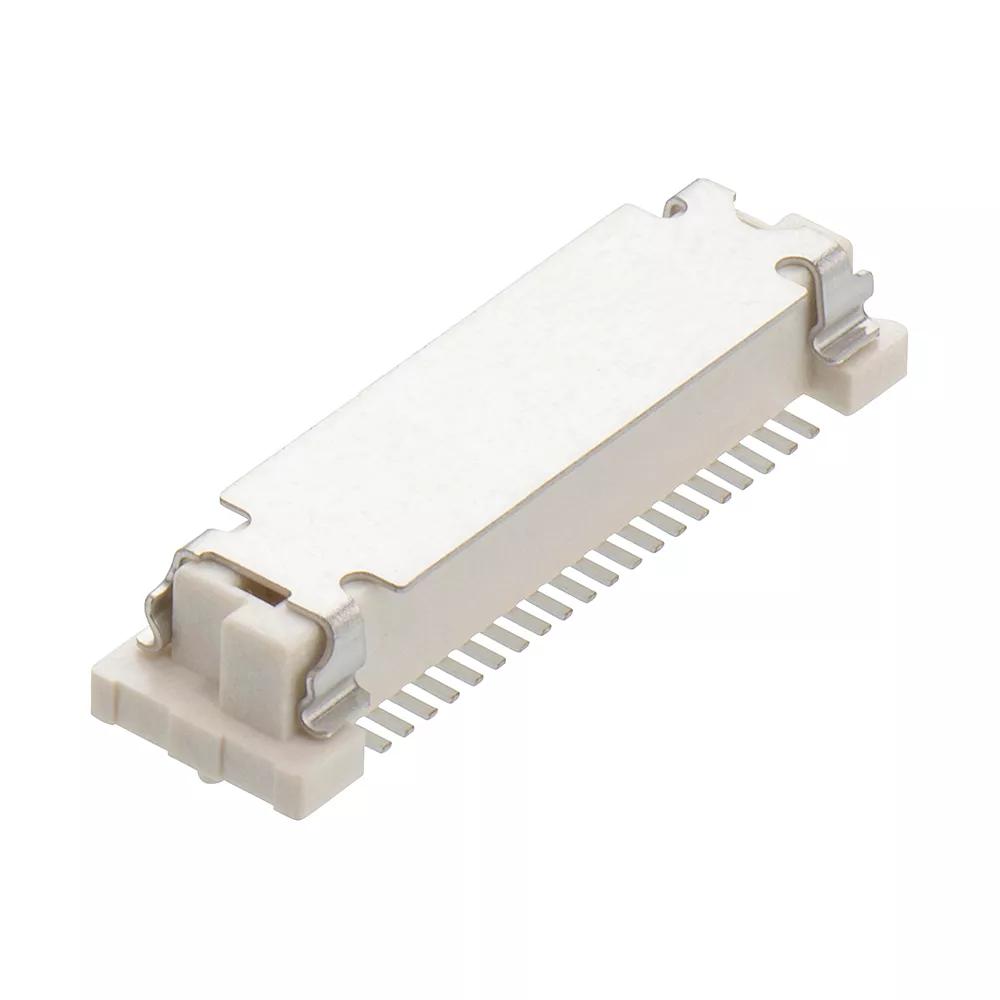

- Double Row vertical board-to-board, surface mount receptacle connector with location pegs – 40 contacts (20+20).
- High-speed connection with a data rate up to 12GHz, 24Gb/s.
- Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
0.80mm (0.031")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Current Rating:
0.5A per contact
Operating Temperature:
-40°C to +125°C
Soldering Data:
Max Solder Temperature: 250°C for 5 seconds
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
40
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Natural
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.621g
Overall Dimensions (L x W x D) in mm:
21.75 x 6.00 x 4.42
Height of Connector above PCB:
3.70mm
