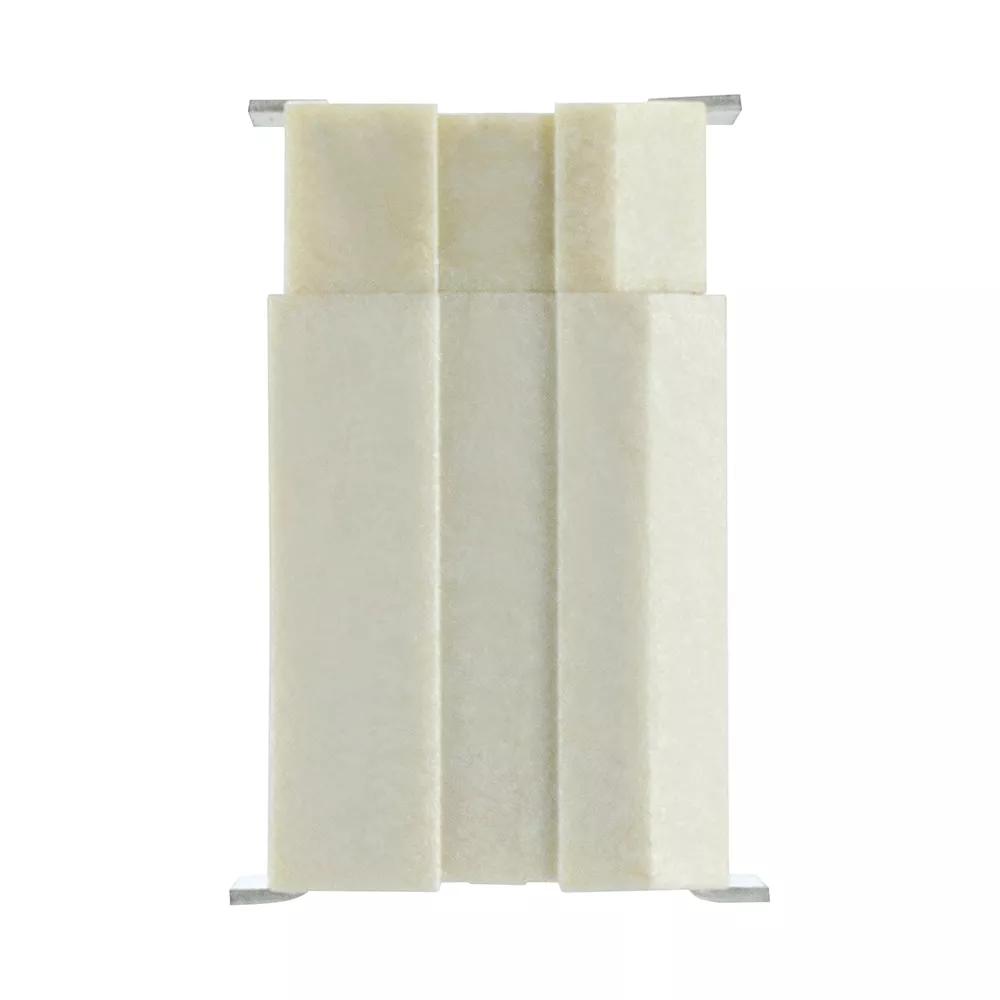

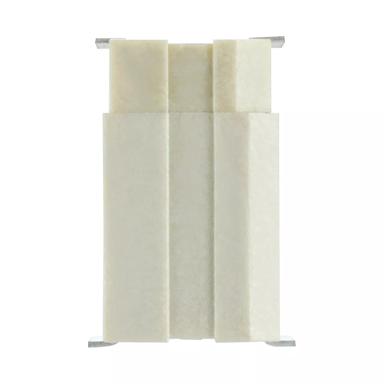

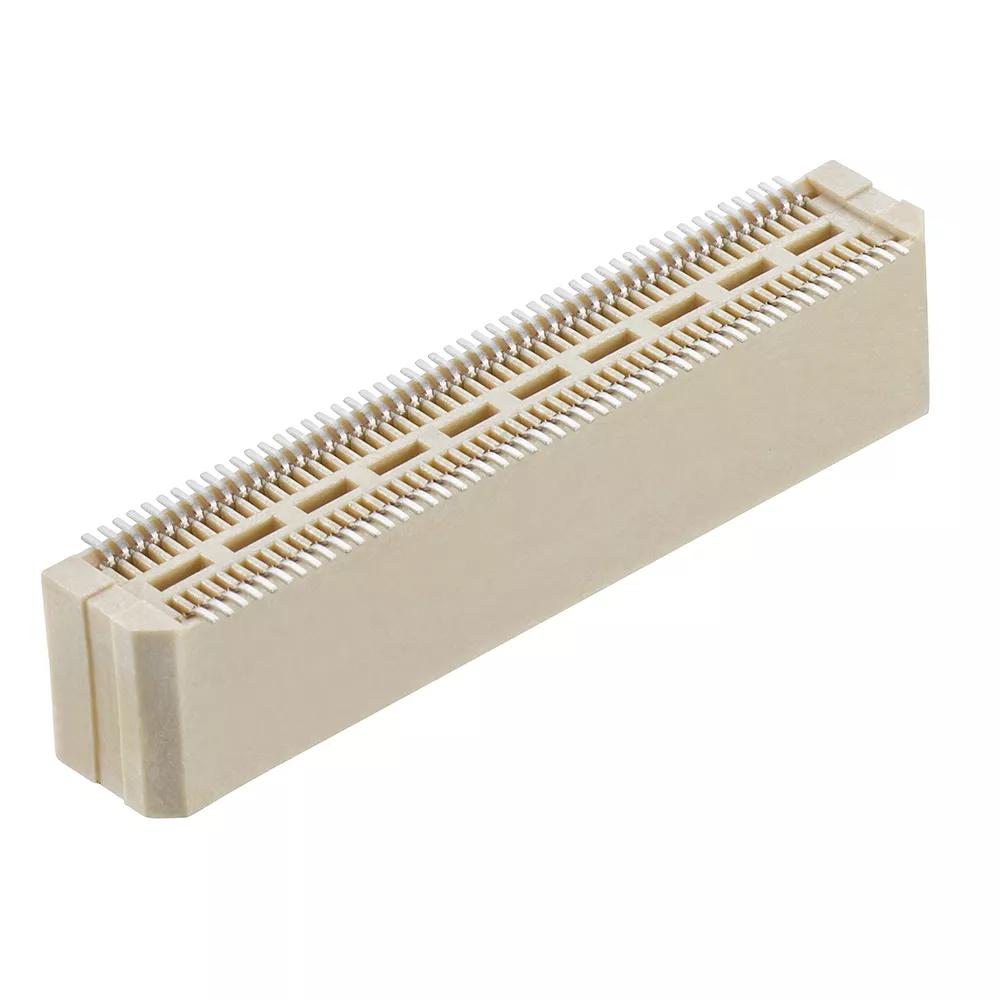

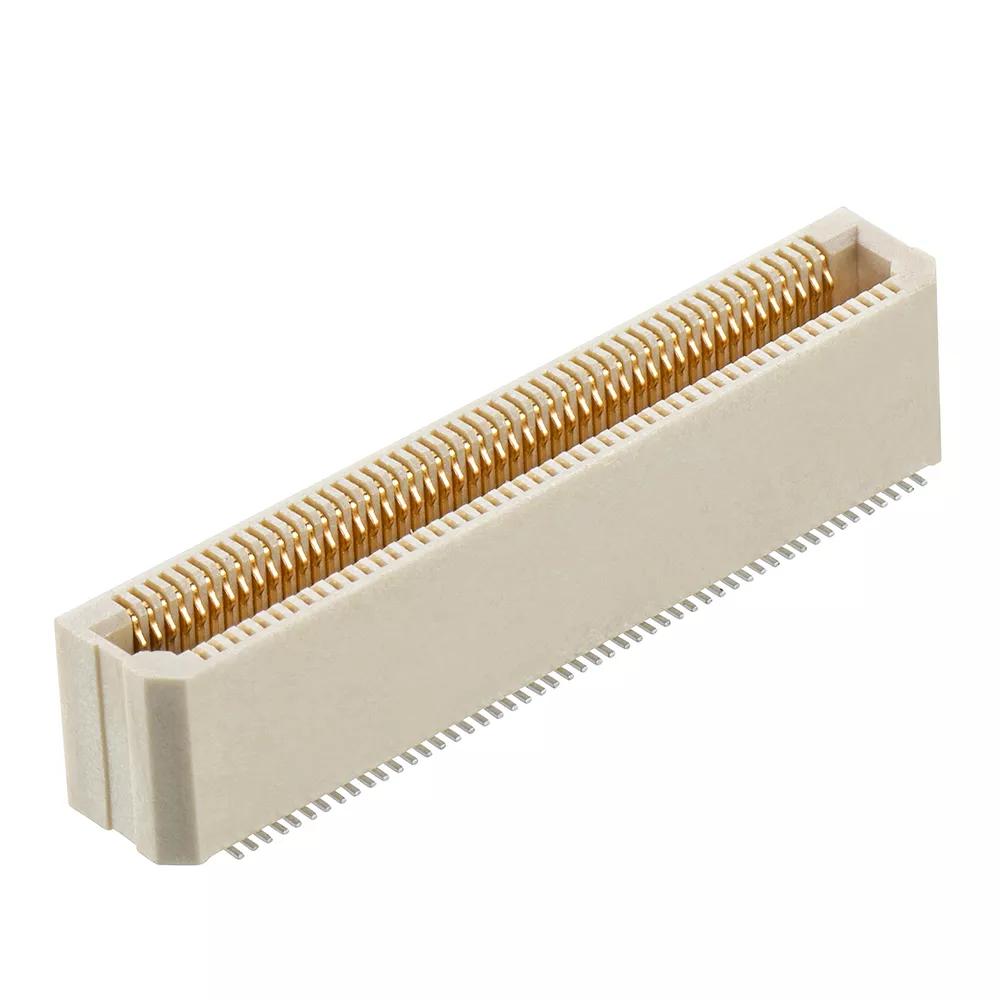

50+50 Pos. Female DIL Vertical SMT Conn. (T+R)
0.50mm (0.0197") Pitch PCB Connector - Archer .5
4,190 in stock Check availability
2 similiar products View products
- Double Row vertical board-to-board, surface mount receptacle connector – 100 contacts (50+50).
- High-speed connection with a data rate up to 8GHz, 16Gb/s.
- Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel (pick & place caps not required).
EU RoHS Status:
Surface Mount (SMT)
0.5A per contact
-55°C to +85°C
Max Solder Temperature: 260°C for 5 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
28.20 x 5.40 x 6.05
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
How can we help you?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
