M55-8008042-0300A

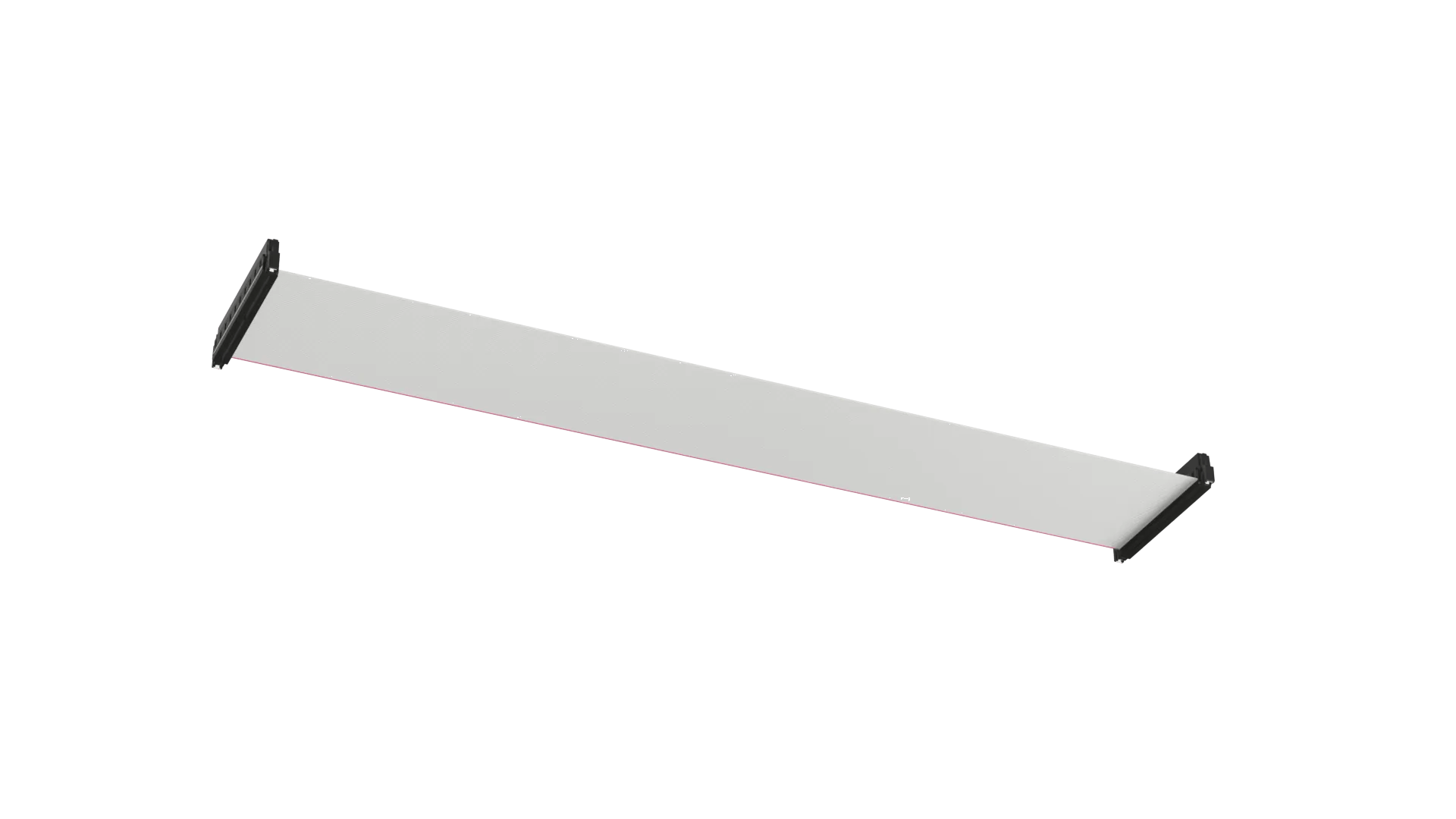

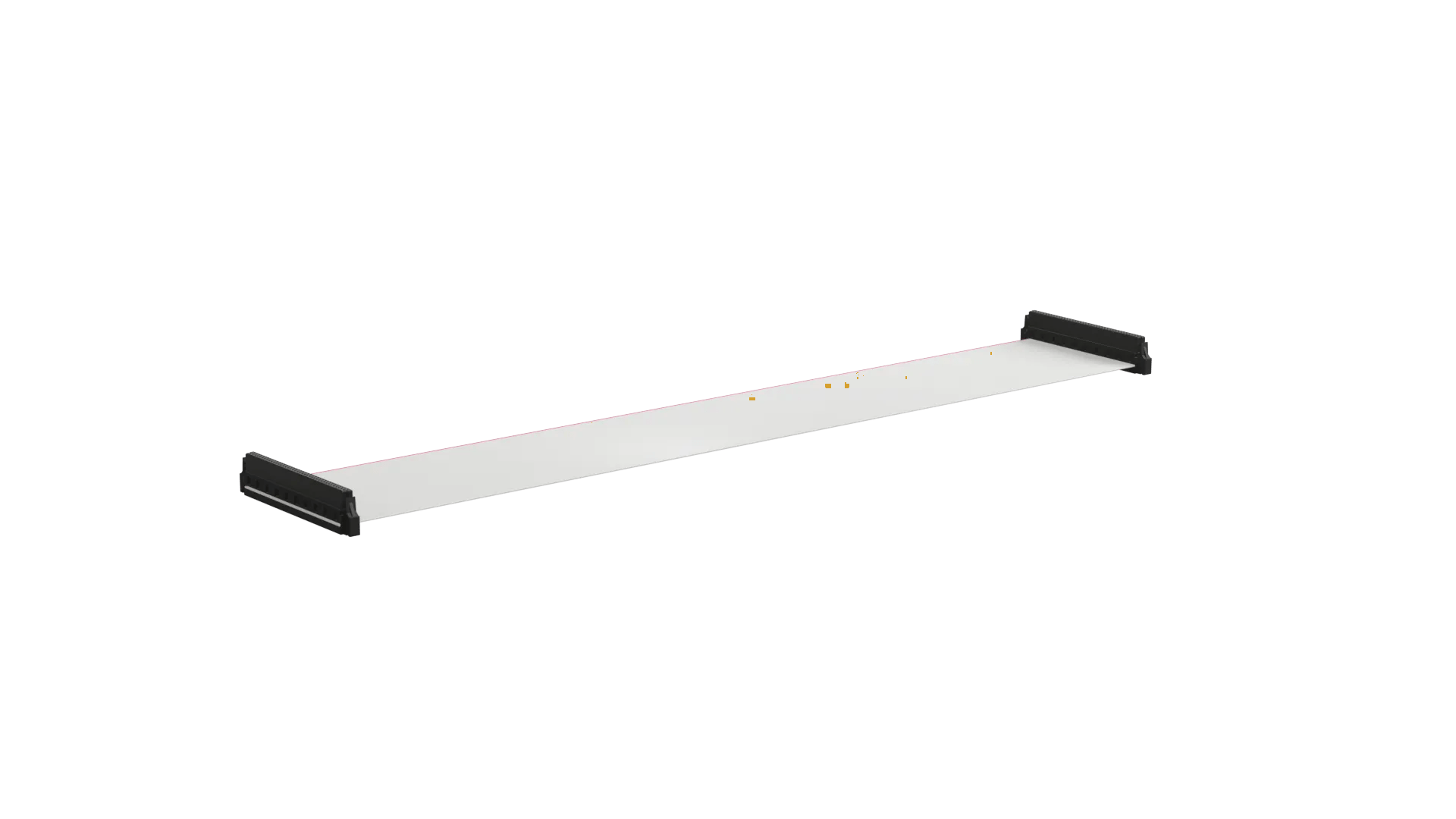

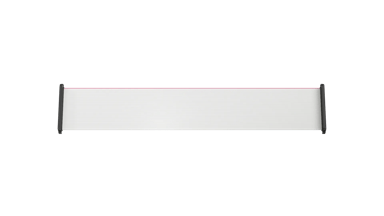

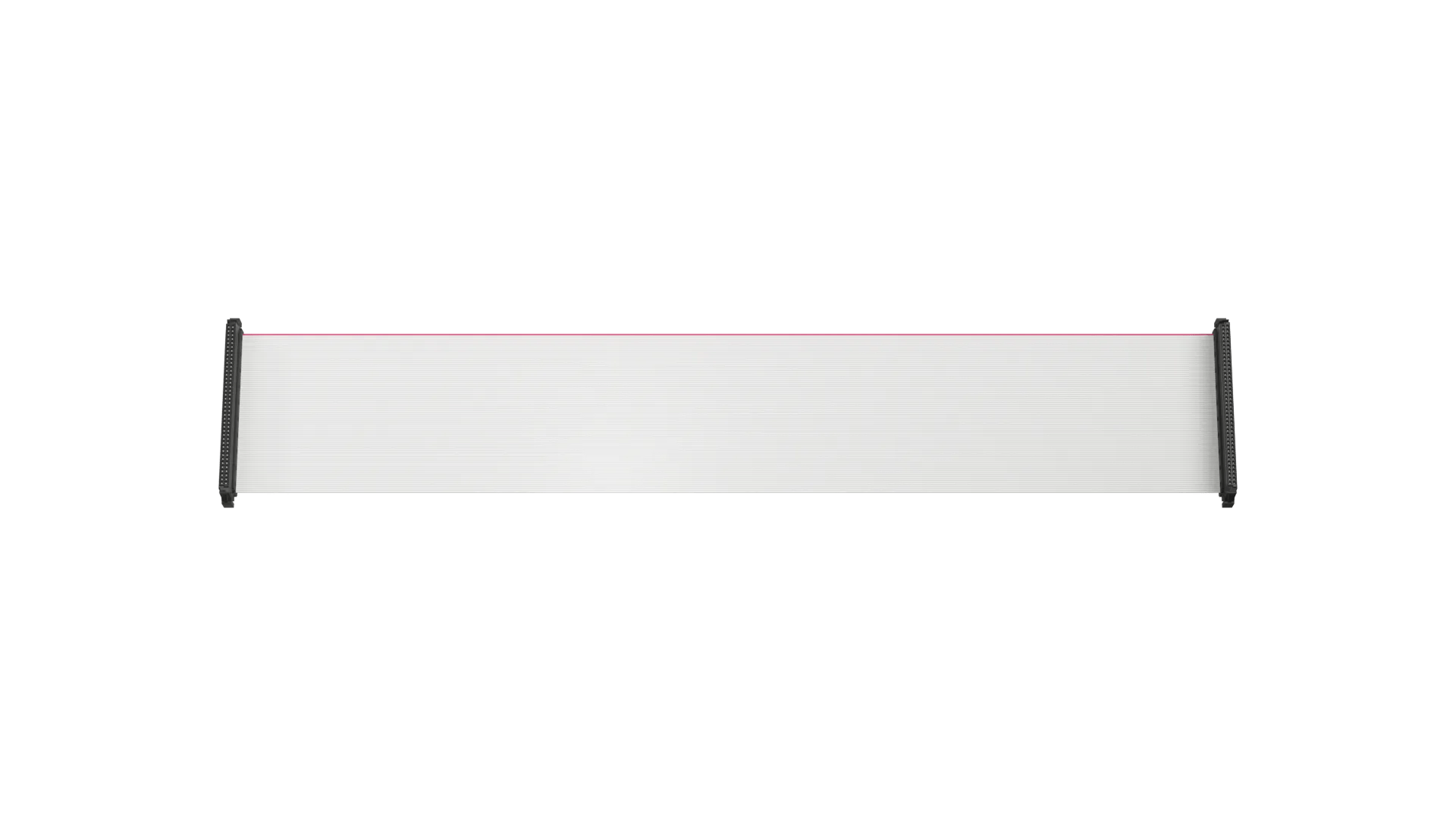

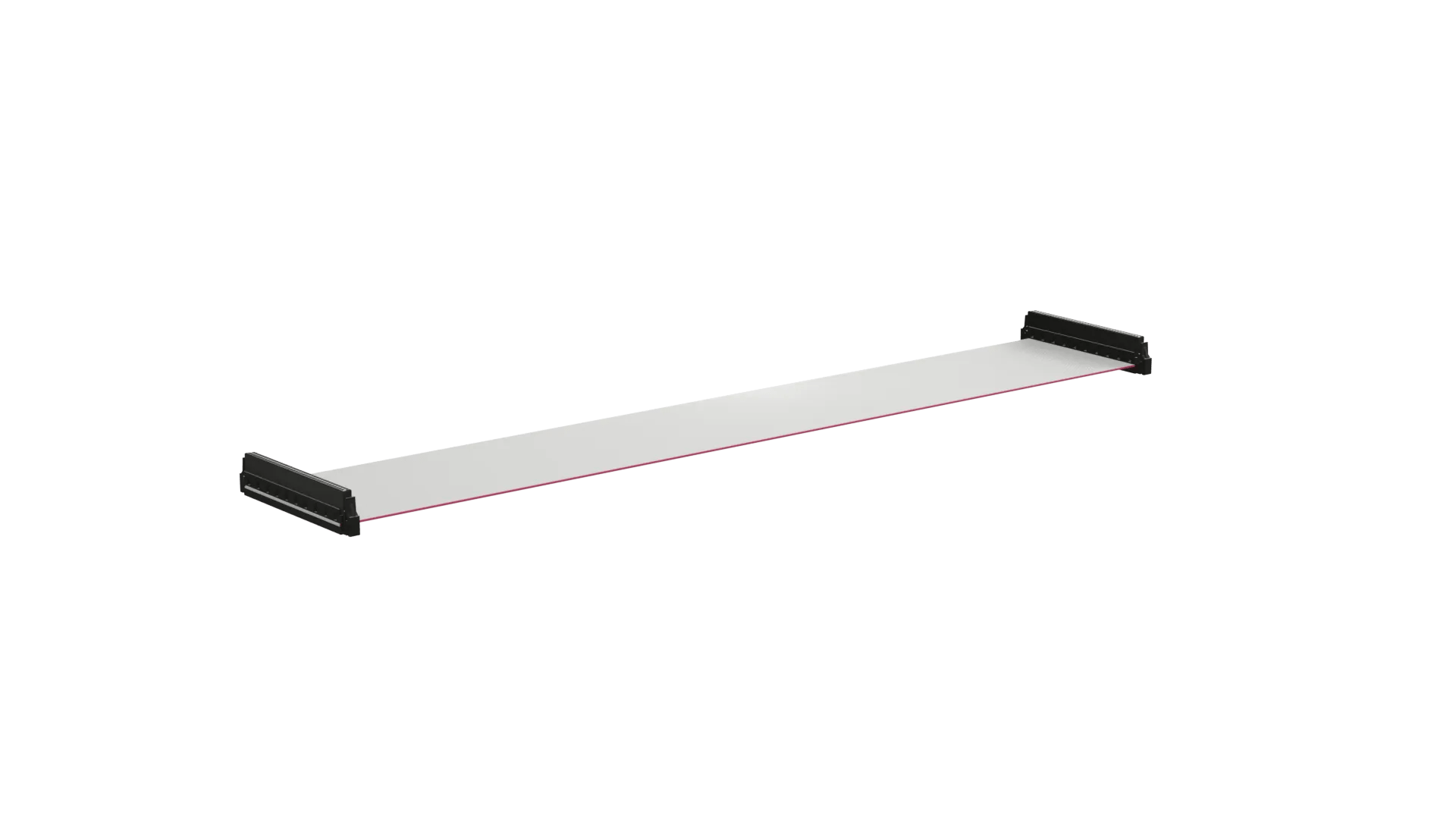

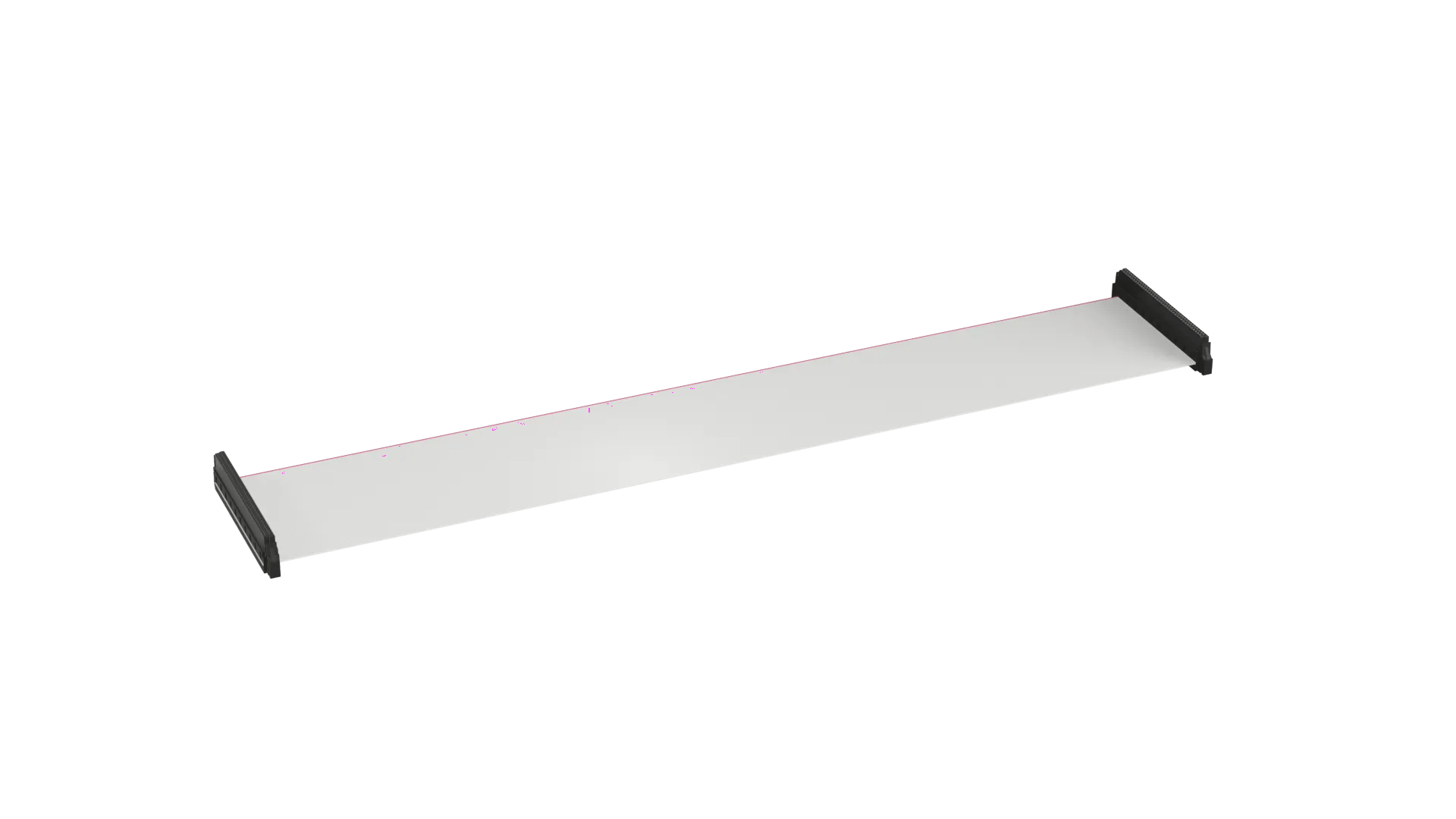

40+40 Pos. Female DIL IDC Cable Assembly, 300mm, double-end

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Female-to-Female with UL2678 30 AWG ribbon cable, 300mm length – 80 contacts (40+40). Connectors are fitted with latching features, and are polarized and shrouded.
  • Gold finish on connector contact area.
  • For complete pin numbering or pin out information, see Component Specification C047XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Cable Conductor Size:

30AWG

Current Rating:

0.5A max per contact

Operating Temperature:

-20°C to +105°C

Style of Latches:

Built-in Latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

80

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP (PA66 Latch Cover)

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

29.9g

Overall Dimensions (L x W x D) in mm:

307.75 x 59.18 x 12.20

Availability

68 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 23
Distributor Newark
Location USA
Quantity (Updated Daily) 15
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 10
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 10
Distributor Farnell
Location Europe
Quantity (Updated Daily) 8
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2

Questions & Answers Ask a Question

What is the durability spec. for these connectors?

The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.
