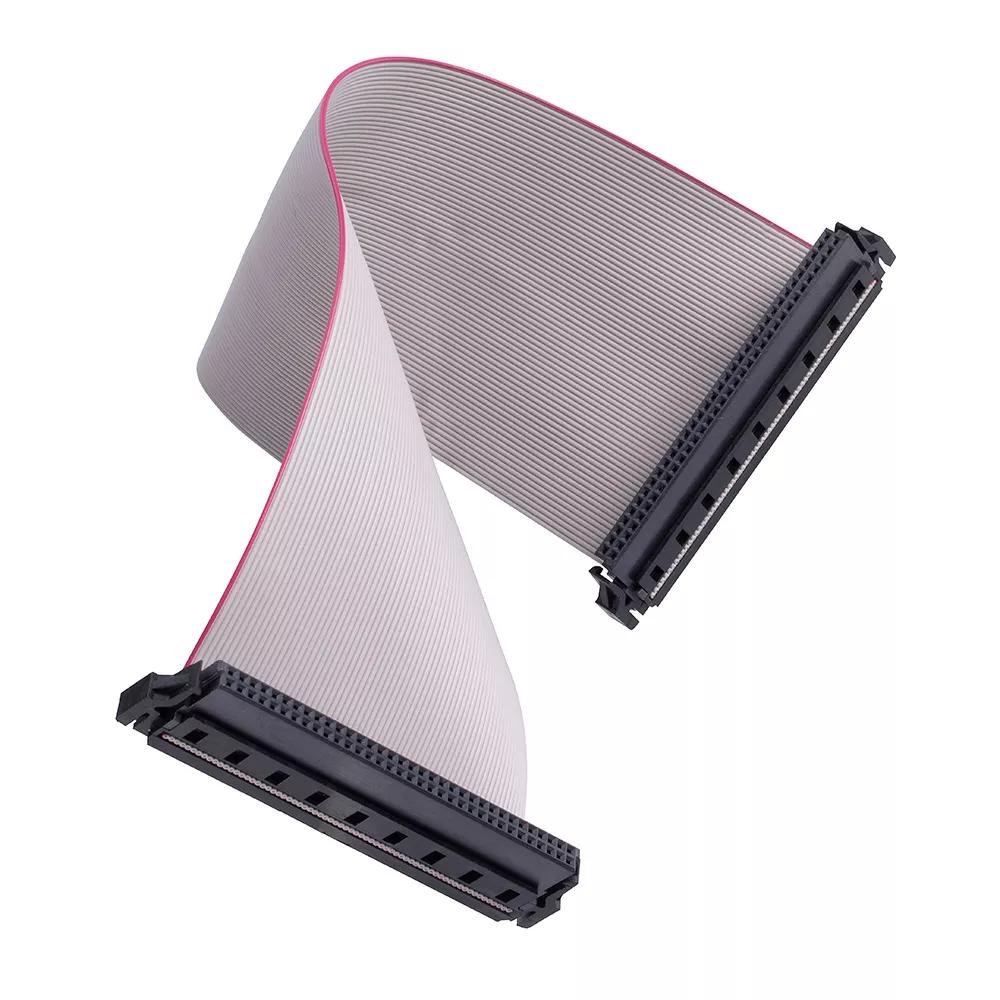

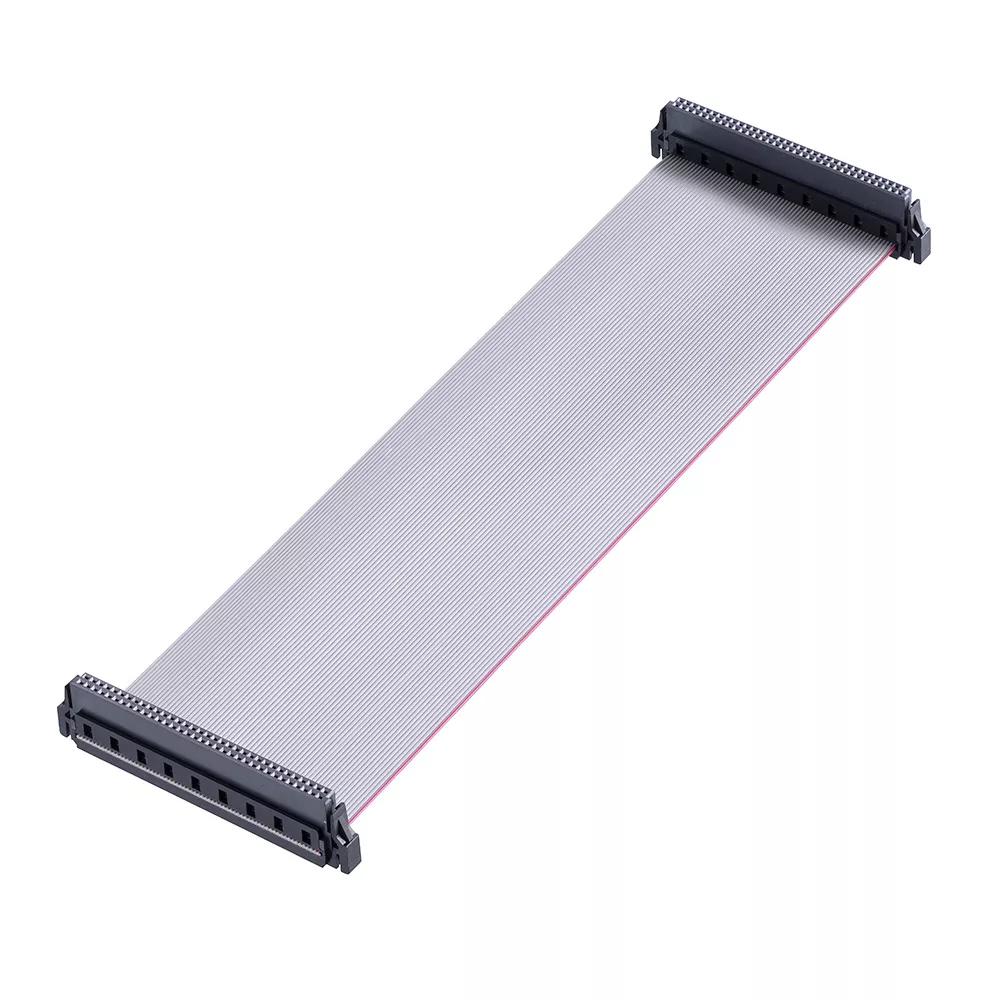

34+34 Pos. Female DIL IDC Cable Assembly, 300mm, double-end
1.27mm (0.05") Pitch PCB Connector - Archer Kontrol
- Female-to-Female with UL2678 30 AWG ribbon cable, 300mm length – 68 contacts (34+34).

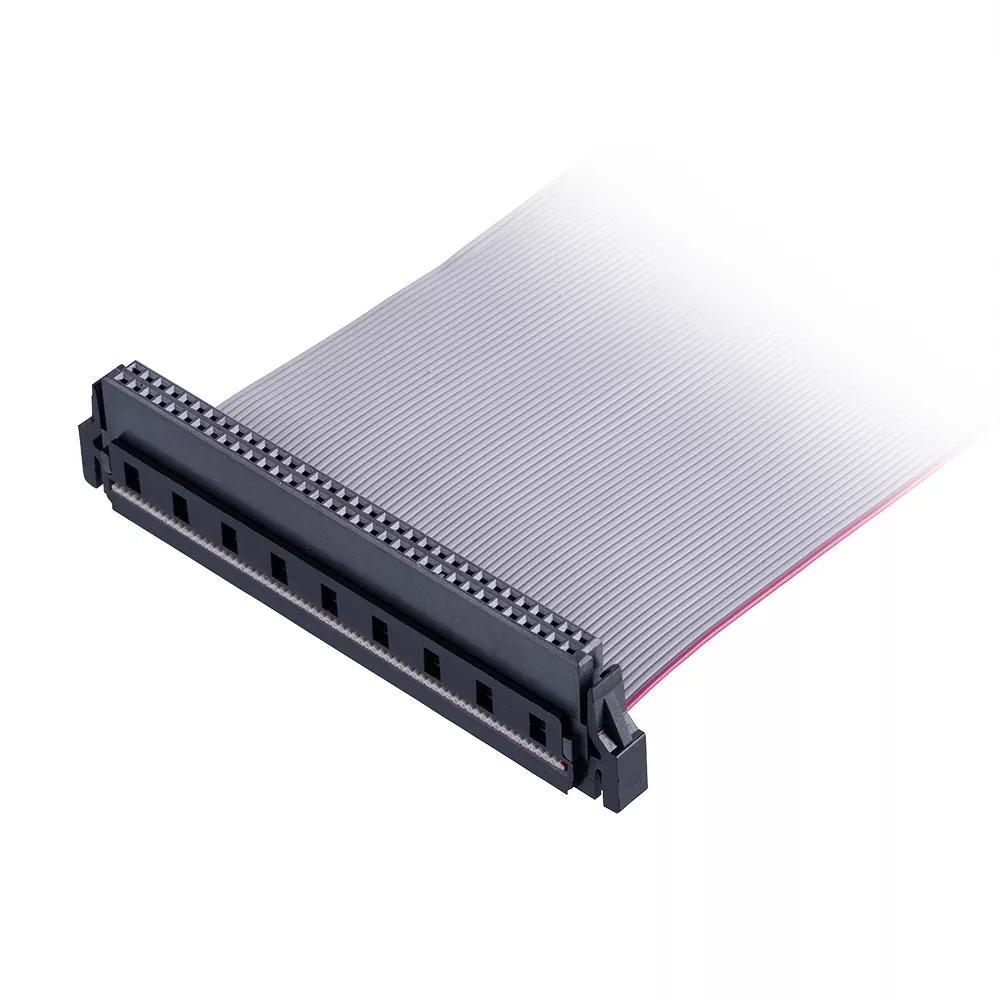

- Manufactured with the M55-8206842 female cable connector, featuring latching features, polarization and shrouding. Gold finish on mating contact area.
- For complete pin numbering or pin out information, see Component Specification C047XX.
EU RoHS Status:
Cable Conductor Size:
0.5A max per contact
-20°C to +105°C
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
LCP (PA66 Latch Cover)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
307.75 x 51.56 x 12.20
14 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
What is the durability spec. for these connectors?
The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.
