M55-8005042-0300A

25+25 Pos. Female DIL IDC Cable Assembly, 300mm, double-end

1.27mm (0.05") Pitch PCB Connector - Kontrol

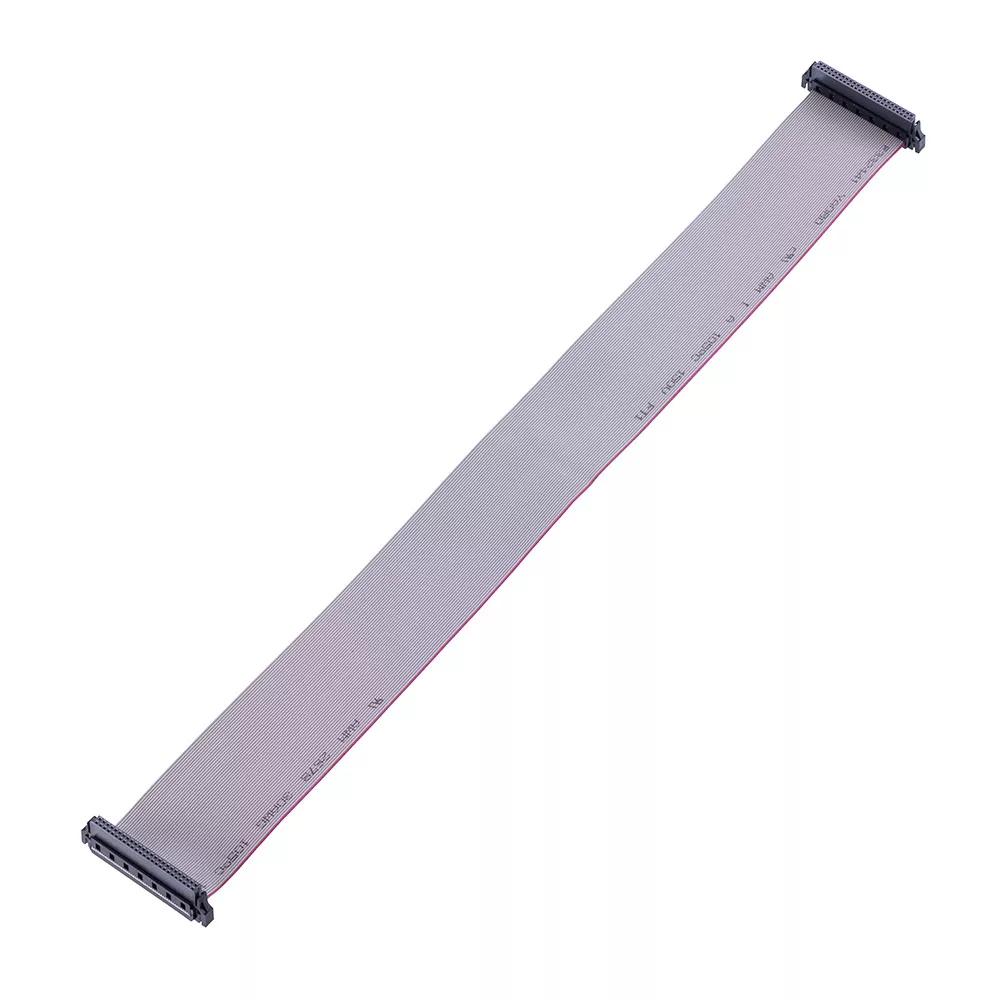

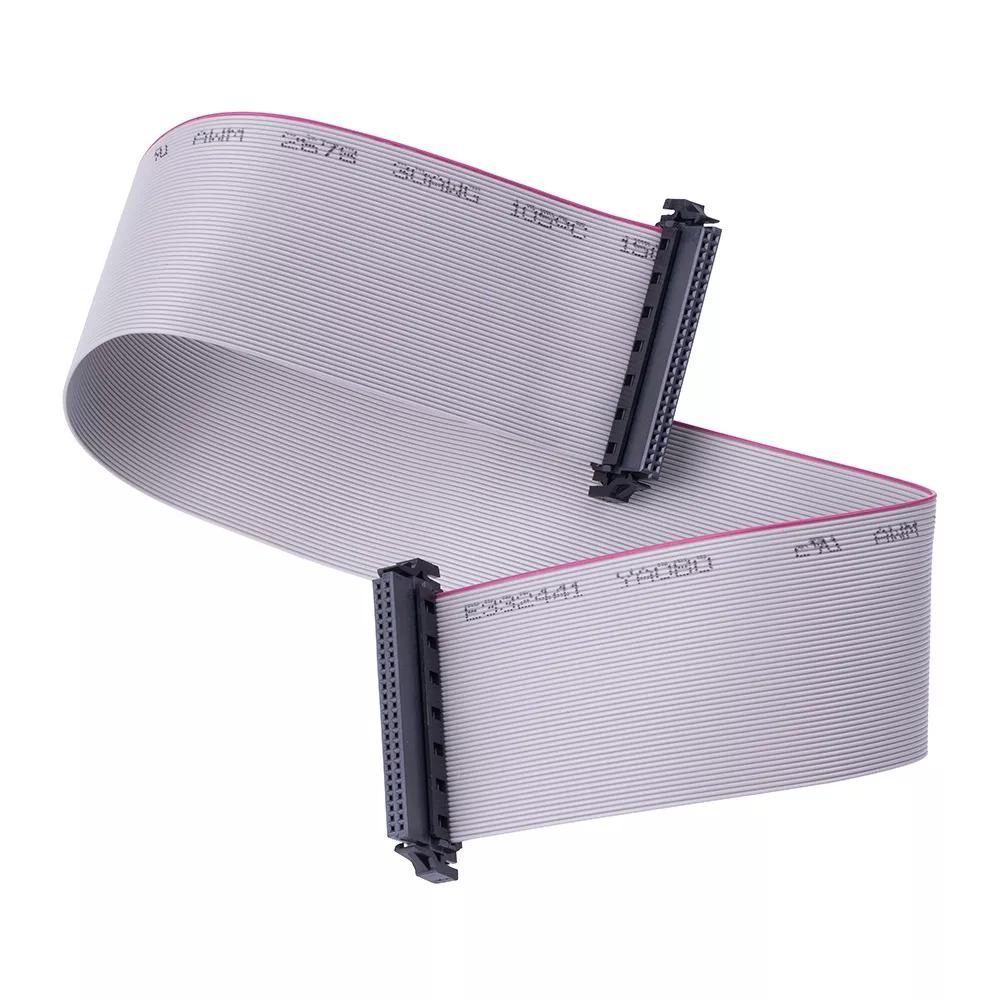

  • Female-to-Female with UL2678 30 AWG ribbon cable, 300mm (12") long - 50 contacts (25+25).

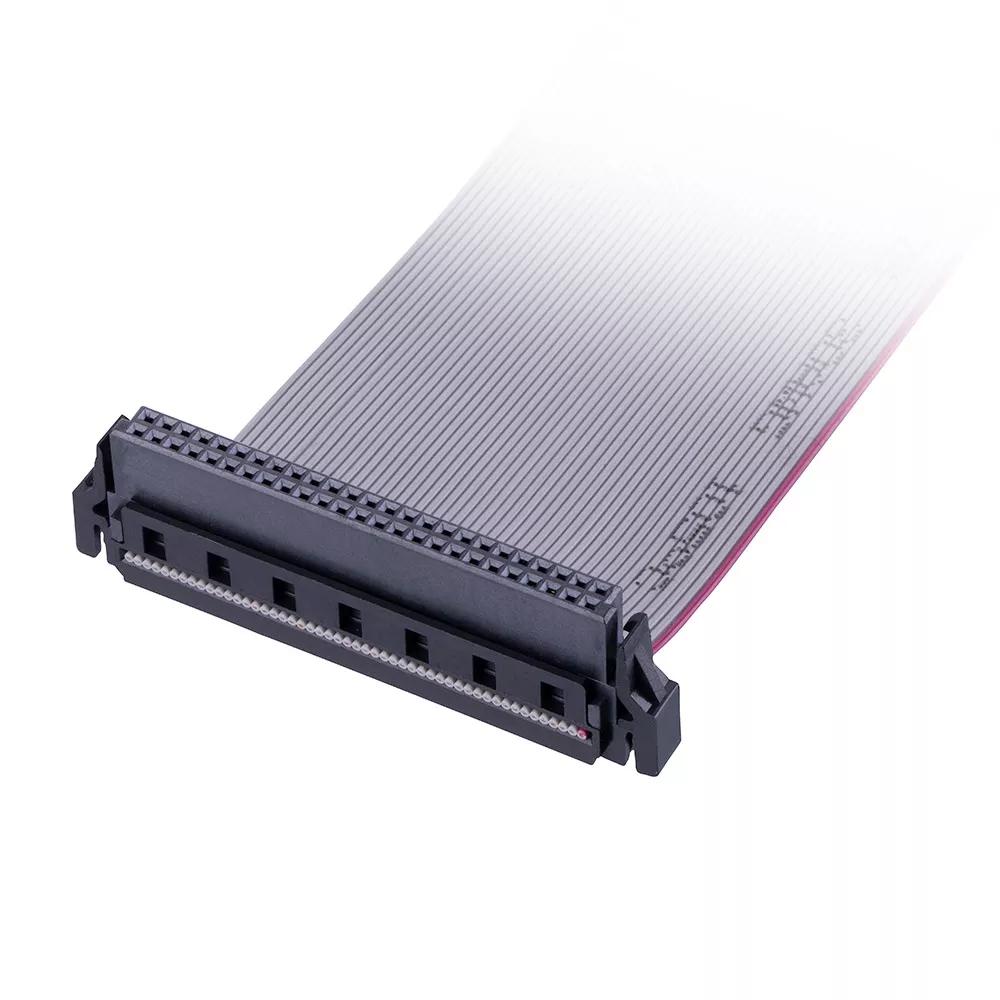

  • Manufactured with the M55-8205042 female cable connector, featuring latching features, polarization and shrouding. Gold finish on mating contact area.

  • For complete pin numbering or pin out information, see Component Specification C047XX.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Latching Style:

    Built-in Latches

  • Number of Rows:

    2

  • Connector Orientation:

    Angled

  • Country of Origin:

    CN

  • Side Stackable:

    No

  • Number of Signal Contacts:

    50

  • Operating Temperature:

    -20°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    0.5A max per contact

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    LCP (PA66 Latch Cover)

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    1.27mm (0.05")

  • Weight:

    18.2g

  • Dimensions:

    307.75 x 40.13 x 12.20

  • Wire Size:

    30 AWG

Downloads

    Product Information

  • Catalog page - Archer Kontrol Mating Profiles

  • Product Training Module - Overview Guide to the Kontrol (M55 Series) High Performance range

  • Product Training Module - Cable Products from Harwin

  • Product Datasheet - KONTROL: M55 range (BBi)

    • Technical Documentation

  • Technical Drawing / Datasheet - M55-800.pdf

  • C047XX Component Specification - Kontrol M55 Series (1.27mm Pitch Industrial connectors)

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material composition for M55-800XX42-YYYYA series

  • RoHS - M55-8005042-0300A

    • Test Reports

  • Test Report HT060 - Kontrol (M55 series) - General (Electrical + Mechanical and Environmental)

  • Test Report HT064 - Kontrol (M55 Series) - Comparison to competitor product
