M55-8004042-0300A

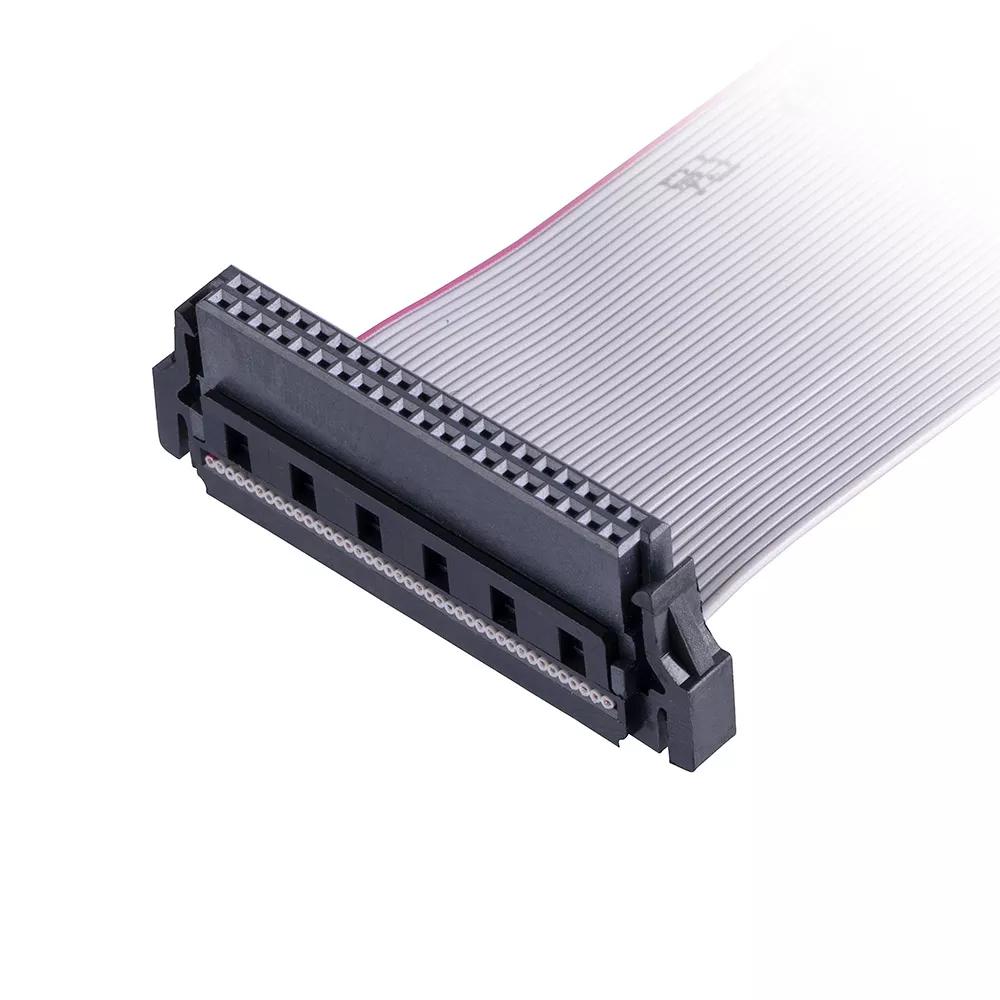

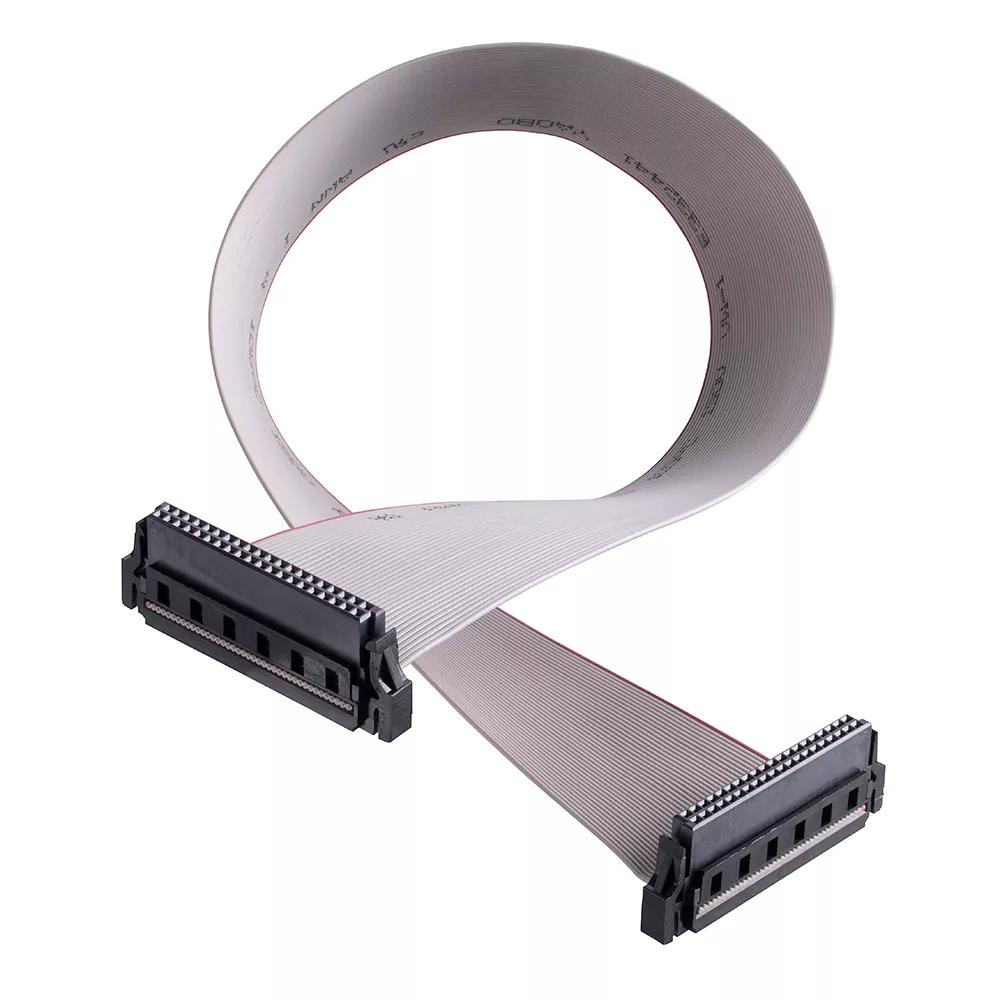

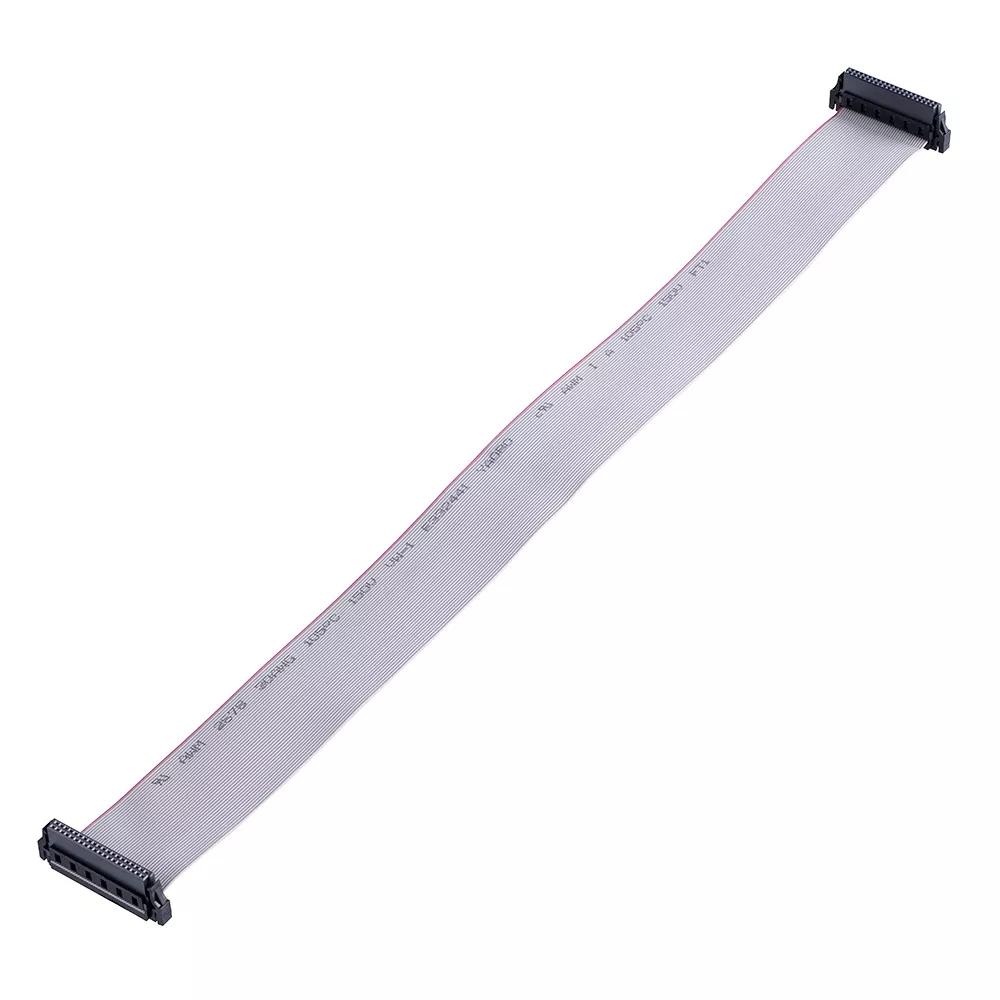

20+20 Pos. Female DIL IDC Cable Assembly, 300mm, double-end

1.27mm (0.05") Pitch PCB Connector - Kontrol

Order Sample

Add to Favorites

Loading… Check availability

6 similar products View products

Traceparts account required

Product Description

Female-to-Female with UL2678 30 AWG ribbon cable, 300mm (12″) long – 40 contacts (20+20).
Manufactured with the M55-8204042 female cable connector, featuring latching features, polarization and shrouding. Gold finish on mating contact area.
For complete pin numbering or pin out information, see Component Specification C047XX.

M55-8004042-0300A - 20+20 Pos. Female DIL IDC Cable Assembly, 300mm, double-end

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Cable Conductor Size:

30AWG

Current Rating:

0.5A max per contact

Operating Temperature:

-20°C to +105°C

Style of Latches:

Built-in Latches

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP (PA66 Latch Cover)

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

15.2g

Overall Dimensions (L x W x D) in mm:

307.75 x 33.78 x 12.20

Mating Profiles:

Catalog page - Archer Kontrol Mating Profiles

Frequently Asked Questions Ask a Question

The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
