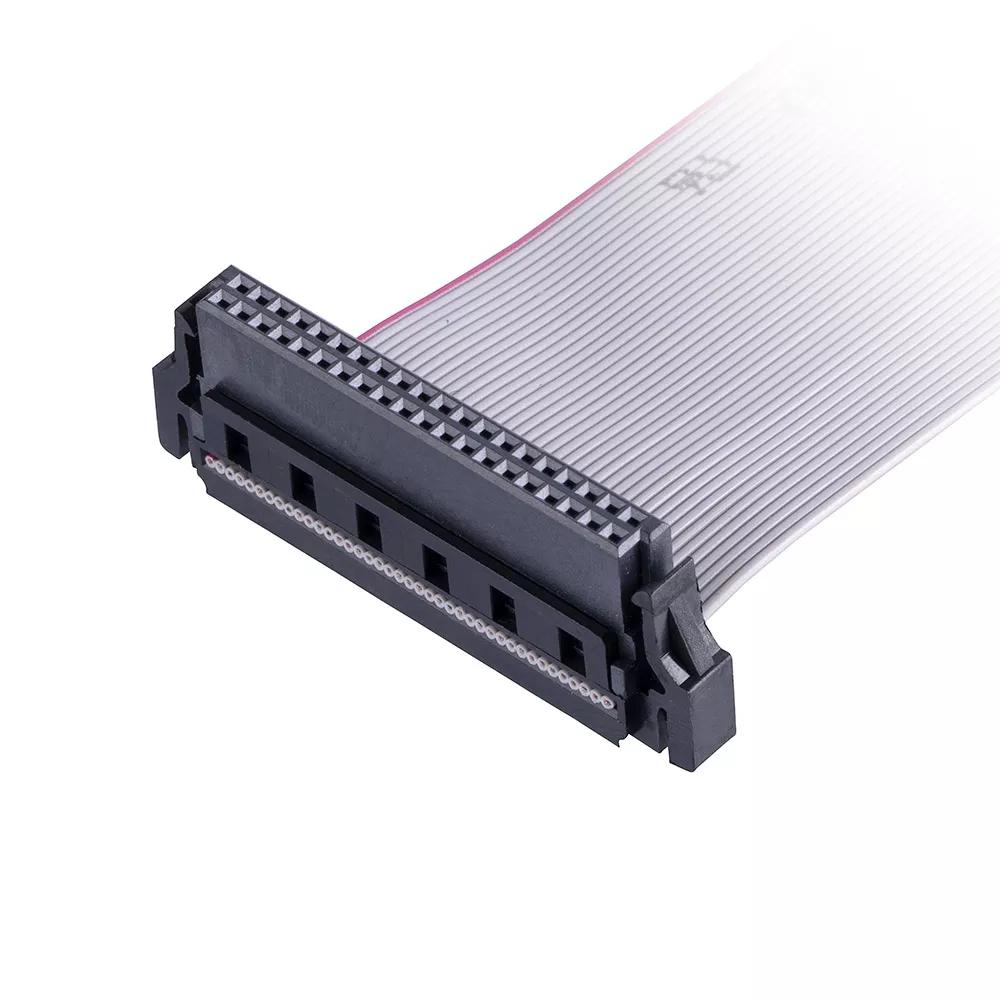

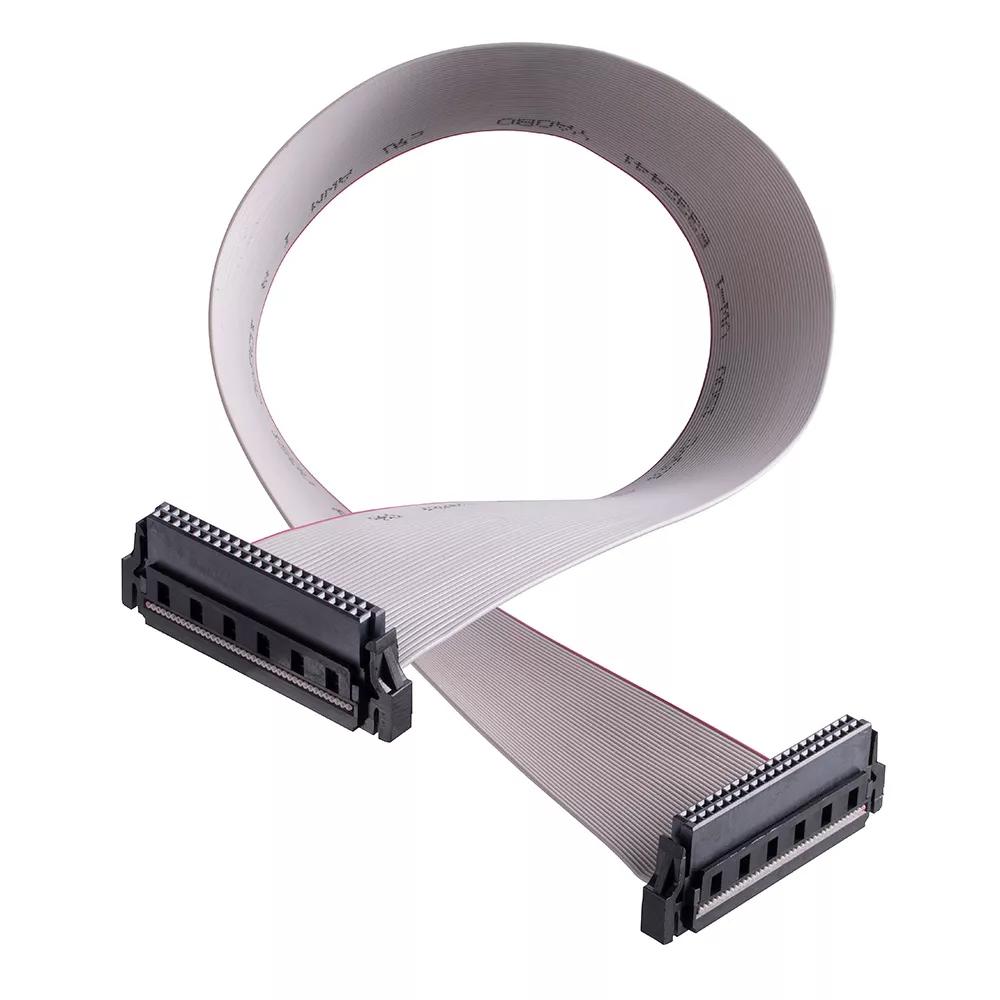

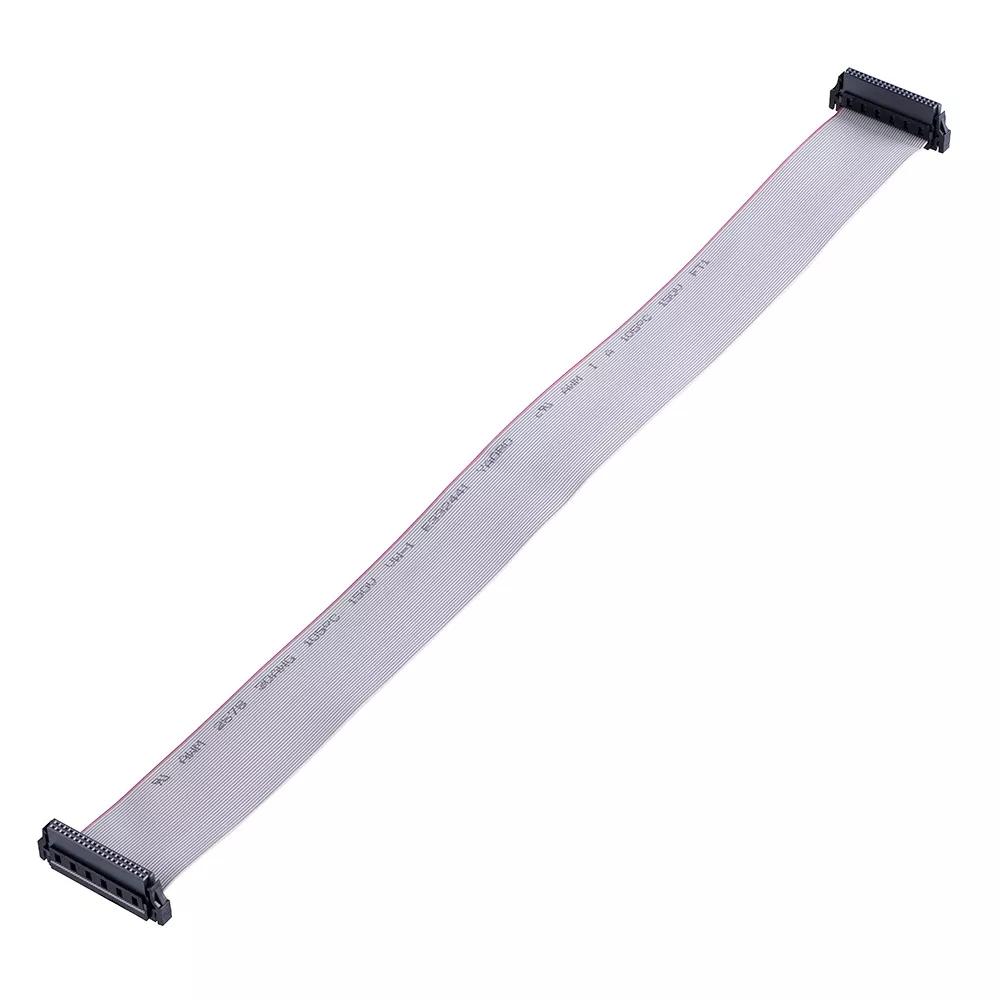

20+20 Pos. Female DIL IDC Cable Assembly, 150mm, double-end
1.27mm (0.05") Pitch PCB Connector - Archer Kontrol
- Female-to-Female with UL2678 30 AWG ribbon cable, 150mm length – 40 contacts (20+20).
- Manufactured with the M55-8204042 female cable connector, featuring latching features, polarization and shrouding. Gold finish on mating contact area.
- For complete pin numbering or pin out information, see Component Specification C047XX.
EU RoHS Status:
Cable Conductor Size:
0.5A max per contact
-20°C to +105°C
Style of Latches:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
LCP (PA66 Latch Cover)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
157.75 x 33.78 x 12.20
Frequently Asked Questions Ask a Question
What is the durability spec. for these connectors?
The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
How can we help?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
