M55-7104042R

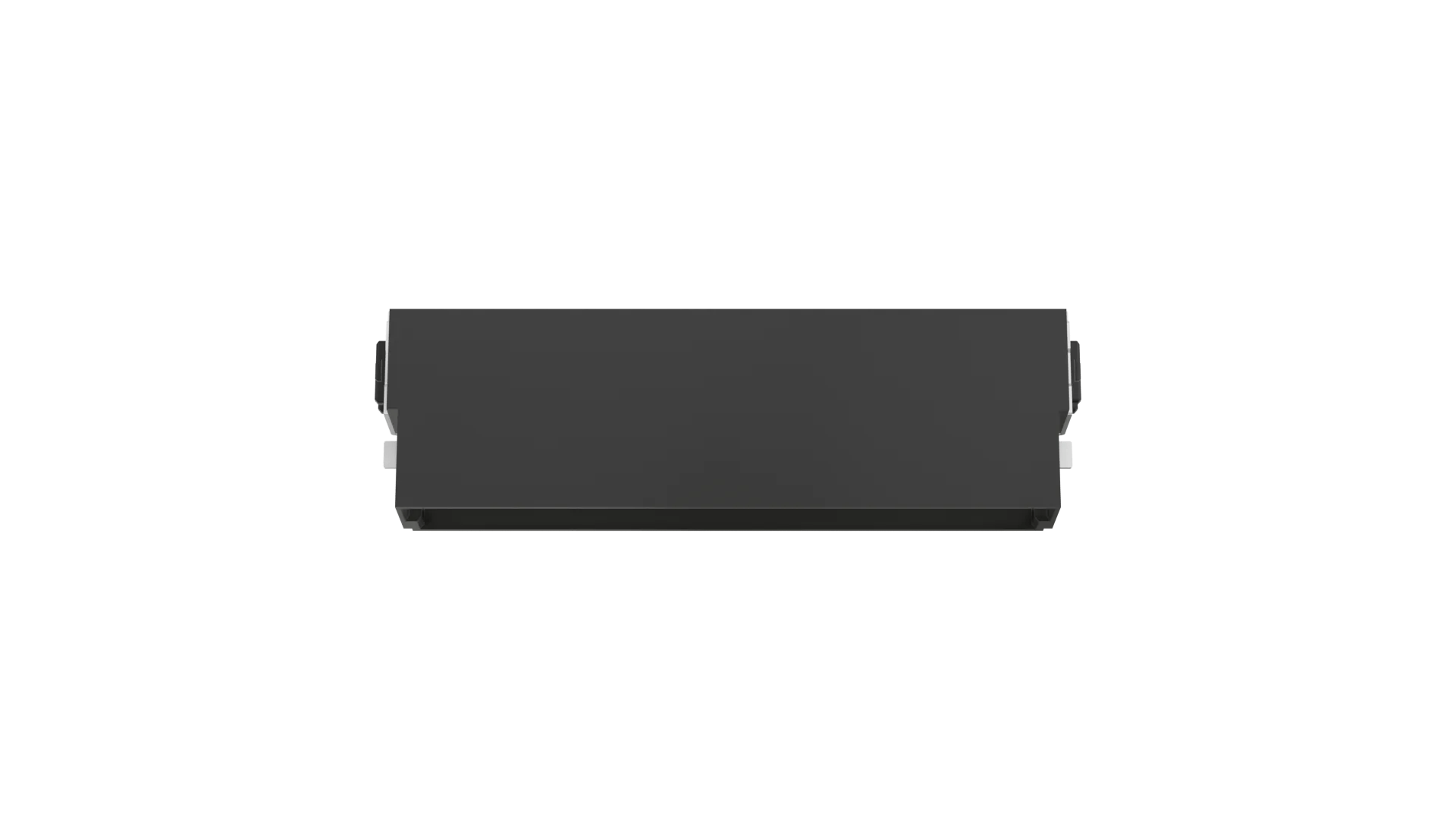

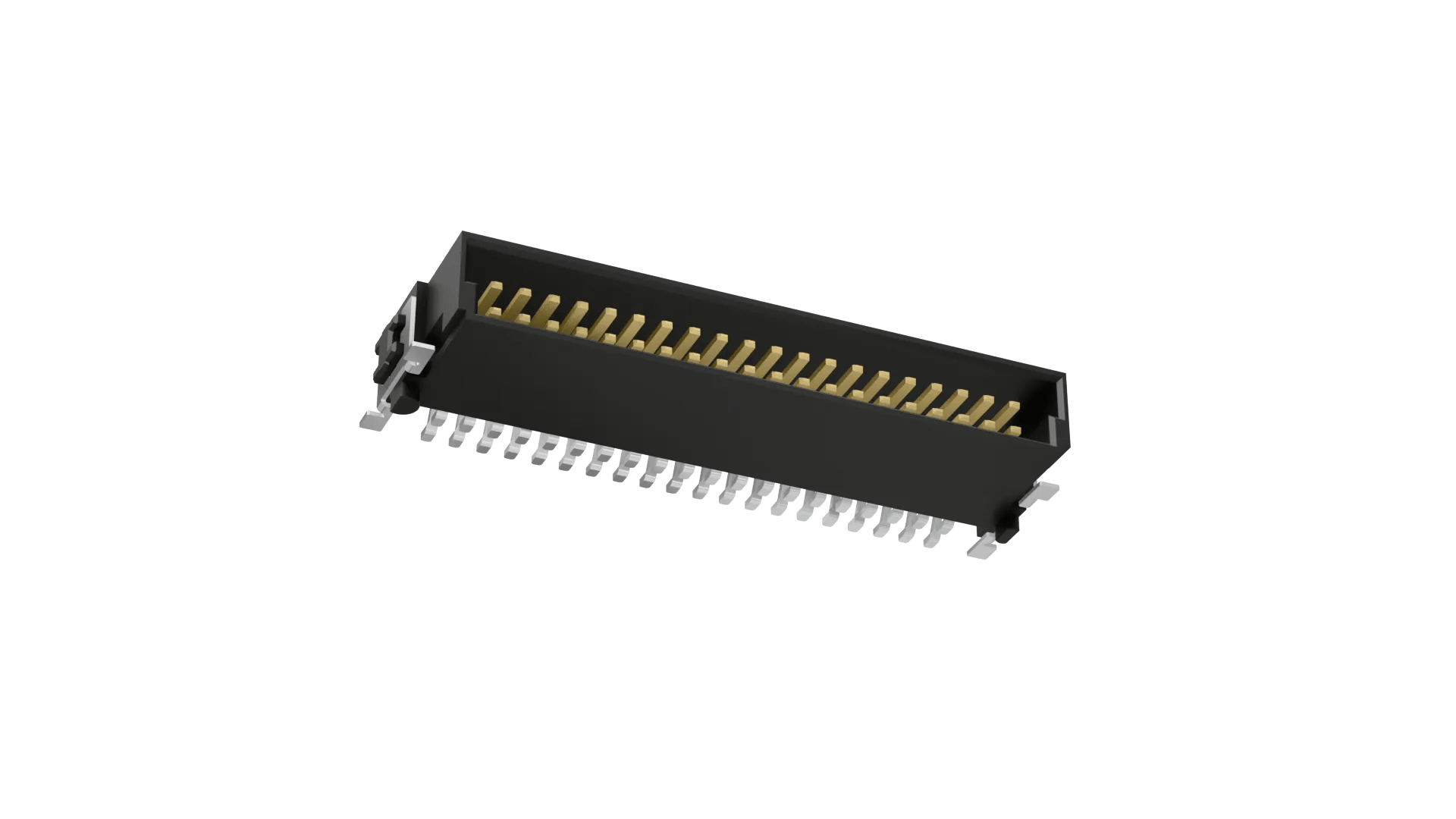

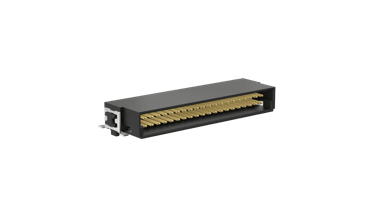

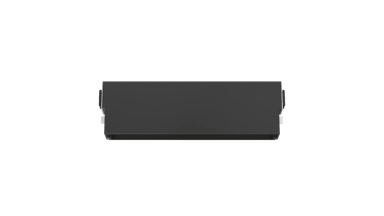

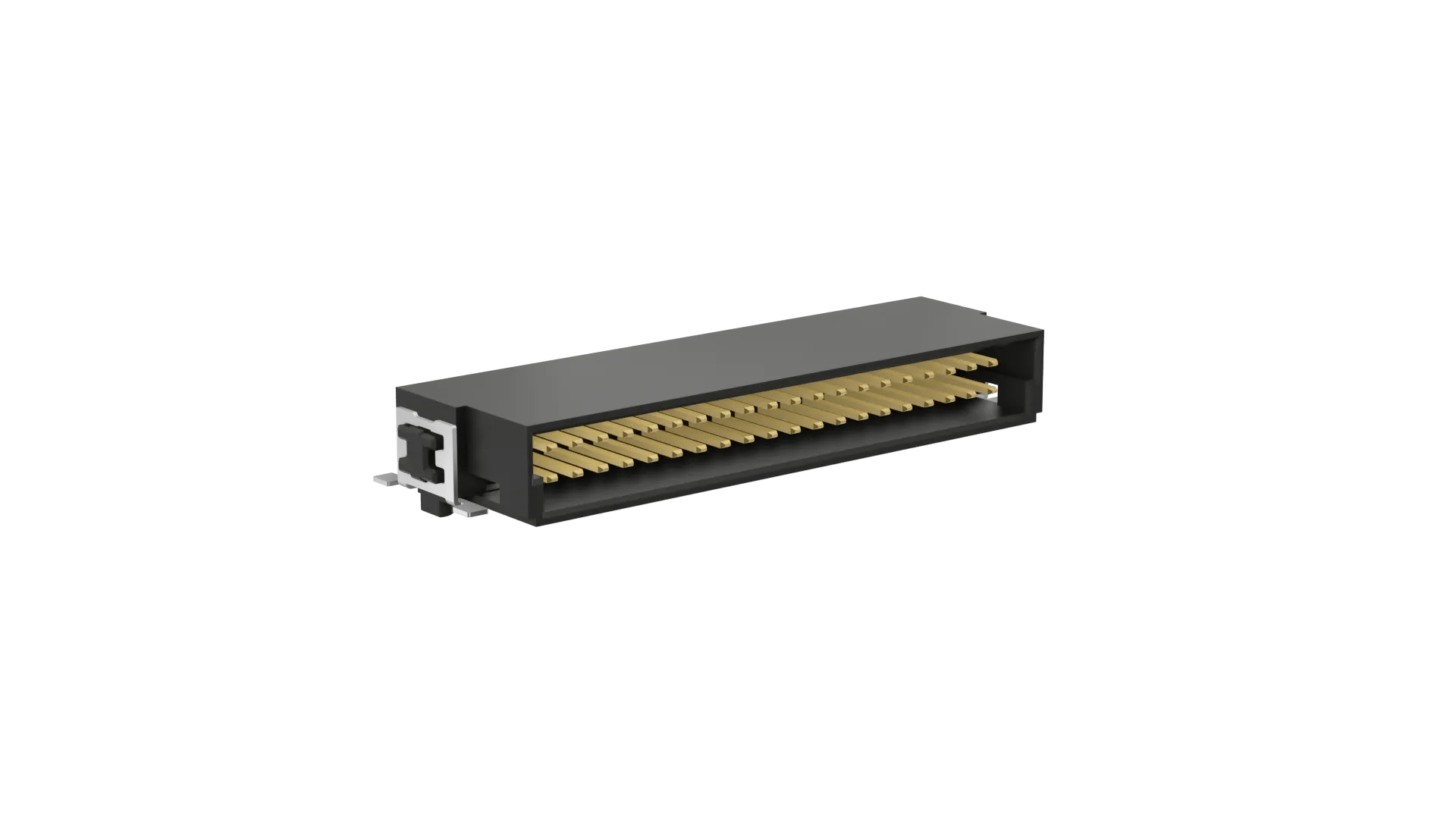

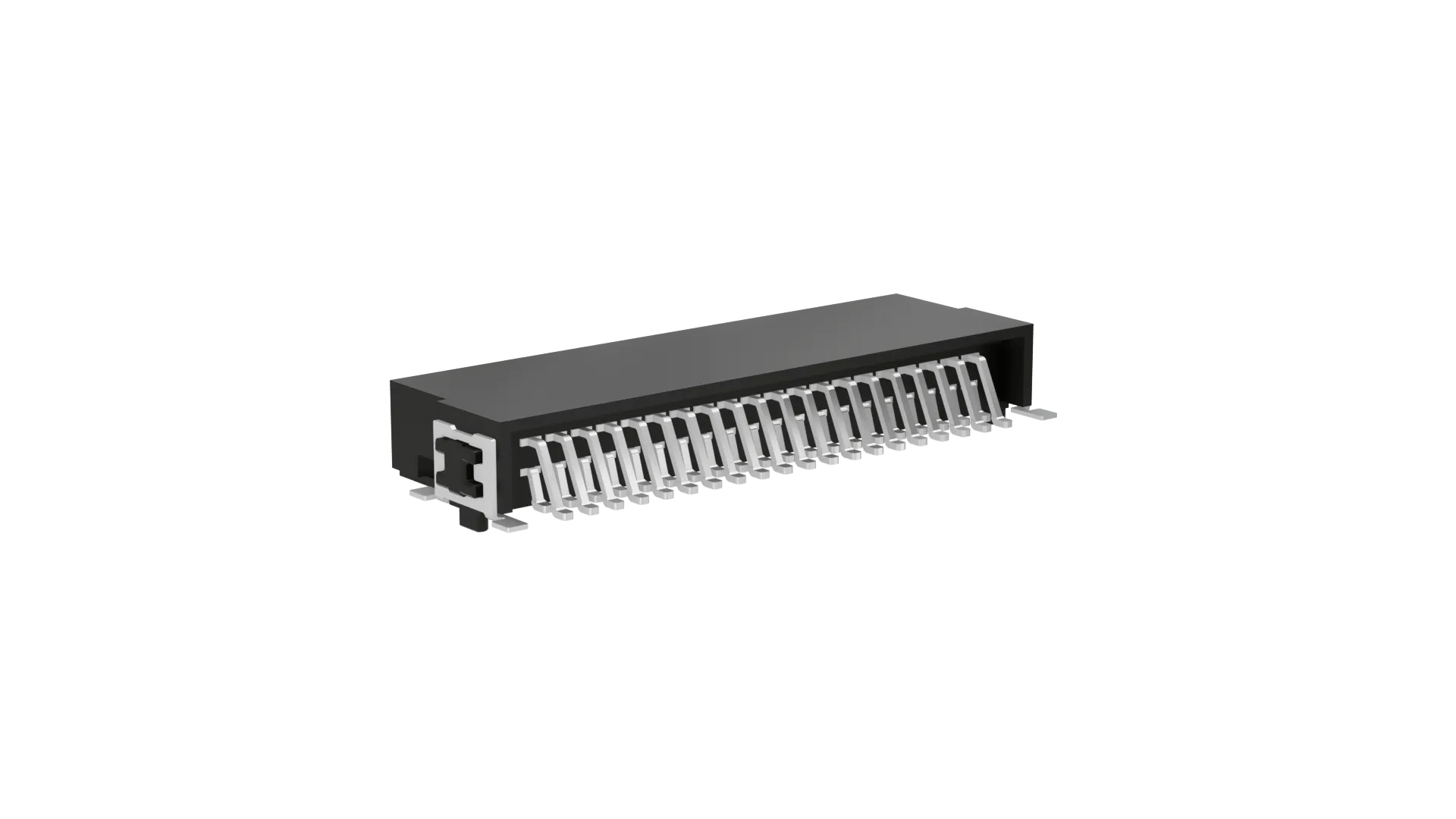

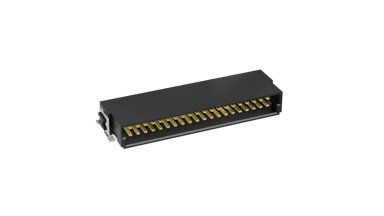

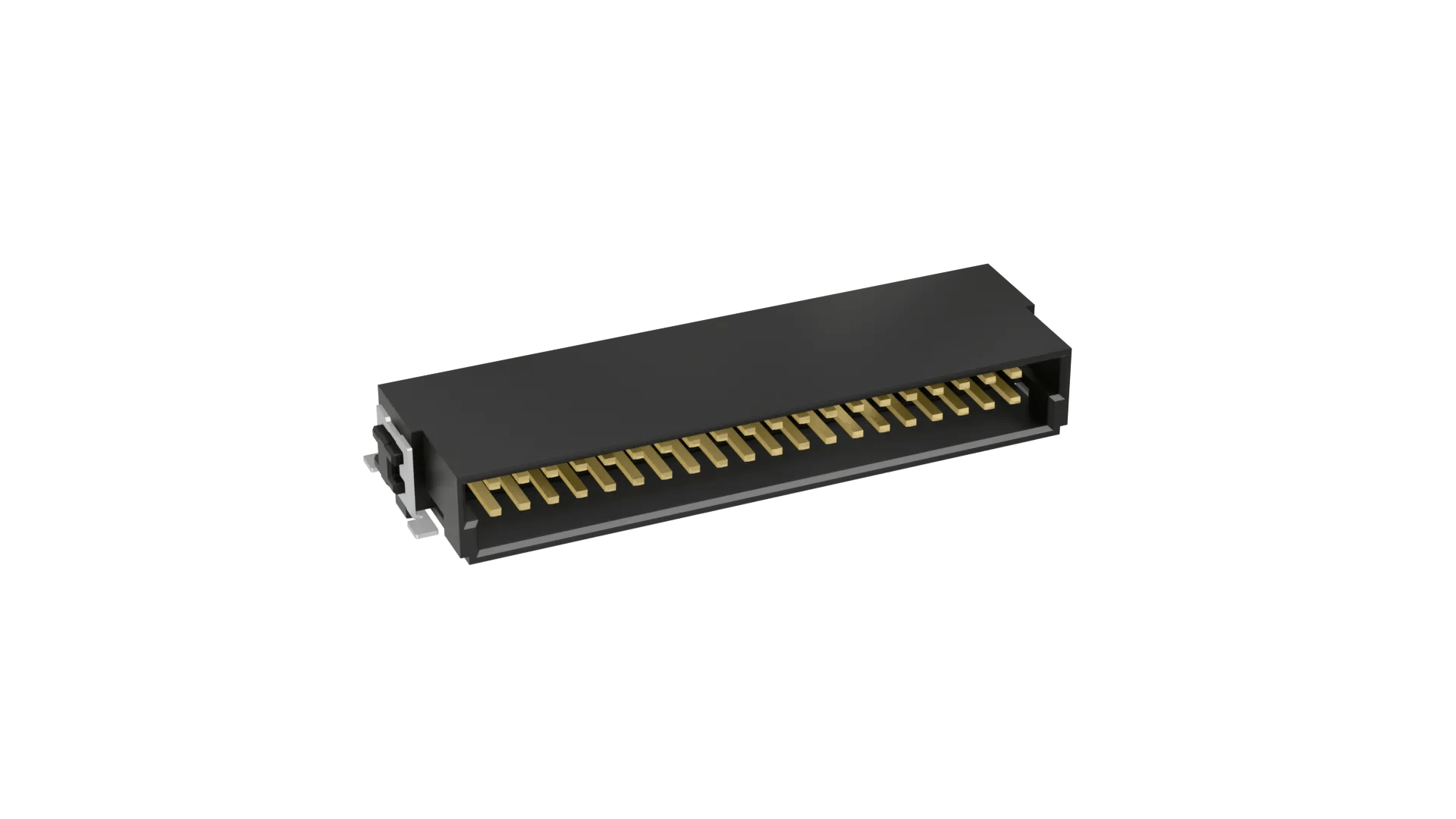

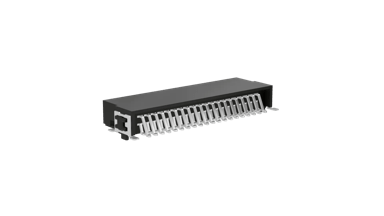

20+20 Pos. Male DIL Horizontal SMT Conn. (T+R)
1.27mm (0.05") Pitch PCB Connector - Kontrol
Loading… Check availability
3 similar products View products
Traceparts account required
Product Description
- Double Row Surface Mount, 10mm total footprint depth, shrouded polarized connector – 40 contacts (20+20). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
- Board stacking connectors for 90 degree or coplanar board-to-board connection. Supplied in Tape and Reel. Gold finish on contact area, Tin finish on termination.
- For complete pin numbering or pin out information, see Component Specification C047XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Male/Plug
Connector Orientation:
Horizontal
Connection Type:
Surface Mount (SMT)
Current Rating:
1.2A max per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
40
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
1.342g
Overall Dimensions (L x W x D) in mm:
30.48 x 10.00 x 4.95
Height of Connector above PCB:
4.20mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Is there any restriction on PCB location for this connector, such as near the edge or central mounting?
You will need to locate the connector near the edge of the PCB – typically the front face will be slightly over the edge. You can check the Technical Drawing (under downloads) for the recommended distance to the footprint from the PCB edge.
Was this answer useful?
What is the durability spec. for these connectors?
The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.
Was this answer useful?
What is the frequency rating of this connector?
The frequency rating of the Archer Kontrol connector range is 3GHz for board-mounted connectors. You can find more information on the test criteria in the HT060xx Test Report Summary.
Was this answer useful?
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
Was this answer useful?
