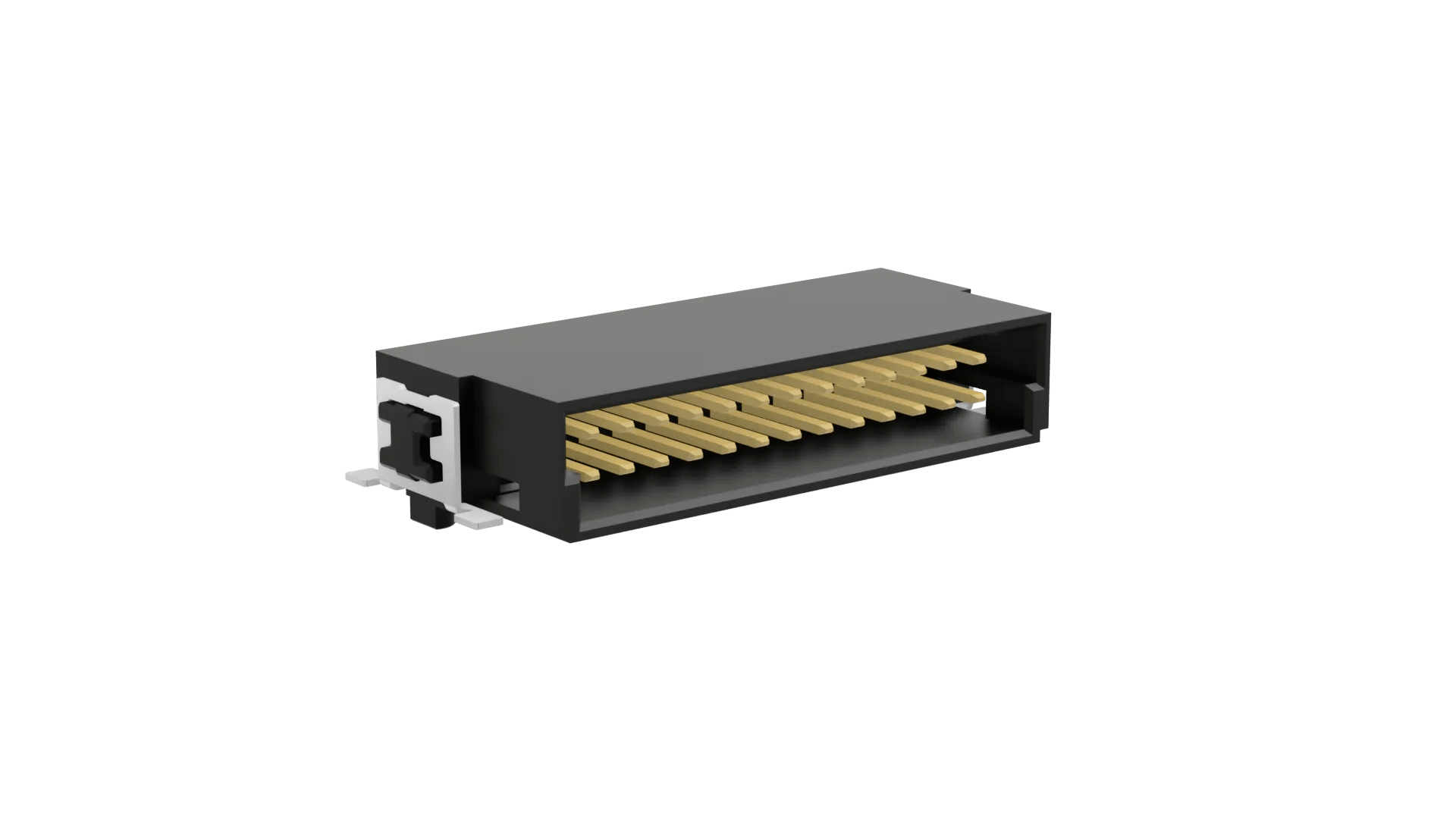

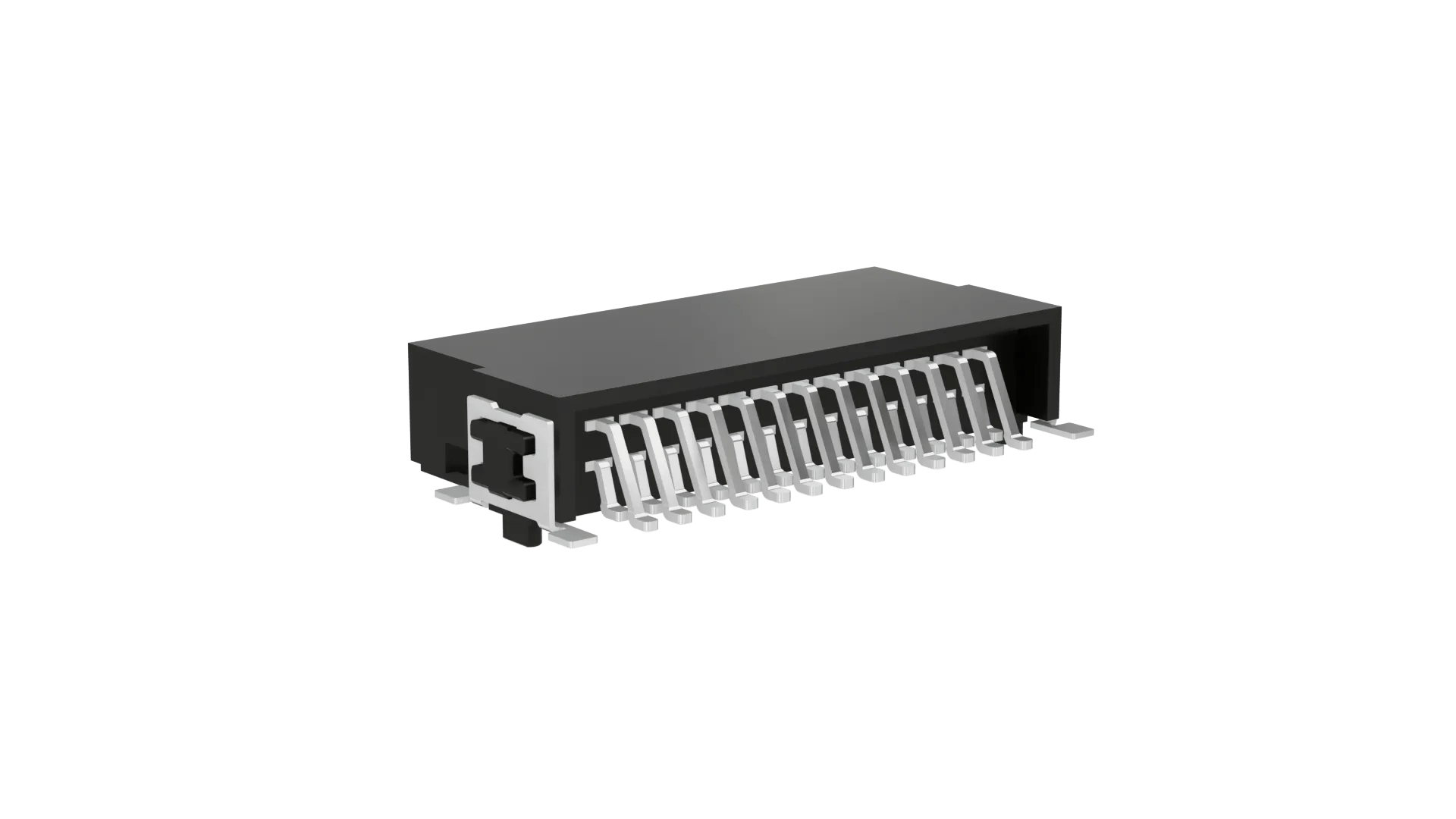

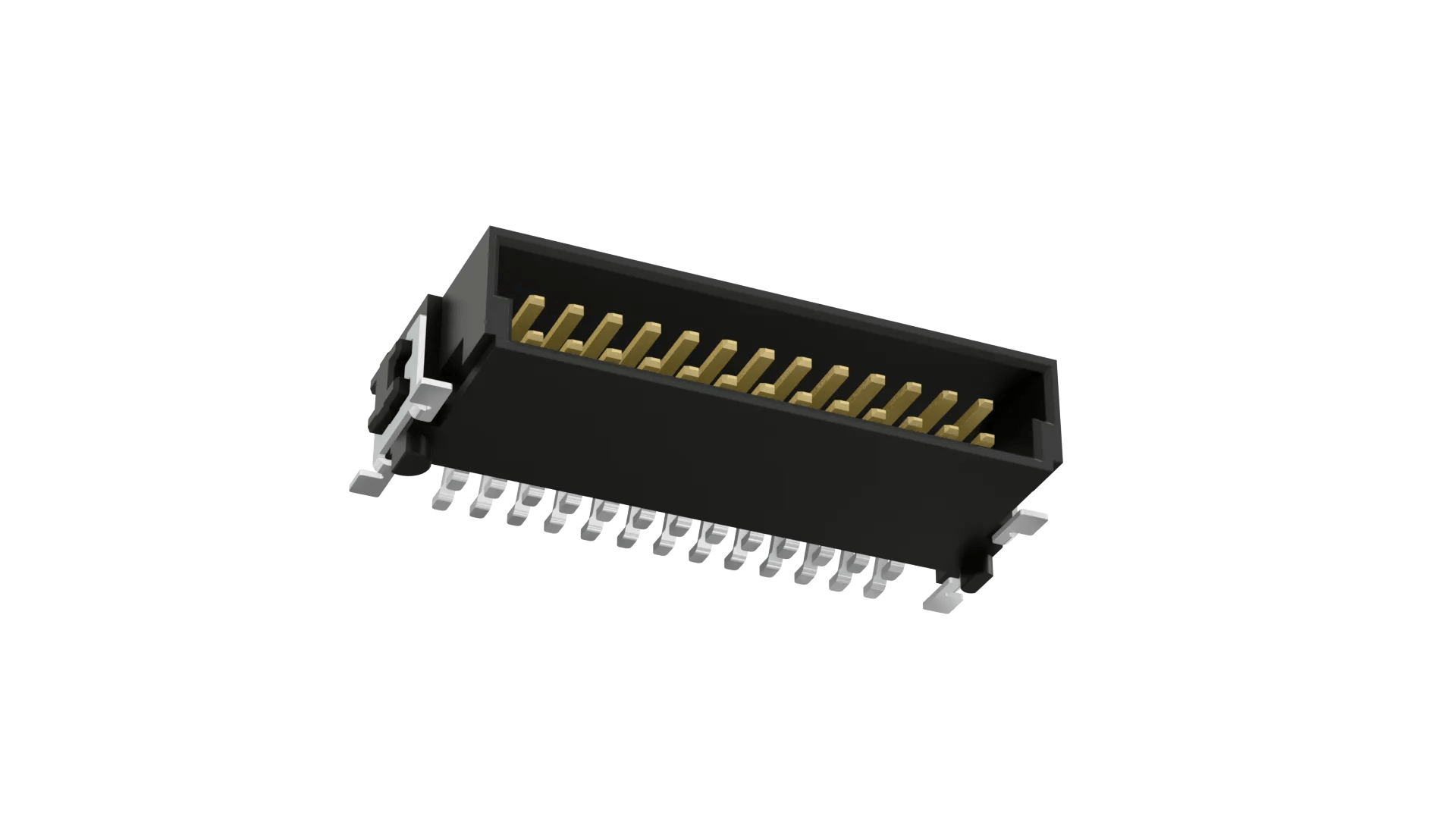

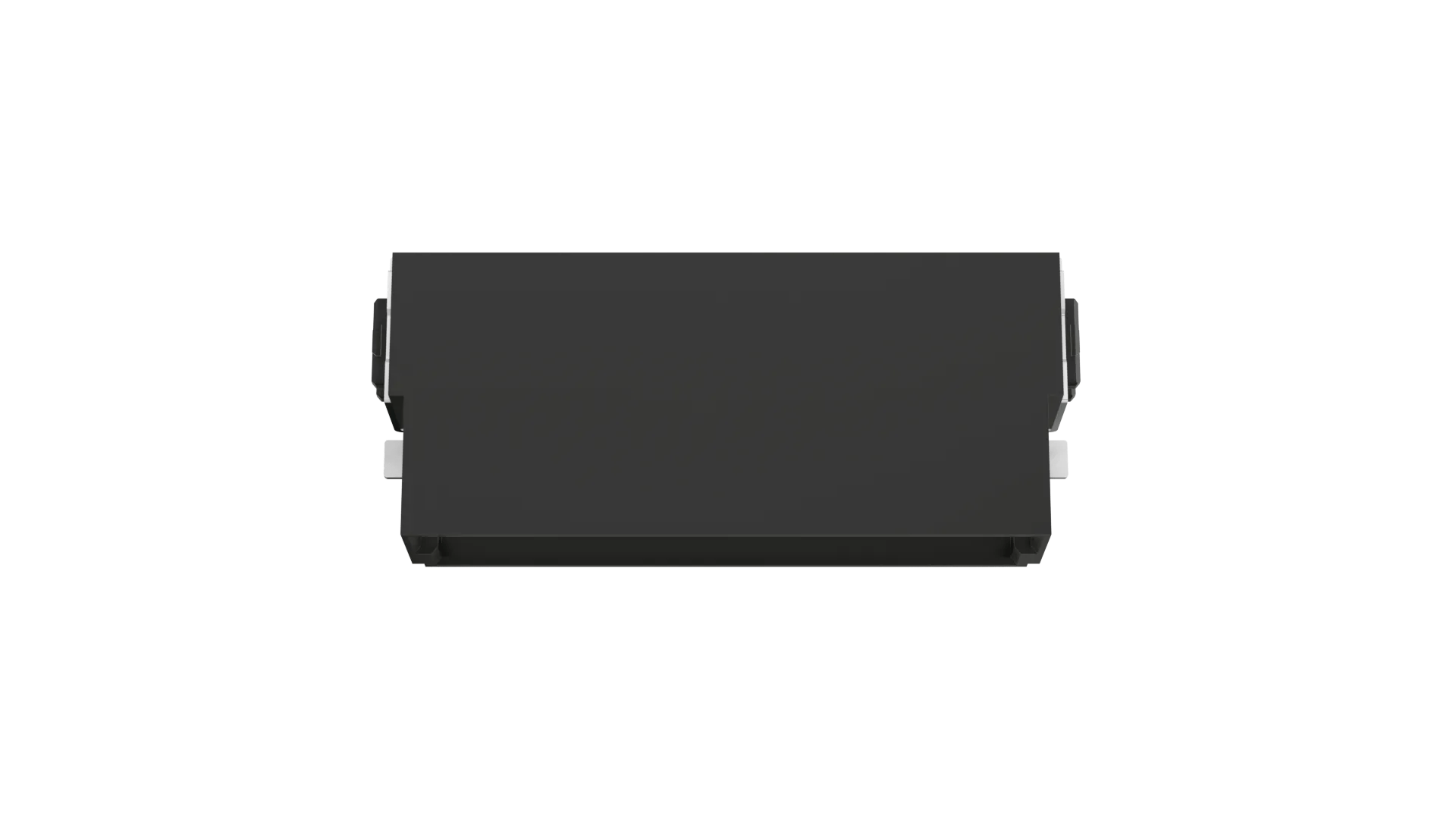

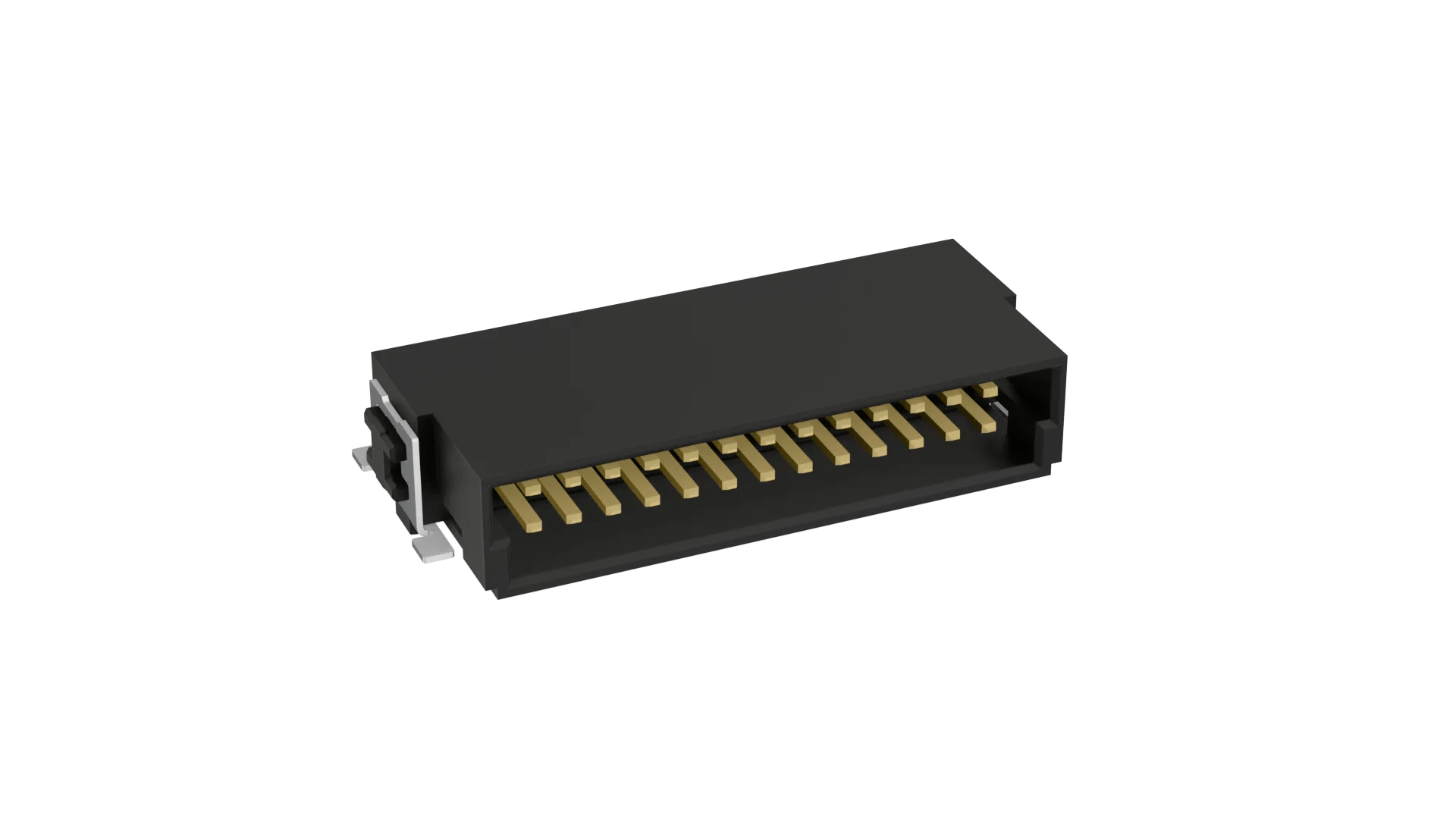

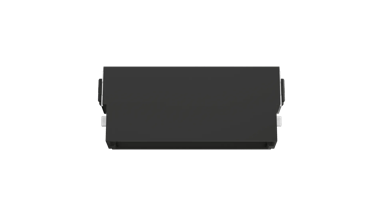

13+13 Pos. Male DIL Horizontal SMT Conn. (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer Kontrol
- Double Row SMT, 10mm total footprint depth, shrouded polarized connector – 26 contacts (13+13).
- Location pegs, surface mount hold-down retaining tabs for additional solder strength.
- Board stacking connectors for 90 degree or coplanar board-to-board connection. Supplied in Tape and Reel.
EU RoHS Status:
Surface Mount (SMT)
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
21.59 x 10.00 x 4.95
Height of Connector above PCB:
Questions & Answers Ask a Question
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
Was this helpful?
65% found this helpful
M55-7102642R CAD Model (ZIP file containing STP and IGES)Download
