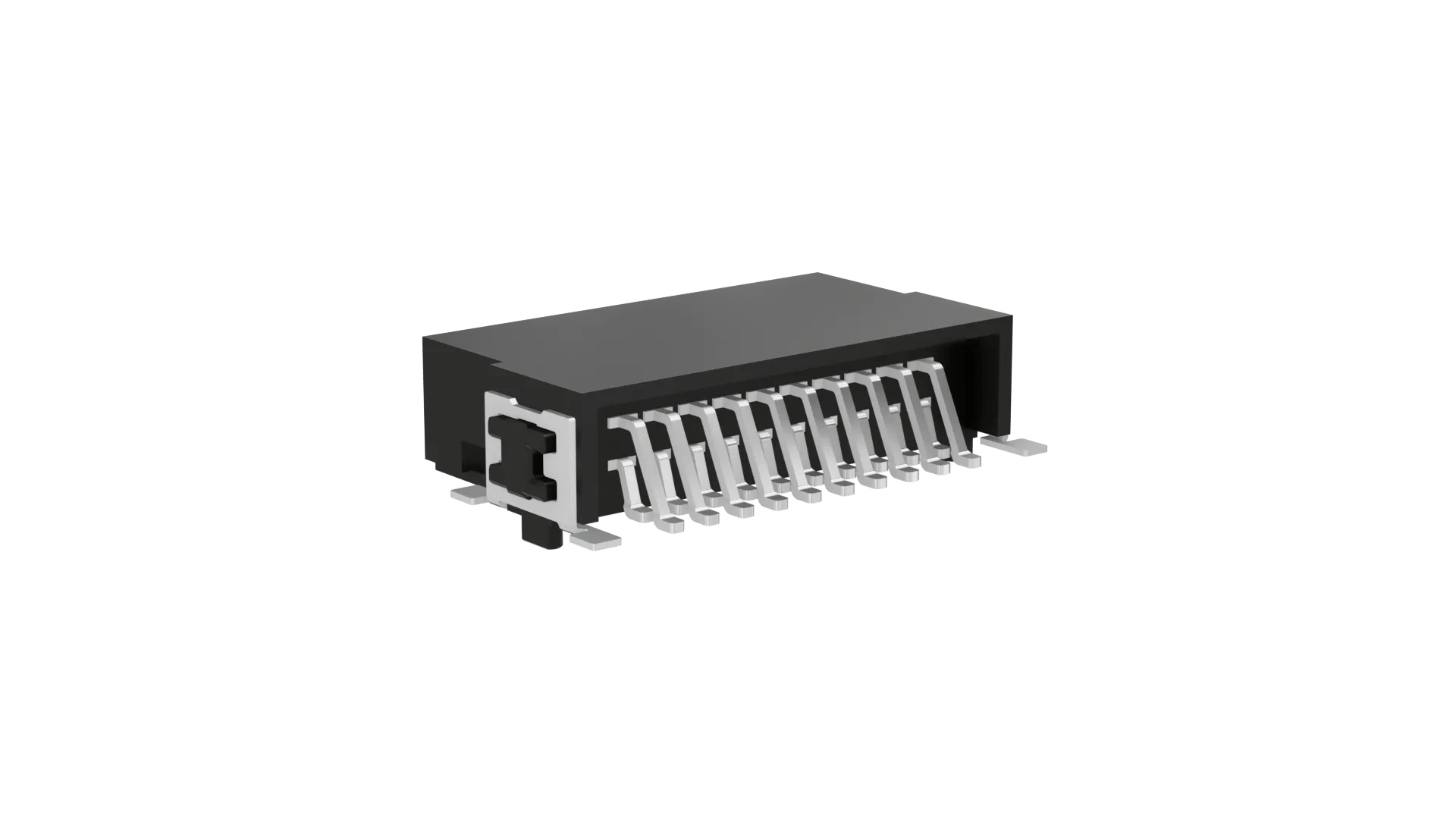

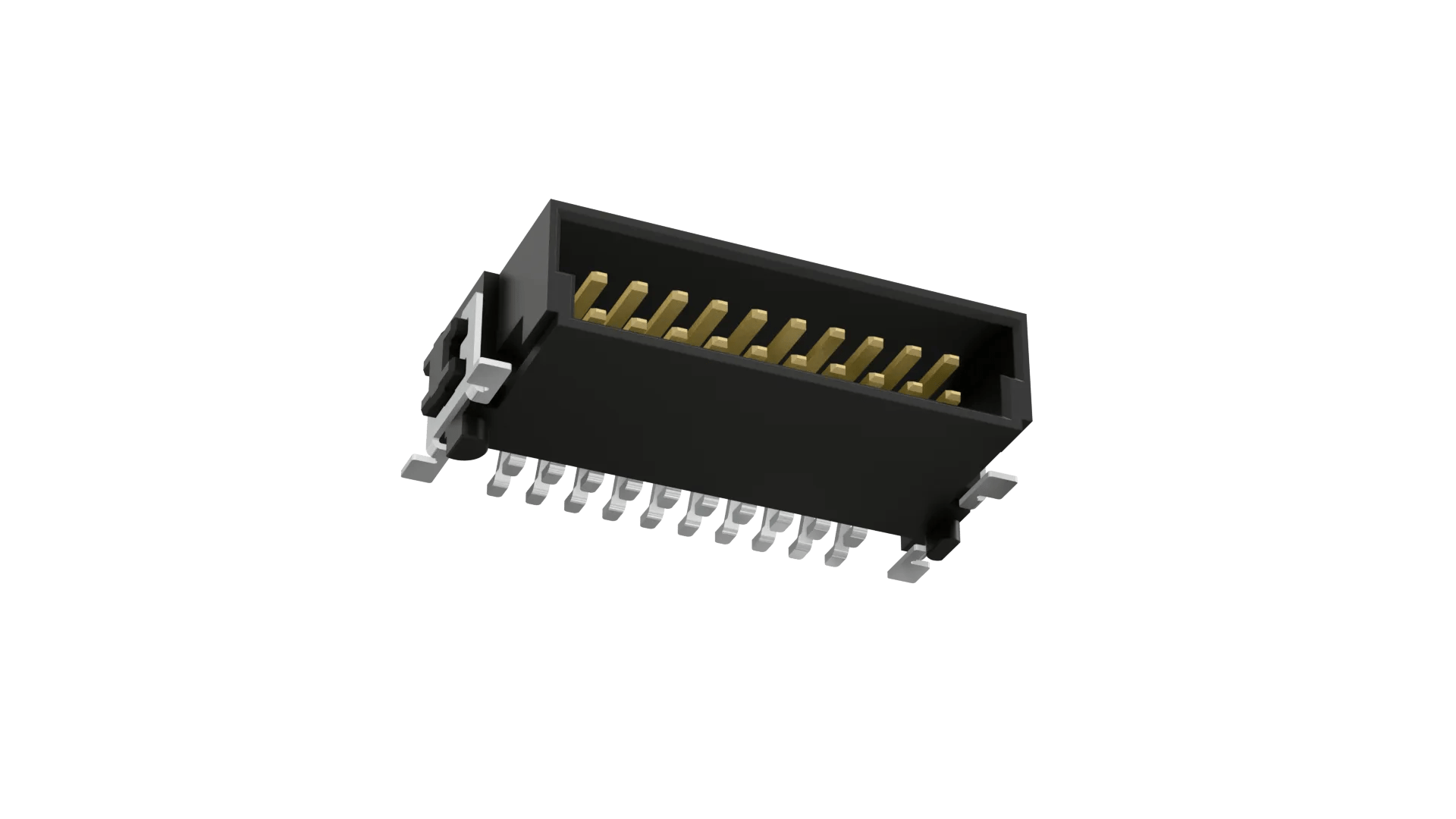

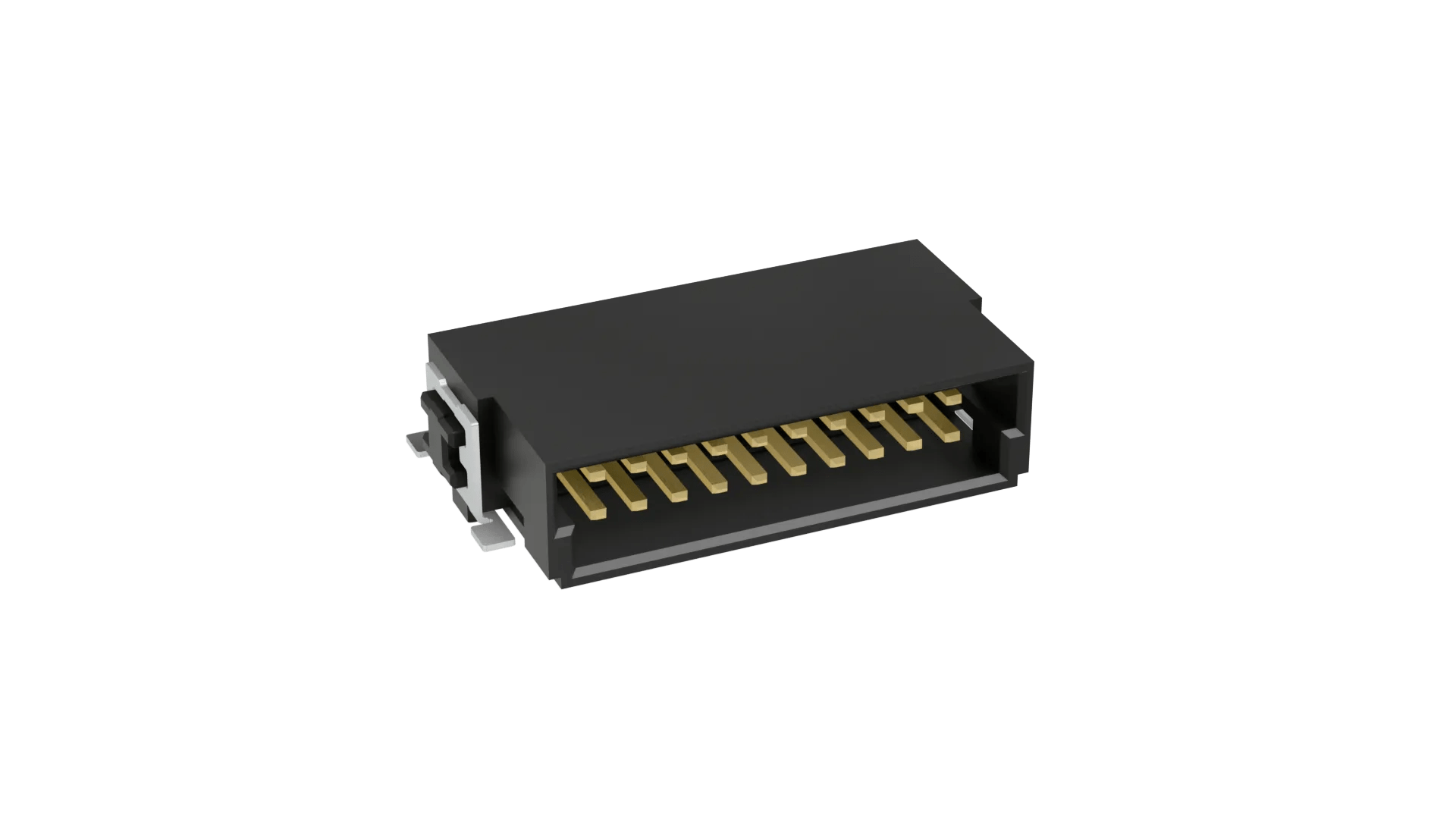

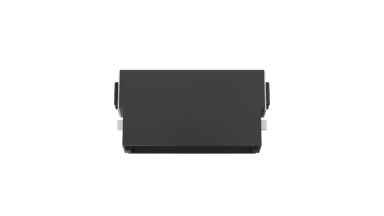

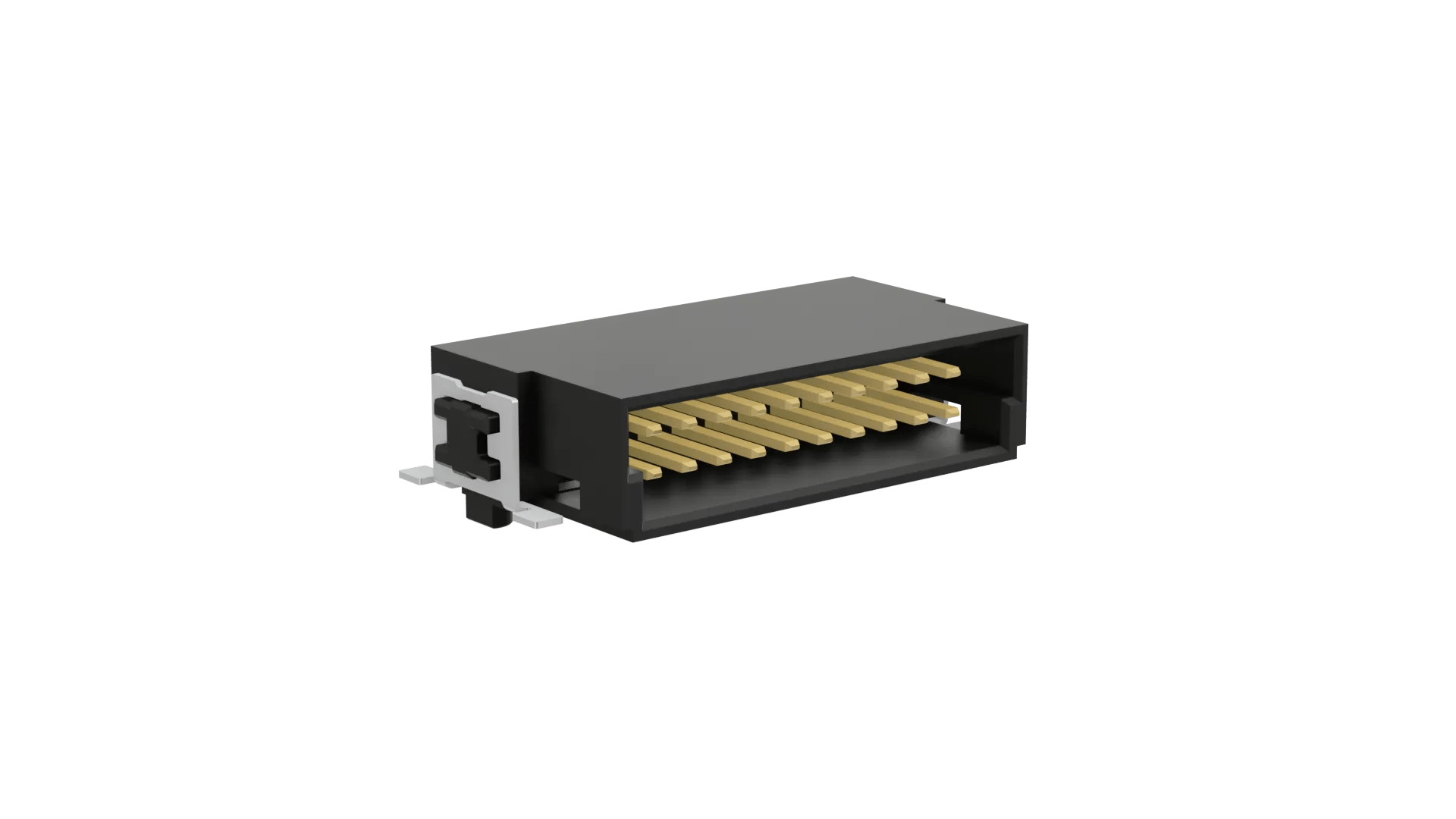

M55-7102042R

10+10 Pos. Male DIL Horizontal SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row SMT, 10mm total footprint depth, shrouded polarized connector - 20 contacts (10+10).
  • Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for 90 degree or coplanar board-to-board connection. Supplied in Tape and Reel (with pick and place cap).

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Avnet Abacus Europe 1200 Buy Now
Digi-Key Global 677 Buy Now
Farnell Europe 314 Buy Now
Mouser Electronics Inc Global 226 Buy Now
Newark USA 600 Buy Now

Product Information

Specification

+
Product Type: 1.27mm (0.05") Pitch PCB Connector - Archer Kontrol
Contact Pitch: 1.27mm (0.05")
Contact Gender: Male/Plug
Connector Orientation: Horizontal
Connection Type: Surface Mount (SMT)
Current Rating: 1.2A
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: LCP
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.76g
Packaging Style: Tape and Reel

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 20
Body Length: 17.78mm
Height of Connector above PCB: 4.20mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Mating Profiles/Heights

Related Products

+
Product Family: M55-710

Mating Products

Alternative products

M55-7002042R - 10+10 Pos. Male DIL Vertical SMT Conn. (T+R)

Closest alternative:

M55-7002042R

10+10 Pos. Male DIL Vertical SMT Conn. (T+R)
