Home > M55-7101642R
Active

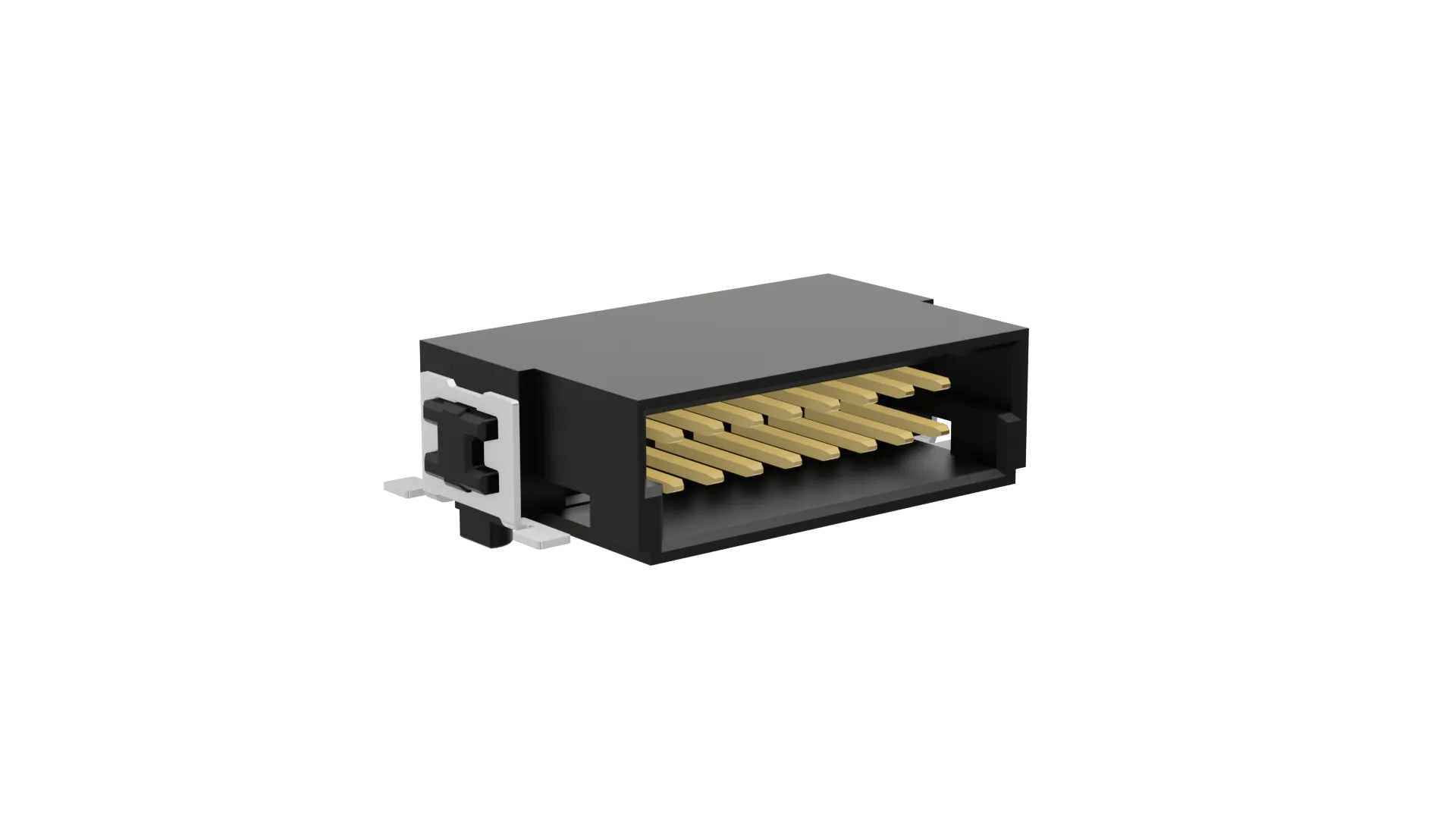

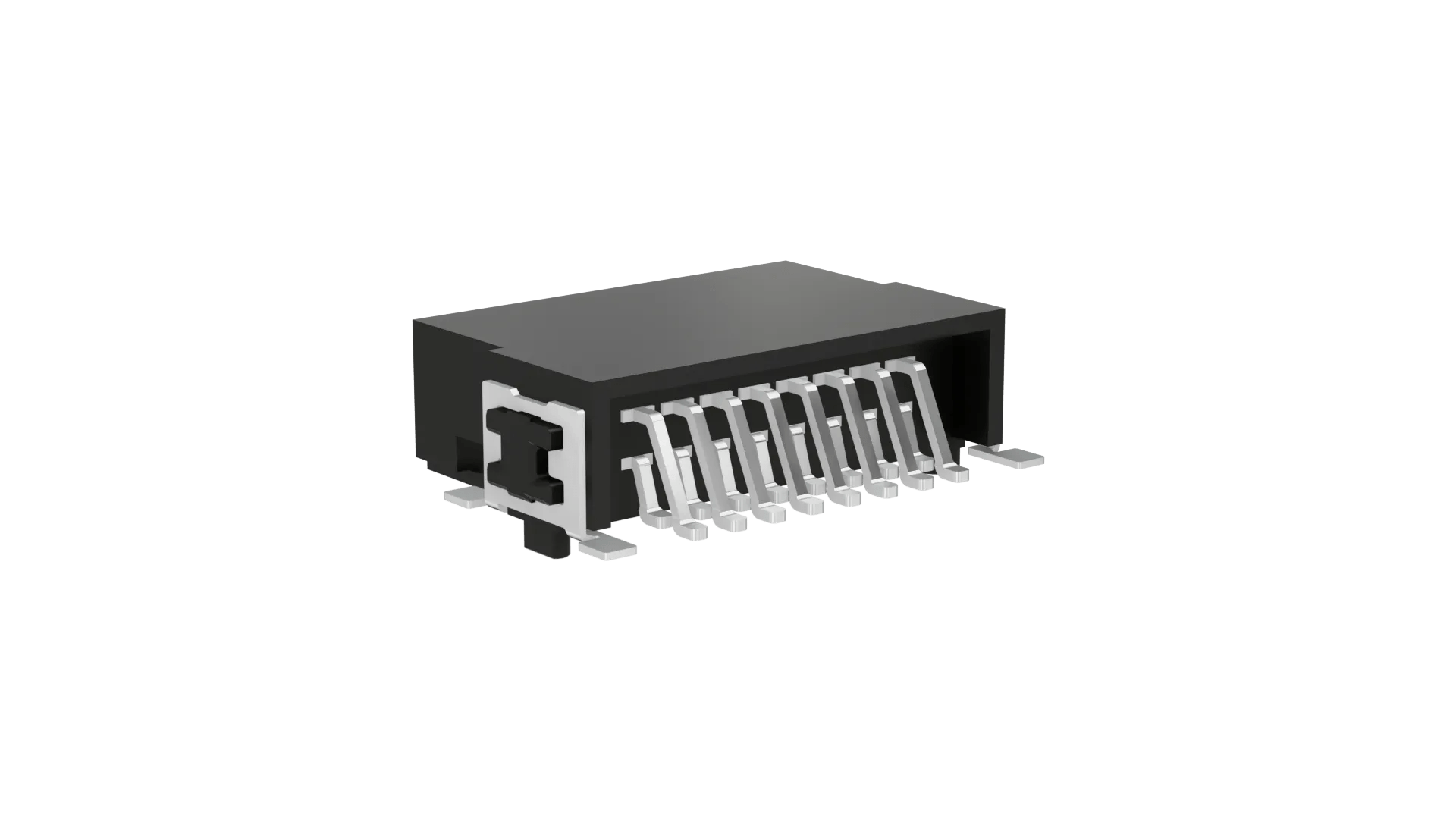

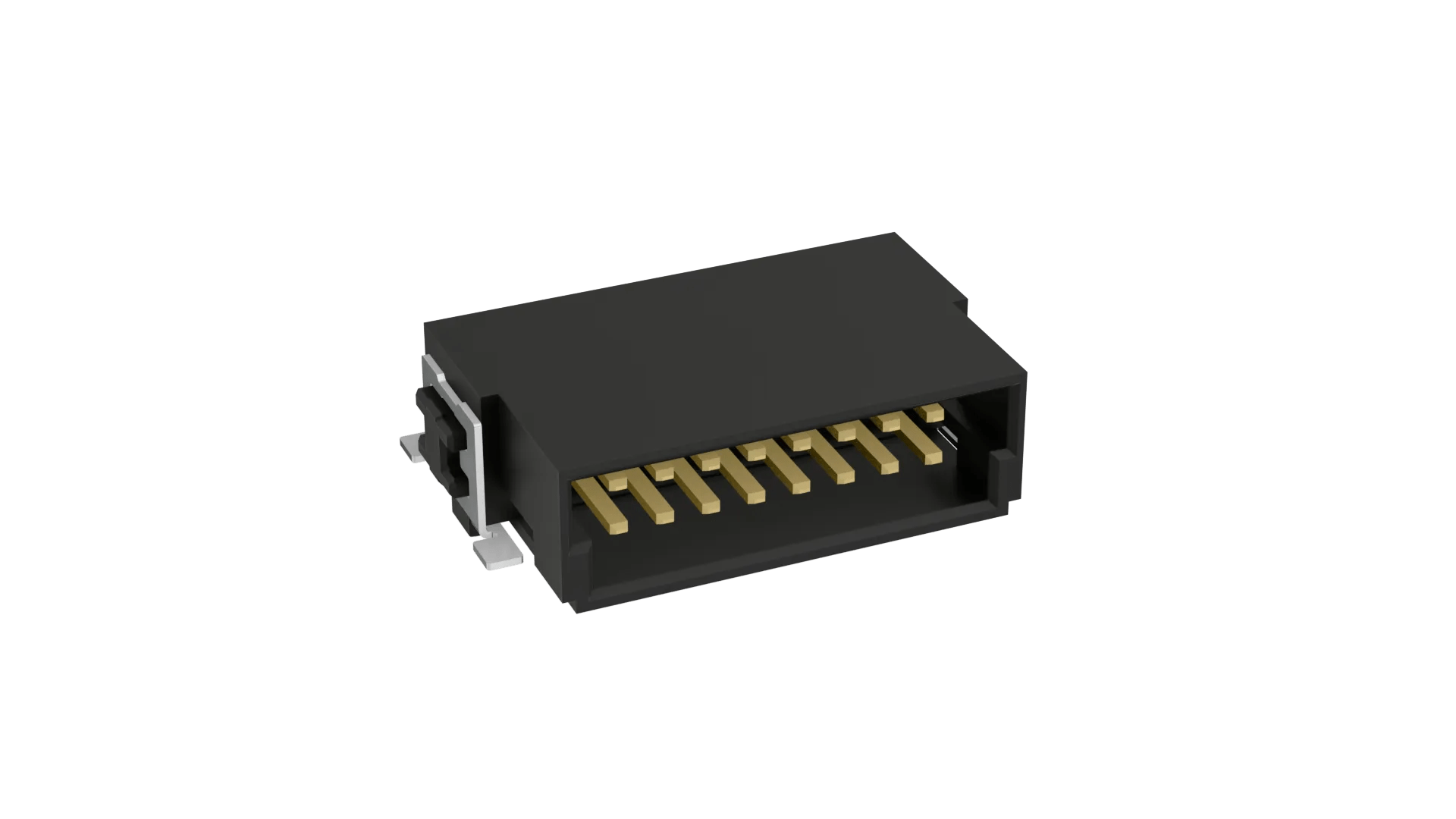

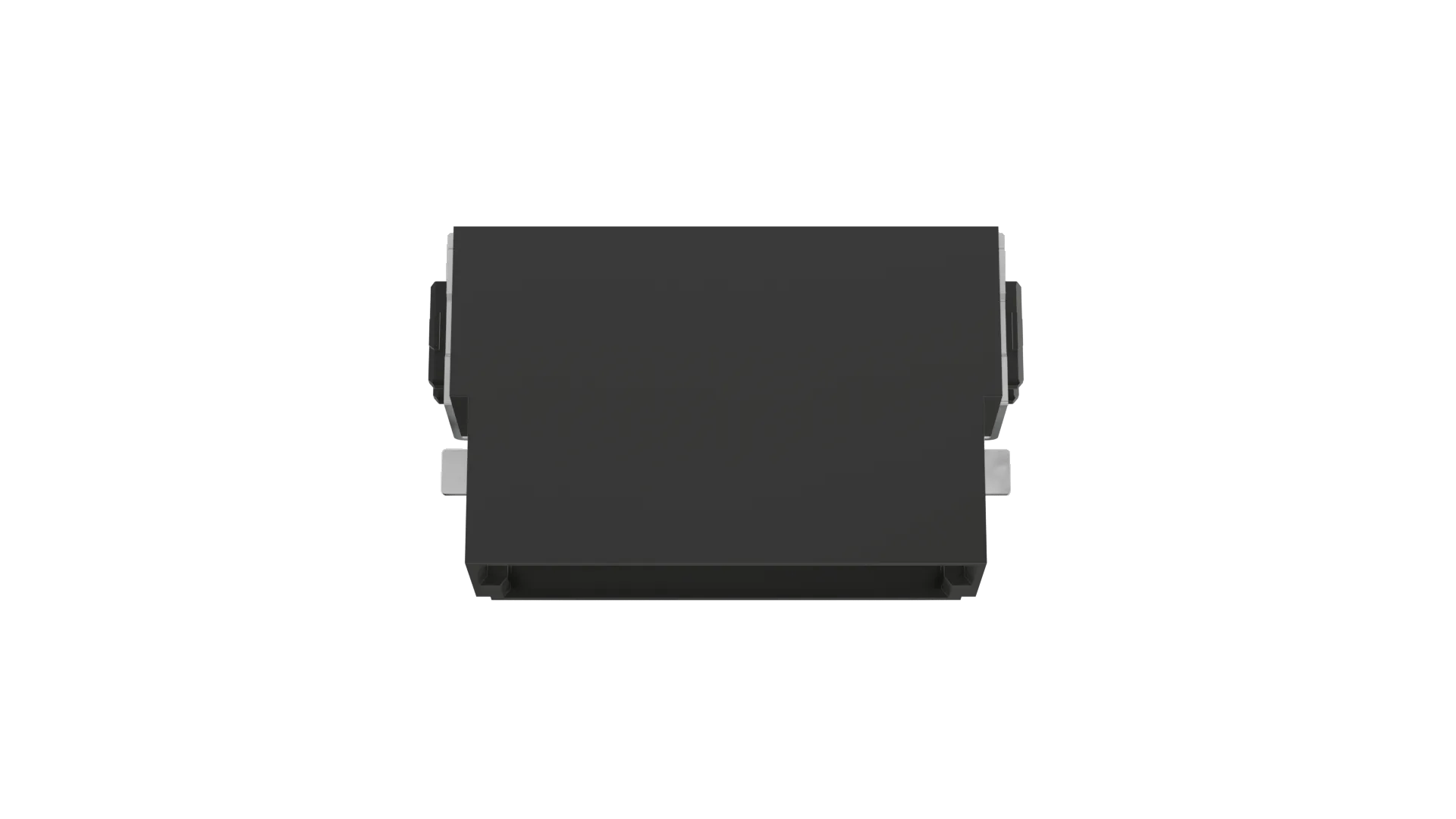

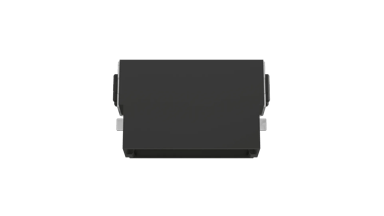

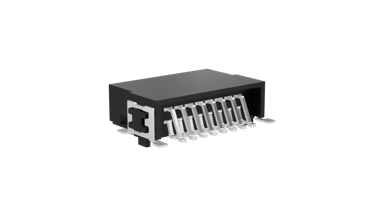

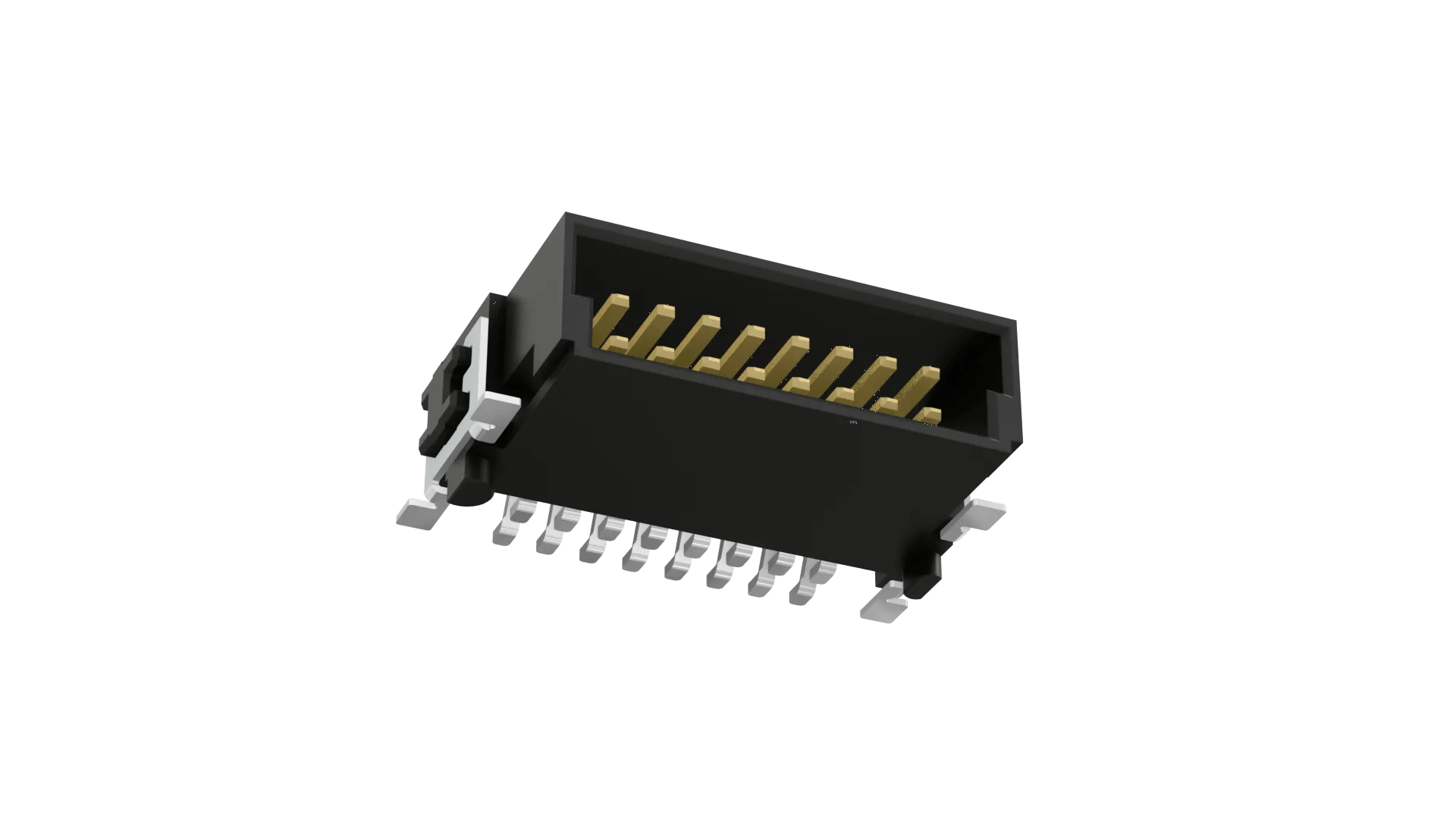

M55-7101642R

8+8 Pos. Male DIL Horizontal SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row SMT, 10mm total footprint depth, shrouded polarized connector – 16 contacts (8+8).
  • Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for 90 degree or coplanar board-to-board connection. Supplied in Tape and Reel.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Current Rating:

1.2A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.644g

Overall Dimensions (L x W x D) in mm:

15.24 x 10.00 x 4.95

Height of Connector above PCB:

4.20mm

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status352
Harwin
Global
Status1200
Mouser Electronics Inc
Global
Status739
TTI Europe
Europe
Status600
TTI Inc
USA
Status600

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M55-710.pdf

ZIP

M55-7101642R CAD Model (ZIP file containing STP and IGES)

Download
PDF

C047XX Component Specification - Archer Kontrol M55 Series (1.27mm Pitch Industrial connectors)

TEST REPORTS

PDF

Test Report HT060 - Archer Kontrol (M55 series) - General (Electrical, Mechanical and Environmental)

PDF

Test Report HT064 - Archer Kontrol (M55 Series) - Comparison to competitor product

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M55-710 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Archer Kontrol (M55 Series) High Performance range

OTHER DOWNLOADS

PDF

Catalog page - Archer Kontrol Male Horizontal SMT

PDF

Catalog page - Archer Kontrol Specification, Pin Numbering

PDF

Catalog page - Archer Kontrol Mating Profiles

PDF

Catalog page - Durable Industrial Connectors Introduction

PDF

Product Summary - Archer Kontrol, Durable Industrial Connectors
