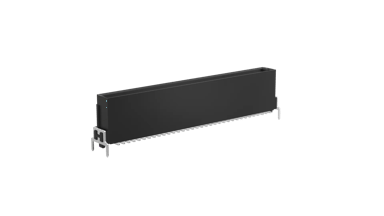

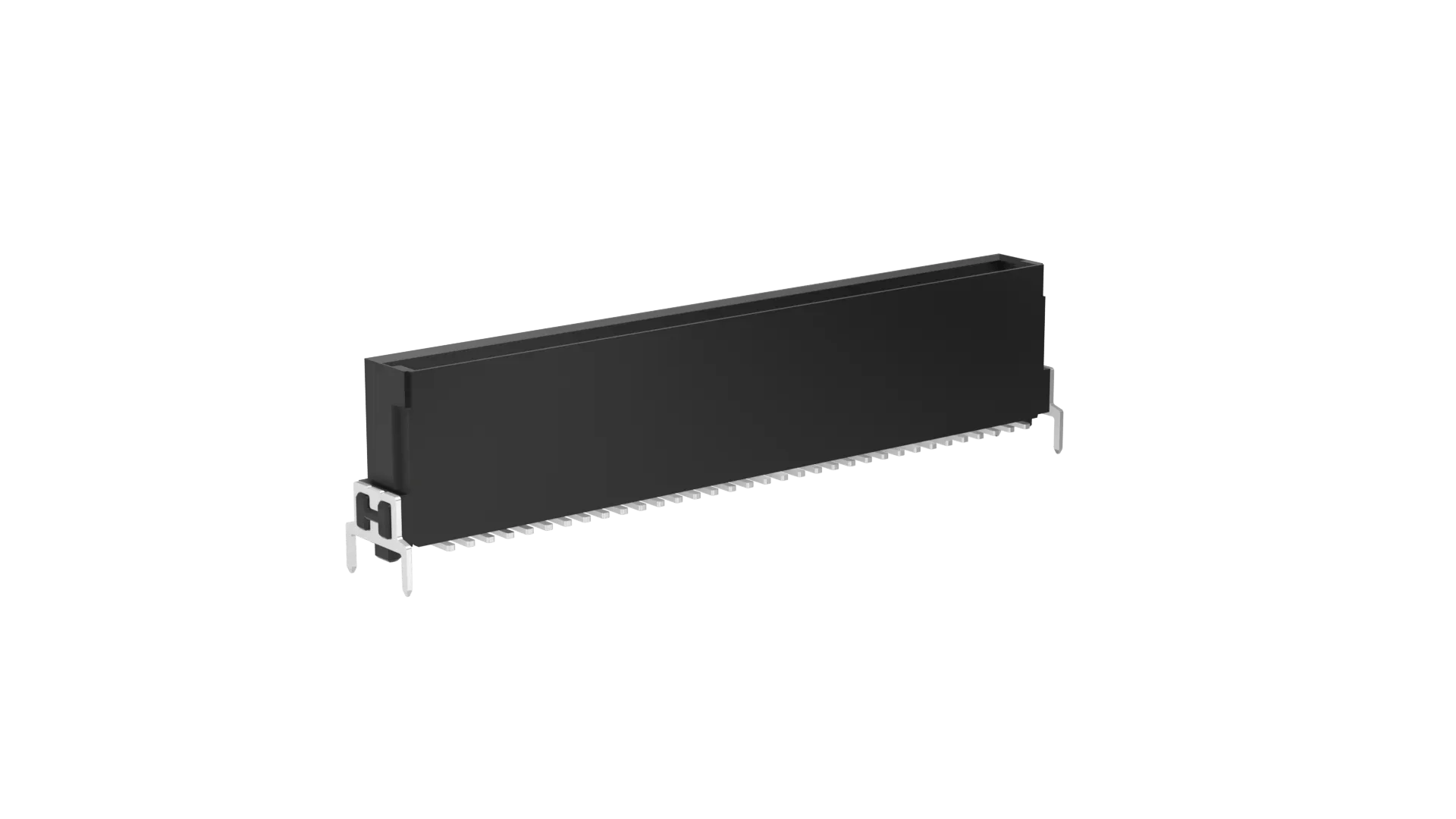

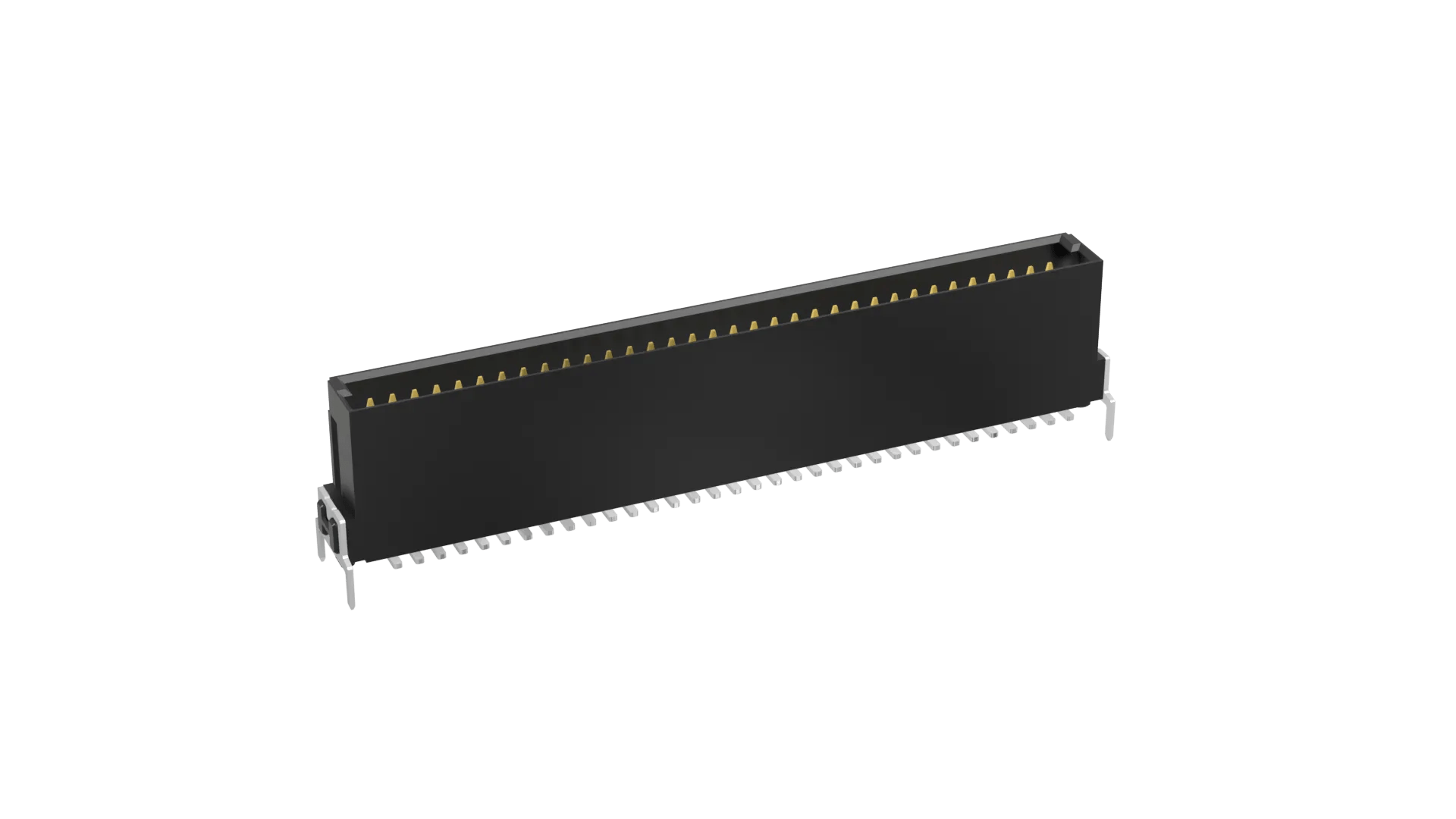

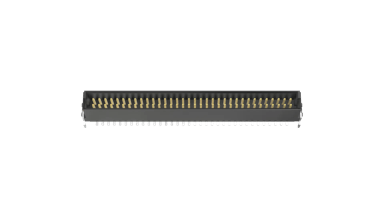

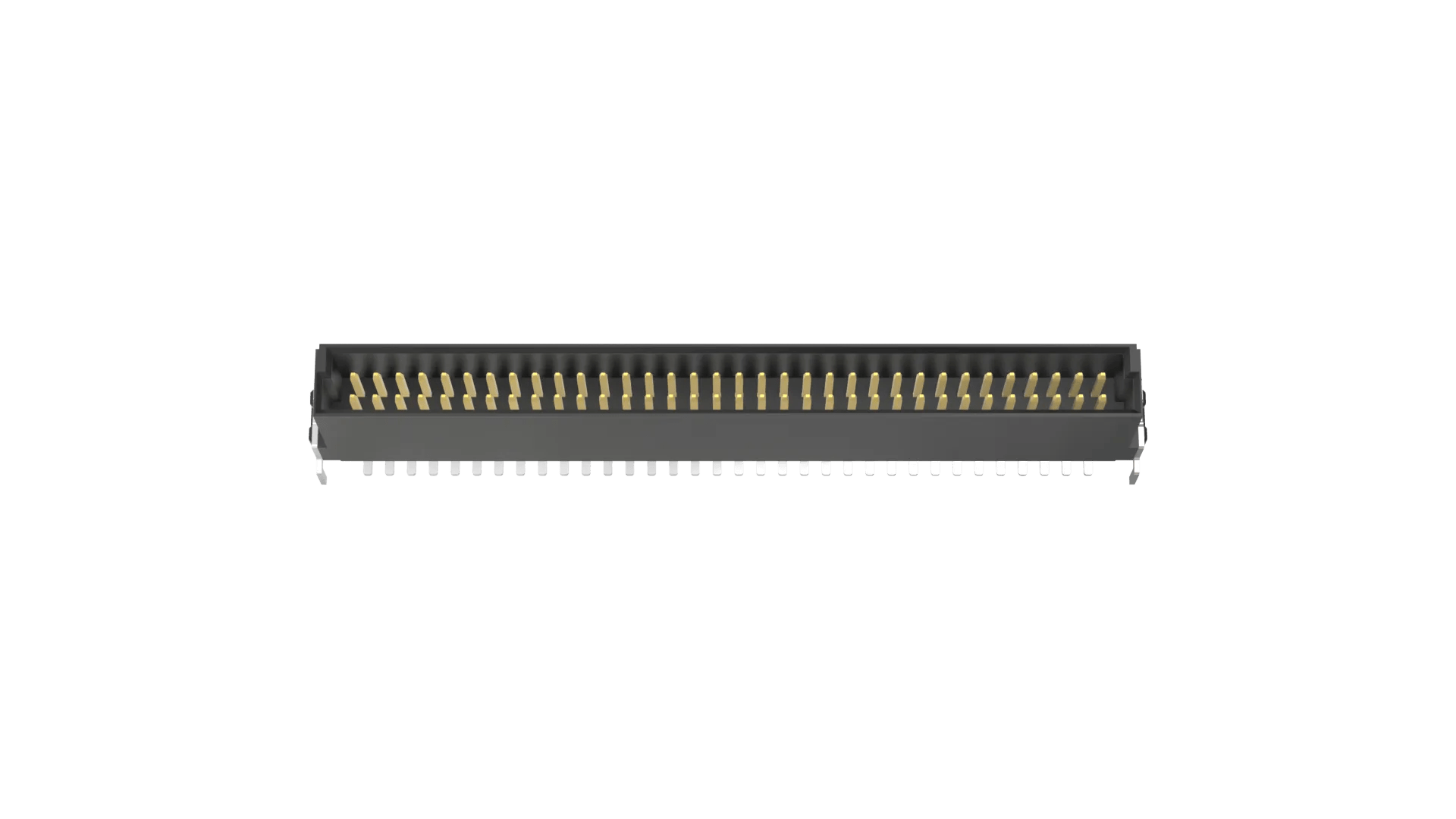

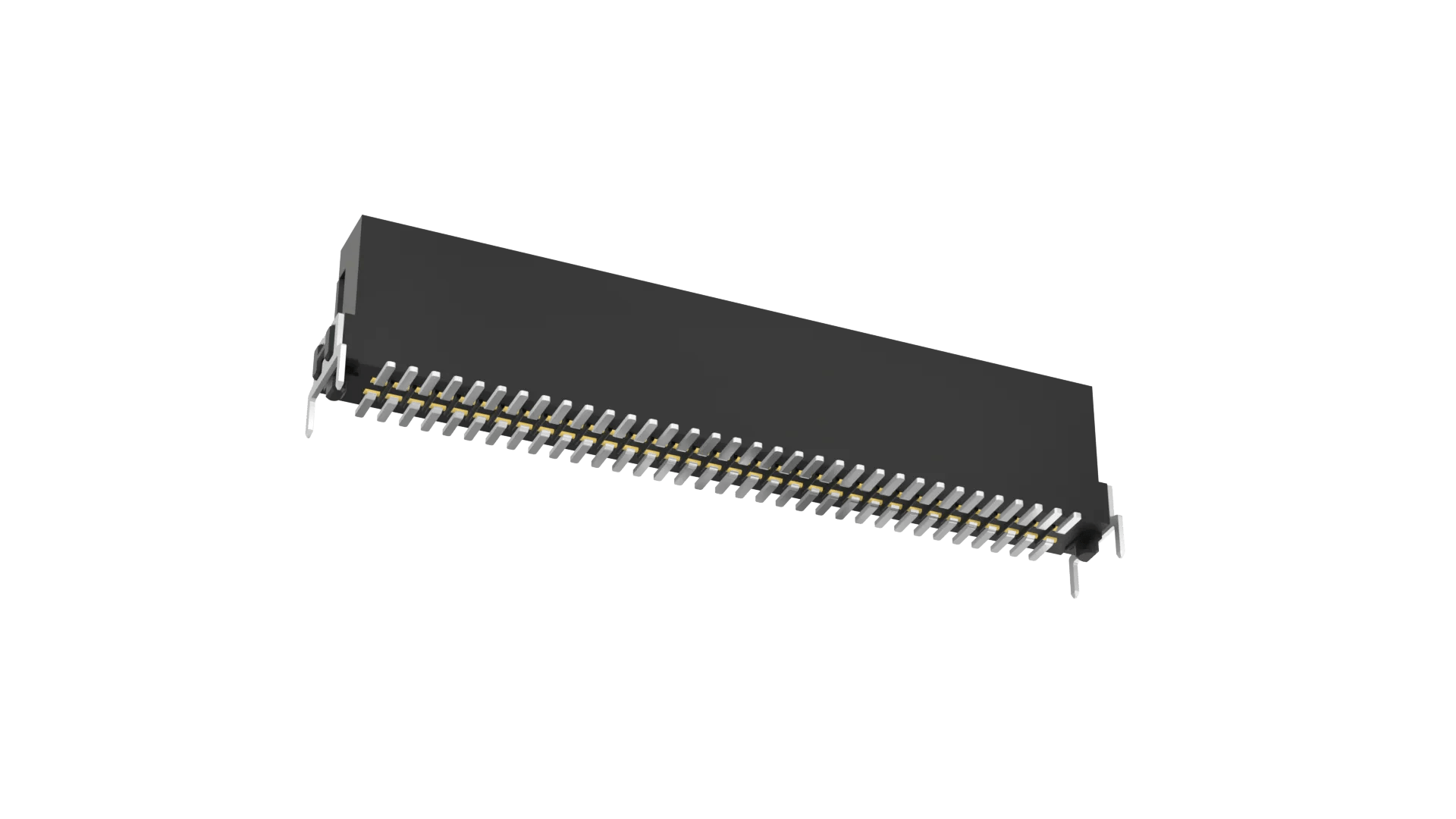

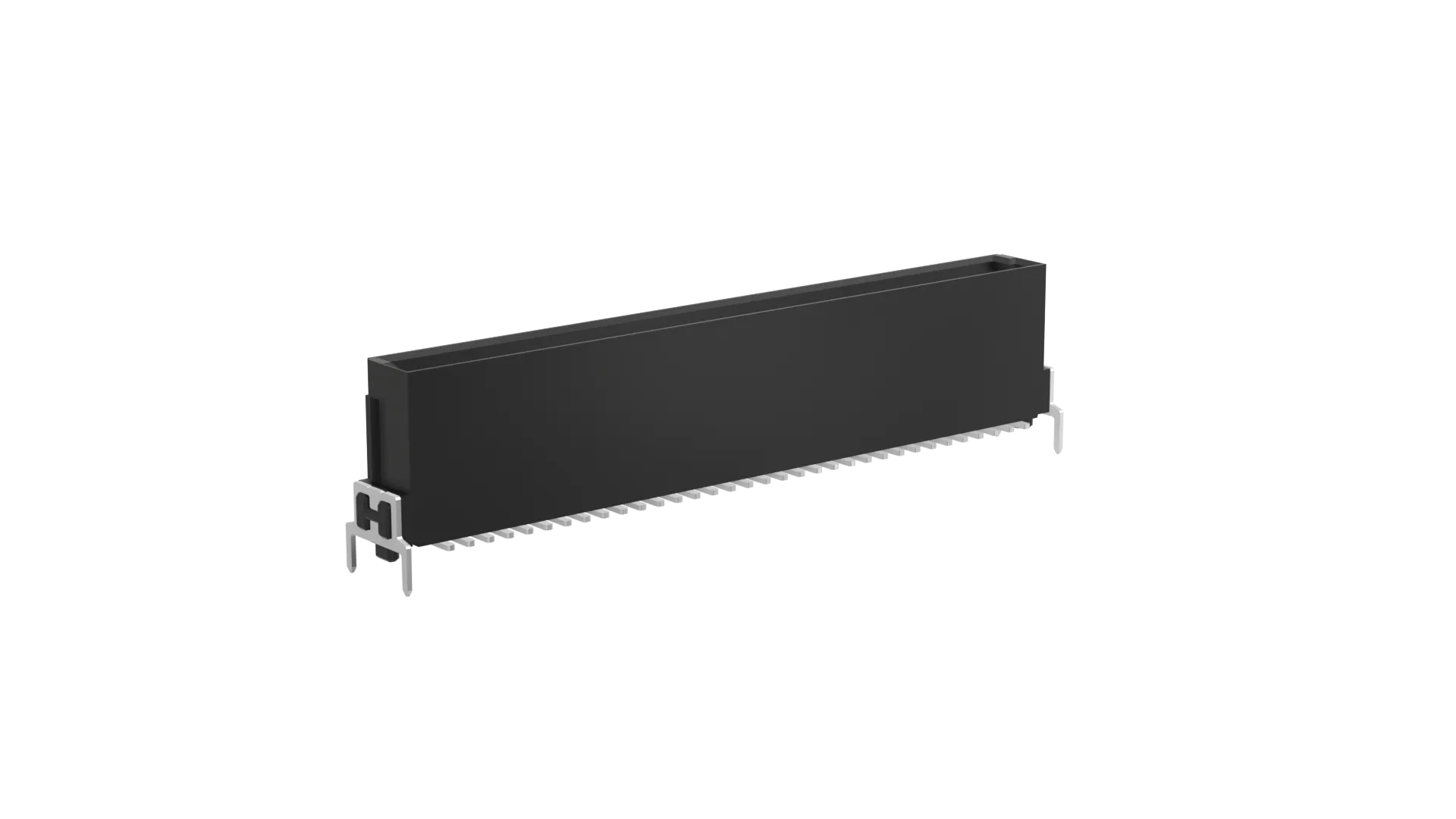

Double Row Surface Mount, 9.85mm connector height, shrouded polarized connector - 68 contacts (34+34). Location pegs, throughboard hold-down retaining tabs for additional solder strength.
Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.
High-speed board-to-board connection with a data rate up to 1.5GHz, 3Gb/s. For complete pin numbering or pin out information, see Component Specification C047XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
68
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
1.2A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
LCP
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel
Finish / Plating on Termination
100% Tin over Nickel
Housing Colour
Black
Dimensions
Contact Pitch
1.27mm (0.05")
Weight
2.95g
Dimensions
48.26 x 6.00 x 11.90
Height of Connector above PCB
9.85mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M55-70X.pdf
C047XX Component Specification - Kontrol M55 Series (1.27mm Pitch Industrial connectors)
Outgassing data for Harwin products (plastics)
Product Information
Catalog page - Archer Kontrol Mating Profiles
Product Training Module - Overview Guide to the Kontrol (M55 Series) High Performance range
Product Datasheet - KONTROL: M55 range (BBi)
Test Reports
Test Report HT060 - Kontrol (M55 series) - General (Electrical + Mechanical and Environmental)
Test Report HT064 - Kontrol (M55 Series) - Comparison to competitor product
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M55-707 series
RoHS Declaration - M55-7076842R
