M55-7026842R

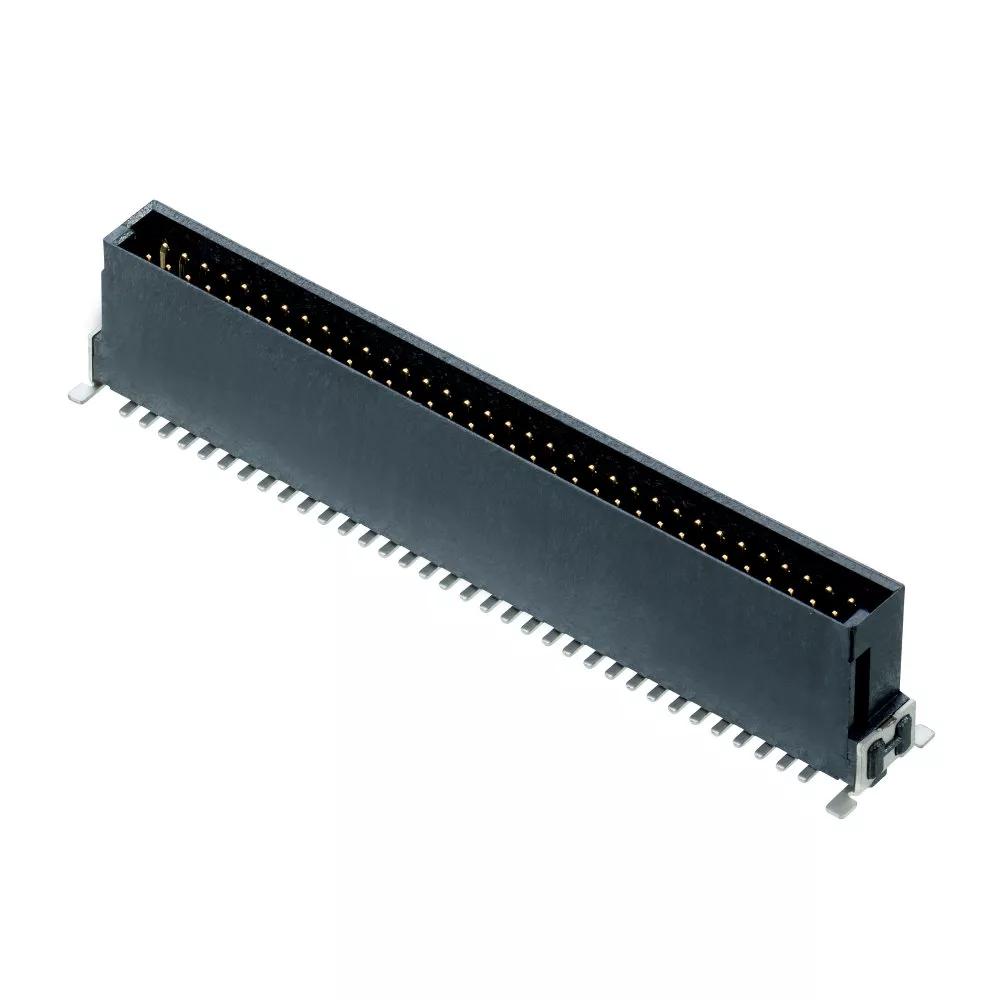

34+34 Pos. Male DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row Surface Mount, 9.85mm connector height, shrouded polarized connector – 68 contacts (34+34). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.
  • For complete pin numbering or pin out information, see Component Specification C047XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1.2A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

68

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

3.185g

Overall Dimensions (L x W x D) in mm:

48.26 x 7.20 x 10.60

Height of Connector above PCB:

9.85mm

Availability

1,674 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 530
Distributor Newark
Location USA
Quantity (Updated Daily) 400
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 376
Distributor Farnell
Location Europe
Quantity (Updated Daily) 368

Questions & Answers Ask a Question

What is the frequency rating of this connector?

The frequency rating of the Archer Kontrol connector range is 3GHz. You can find more information on the test criteria on pages 7-9 of the HT060xx Test Report Summary.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M55-70X.pdf

ZIP

M55-7026842R CAD Model (ZIP file containing STP and IGES)

Download
PDF

C047XX Component Specification - Archer Kontrol M55 Series (1.27mm Pitch Industrial connectors)

TEST REPORTS

PDF

Test Report HT060 - Archer Kontrol (M55 series) - General (Electrical, Mechanical and Environmental)

PDF

Test Report HT064 - Archer Kontrol (M55 Series) - Comparison to competitor product

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M55-702 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Archer Kontrol (M55 Series) High Performance range

OTHER DOWNLOADS

PDF

Catalog page - Archer Kontrol Male Vertical SMT

PDF

Catalog page - Archer Kontrol Specification, Pin Numbering

PDF

Catalog page - Archer Kontrol Mating Profiles

PDF

Catalog page - Durable Industrial Connectors Introduction

PDF

Product Summary - Archer Kontrol, Durable Industrial Connectors
