M55-7016842R

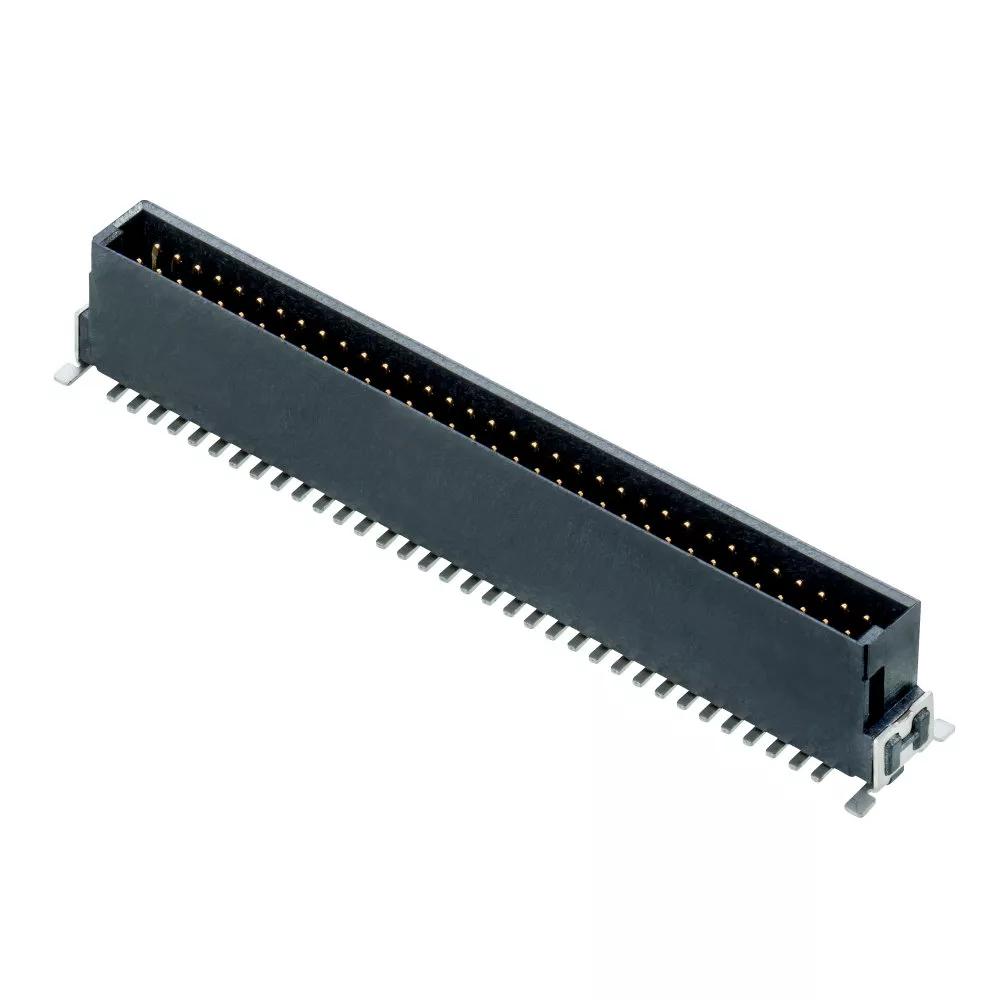

Kontrol (1.27mm pitch) DIL Vertical Header SMT high performance connector, 8.25mm connector height, in Tape and Reel - 68 contacts (34+34)


1.27mm (0.05") Pitch PCB Connector - Kontrol

  • Double Row Surface Mount, 8.25mm connector height, shrouded polarized connector - 68 contacts (34+34). Location pegs, surface mount hold-down retaining tabs for additional solder strength.

  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.

  • For complete pin numbering or pin out information, see Component Specification C047XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    1.27mm (0.05")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    Surface Mount (SMT)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    68

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Phosphor Bronze

  • Housing Material:

    LCP

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel

  • Height of Connector above PCB:

    8.25mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Surface Mount (SMT)

  • Current Rating:

    1.2A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    2.408g

  • Dimensions:

    48.26 x 7.20 x 9.00

  • Operating Temperature:

    -55°C to +125°C

Downloads

    Environmental Compliance

  • M55-7016842R

  • Material composition for M55-701 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M55-70X.pdf

  • C047XX Component Specification - Kontrol M55 Series (1.27mm Pitch Industrial connectors)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Datasheet - KONTROL: M55 range (BBi)

  • Catalog page - Archer Kontrol Mating Profiles

  • Product Training Module - Overview Guide to the Kontrol (M55 Series) High Performance range

  • Test Reports

  • Test Report HT064 - Kontrol (M55 Series) - Comparison to competitor product

  • Test Report HT060 - Kontrol (M55 series) - General (Electrical + Mechanical and Environmental)
