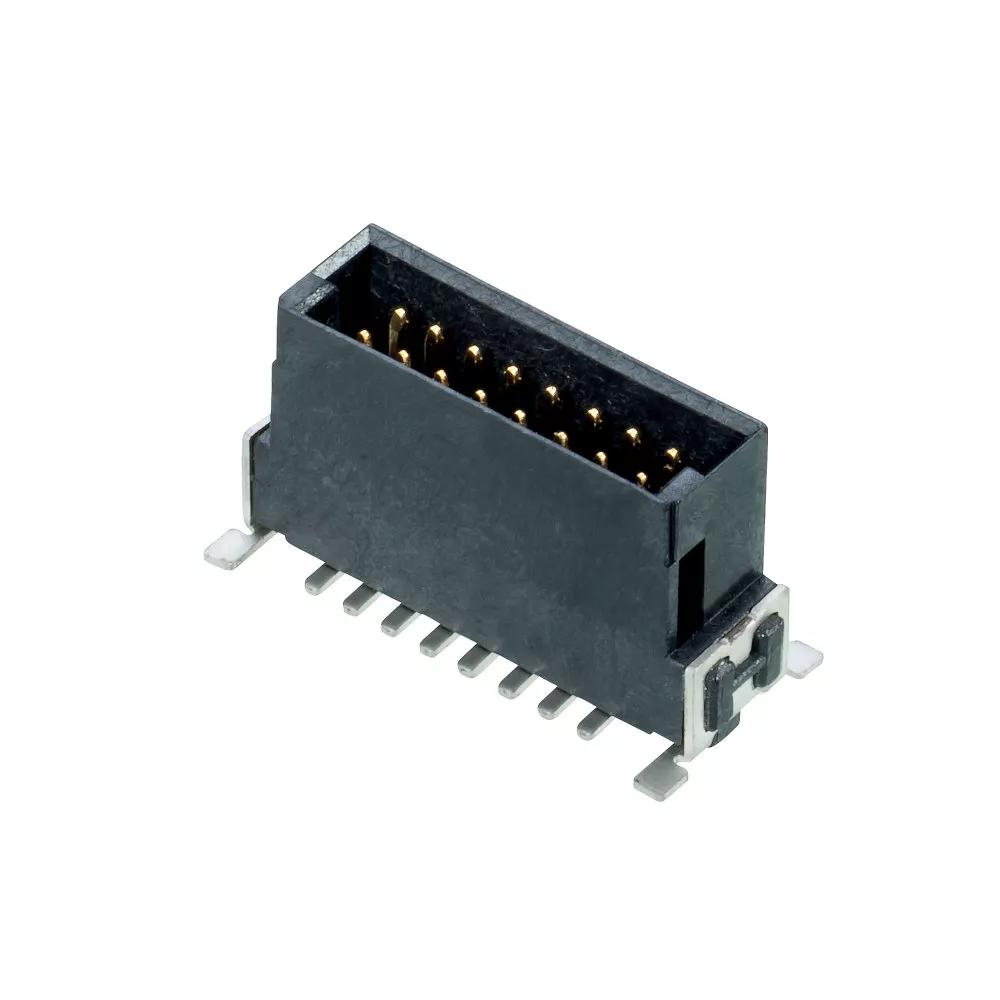

M55-7011642R
8+8 Pos. Male DIL Vertical SMT Conn. (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer Kontrol
5,142 in stock Check availability
3 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row Surface Mount, 8.25mm connector height, shrouded polarized connector – 16 contacts (8+8). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
- Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.
- For complete pin numbering or pin out information, see Component Specification C047XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Current Rating:
1.2A max per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
16
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
LCP
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.695g
Overall Dimensions (L x W x D) in mm:
15.24 x 7.20 x 9.00
Height of Connector above PCB:
8.25mm
Mating Profiles:
Frequently Asked Questions Ask a Question
What is the durability spec. for these connectors?
The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.
Was this answer useful?
What is the frequency rating of this connector?
The frequency rating of the Archer Kontrol connector range is 3GHz for board-mounted connectors. You can find more information on the test criteria in the HT060xx Test Report Summary.
Was this answer useful?
