M55-7011242R

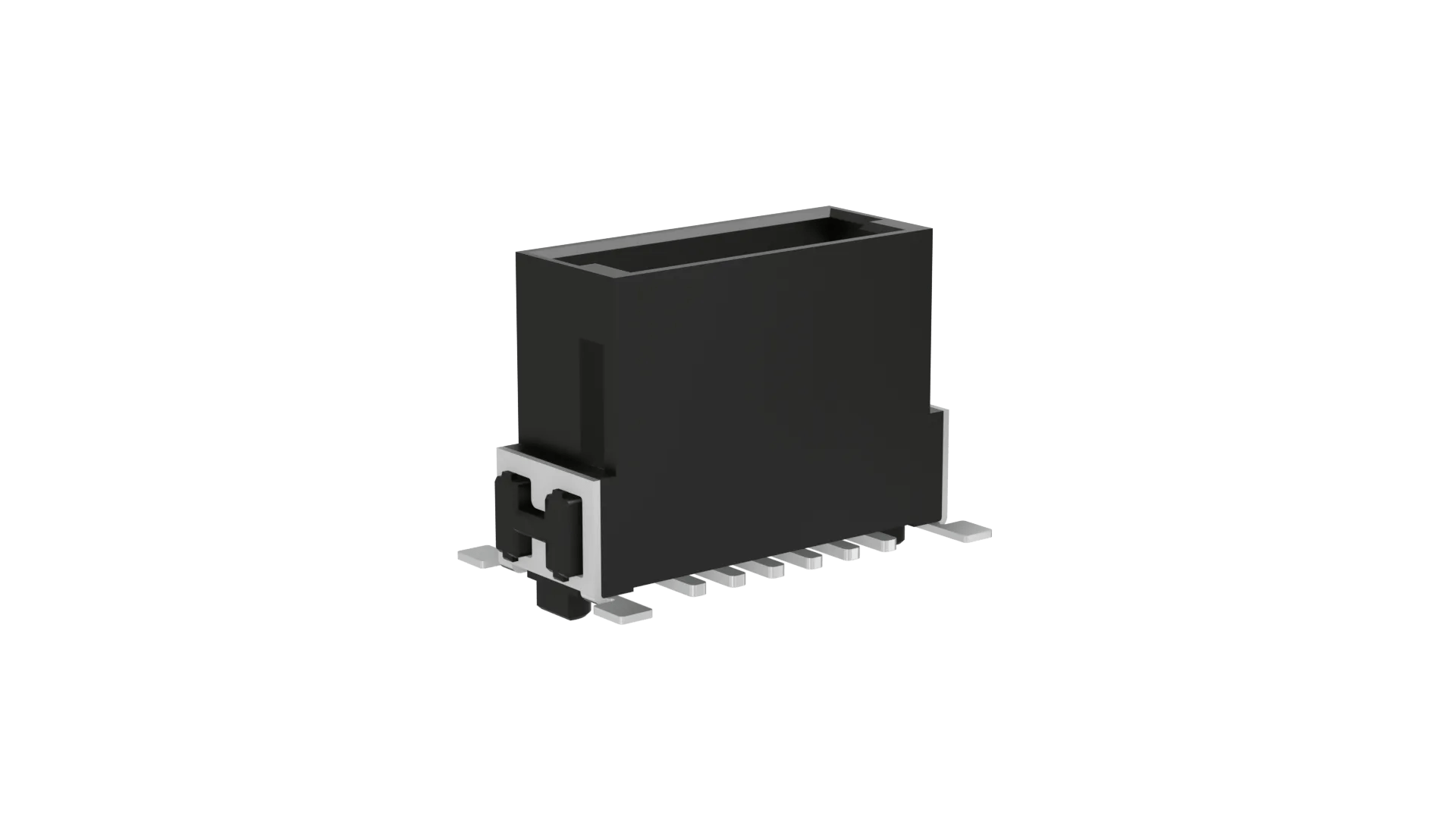

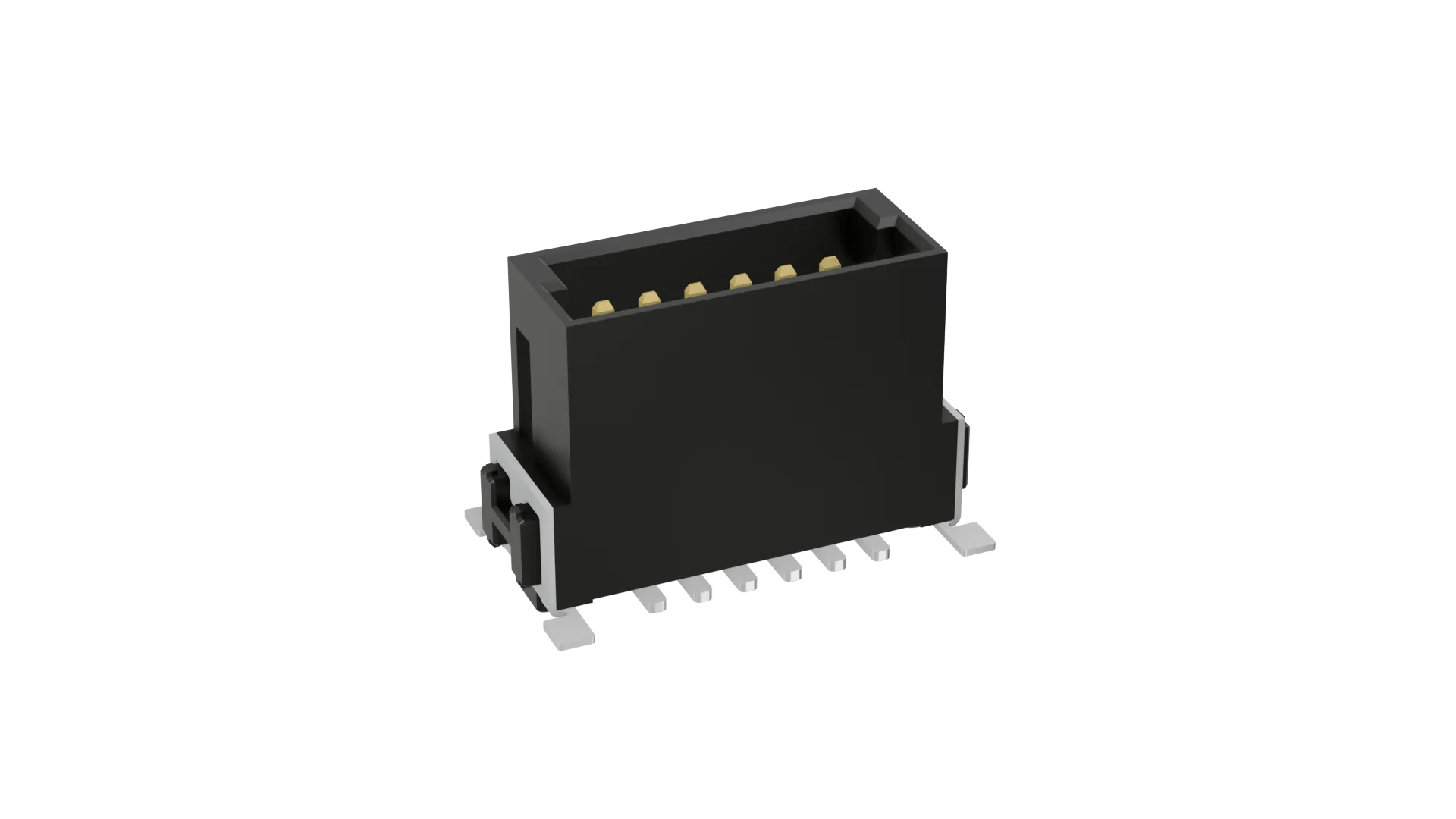

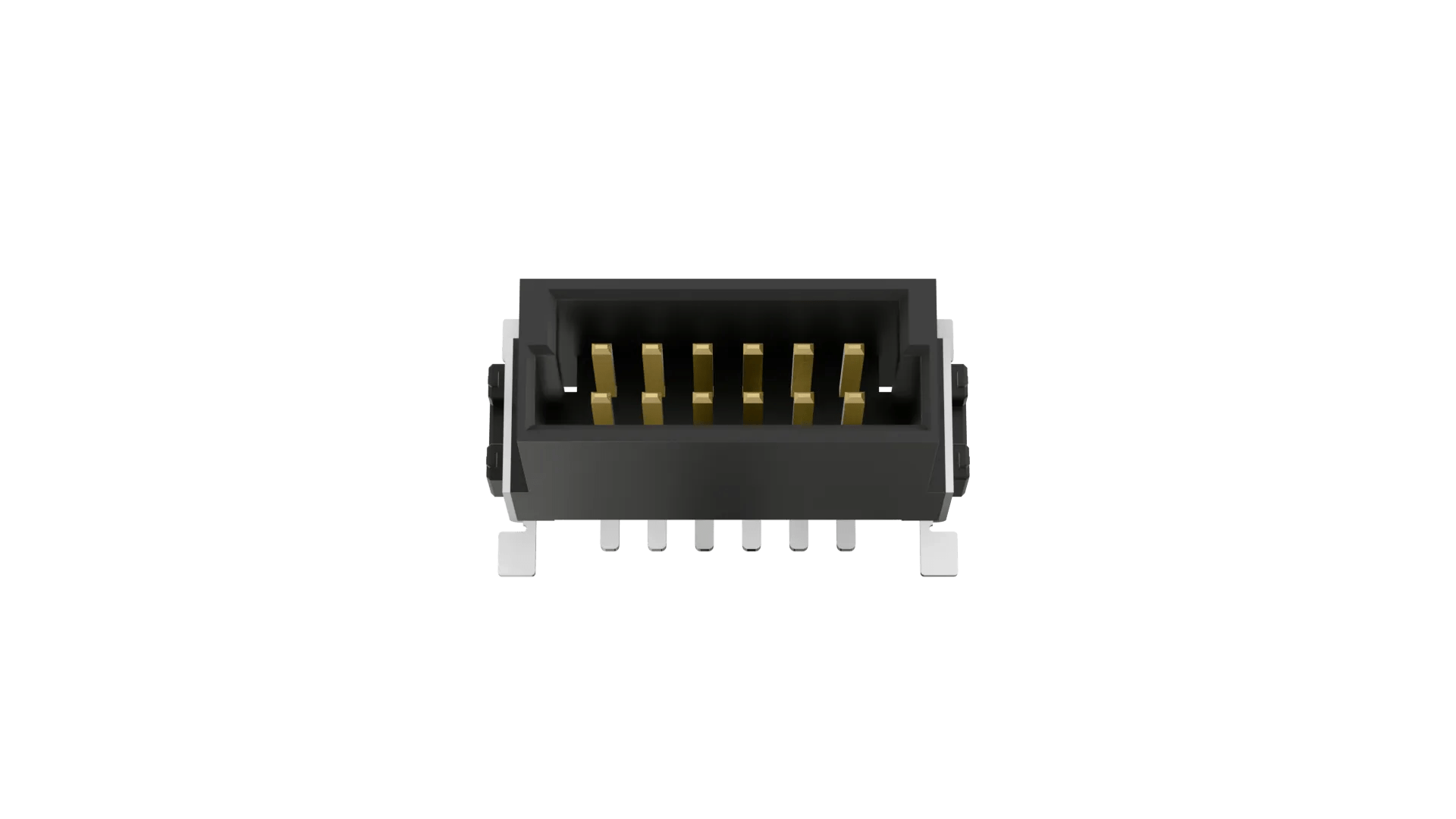

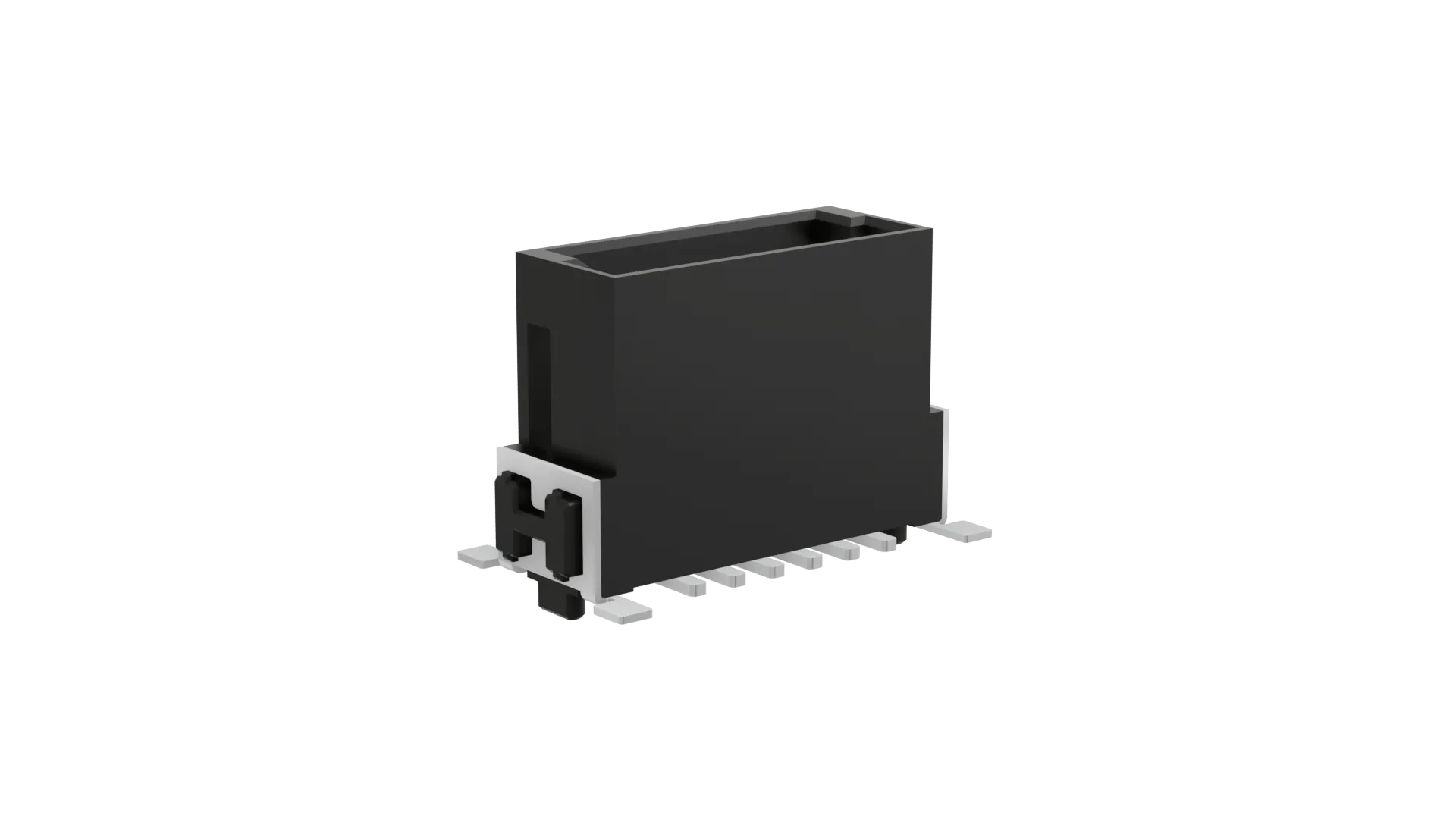

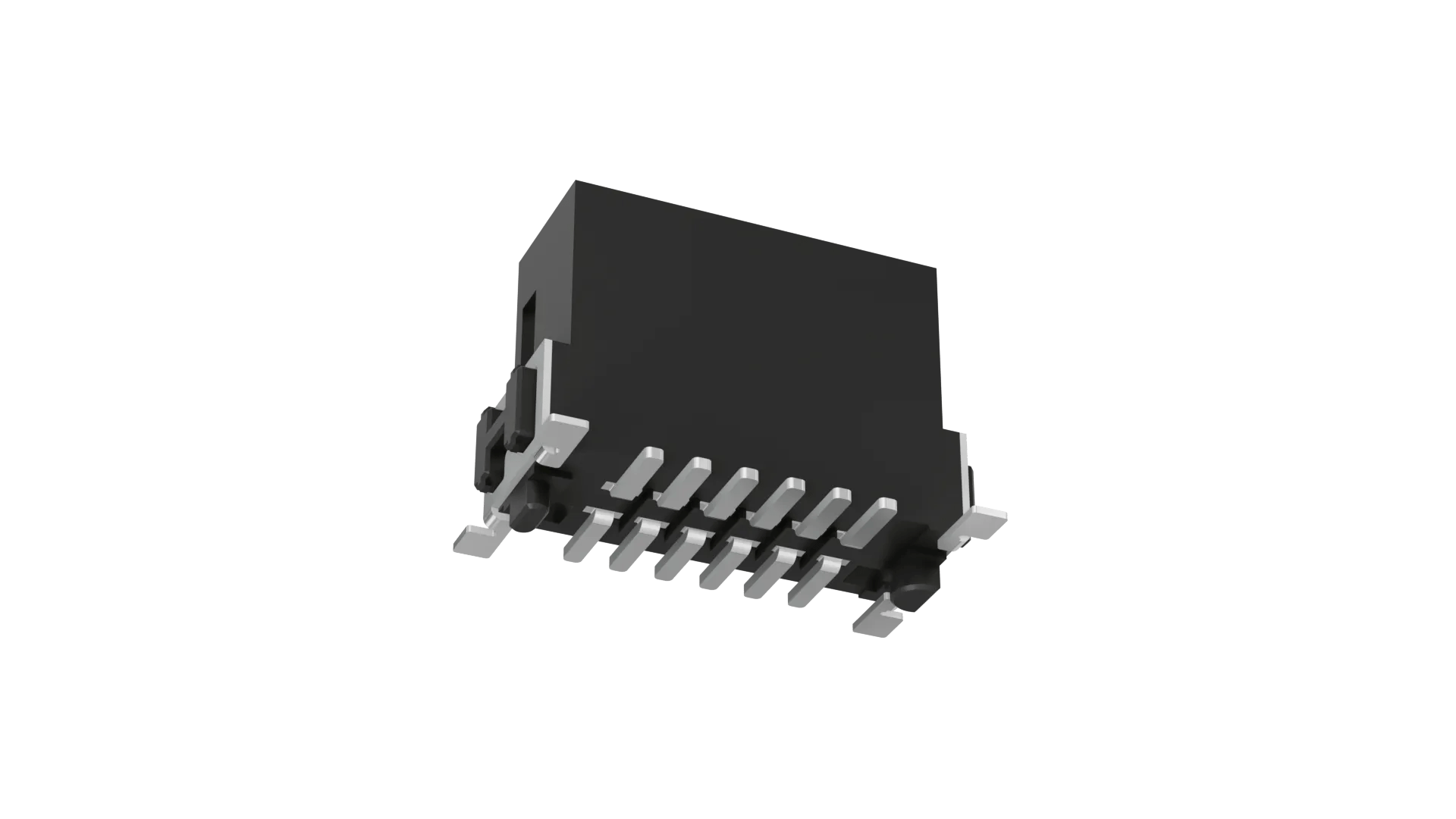

6+6 Pos. Male DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row SMT, 8.25mm connector height, shrouded polarized connector - 12 contacts (6+6).
  • Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap).

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Avnet Abacus Europe 450 Buy Now
Digi-Key Global 817 Buy Now
Farnell Europe 450 Buy Now
Mouser Electronics Inc Global 393 Buy Now
Newark USA 450 Buy Now
Harwin Europe 4500

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 1.27mm (0.05") Pitch PCB Connector - Archer Kontrol
Contact Pitch: 1.27mm (0.05")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Current Rating: 1.2A
Operating Temperature: -55°C to +125°C
Maximum Soldering Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: LCP
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.564g
Packaging Style: Tape and Reel

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 12
Body Length: 12.7mm
Height of Connector above PCB: 8.25mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Mating Profiles/Heights
