Home > M55-7003242R
Active Product

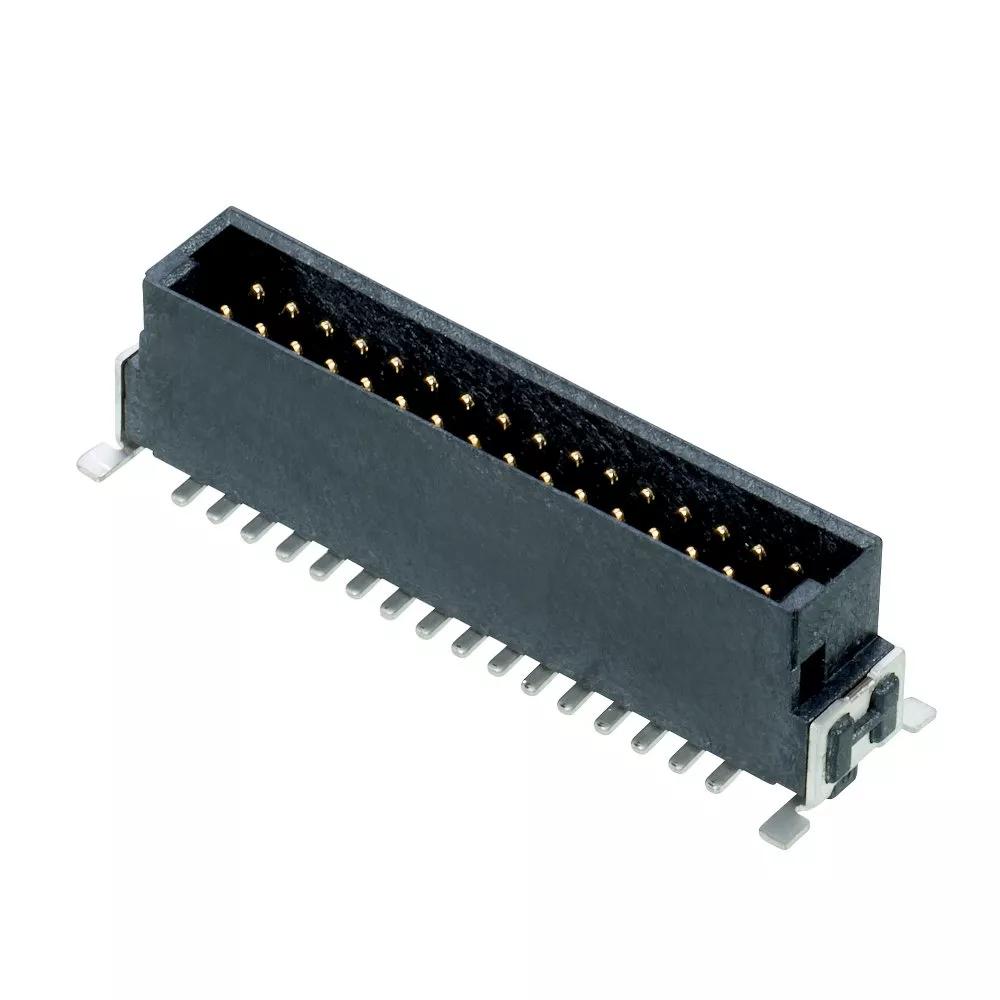

M55-7003242R

16+16 Pos. Male DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

Add to Favorites

4,541 in stock   Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row Surface Mount, 6.75mm connector height, shrouded polarized connector – 32 contacts (16+16). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.
  • For complete pin numbering or pin out information, see Component Specification C047XX.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1.2A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

32

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.869g

Overall Dimensions (L x W x D) in mm:

25.40 x 7.20 x 7.50

Height of Connector above PCB:

6.75mm

Frequently Asked Questions Ask a Question

What is the durability spec. for these connectors?

The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.

Was this answer useful?

What is the frequency rating of this connector?

The frequency rating of the Archer Kontrol connector range is 3GHz for board-mounted connectors. You can find more information on the test criteria in the HT060xx Test Report Summary.

Was this answer useful?
