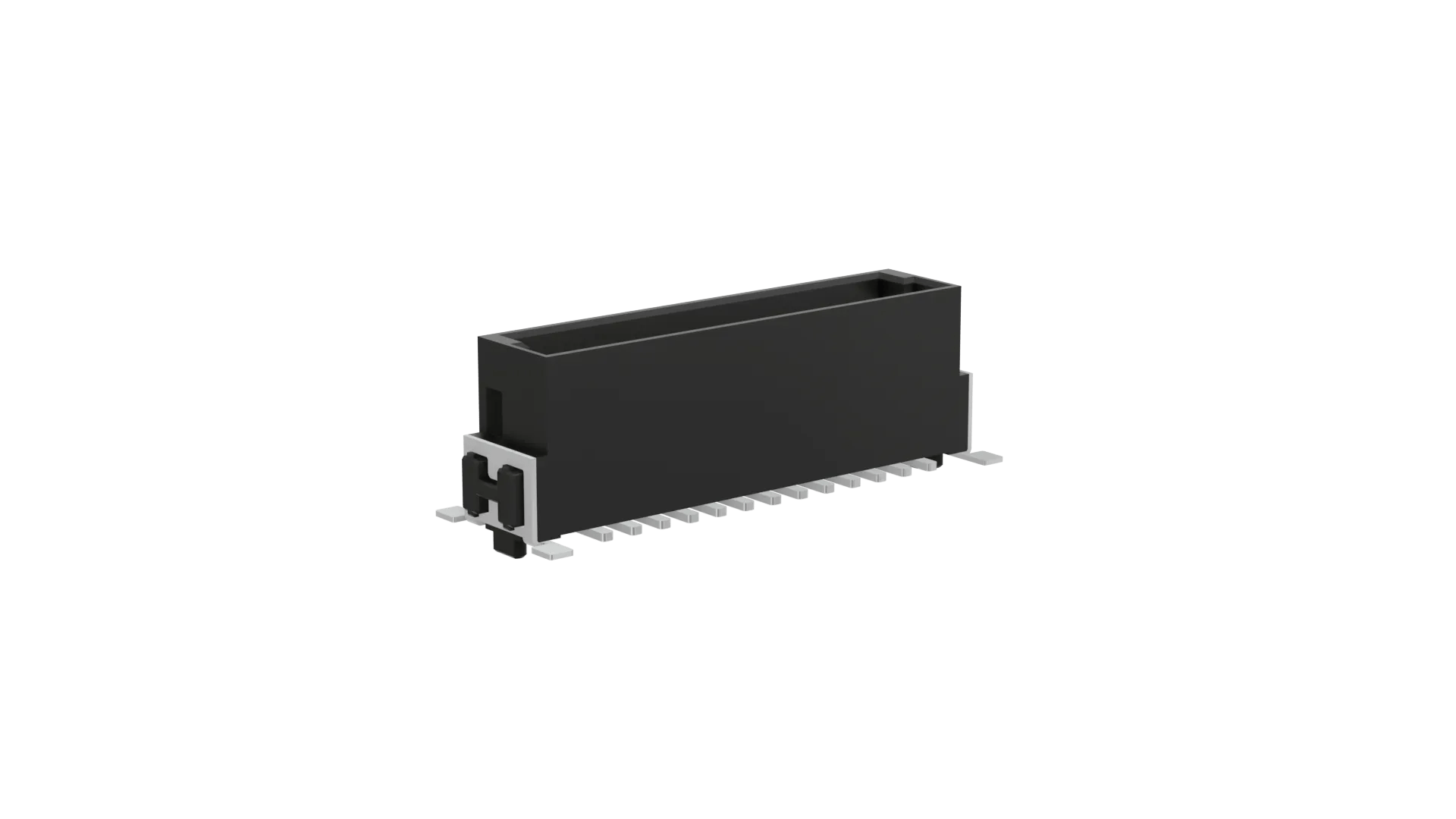

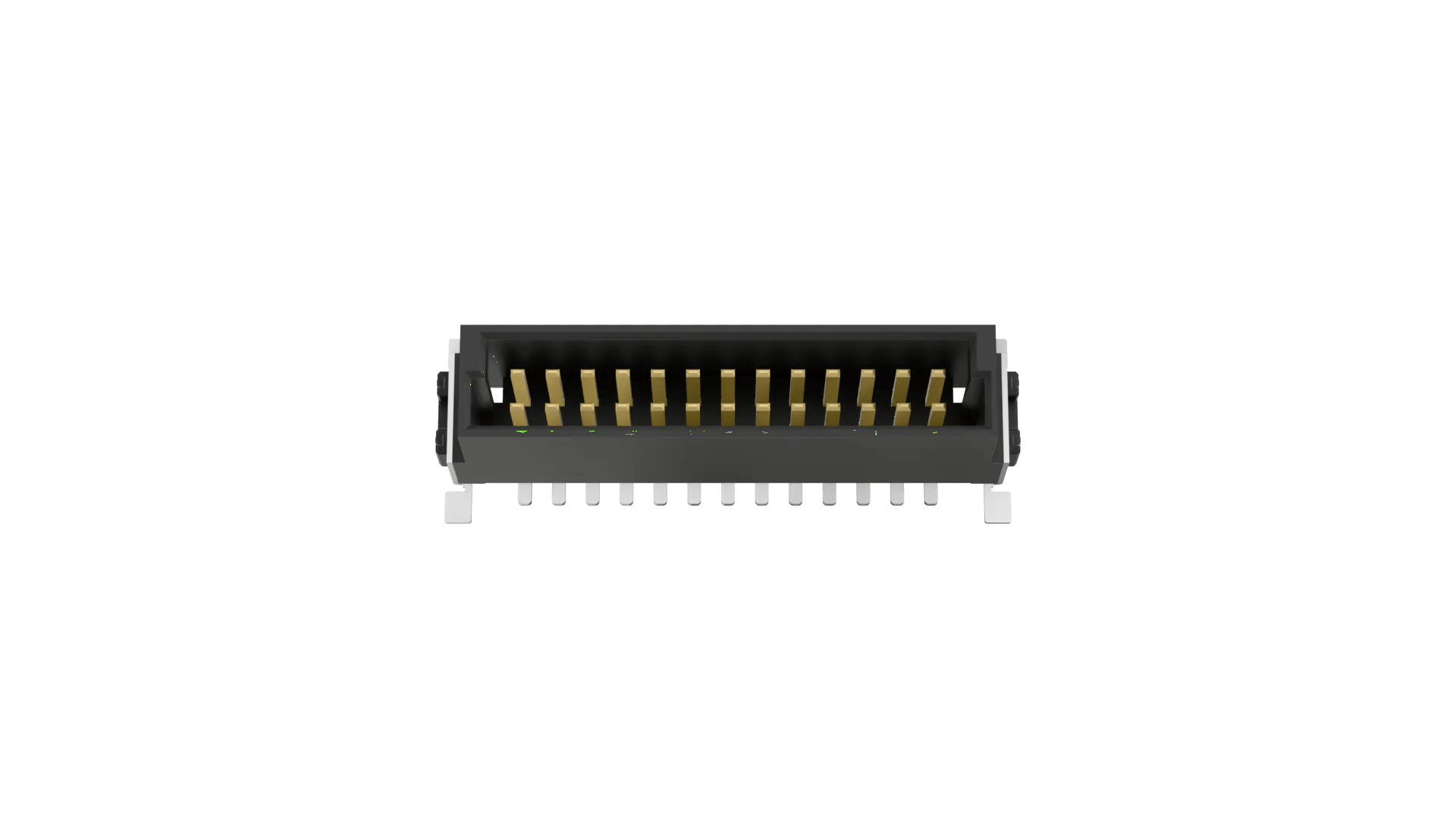

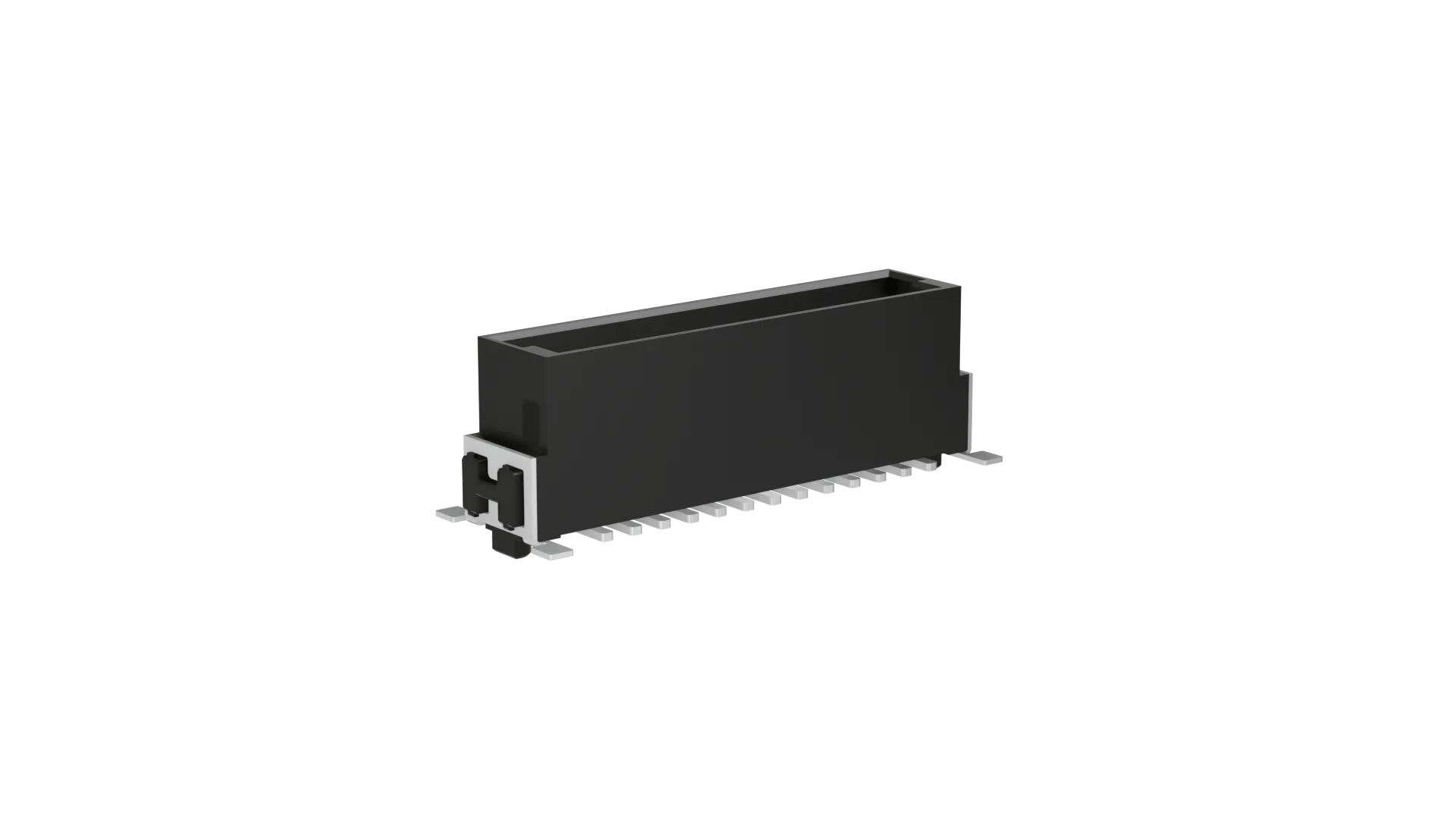

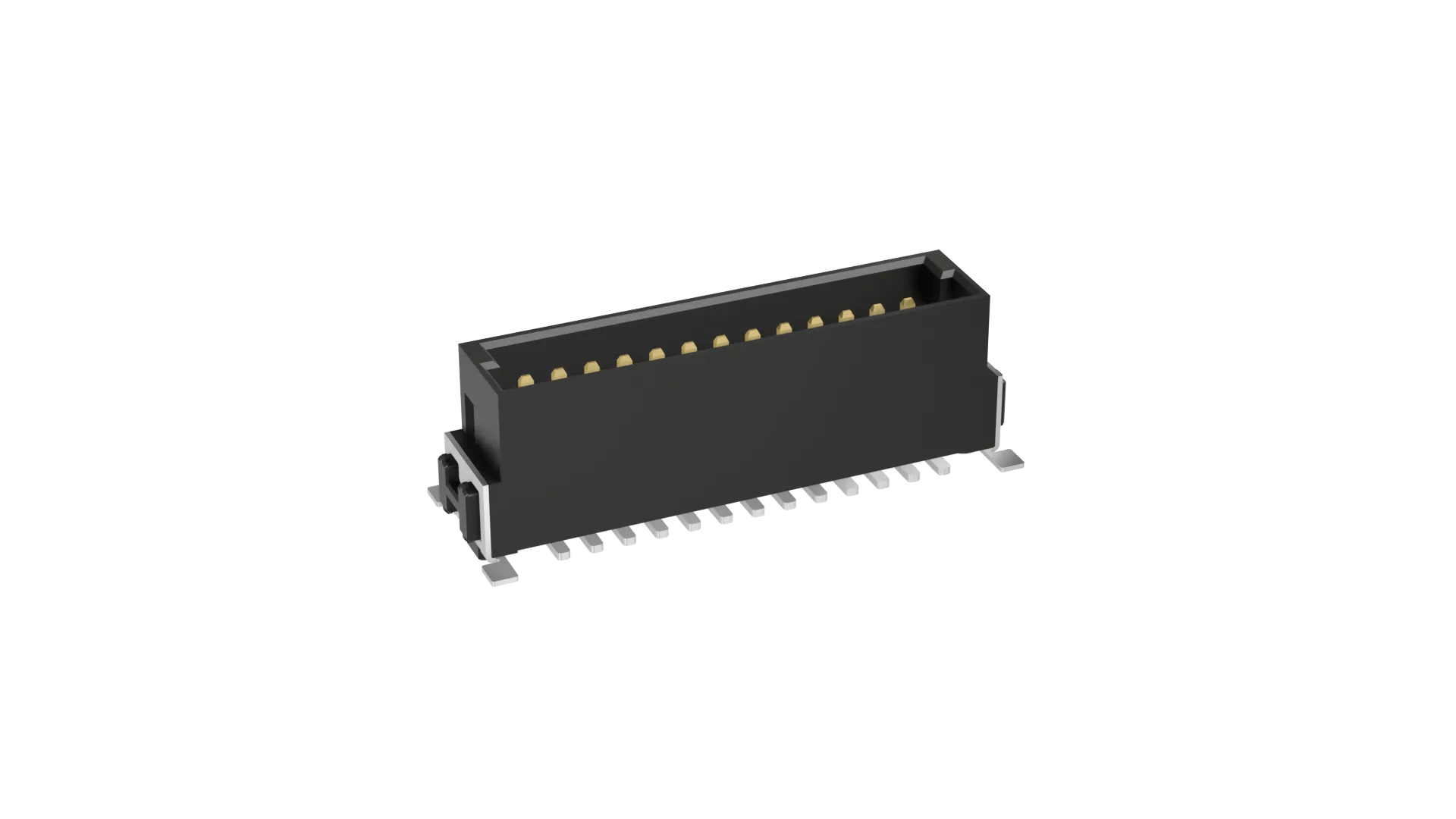

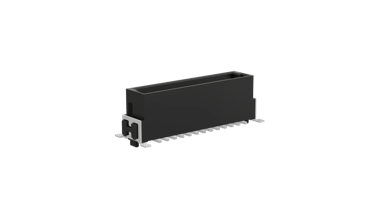

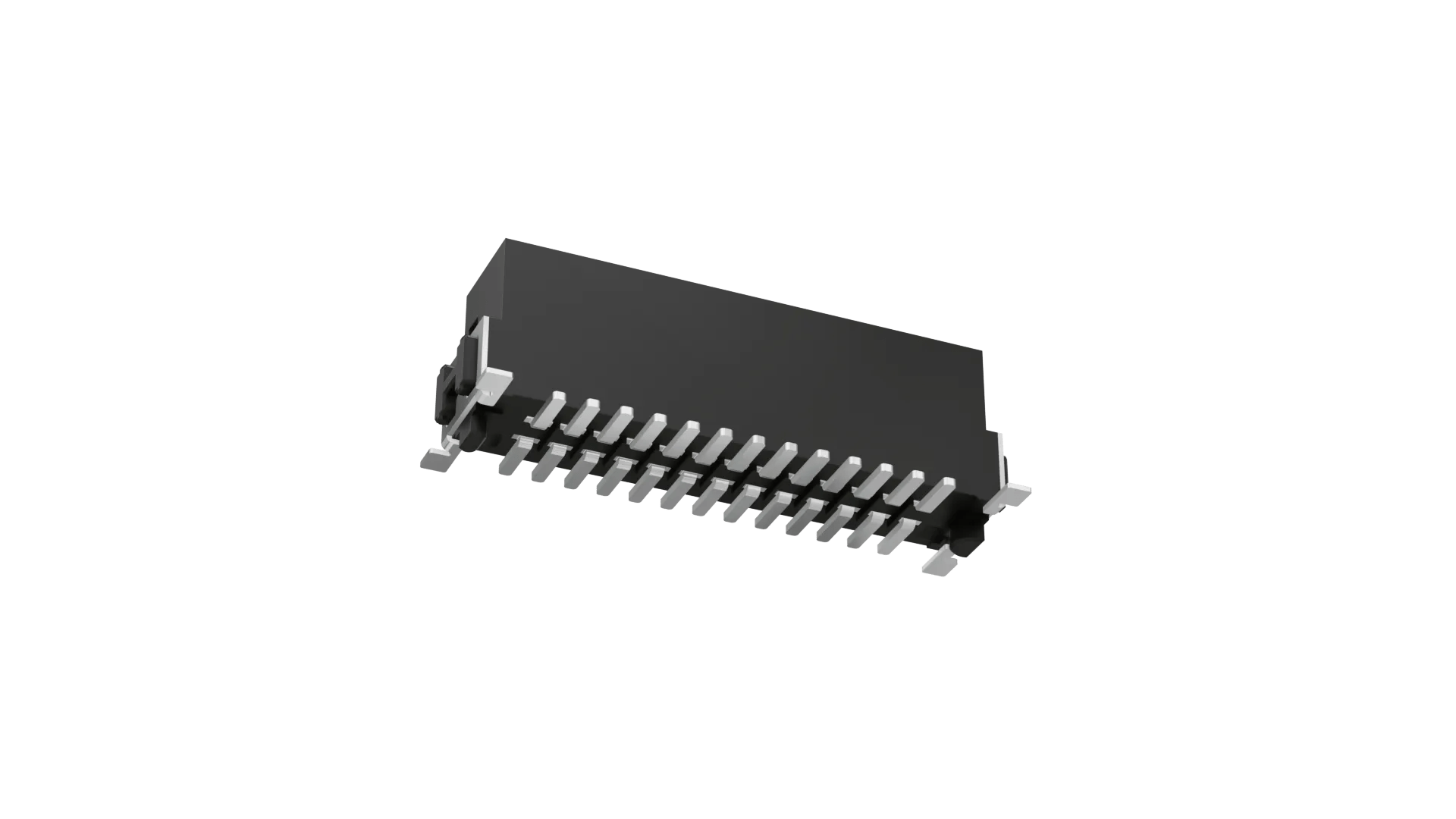

M55-7002642R

13+13 Pos. Male DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row Surface Mount, 6.75mm connector height, shrouded polarized connector – 26 contacts (13+13). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.
  • For complete pin numbering or pin out information, see Component Specification C047XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1.2A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.733g

Overall Dimensions (L x W x D) in mm:

21.59 x 7.20 x 7.50

Height of Connector above PCB:

6.75mm

Availability

16,667 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 9500
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 5500
Distributor Farnell
Location Europe
Quantity (Updated Daily) 551
Distributor Newark
Location USA
Quantity (Updated Daily) 500
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 324
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 292

Questions & Answers Ask a Question

What is the durability spec. for these connectors?

The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.

What is the frequency rating of this connector?

The frequency rating of the Archer Kontrol connector range is 3GHz. You can find more information on the test criteria on pages 7-9 of the HT060xx Test Report Summary.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

INSTRUCTION SHEETS

OTHER DOWNLOADS
