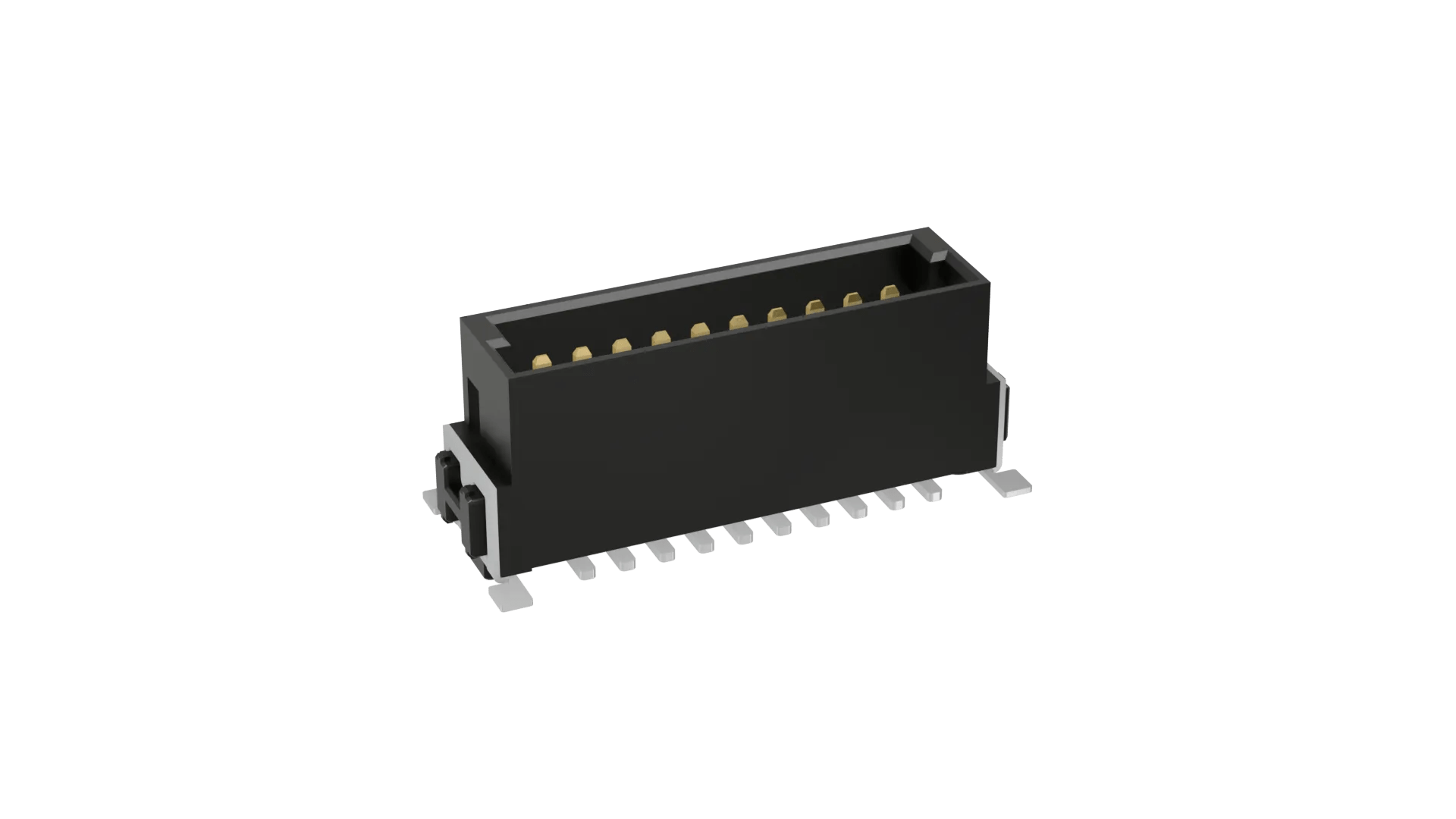

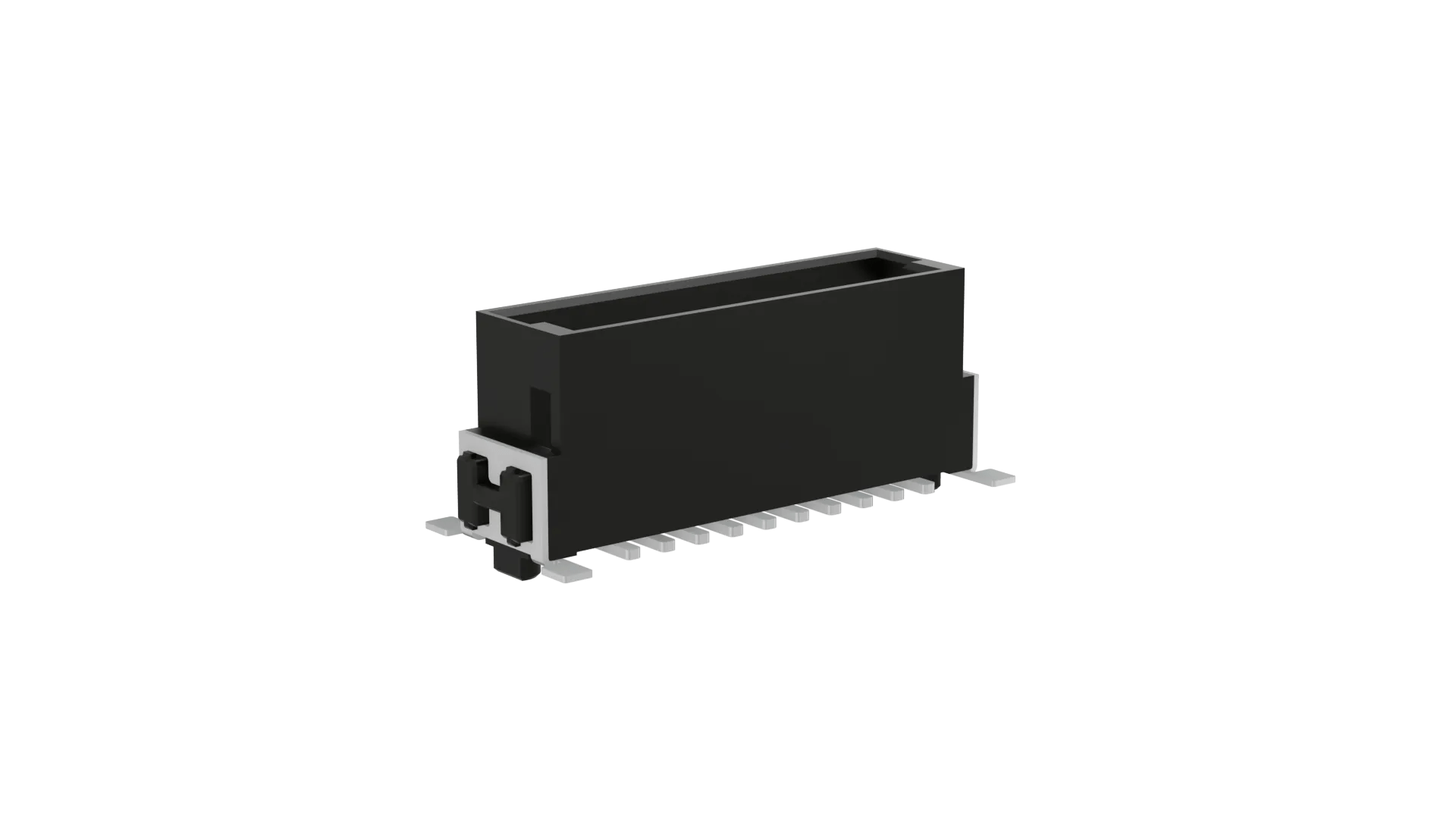

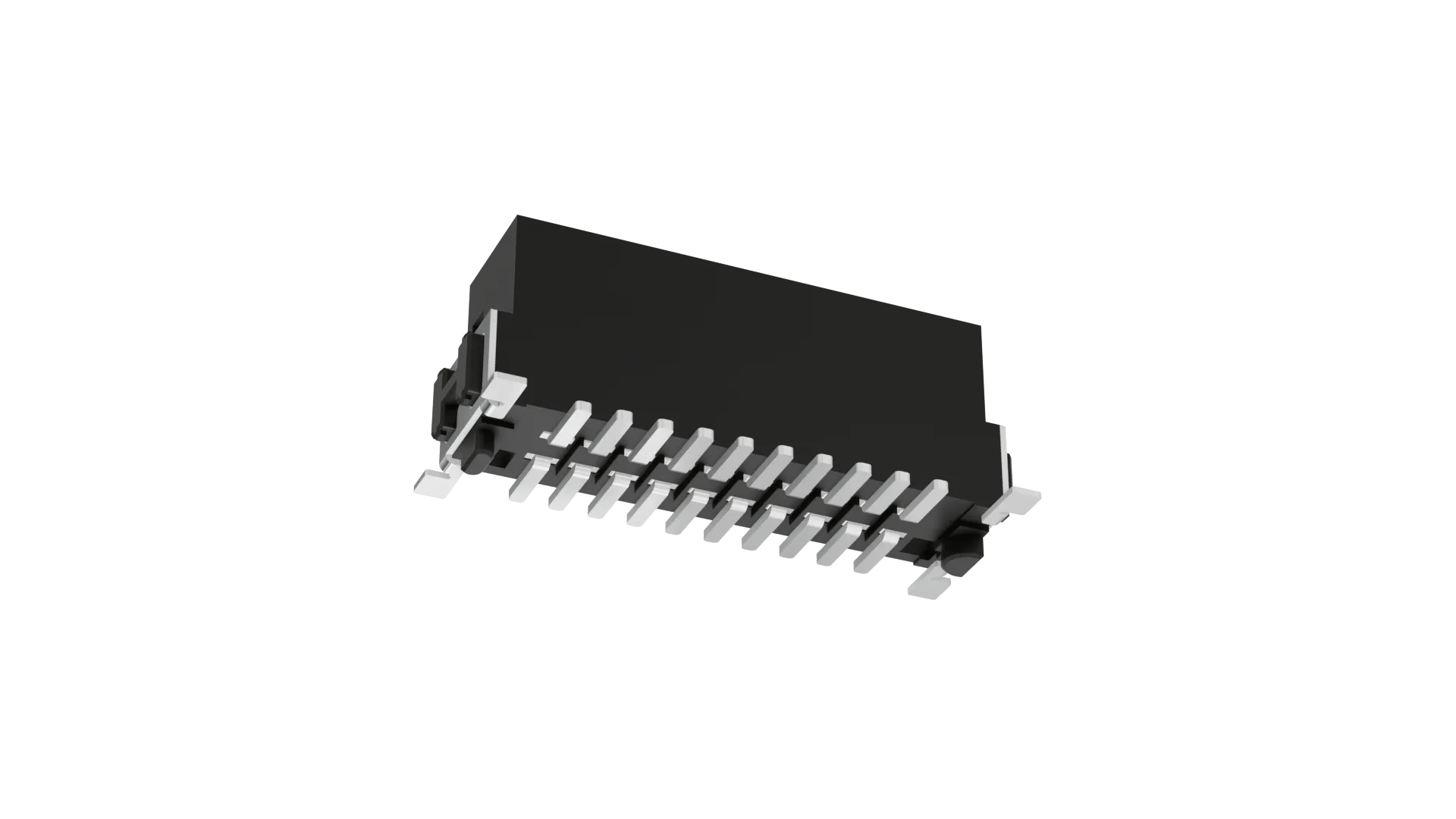

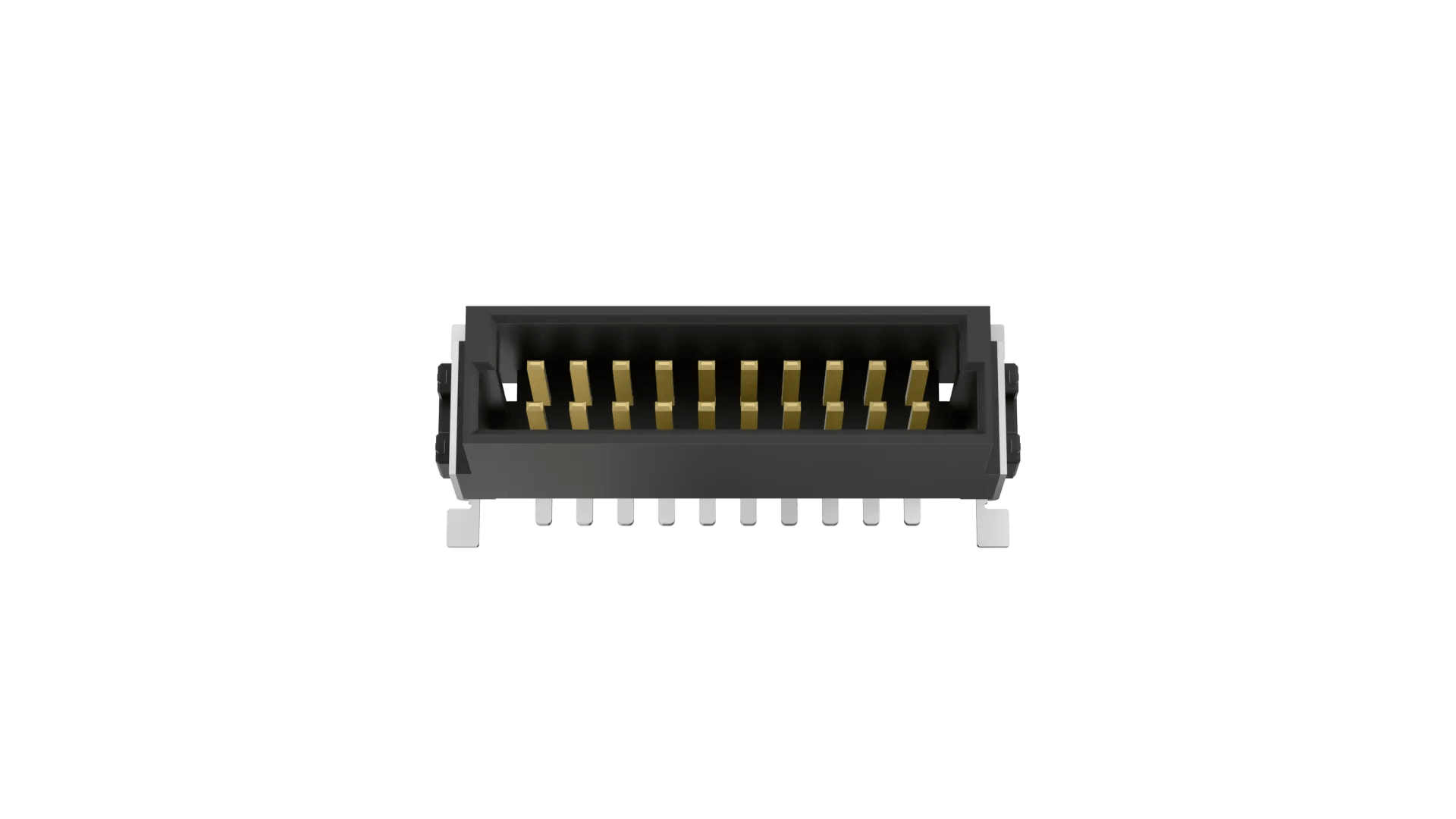

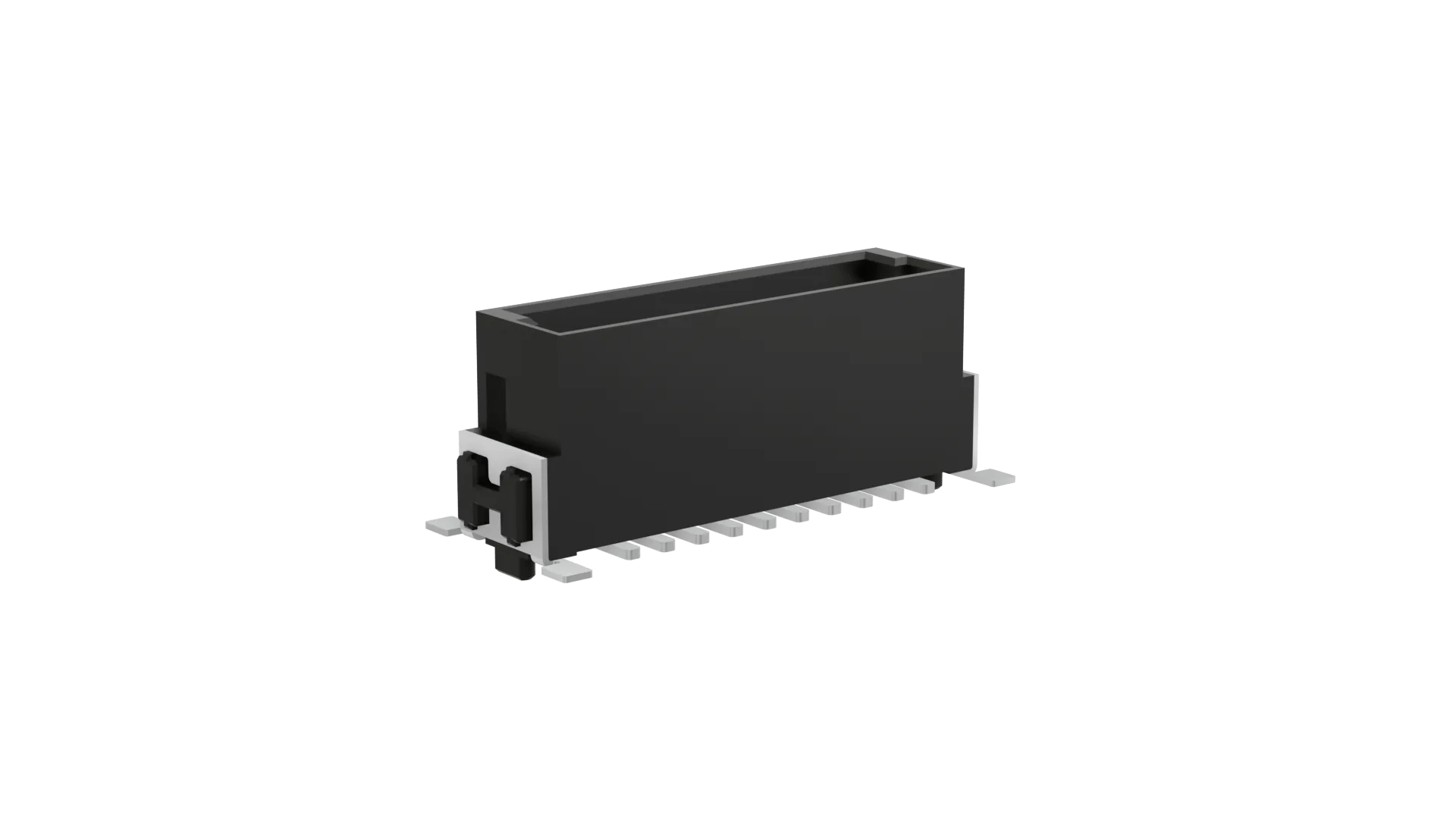

M55-7002042R

10+10 Pos. Male DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row Surface Mount, 6.75mm connector height, shrouded polarized connector – 20 contacts (10+10). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.
  • For complete pin numbering or pin out information, see Component Specification C047XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1.2A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.597g

Overall Dimensions (L x W x D) in mm:

17.78 x 7.20 x 7.50

Height of Connector above PCB:

6.75mm

Availability

9,942 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 6548
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1073
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1000
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 500
Distributor Newark
Location USA
Quantity (Updated Daily) 466
Distributor Farnell
Location Europe
Quantity (Updated Daily) 355

Questions & Answers Ask a Question

What is the mating height, or distance between the two PCBs, for M55-6002042R and M55-7002042R when connected?

The mating height when the two connectors are fully mated (pushed together so the housings are touching) is 8.00mm. The connectors can also be used with the mating height up to 1.5mm from completely mated, so the range of mating height is 8mm to 9.5mm. You can find this information on this page either under “Technical Details / Dimensions”, where you can download the mating heights page from the catalog, or in the Component Specification, under “Downloads / Technical Documents”.

What is the frequency rating of this connector?

The frequency rating of the Archer Kontrol connector range is 3GHz. You can find more information on the test criteria on pages 7-9 of the HT060xx Test Report Summary.
