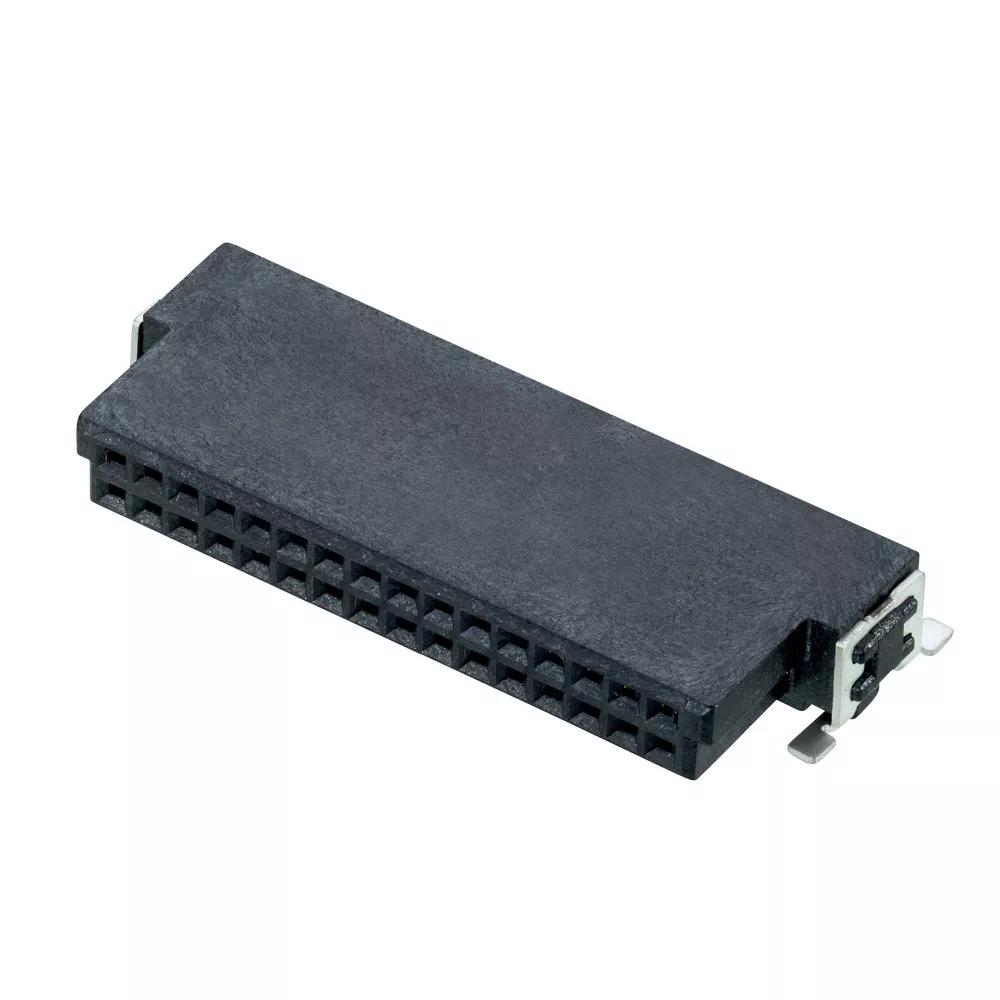

16+16 Pos. Female DIL Horizontal SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

Add to Favorites

Made to order

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row Surface Mount, 10.8mm total footprint depth, shrouded polarized connector – 32 contacts (16+16). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for 90 degree or coplanar board-to-board connection. Supplied in Tape and Reel. Gold finish on contact area, Tin finish on termination.
  • For complete pin numbering or pin out information, see Component Specification C047XX.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Current Rating:

1.2A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

32

Entry Style:

Side Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

1.335g

Overall Dimensions (L x W x D) in mm:

25.40 x 10.72 x 4.43

Height of Connector above PCB:

3.68mm

Frequently Asked Questions Ask a Question

What is the durability spec. for these connectors?

The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.

Was this answer useful?

What is the frequency rating of this connector?

The frequency rating of the Archer Kontrol connector range is 3GHz for board-mounted connectors. You can find more information on the test criteria in the HT060xx Test Report Summary.

Was this answer useful?

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
