Image may be representative. Refer to the product title for more information.

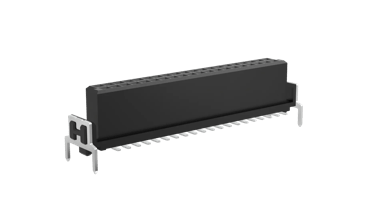

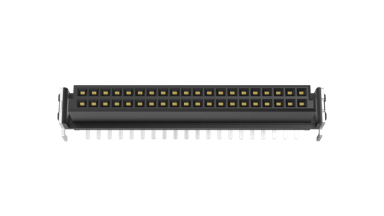

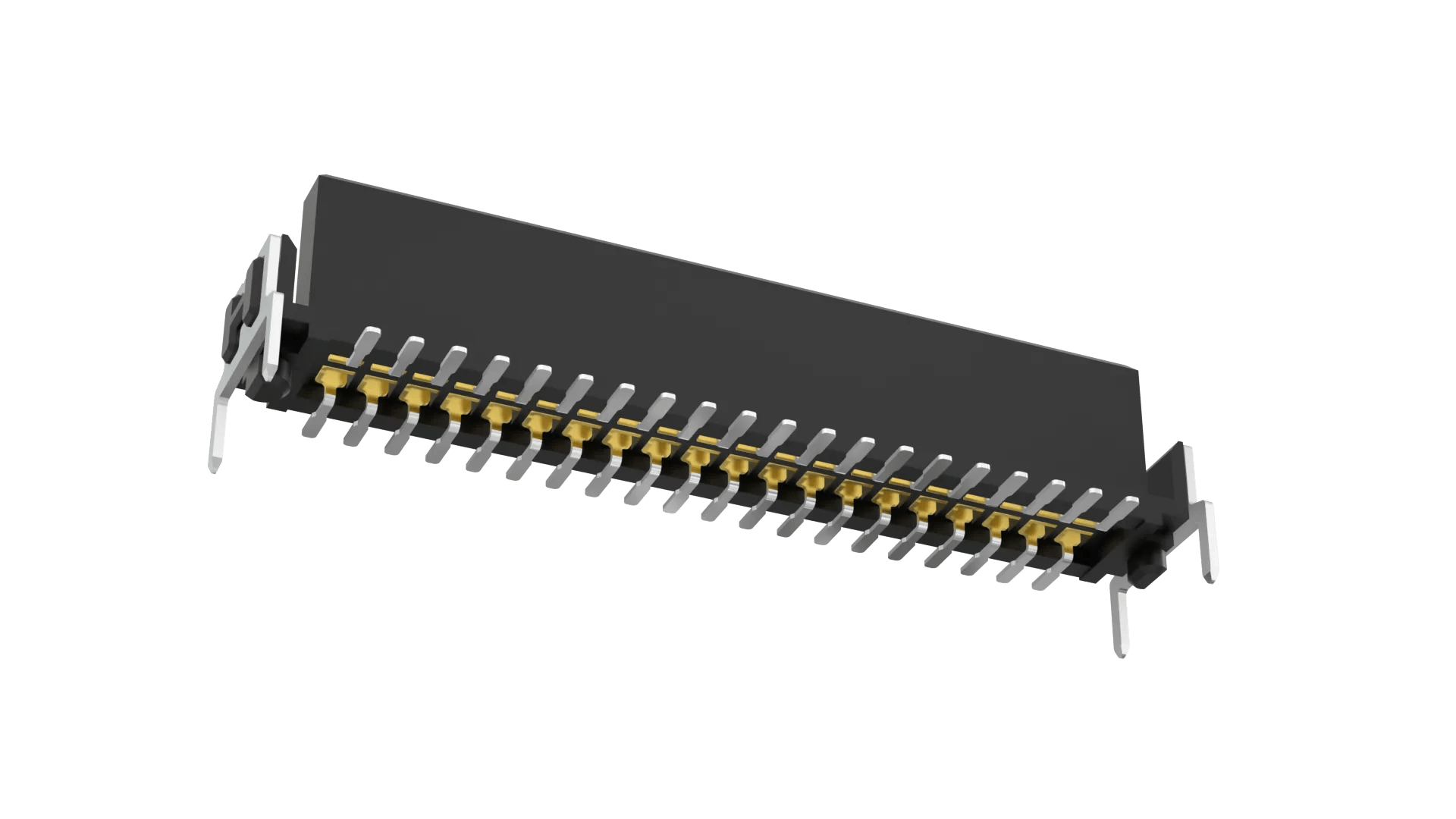

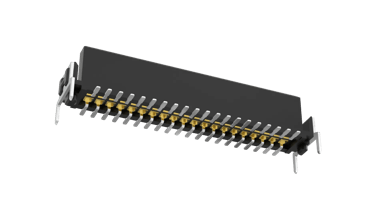

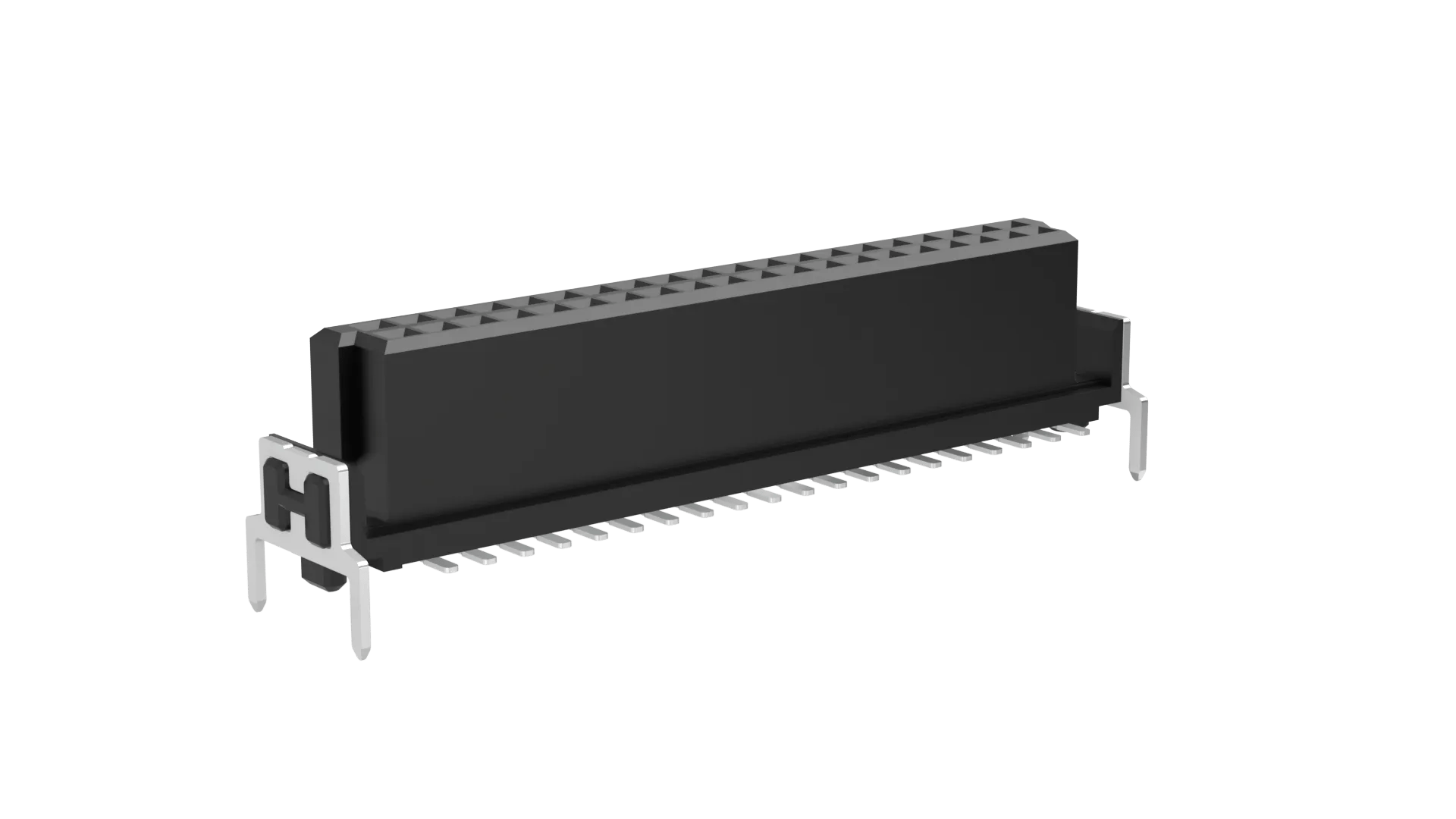

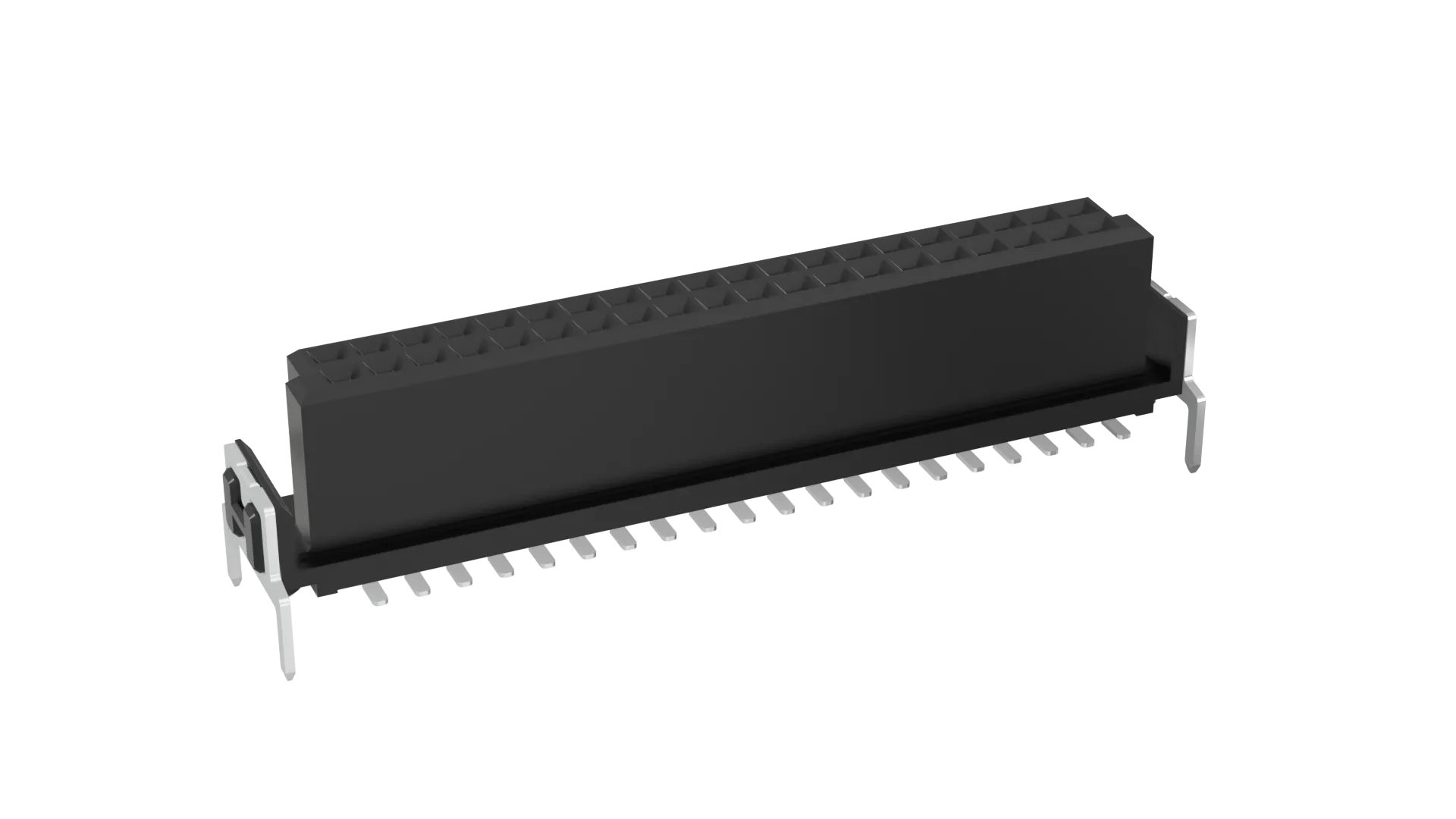

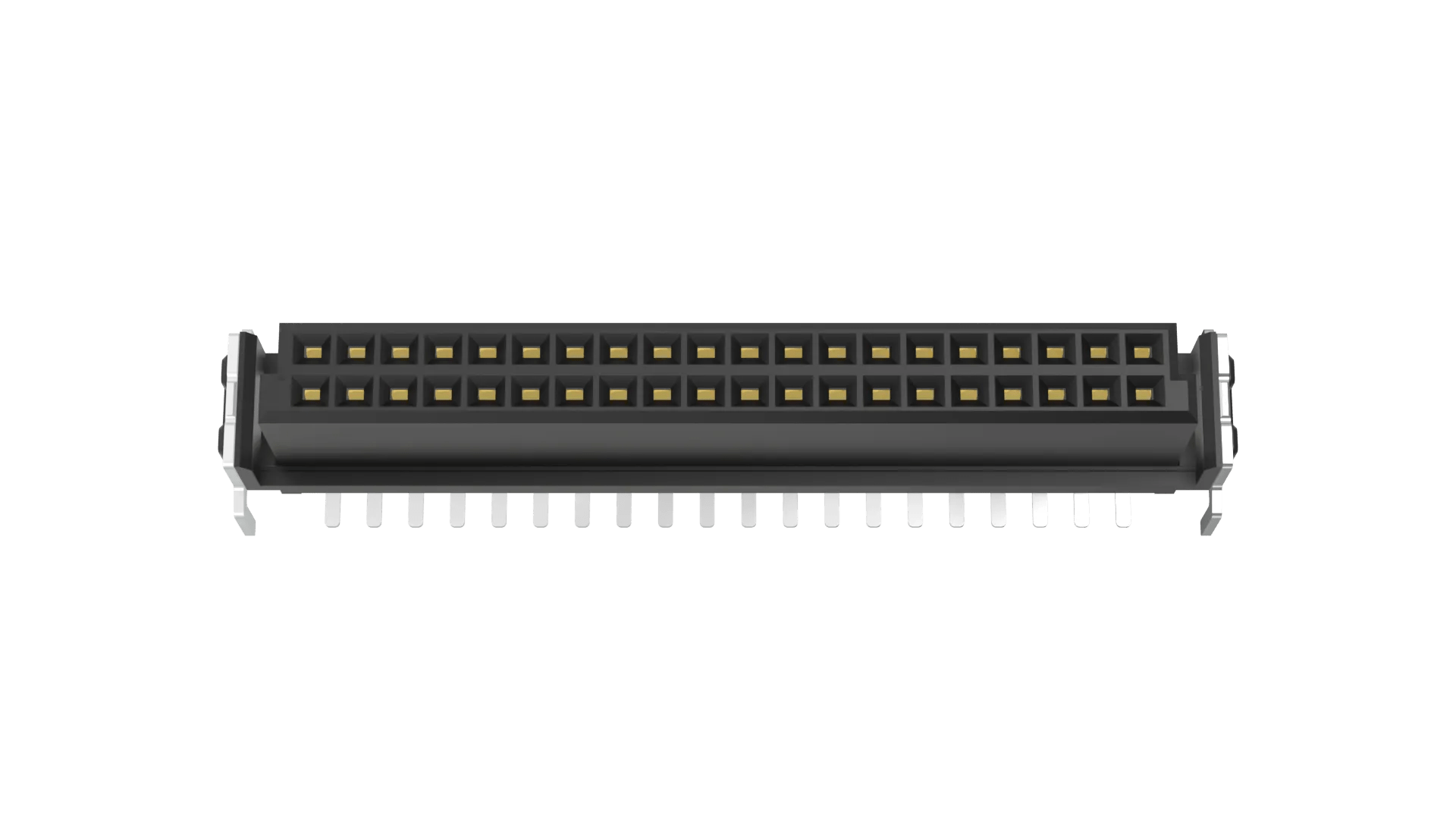

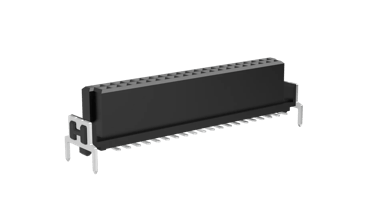

Double Row Surface Mount, 6.25mm connector height, shrouded polarized connector - 40 contacts (20+20). Location pegs, throughboard hold-down retaining tabs for additional solder strength.
Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.
High-speed board-to-board connection with a data rate up to 1.5GHz, 3Gb/s. For complete pin numbering or pin out information, see Component Specification C047XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Entry Style:
Top Entry
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
CN
Side Stackable:
No
Number of Signal Contacts:
40
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1.2A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
1.27mm (0.05")
Weight:
1.044g
Dimensions:
30.48 x 6.30 x 8.30
Height of Connector above PCB:
6.25mm
