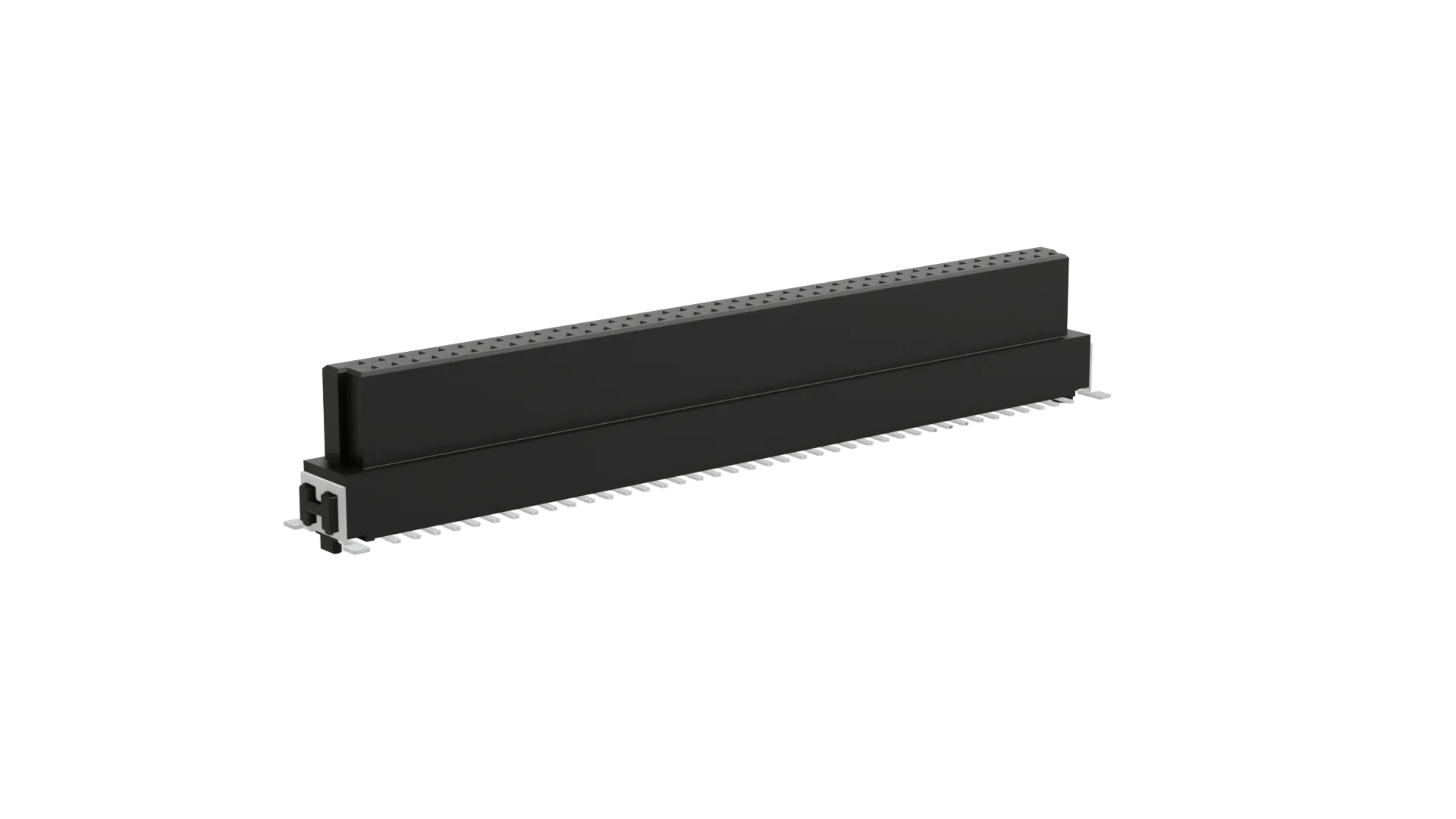

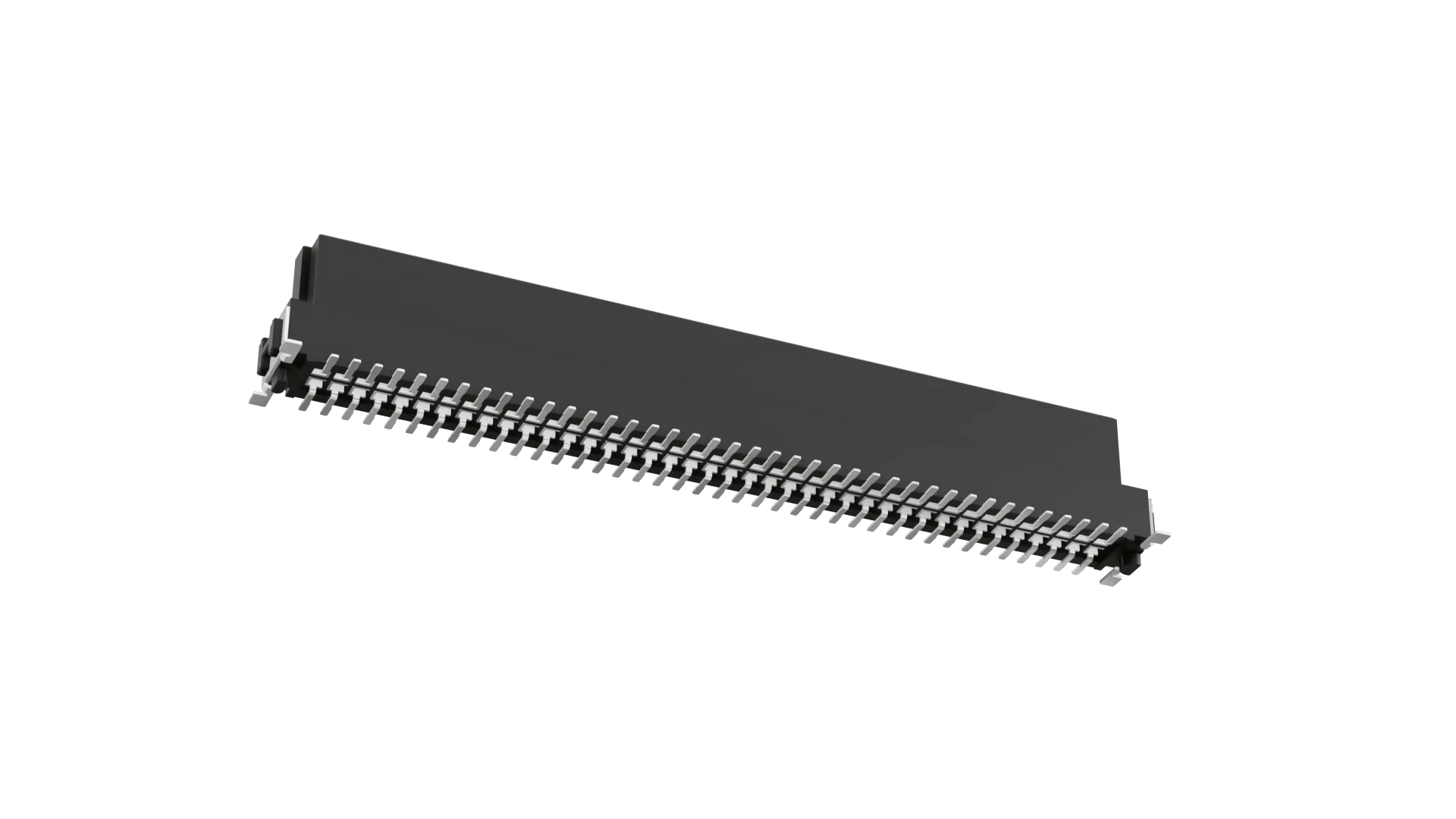

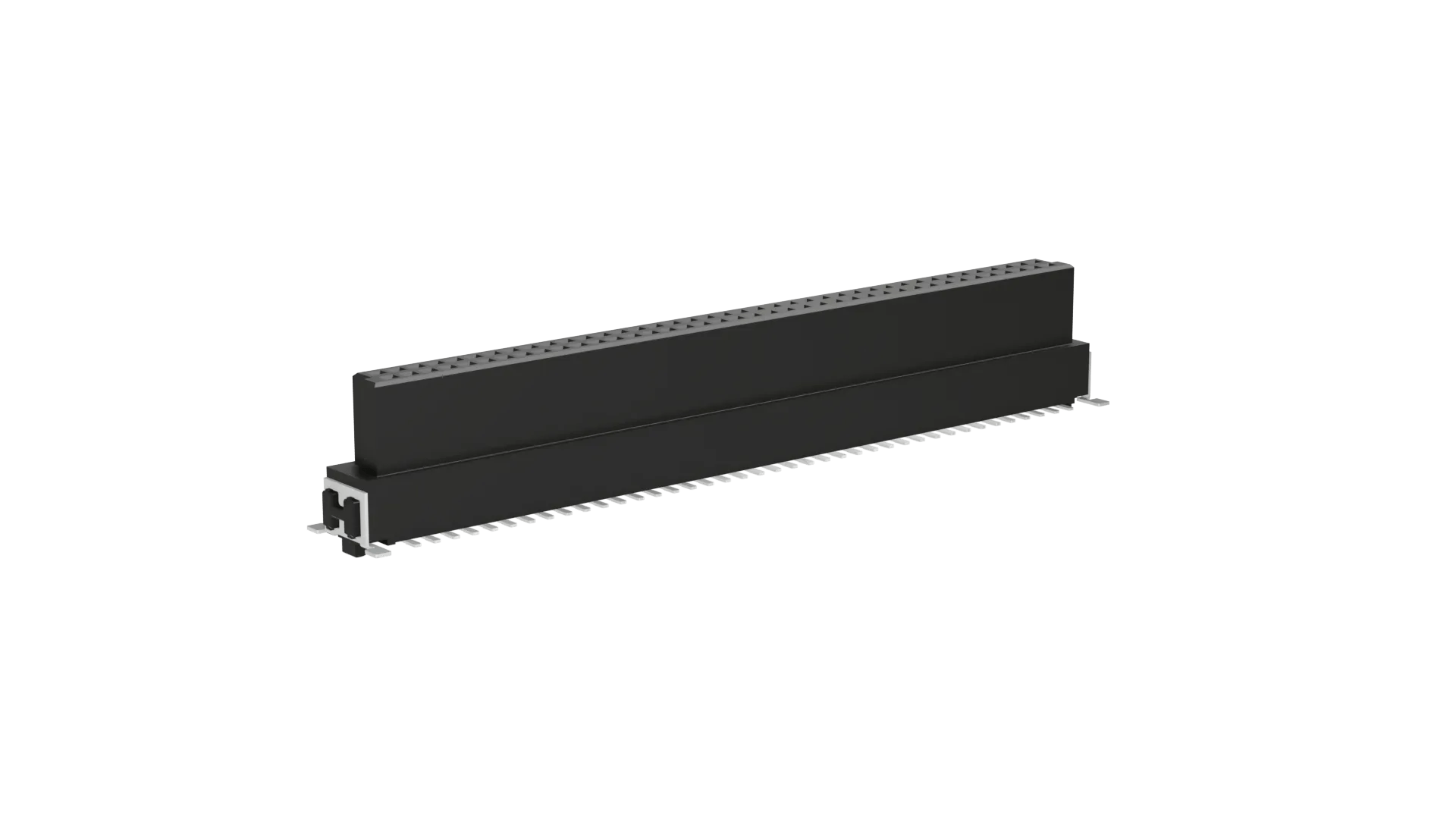

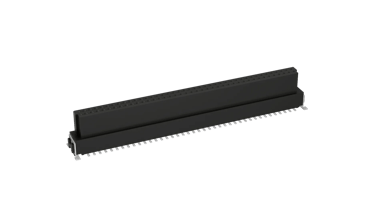

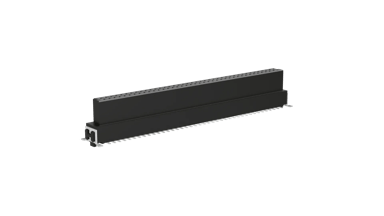

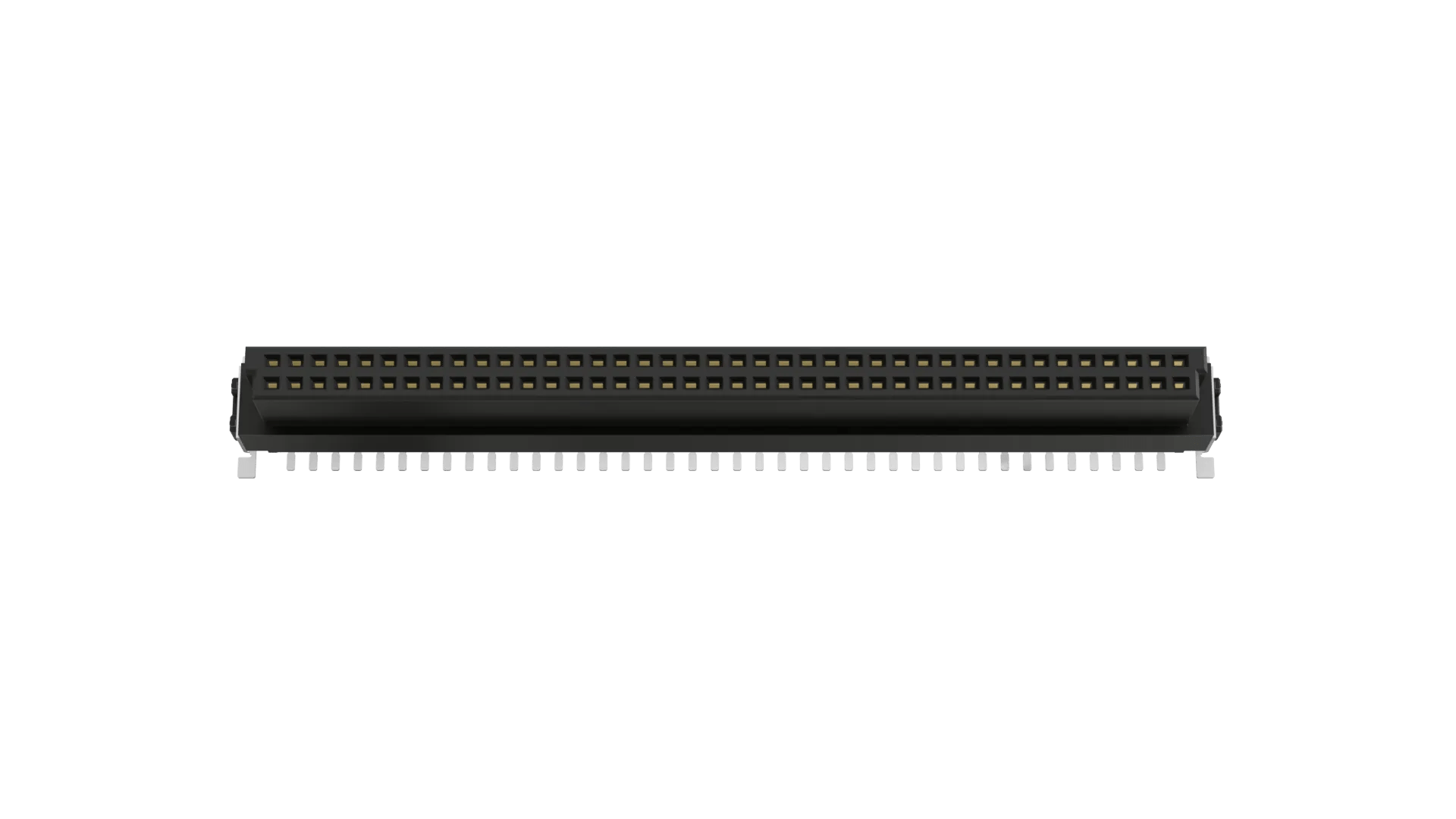

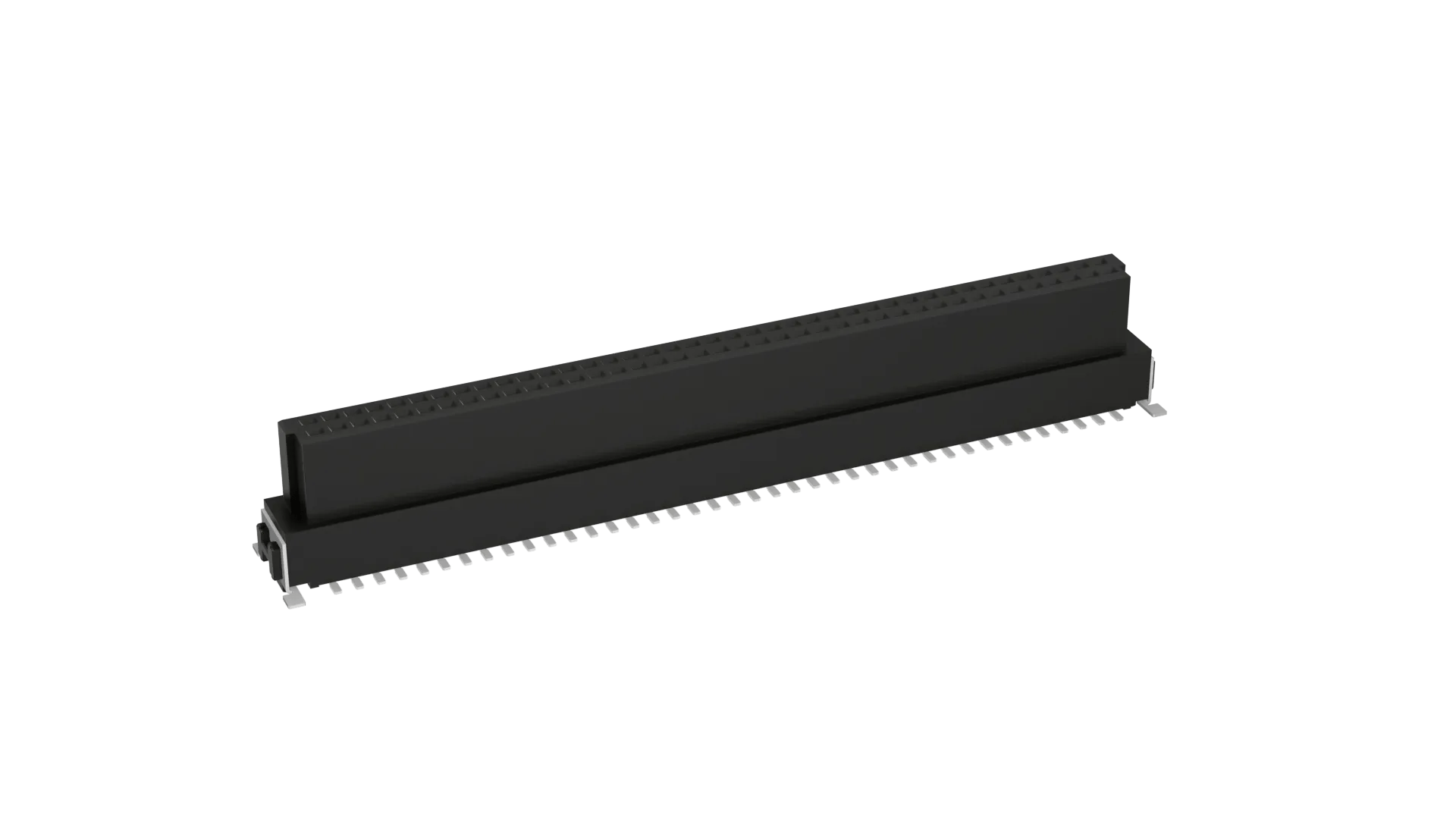

40+40 Pos. Female DIL Vertical SMT Conn. (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer Kontrol
- Double Row Surface Mount, 9.05mm connector height, shrouded polarized connector – 80 contacts (40+40). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
- Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.
- For complete pin numbering or pin out information, see Component Specification C047XX.
EU RoHS Status:
Surface Mount (SMT)
1.2A max per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
55.88 x 7.20 x 9.80
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
What is the durability spec. for these connectors?
The durability rating for Archer Kontrol is 500 mating cycles. You can locate this specification on both the Technical Drawing, and the Component Specification – scroll down to Downloads and they are listed under Technical Documentation.
Was this answer useful?
What is the frequency rating of this connector?
The frequency rating of the Archer Kontrol connector range is 3GHz for board-mounted connectors. You can find more information on the test criteria in the HT060xx Test Report Summary.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
