Home > M55-6011642R
Active

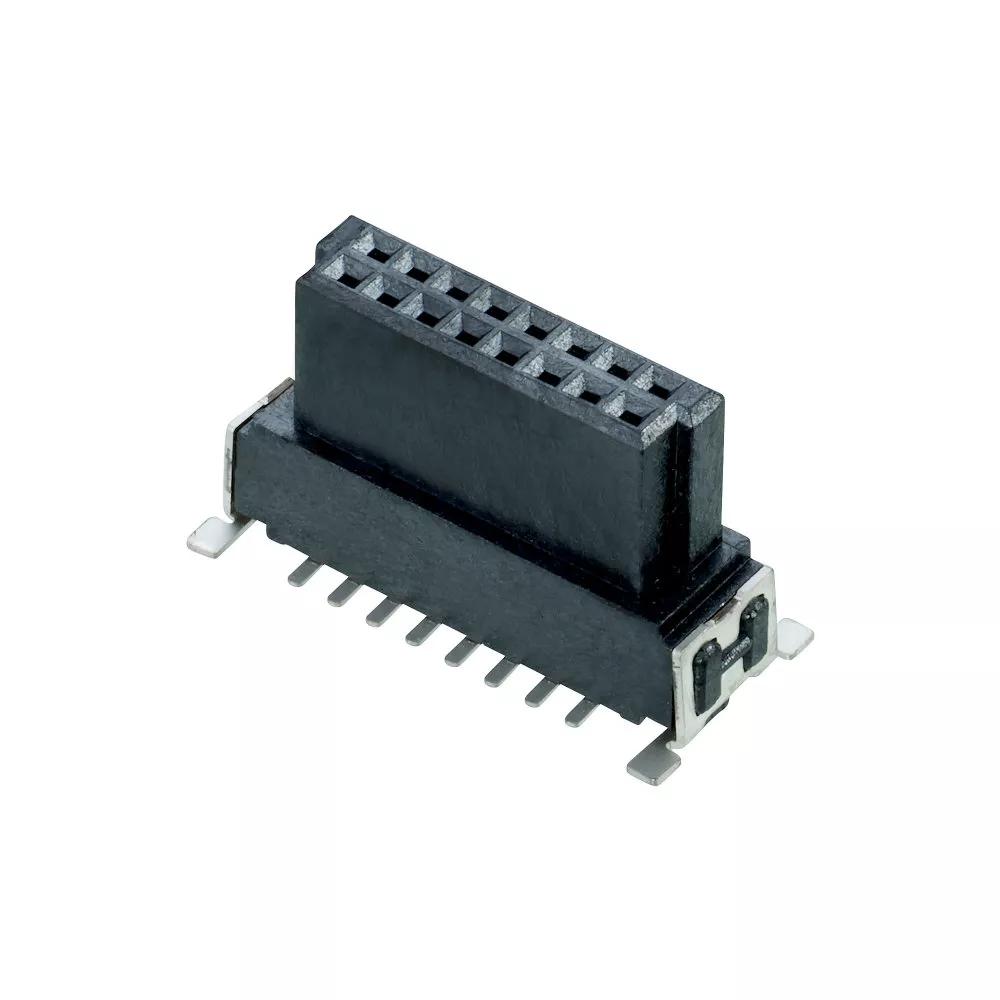

M55-6011642R

8+8 Pos. Female DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row Surface Mount, 9.05mm connector height, shrouded polarized connector – 16 contacts (8+8). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap). Gold finish on contact area, Tin finish on termination.
  • For complete pin numbering or pin out information, see Component Specification C047XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1.2A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.845g

Overall Dimensions (L x W x D) in mm:

15.24 x 7.20 x 9.80

Height of Connector above PCB:

9.05mm

Availability

3,934 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 578
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 468
Distributor Newark
Location USA
Quantity (Updated Daily) 282
Distributor Farnell
Location Europe
Quantity (Updated Daily) 206

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 2400

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M55-60X.pdf

ZIP

M55-6011642R CAD Model (ZIP file containing STP and IGES)

Download
PDF

C047XX Component Specification - Archer Kontrol M55 Series (1.27mm Pitch Industrial connectors)

TEST REPORTS

PDF

Test Report HT060 - Archer Kontrol (M55 series) - General (Electrical, Mechanical and Environmental)

PDF

Test Report HT064 - Archer Kontrol (M55 Series) - Comparison to competitor product

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M55-601 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Archer Kontrol (M55 Series) High Performance range

OTHER DOWNLOADS

PDF

Catalog page - Archer Kontrol Female Vertical SMT

PDF

Catalog page - Archer Kontrol Specification, Pin Numbering

PDF

Catalog page - Archer Kontrol Mating Profiles

PDF

Catalog page - Durable Industrial Connectors Introduction

PDF

Product Summary - Archer Kontrol, Durable Industrial Connectors
