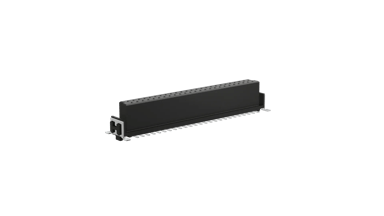

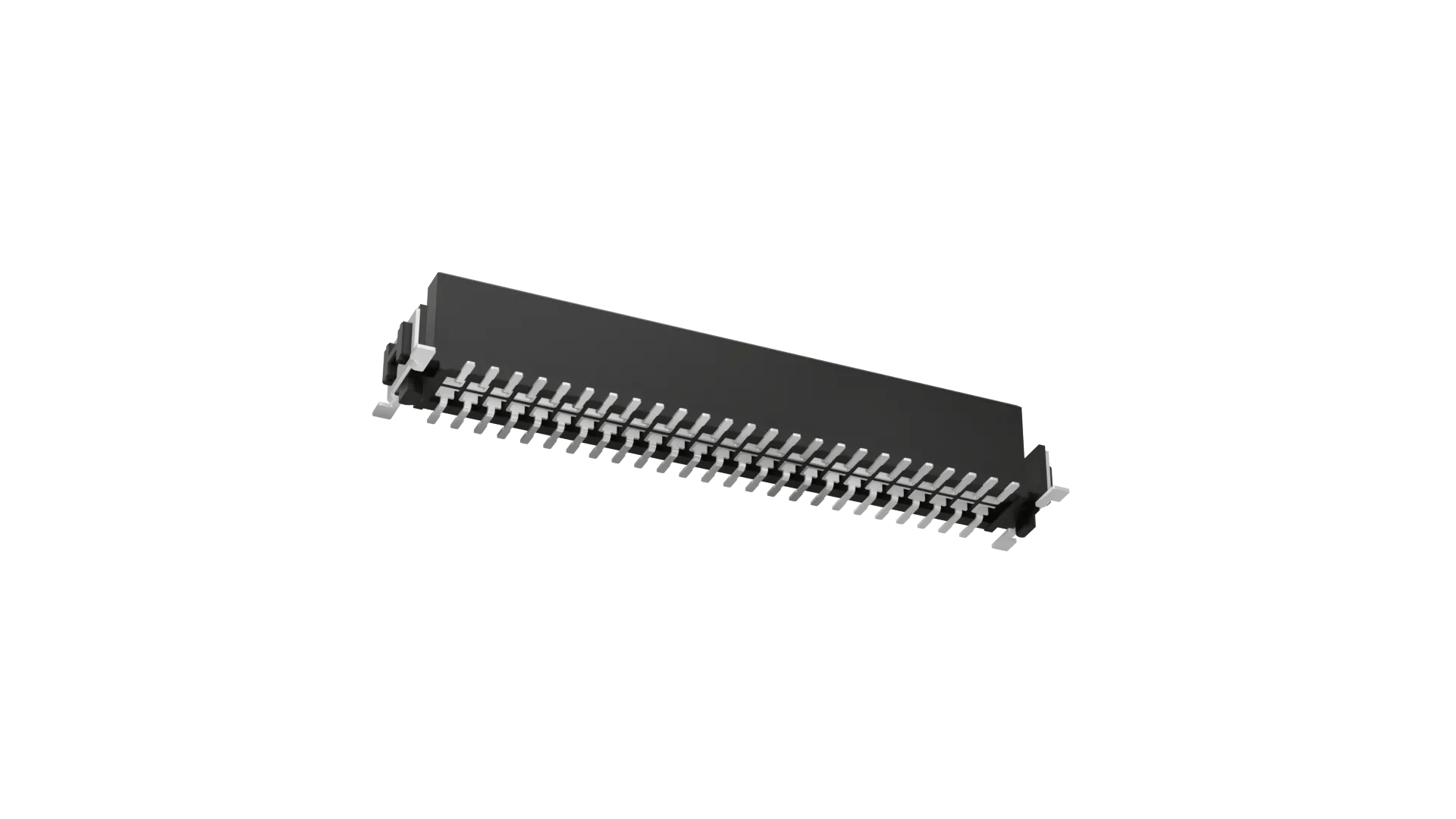

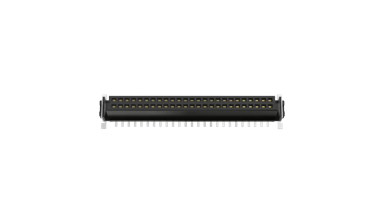

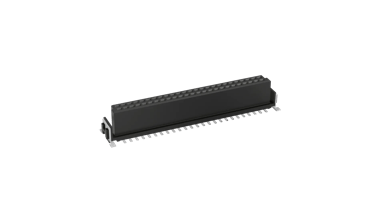

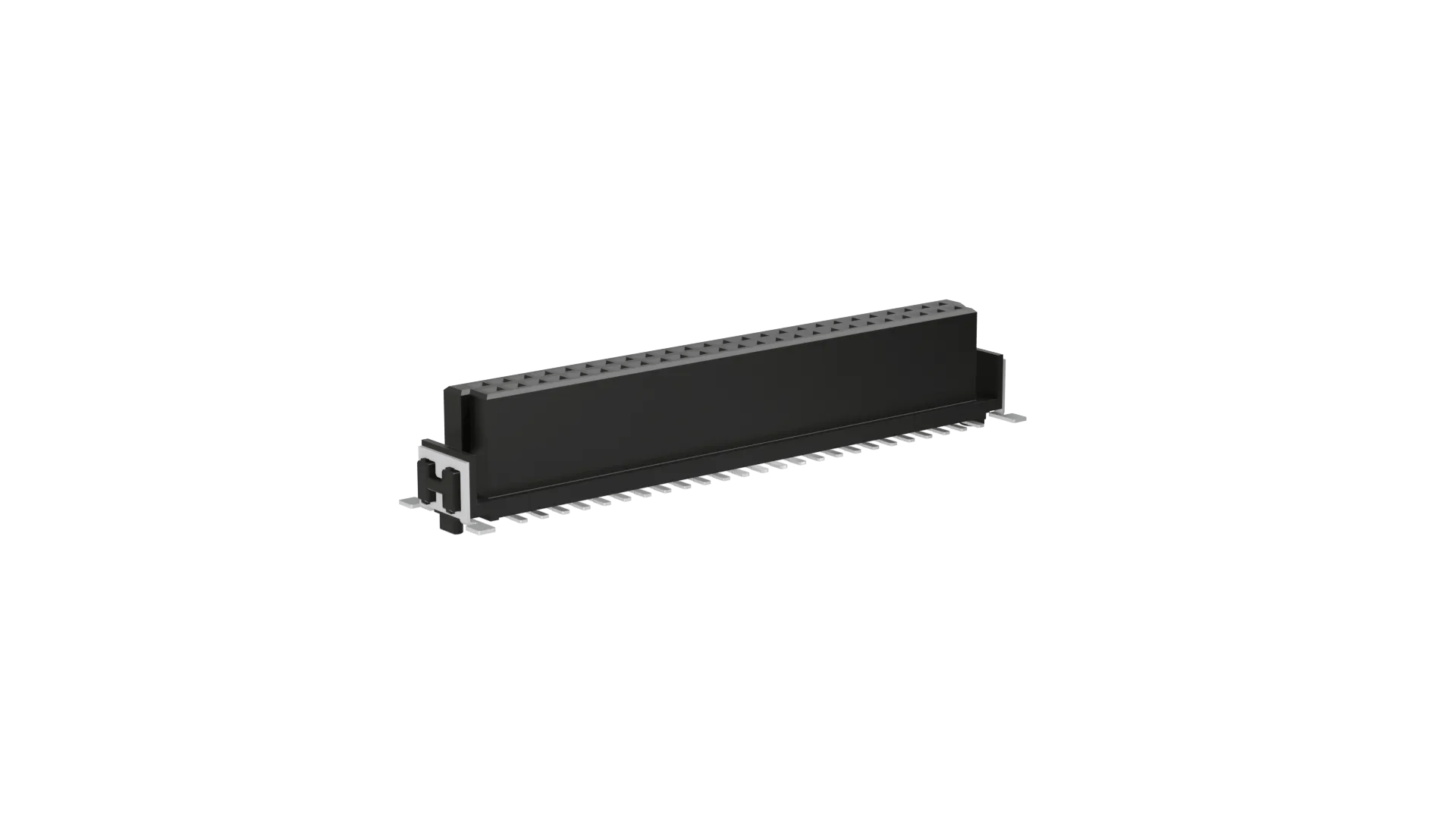

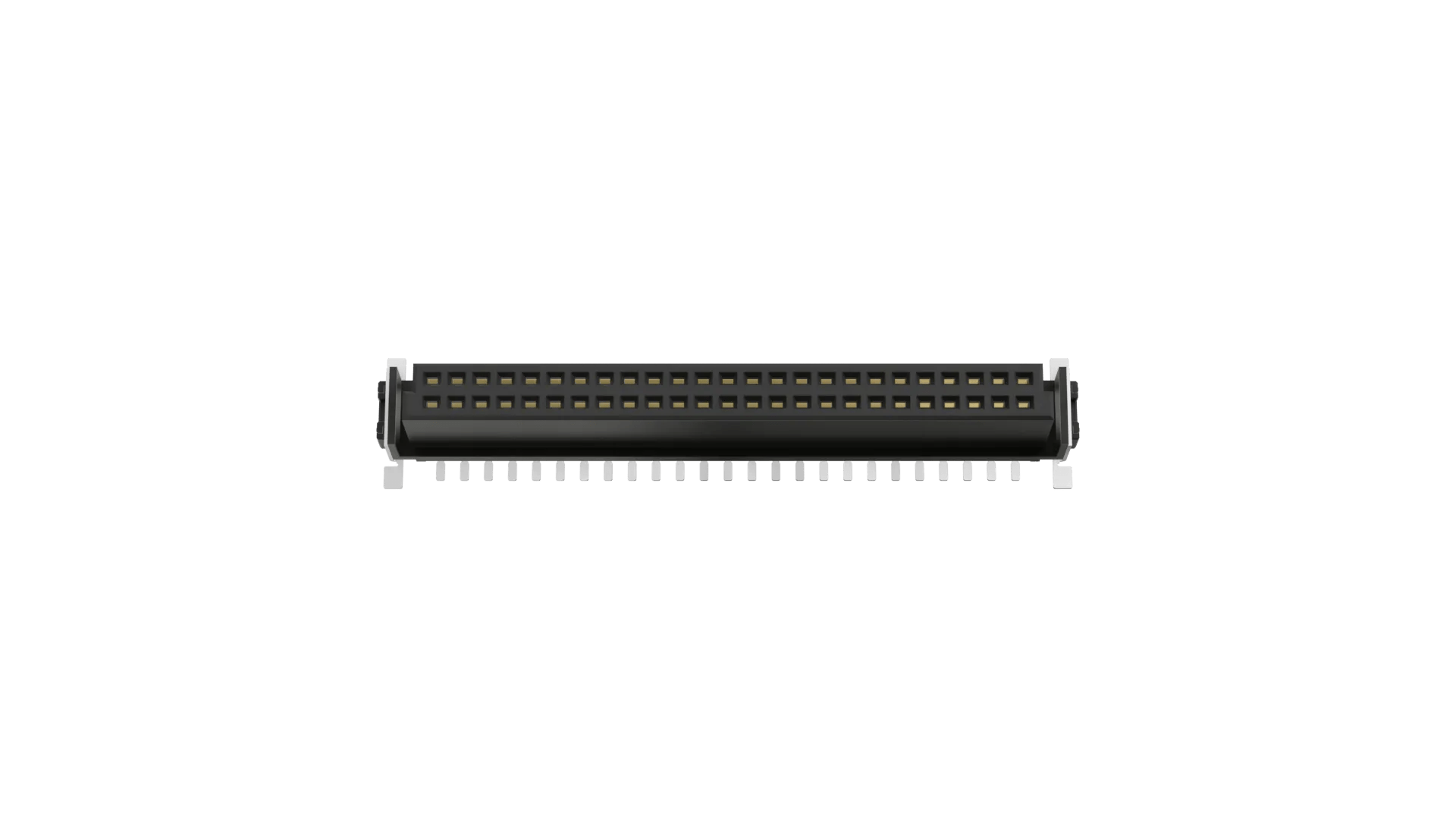

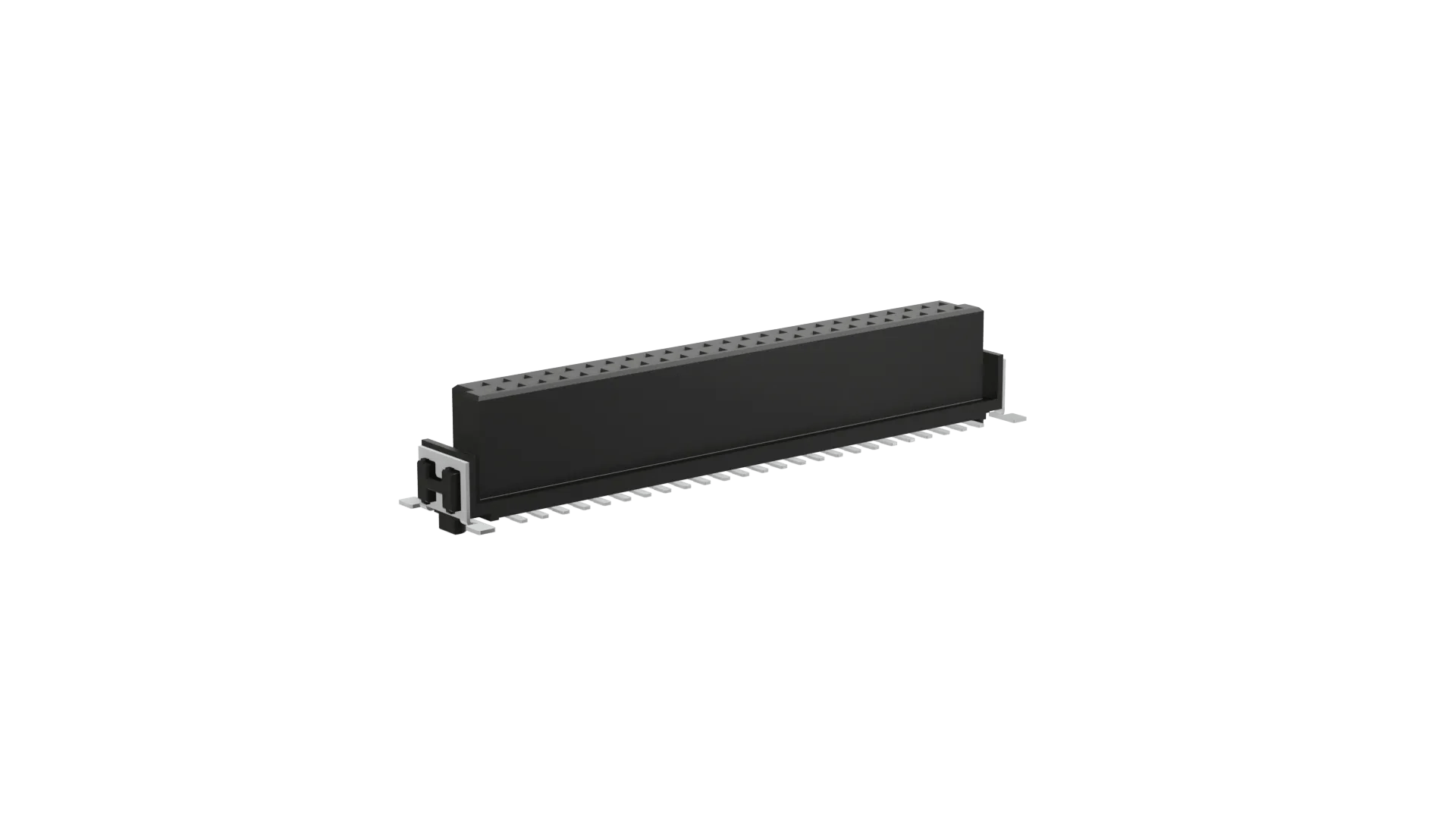

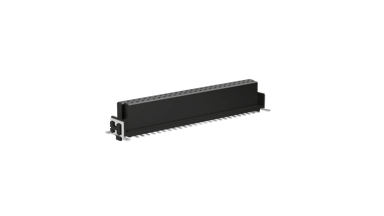

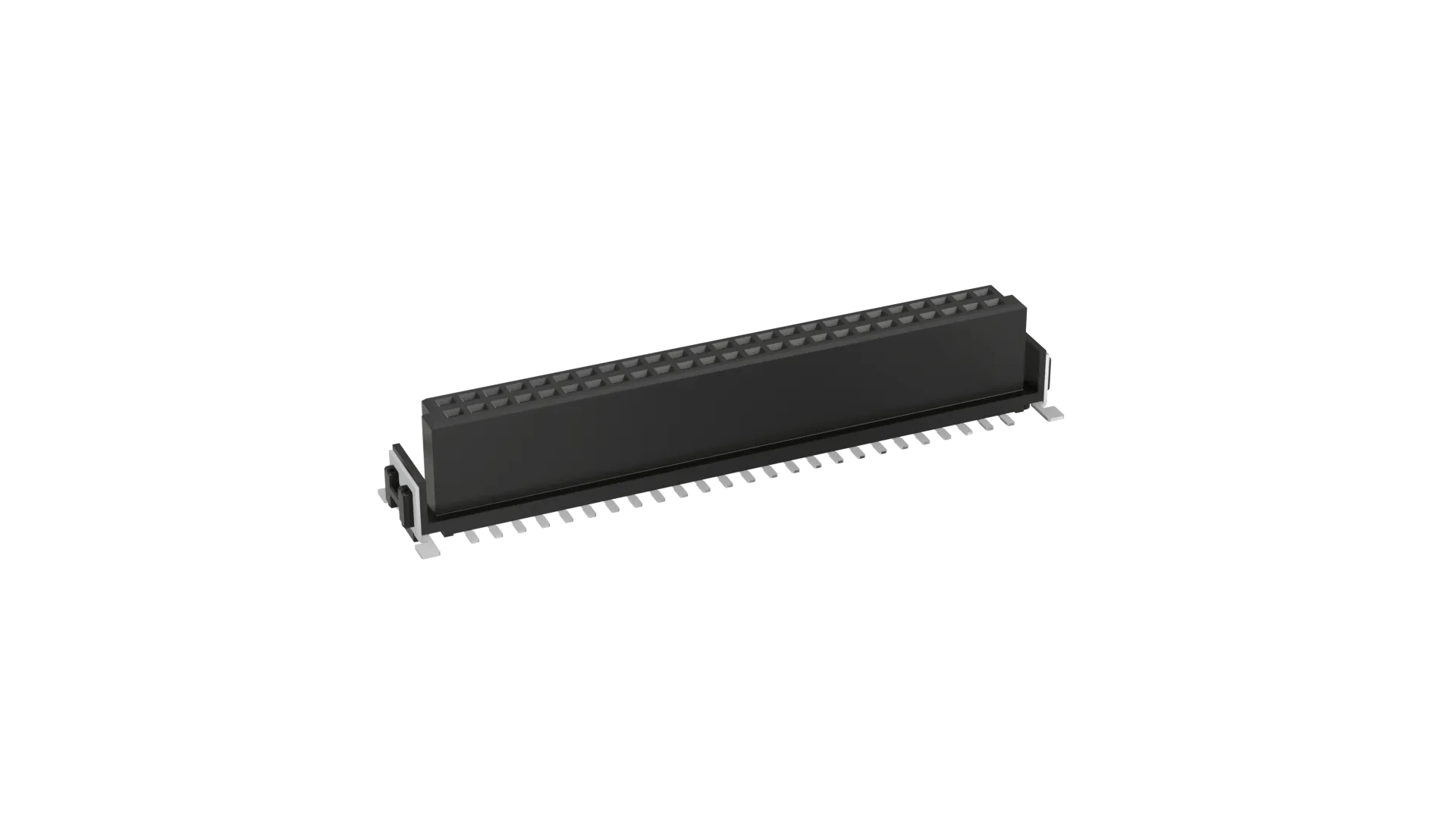

M55-6005042R

25+25 Pos. Female DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row SMT, 6.25mm connector height, shrouded polarized connector - 50 contacts (25+25).
  • Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap).

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Avnet Abacus Europe 1100 Buy Now
Digi-Key Global 1043 Buy Now
Farnell Europe 550 Buy Now
Mouser Electronics Inc Global 730 Buy Now
Newark USA 550 Buy Now
Harwin Europe 3300

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 1.27mm (0.05") Pitch PCB Connector - Archer Kontrol
Contact Pitch: 1.27mm (0.05")
Contact Gender: Female/Socket/Jack
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Current Rating: 1.2A
Operating Temperature: -55°C to +125°C
Maximum Soldering Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: LCP
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.357g
Packaging Style: Tape and Reel

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 50
Body Length: 36.83mm
Height of Connector above PCB: 6.25mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Entry Style: Top Entry
Mating Profiles/Heights

Related Products

+
Product Family: M55-600

Mating Products

Alternative products

M55-6015042R - 25+25 Pos. Female DIL Vertical SMT Conn. (T+R)

Closest alternative:

M55-6015042R

25+25 Pos. Female DIL Vertical SMT Conn. (T+R)
