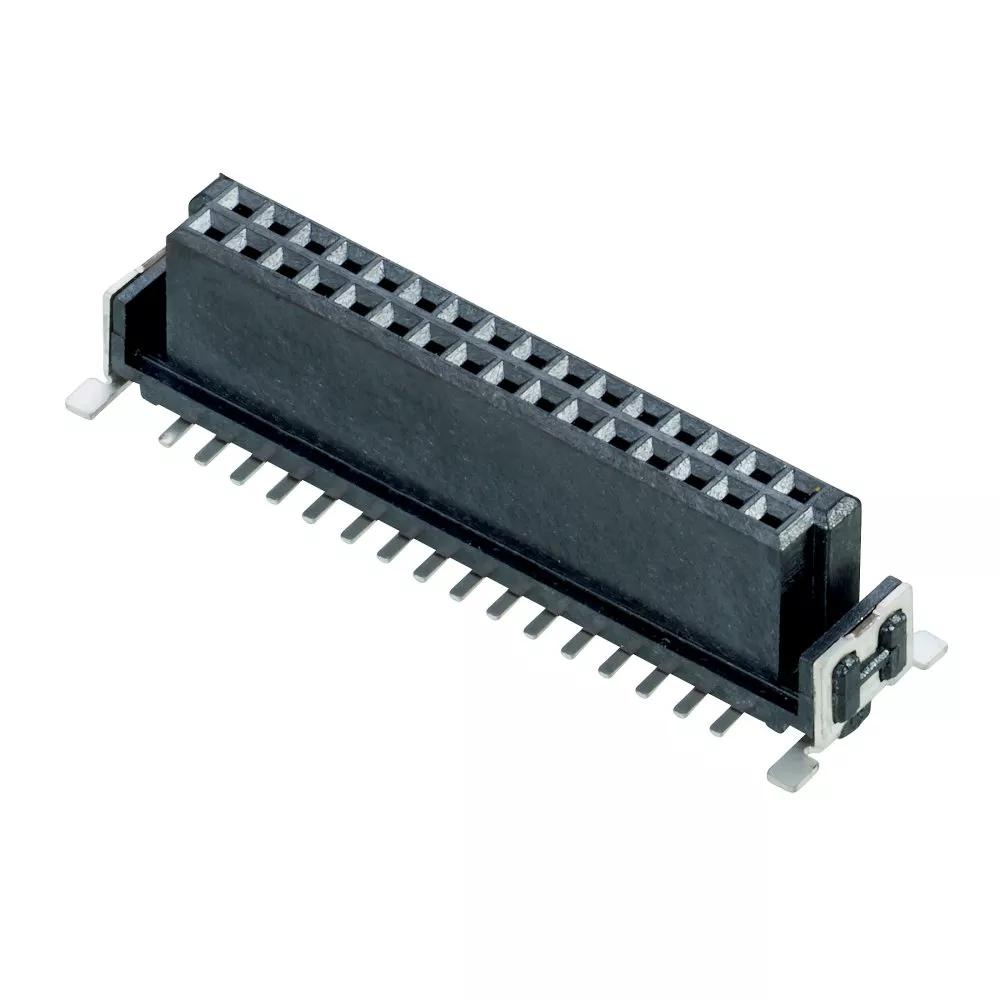

M55-6003242R

16+16 Pos. Female DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row SMT, 6.25mm connector height, shrouded polarized connector – 32 contacts (16+16).
  • Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap).
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1.2A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

32

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.91g

Overall Dimensions (L x W x D) in mm:

25.40 x 7.20 x 7.00

Height of Connector above PCB:

6.25mm

Availability

Popular product
Distributor Location Quantity
Harwin
Europe
Status3850

*Stock available: contact distributor to purchase
