Home > M55-6002642R
Active

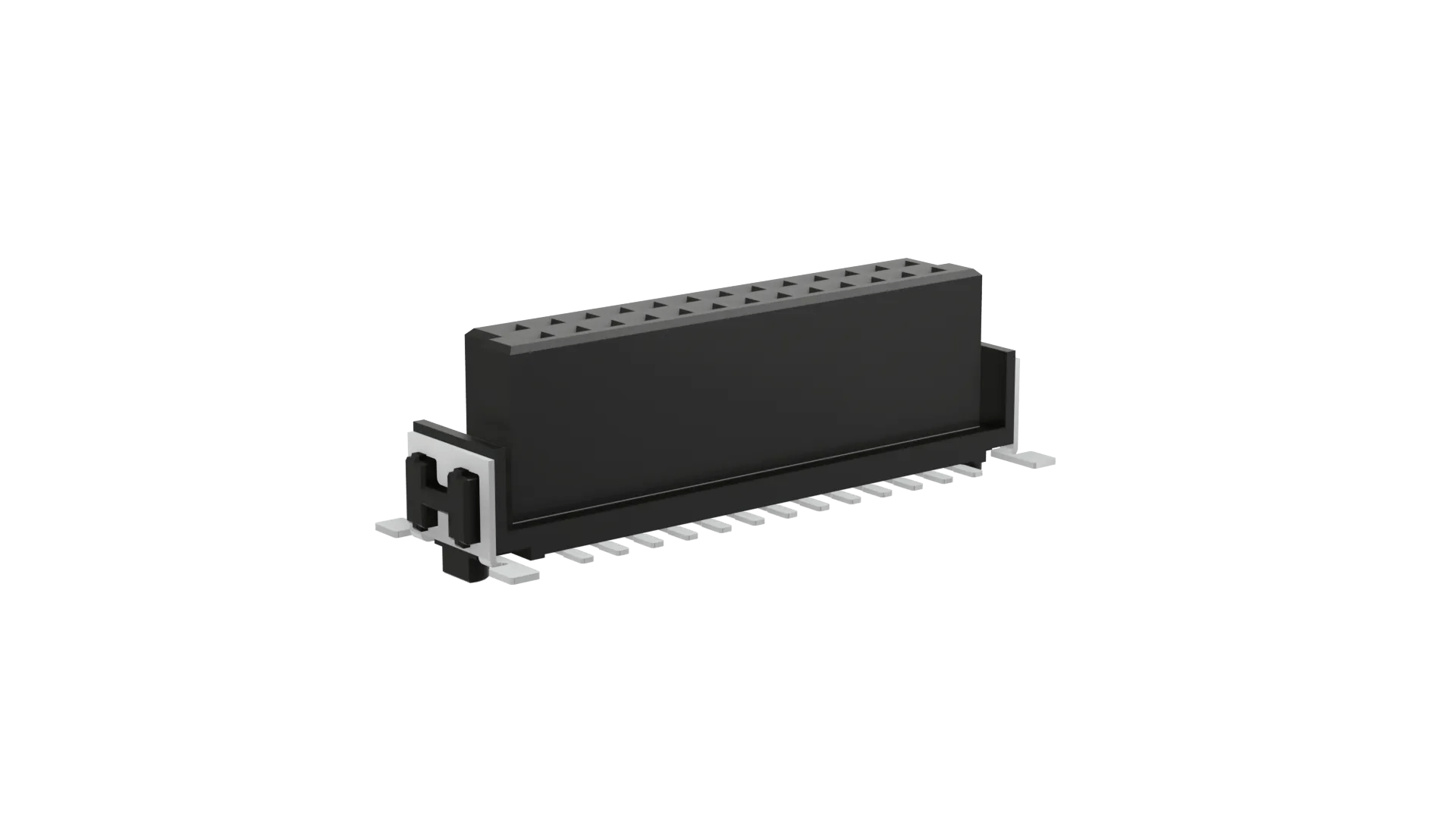

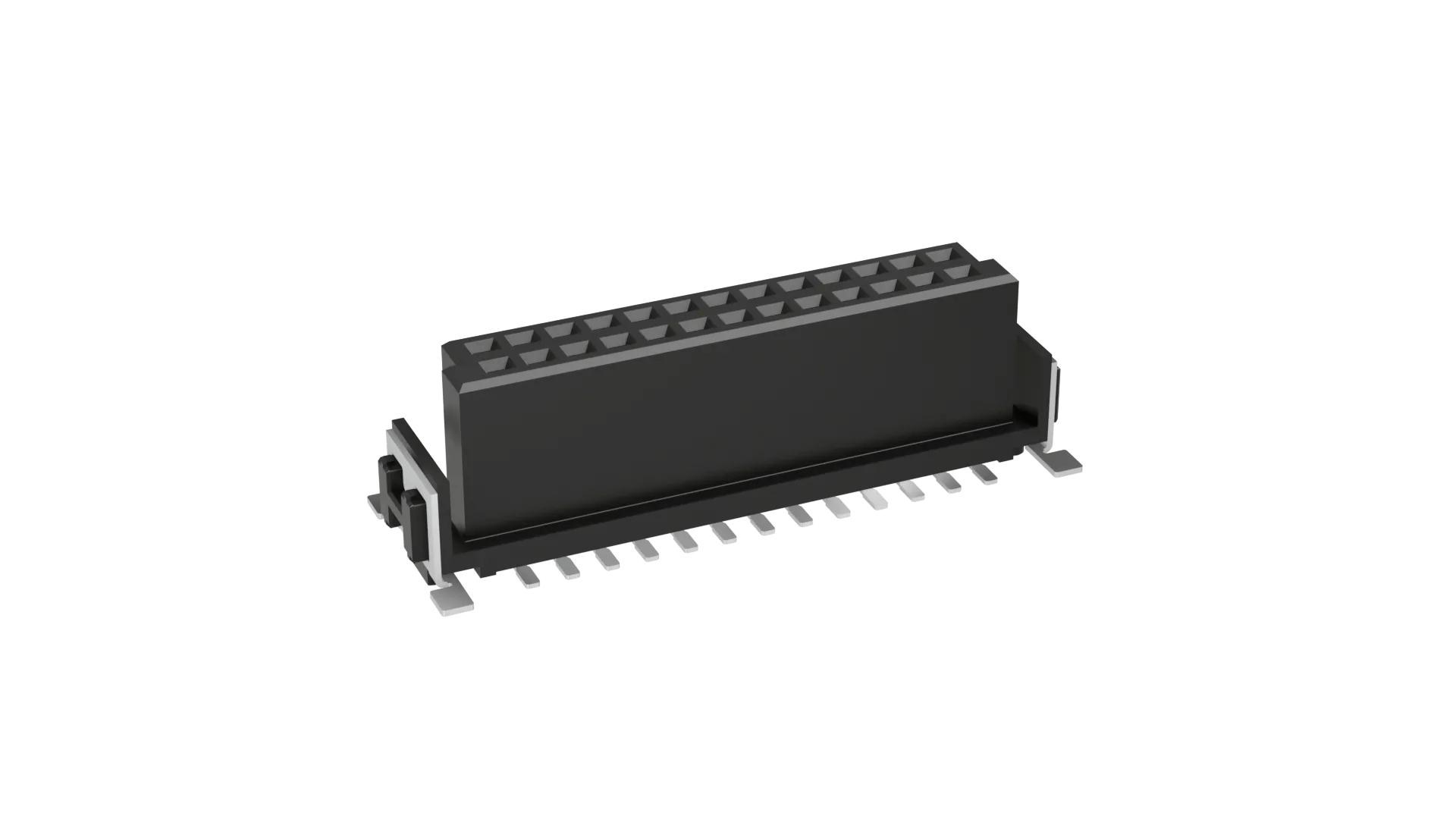

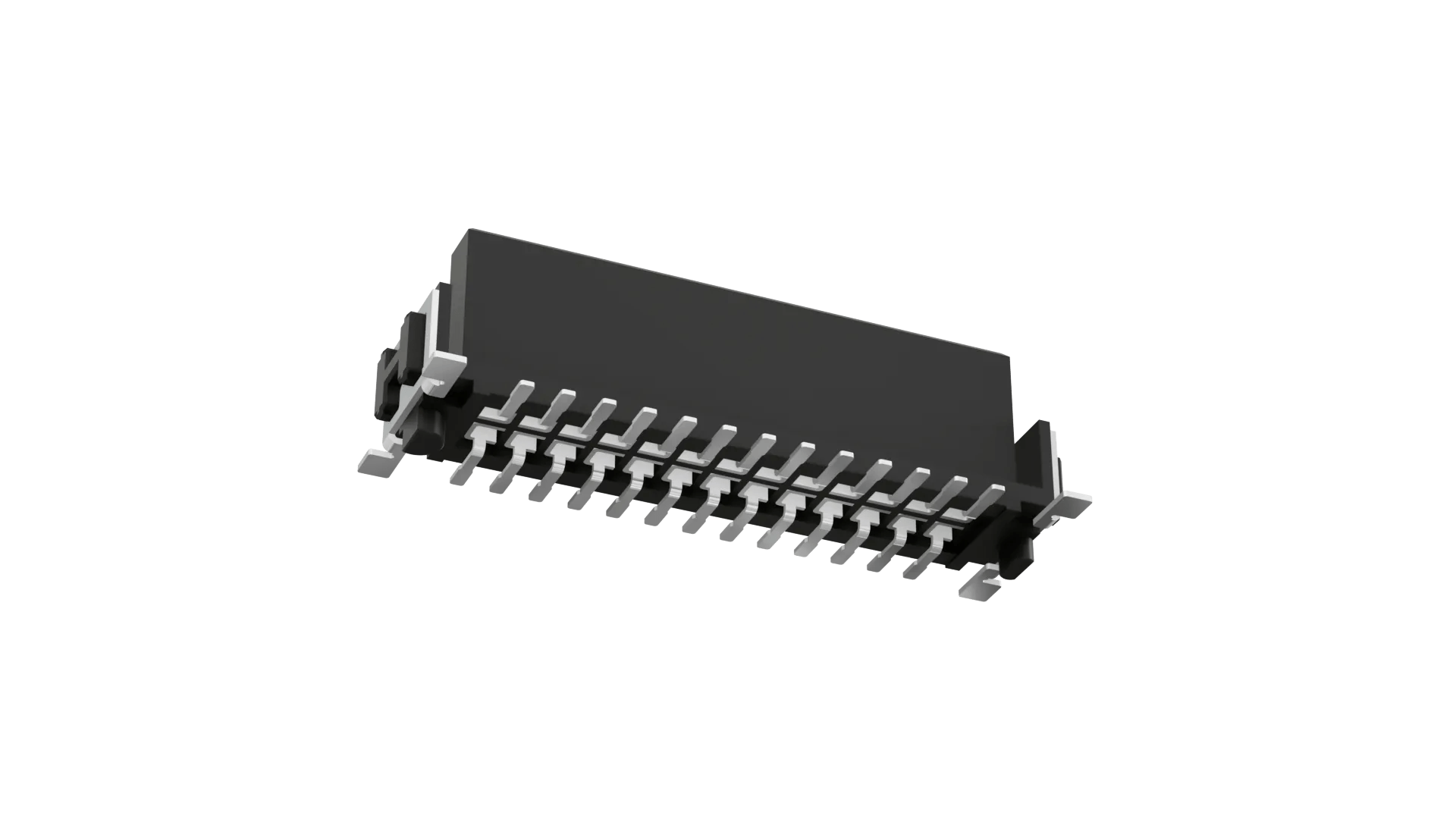

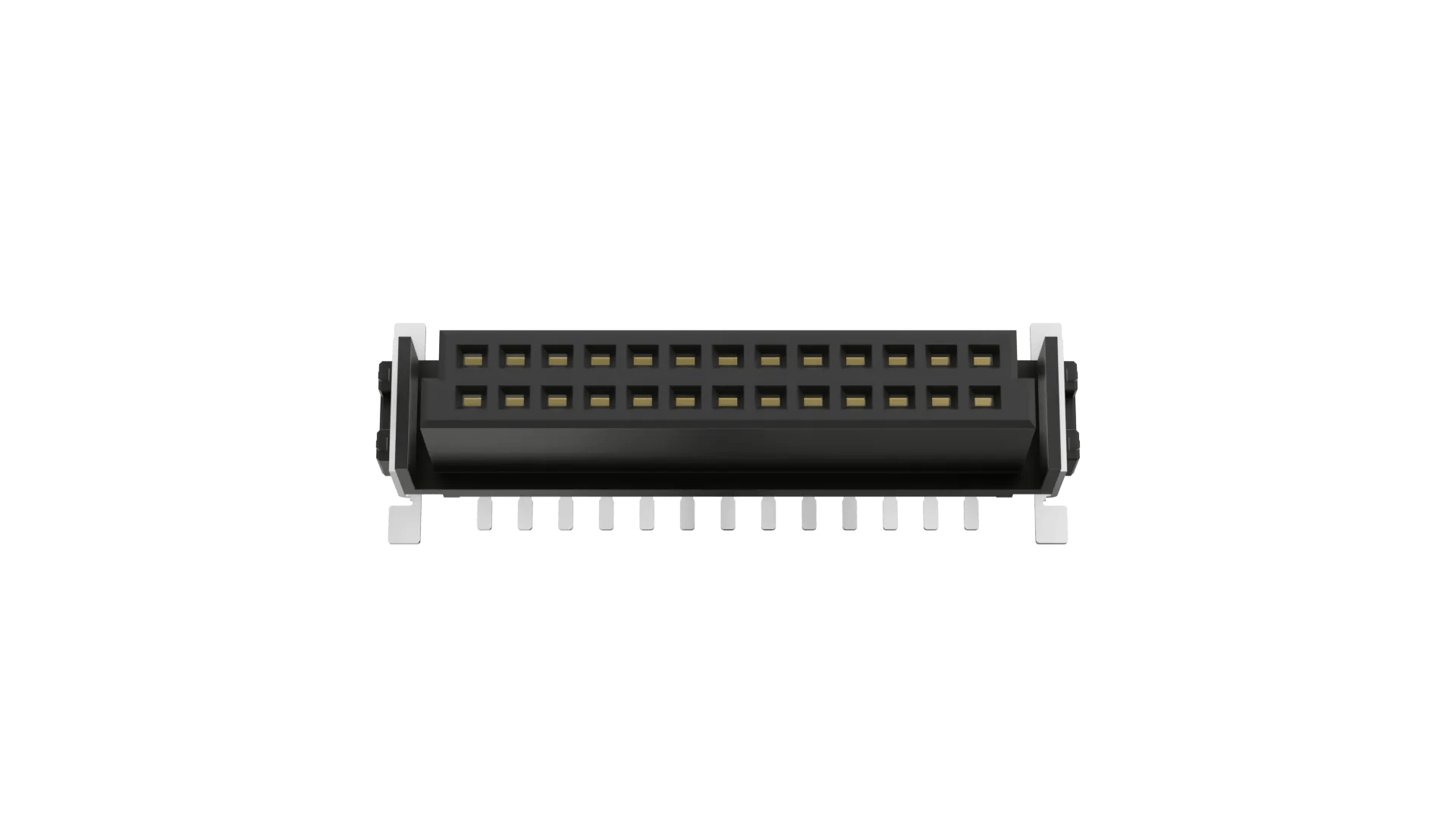

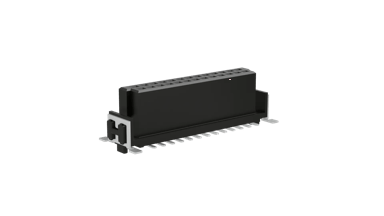

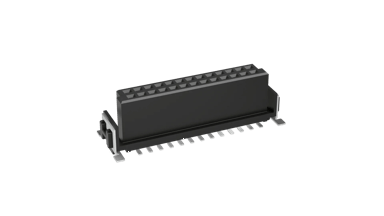

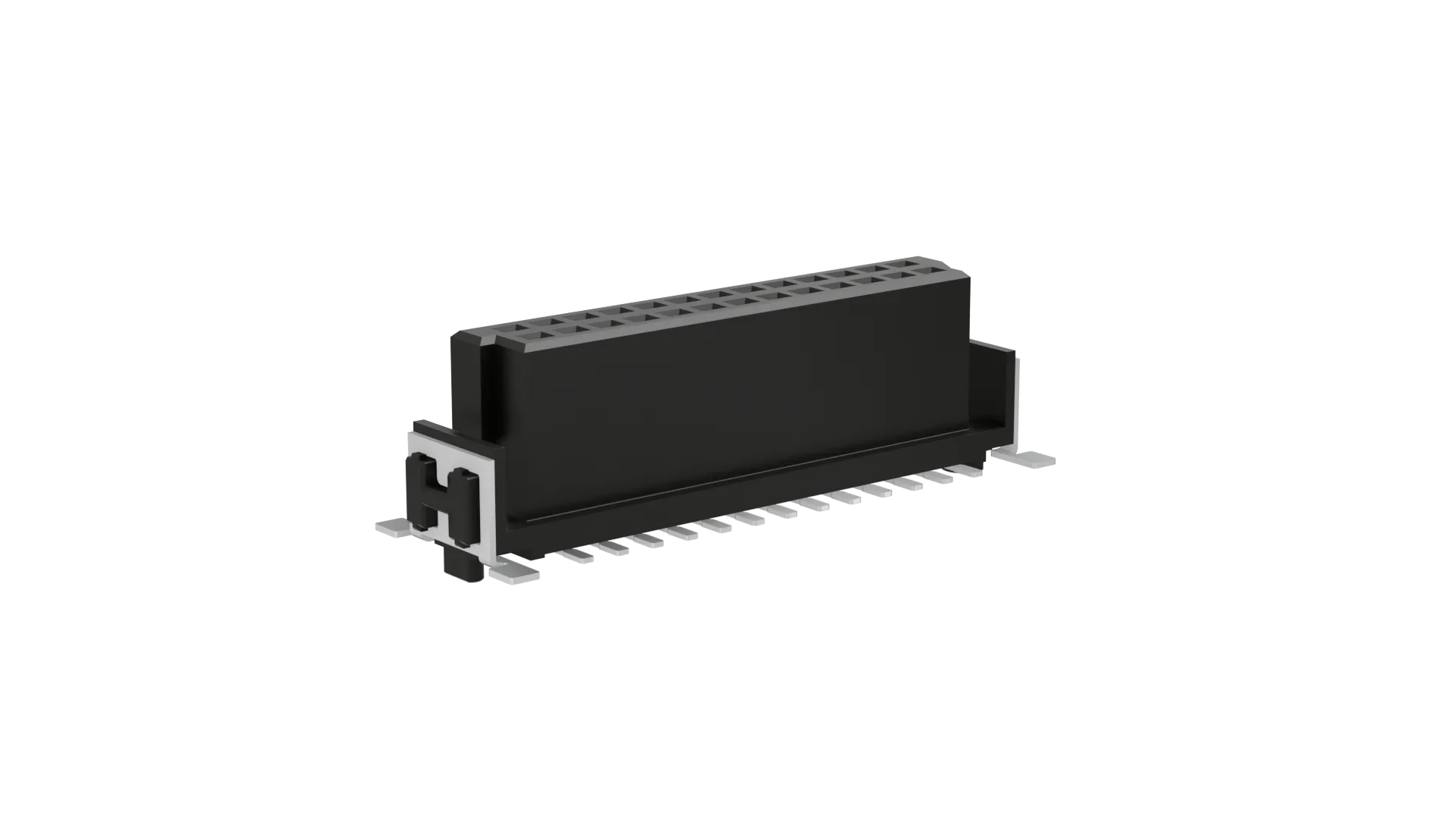

M55-6002642R

13+13 Pos. Female DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer Kontrol

  • Double Row SMT, 6.25mm connector height, shrouded polarized connector – 26 contacts (13+13).
  • Location pegs, surface mount hold-down retaining tabs for additional solder strength.
  • Board stacking connectors for parallel or 90 degree board-to-board connection. Supplied in Tape and Reel (with pick and place cap).

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

1.2A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.761g

Overall Dimensions (L x W x D) in mm:

21.59 x 7.20 x 7.00

Height of Connector above PCB:

6.25mm

Availability

Distributor Location Quantity
Avnet Abacus
Europe
Status2750
Digi-Key
Global
Status514
Harwin
Europe
Status1650
Mouser Electronics Inc
Global
Status1307
TTI Europe
Europe
Status1100
TTI Inc
USA
Status550

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M55-60X.pdf

ZIP

M55-6002642R CAD Model (ZIP file containing STP and IGES)

PDF

C047XX Component Specification - Archer Kontrol M55 Series (1.27mm Pitch Industrial connectors)

TEST REPORTS

PDF

Test Report HT060 - Archer Kontrol (M55 series) - General (Electrical, Mechanical and Environmental)

PDF

Test Report HT064 - Archer Kontrol (M55 Series) - Comparison to competitor product

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for M55-600 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Archer Kontrol (M55 Series) High Performance range

OTHER DOWNLOADS

PDF

Catalog page - Archer Kontrol Female Vertical SMT

PDF

Catalog page - Archer Kontrol Specification, Pin Numbering

PDF

Catalog page - Archer Kontrol Mating Profiles

PDF

Catalog page - Durable Industrial Connectors Introduction
