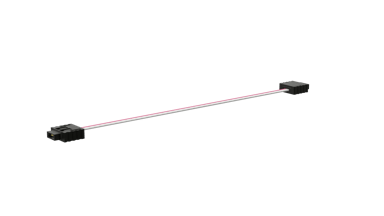

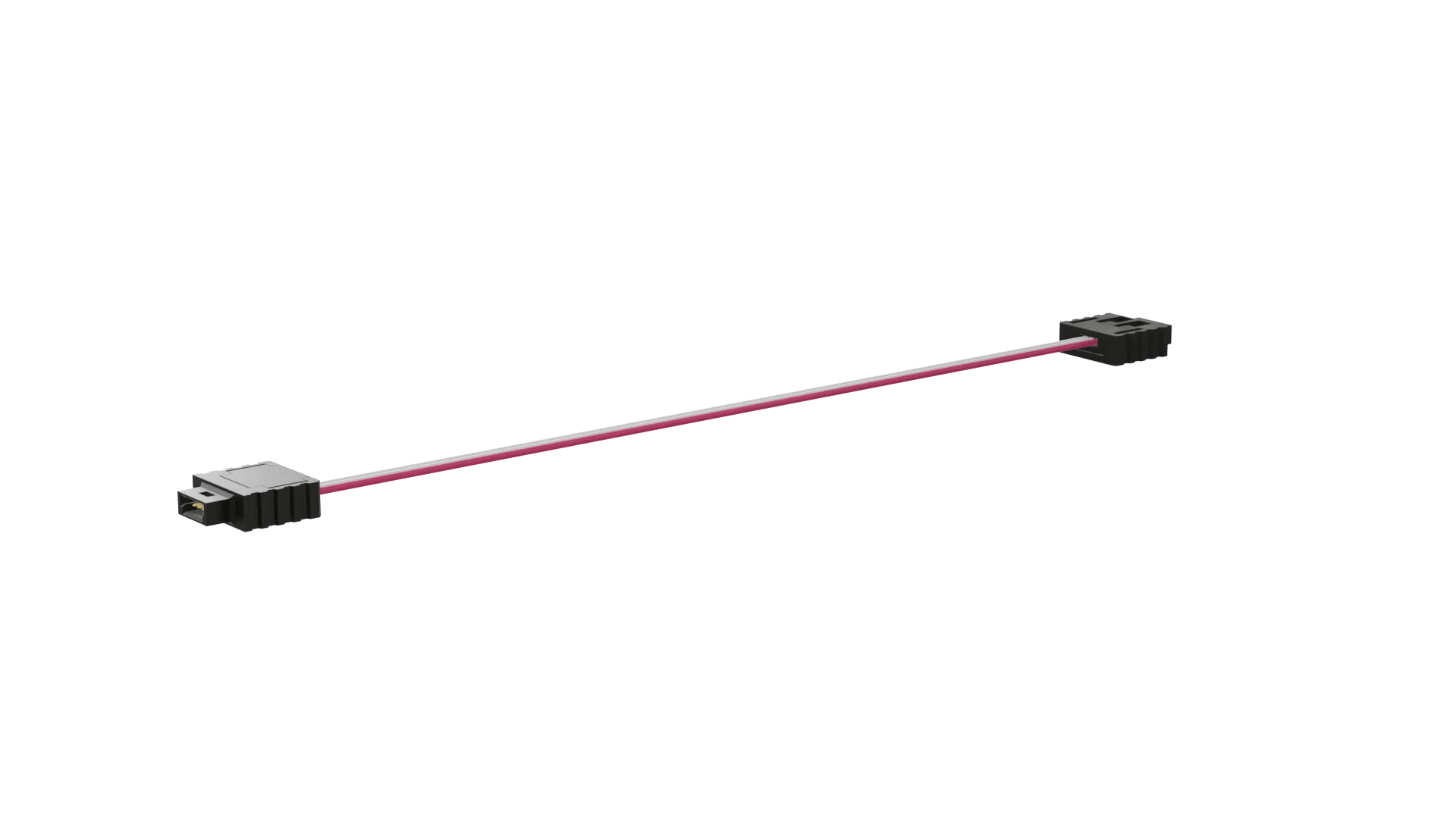

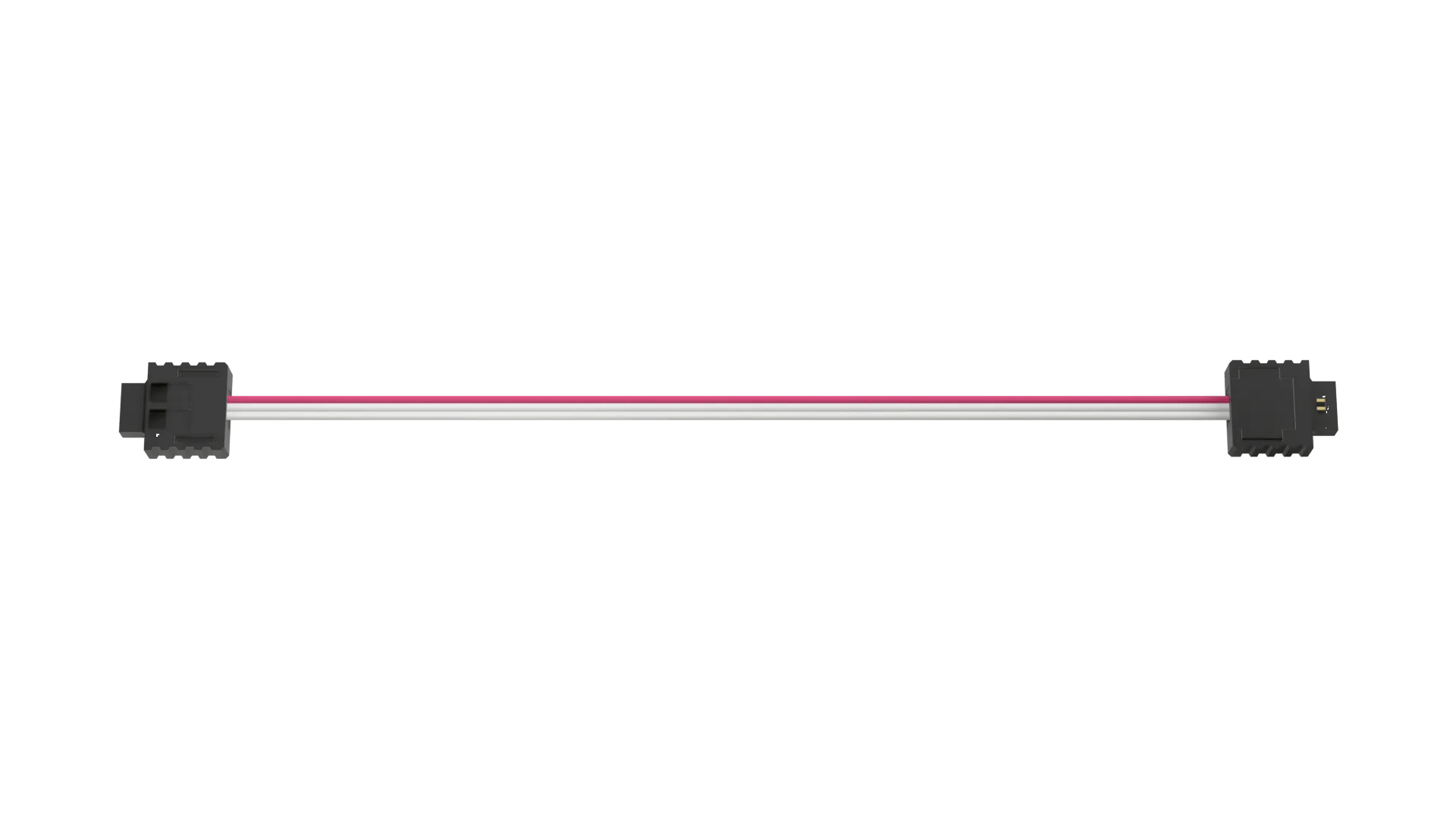

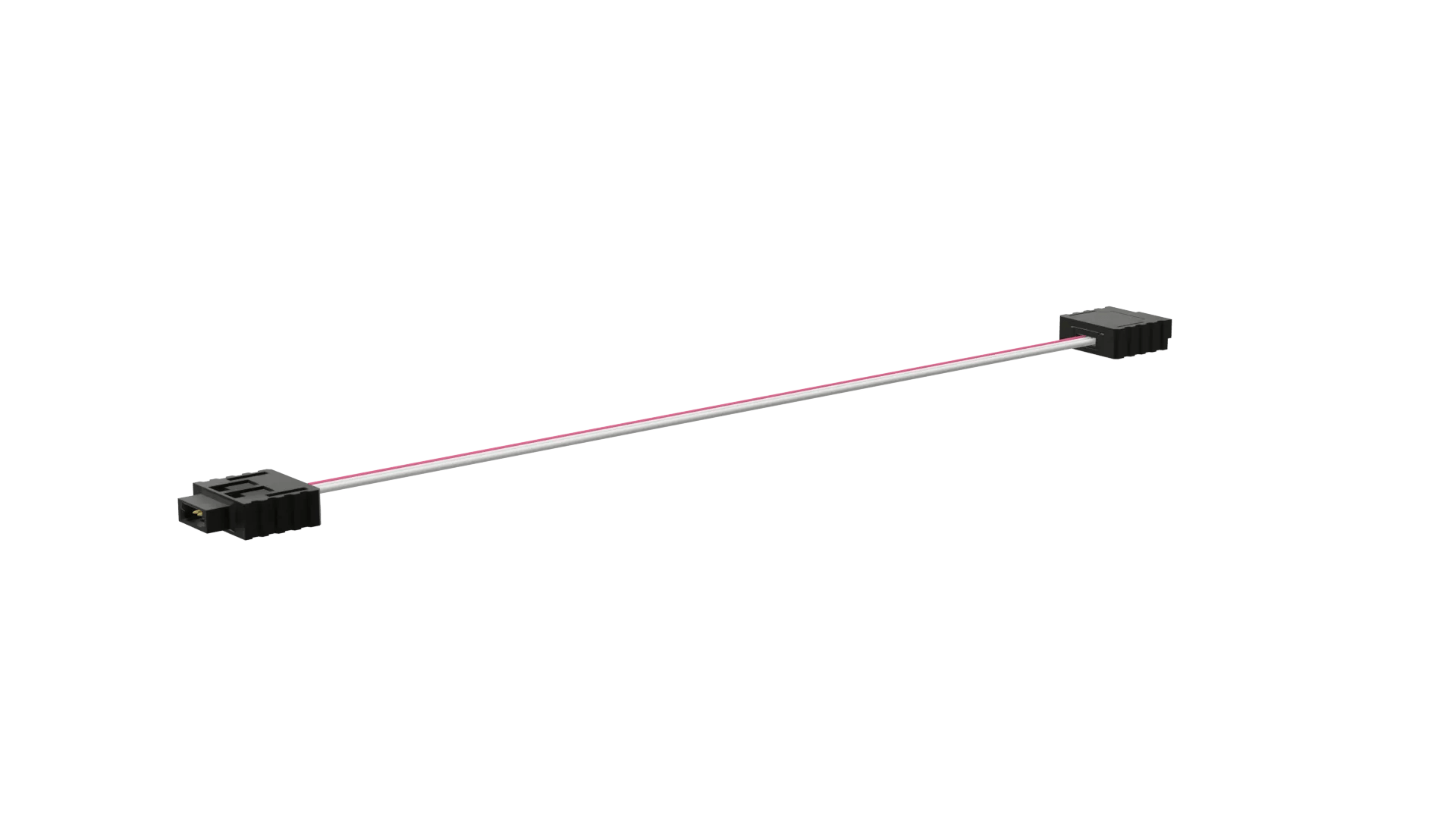

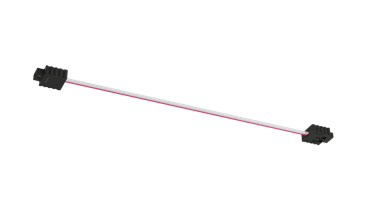

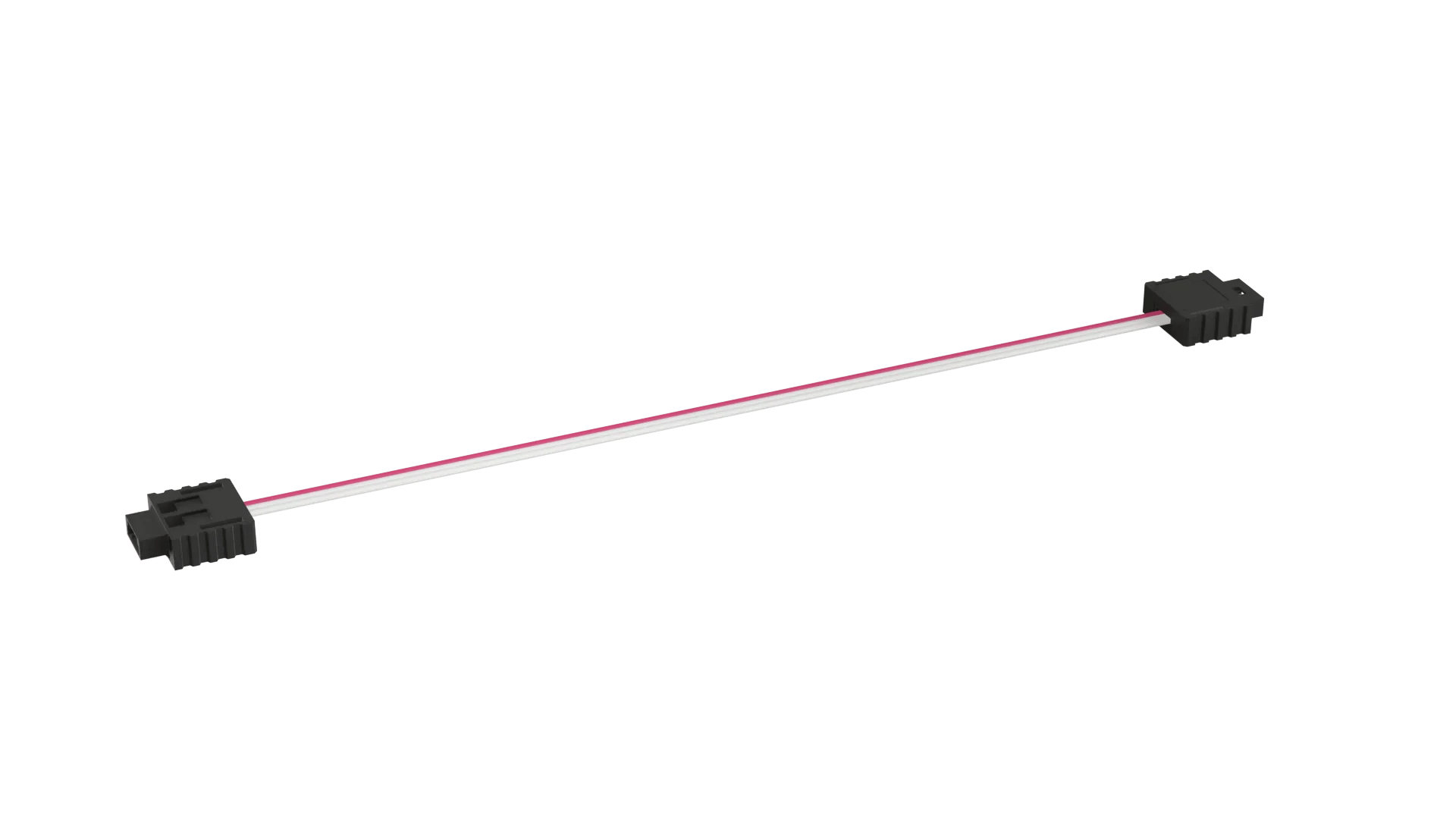

Male-to-Male with UL2678 26 AWG ribbon cable, 150mm (6") long - 3 contacts. Connection is inline with the cable.
Single Row male cable connectors with polarization and shrouding. Latching window for additional mating retention. Gold finish on mating contact area. IDC connection to cable.
For complete pin numbering or pin out information, see Component Specification C047XX.
View Technical Details
In Stock
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
3
Operating Temperature:
-20°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1.2A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPA
Base Material of Contact:
Cupro-Nickel
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
1.27mm (0.05")
Weight:
3.212g
Dimensions:
178.00 x 13.69 x 5.00
Wire Size:
26 AWG
