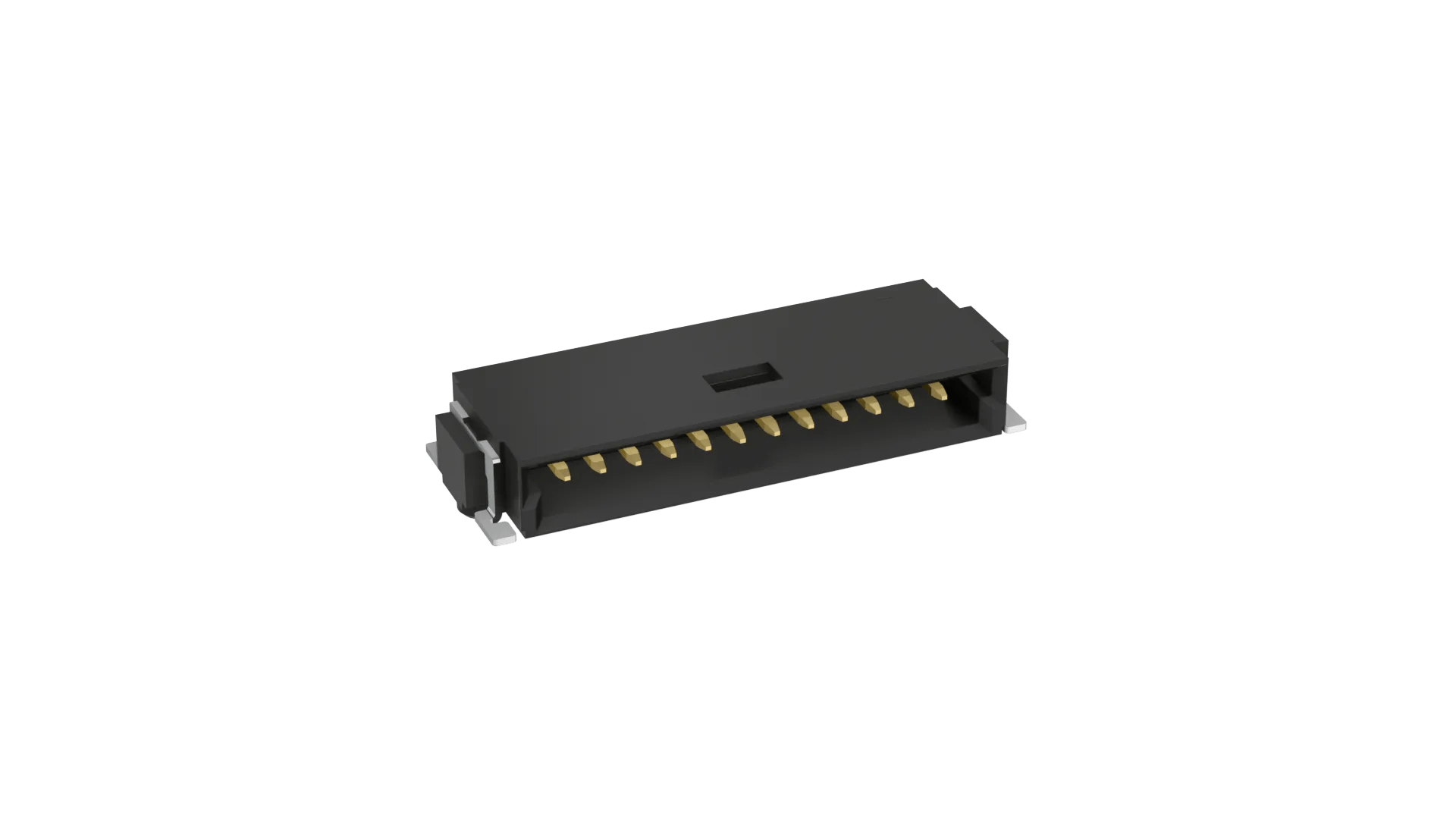

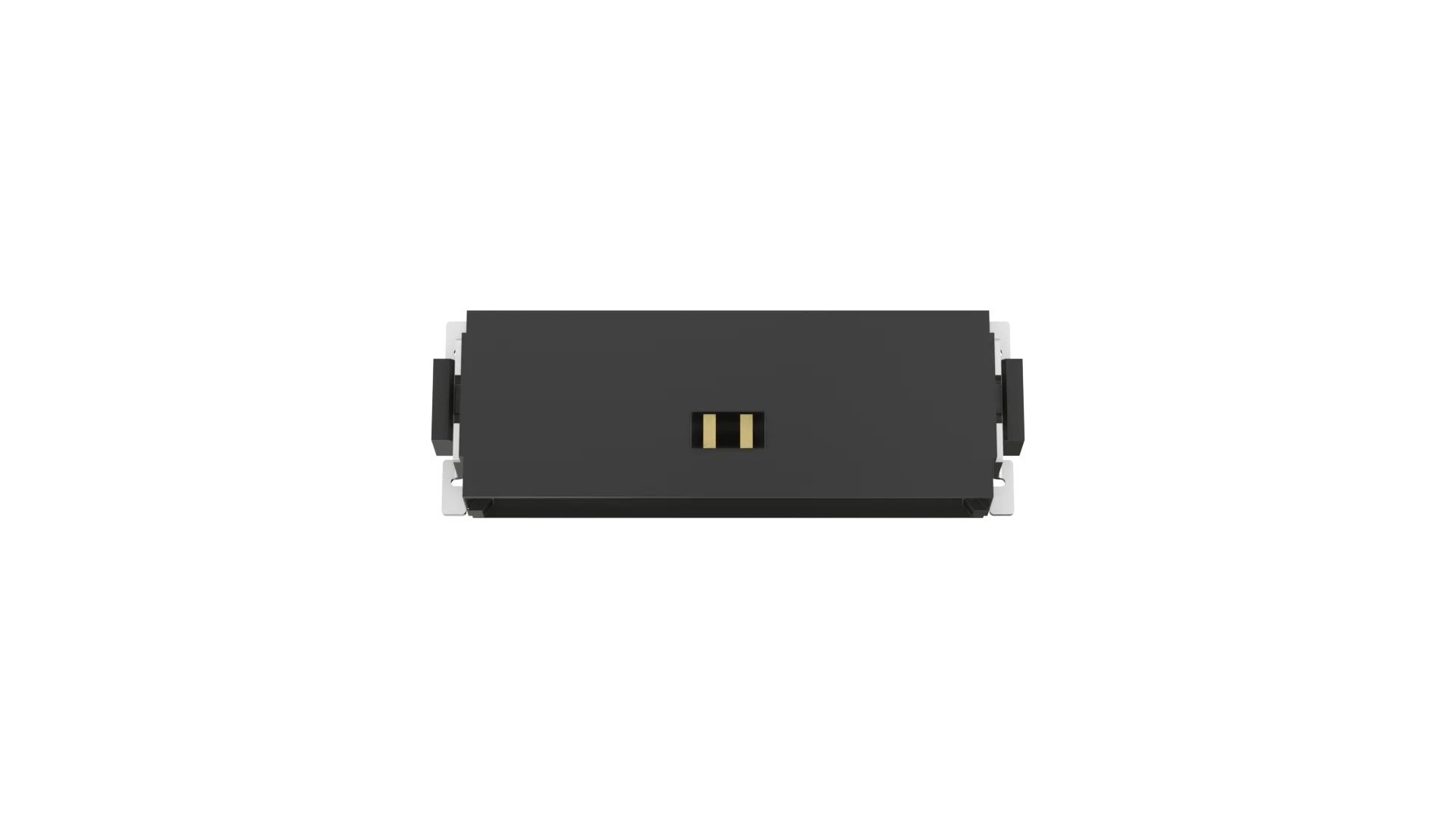

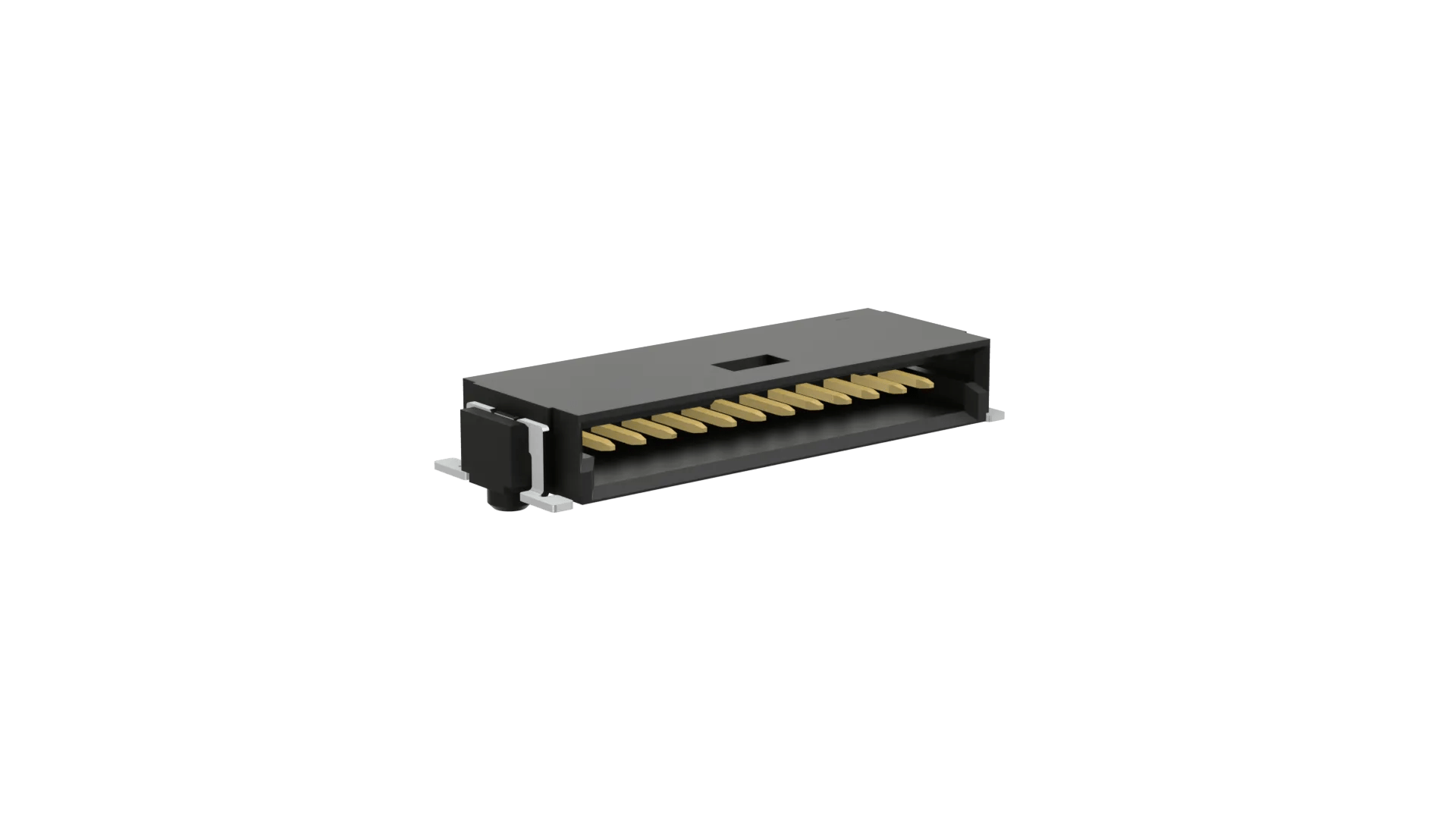

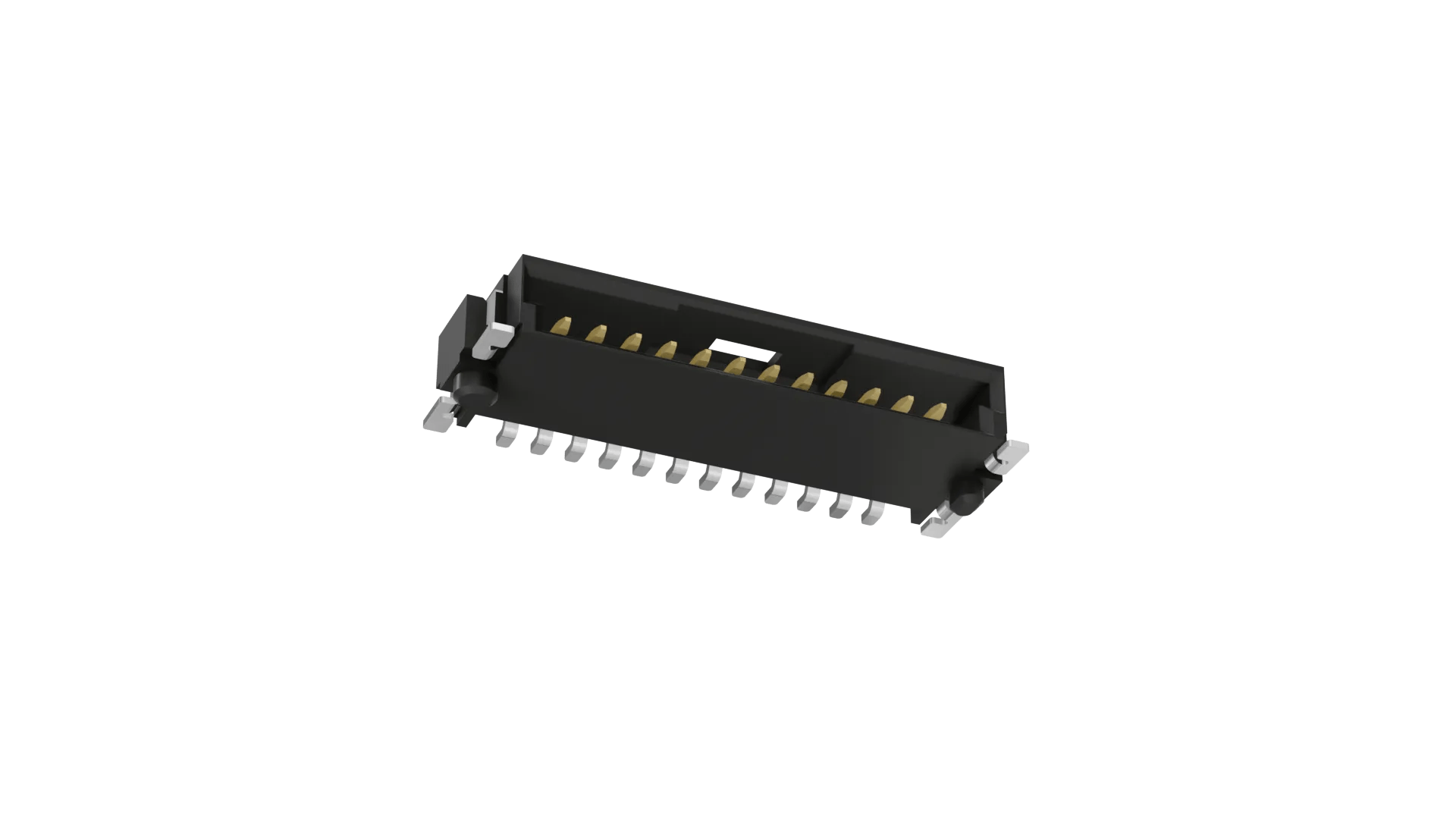

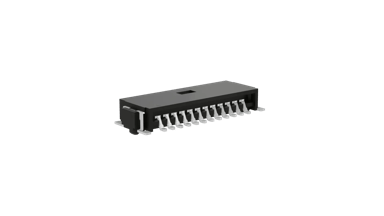

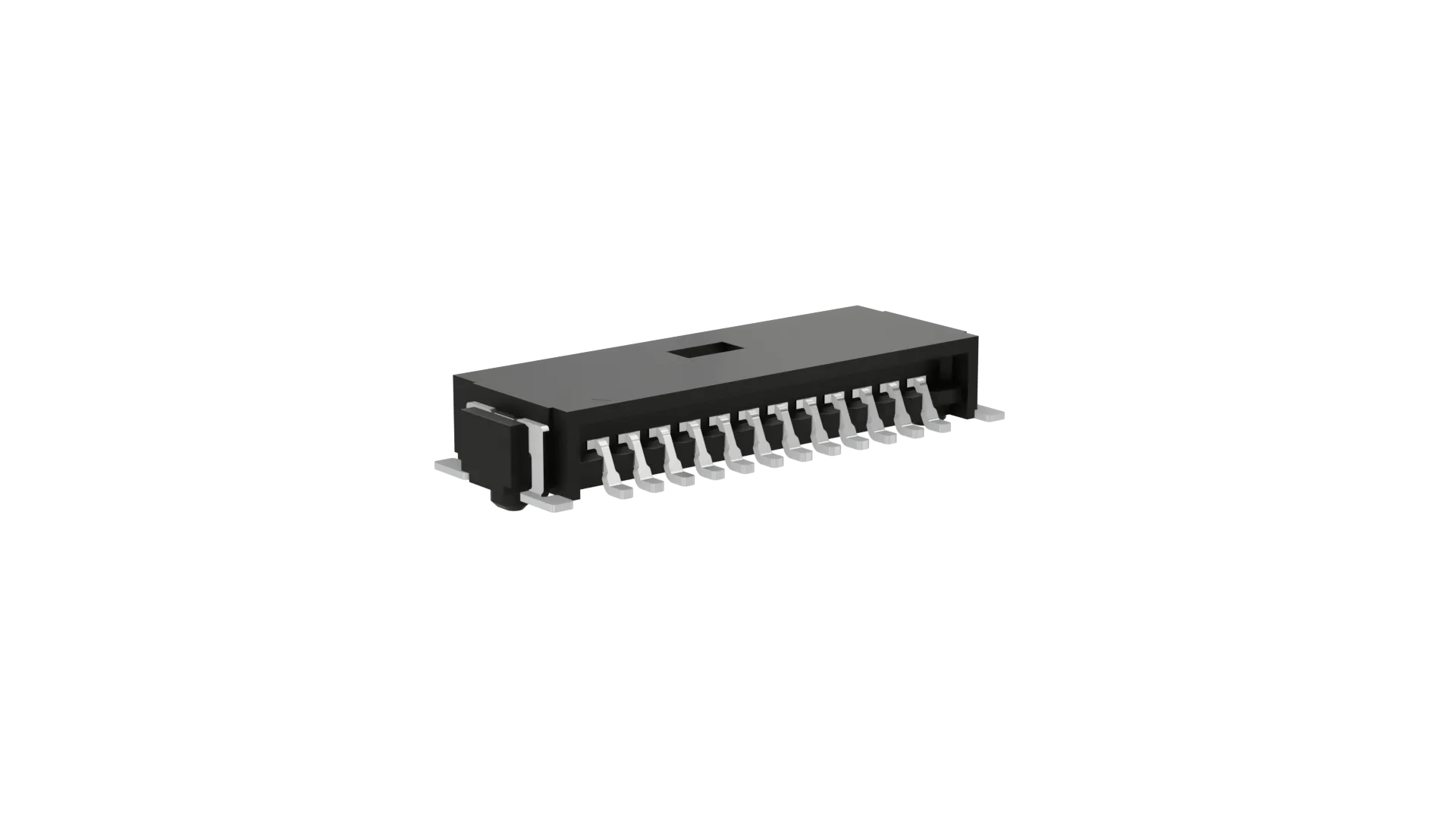

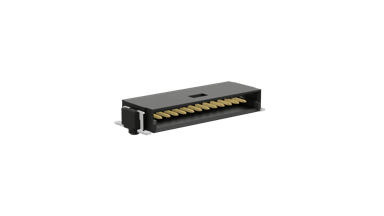

Image may be representative. Refer to the product title for more information.
1.27mm (.05") pitch male plug Single Row right-angle (horizontal), shrouded and polarized surface mount connector - 12 contacts. Housing includes location pegs to assist with placement on the PCB. SMT hold-down tabs for added PCB retention. Latching mechanism for additional mating retention.
Board stacking connectors for coplanar board-to-board connection. Packaged in Tape and Reel (pick and place using the connector housing). Gold finish on contact areas, Tin finish on terminations.
For complete pin numbering or pin out information, see Component Specification C047XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Number of Rows
1
Connector Orientation
Right-Angle
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
12
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
1.2A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 9T
Base Material of Contact
Chromium Zirconium Copper
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel
Finish / Plating on Termination
100% Tin over Nickel
Housing Colour
Black
Dimensions
Contact Pitch
1.27mm (0.05")
Weight
0.437g
Dimensions
20.26 x 7.20 x 3.80
Height of Connector above PCB
3.10mm
Downloads
Technical Documentation
Technical Drawing Datasheet - M55-310R.pdf
C047XX Component Specification - Kontrol M55 Series (1.27mm Pitch Industrial connectors)
Outgassing data for Harwin products (plastics)
Product Information
Product Training Module - Overview Guide to the Kontrol (M55 Series) High Performance range
Product Datasheet - KONTROL: M55 range (BBi)
Test Reports
Test Report HT060 - Kontrol (M55 series) - General (Electrical + Mechanical and Environmental)
Test Report HT064 - Kontrol (M55 Series) - Comparison to competitor product
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M55-310 series
Harwin REACH Statement - M55-3101242R
RoHS Declaration - M55-3101242R
