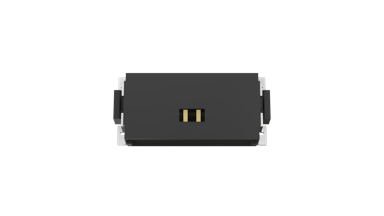

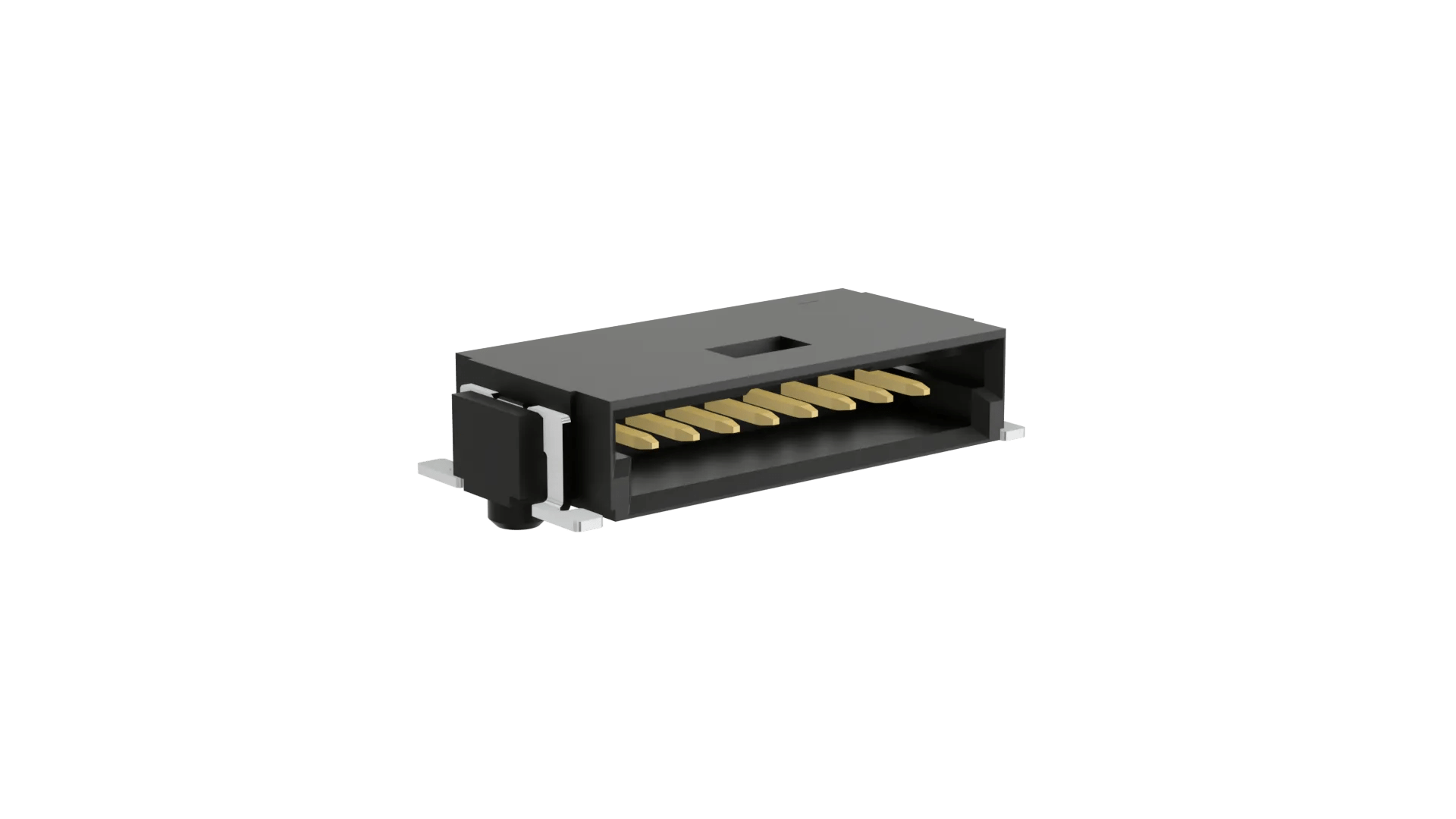

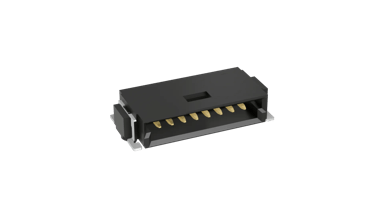

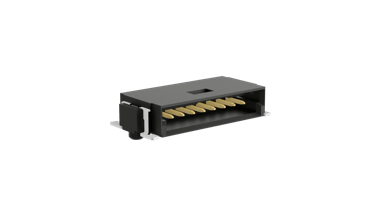

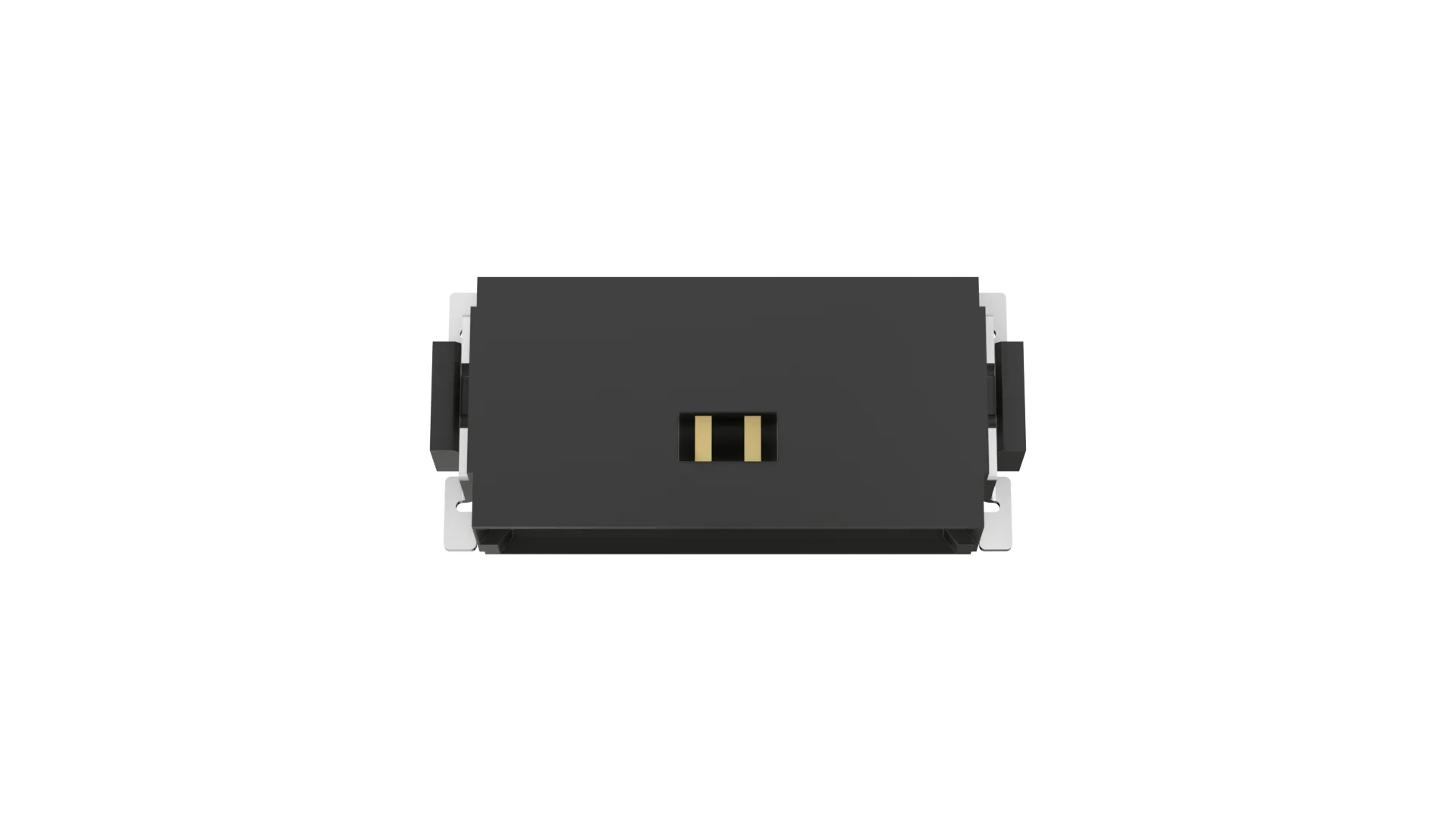

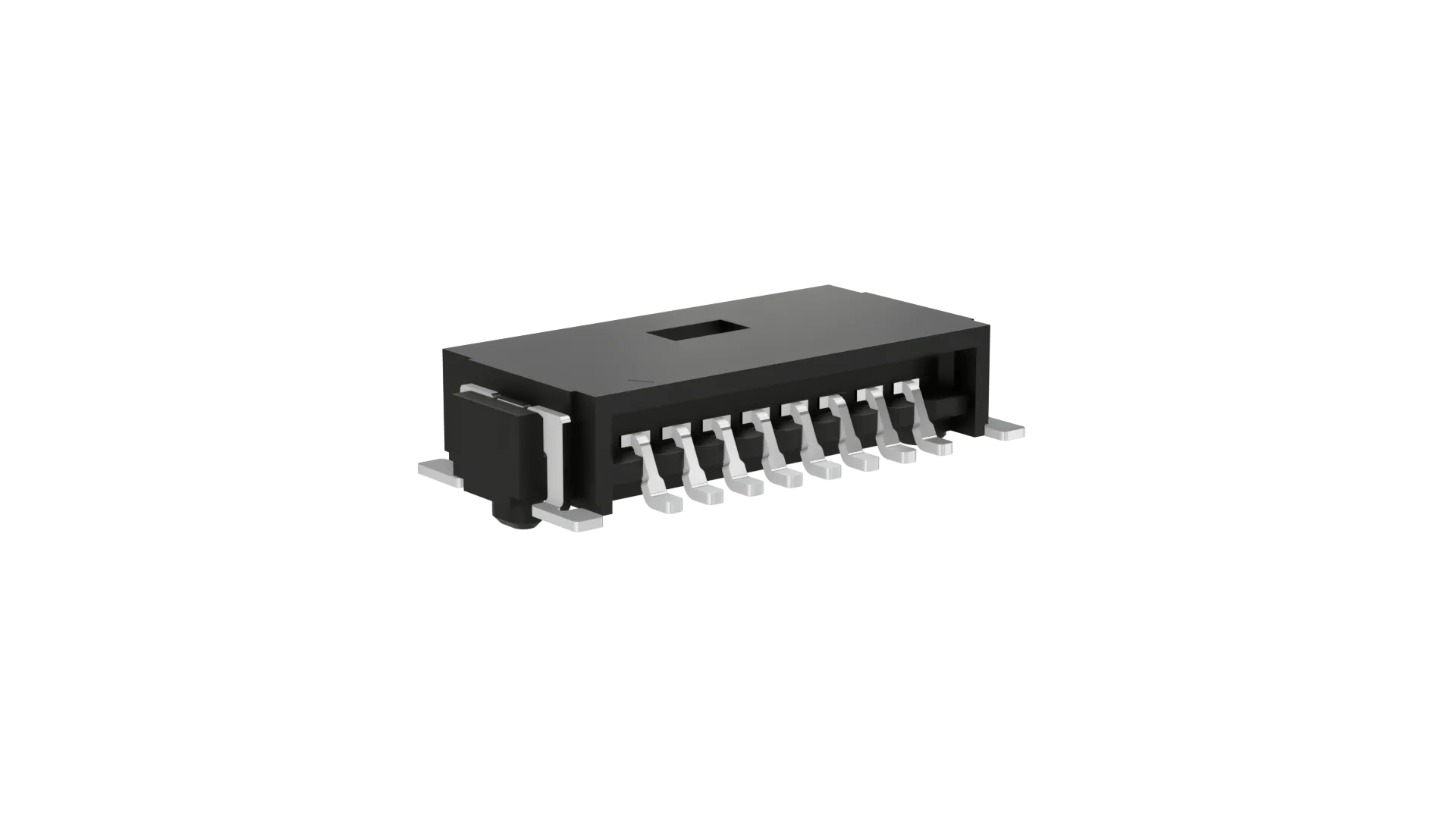

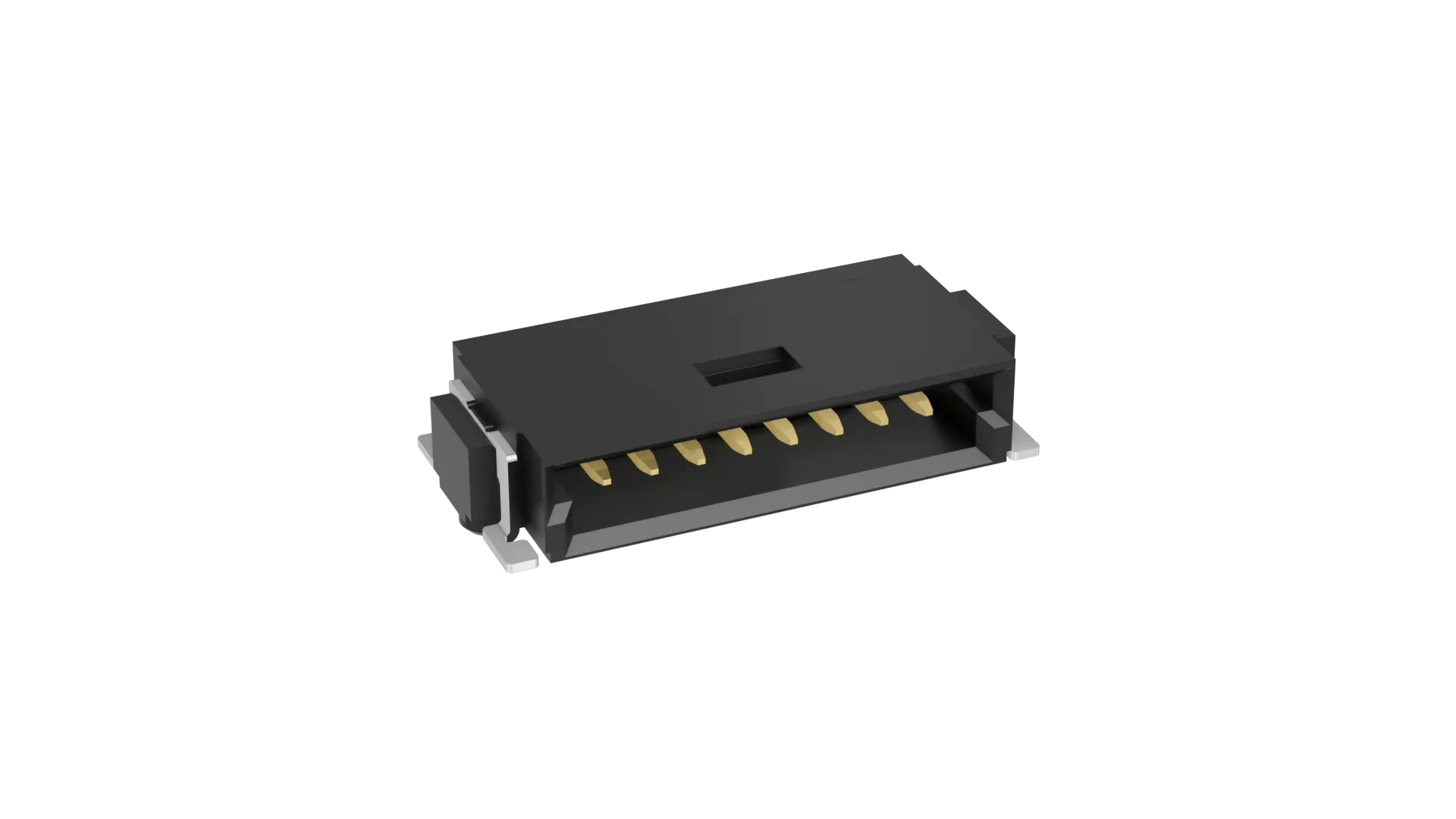

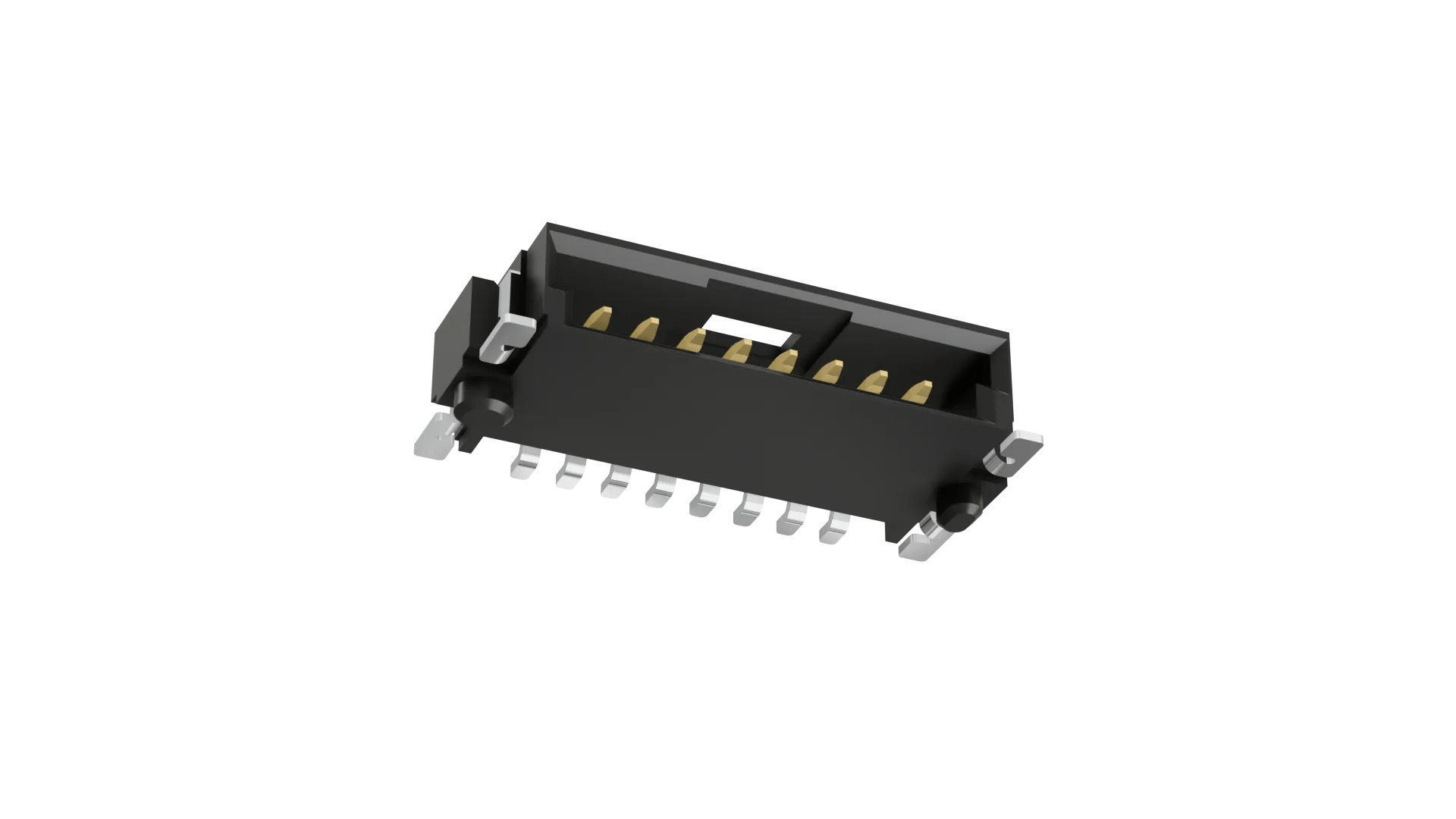

Single Row Surface Mount, shrouded and polarized connector - 8 contacts. Location pegs, surface mount hold-down retaining tabs for additional solder strength. Latching window for additional mating retention.
Board stacking connectors for coplanar board-to-board connection. Supplied in Tape and Reel. Gold finish on contact area, Tin finish on termination.
For complete pin numbering or pin out information, see Component Specification C047XX.
View Technical Details
Out of Stock
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
1
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
8
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1.2A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 9T
Base Material of Contact:
Chromium Zirconium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
1.27mm (0.05")
Weight:
0.335g
Dimensions:
15.18 x 7.20 x 3.80
Height of Connector above PCB:
3.10mm
