Image may be representative. Refer to the product title for more information.

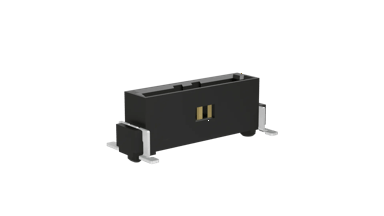

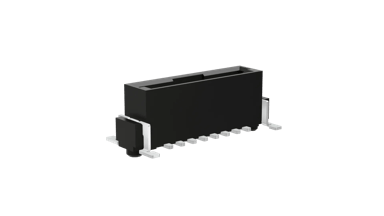

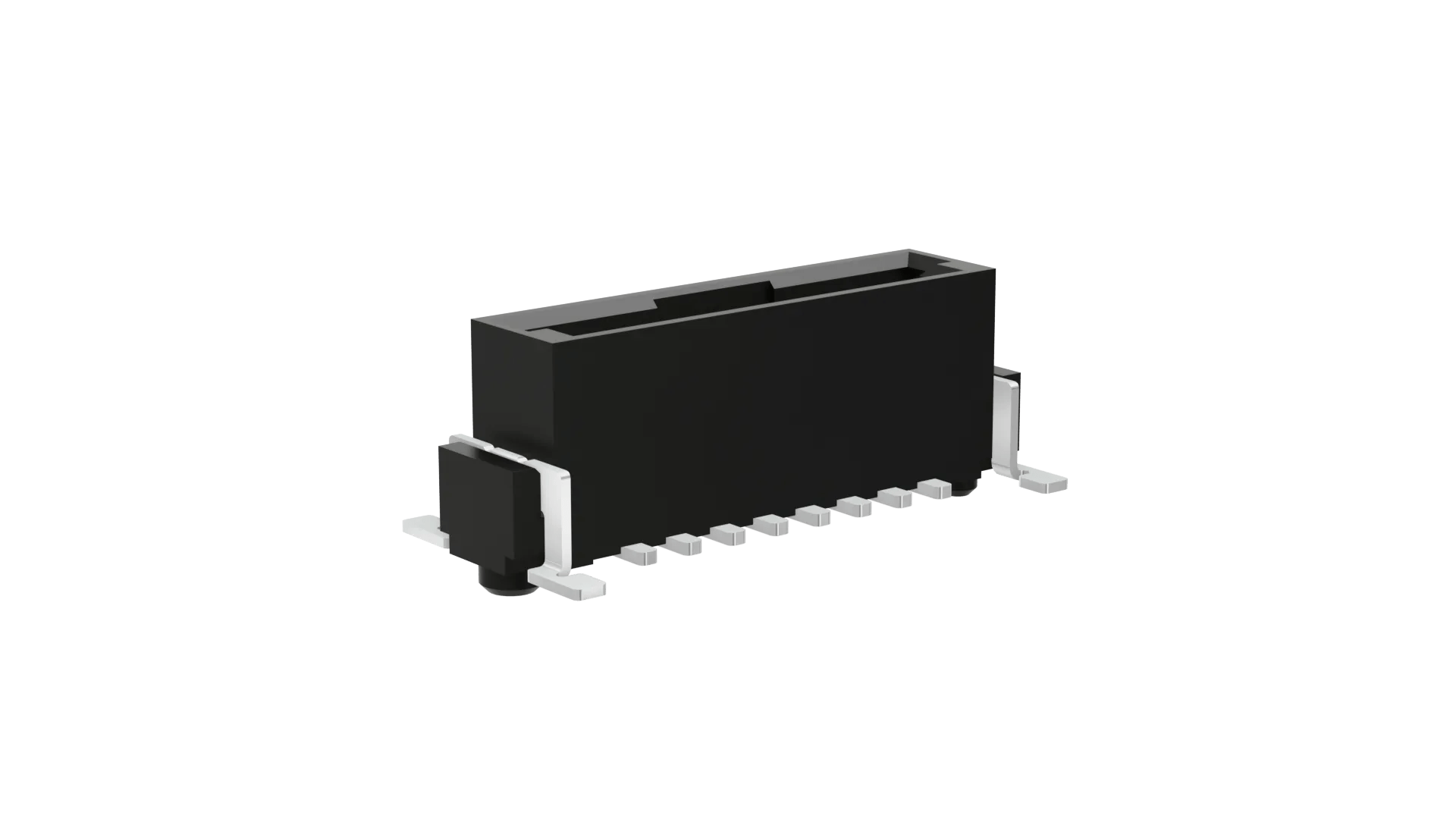

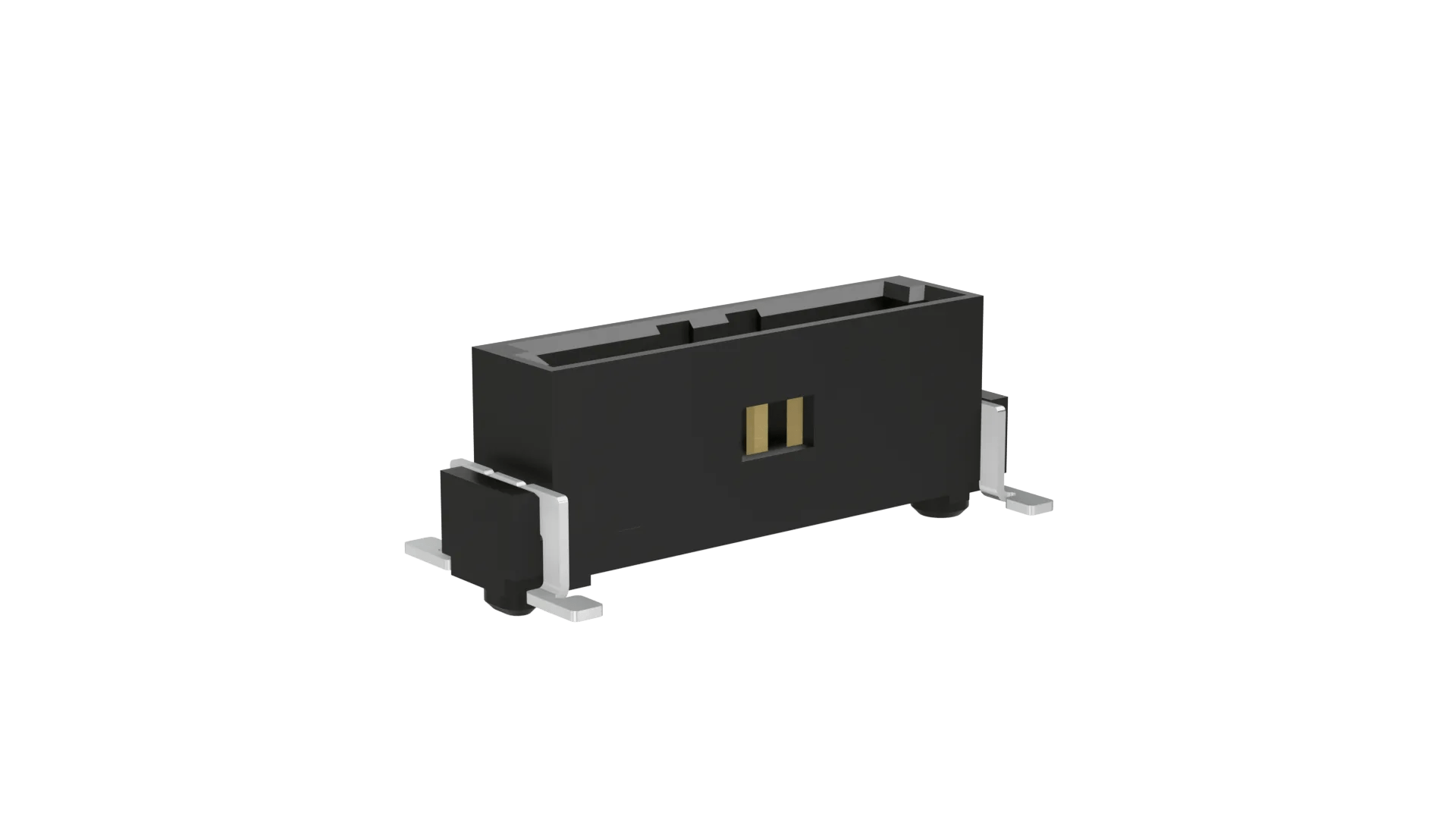

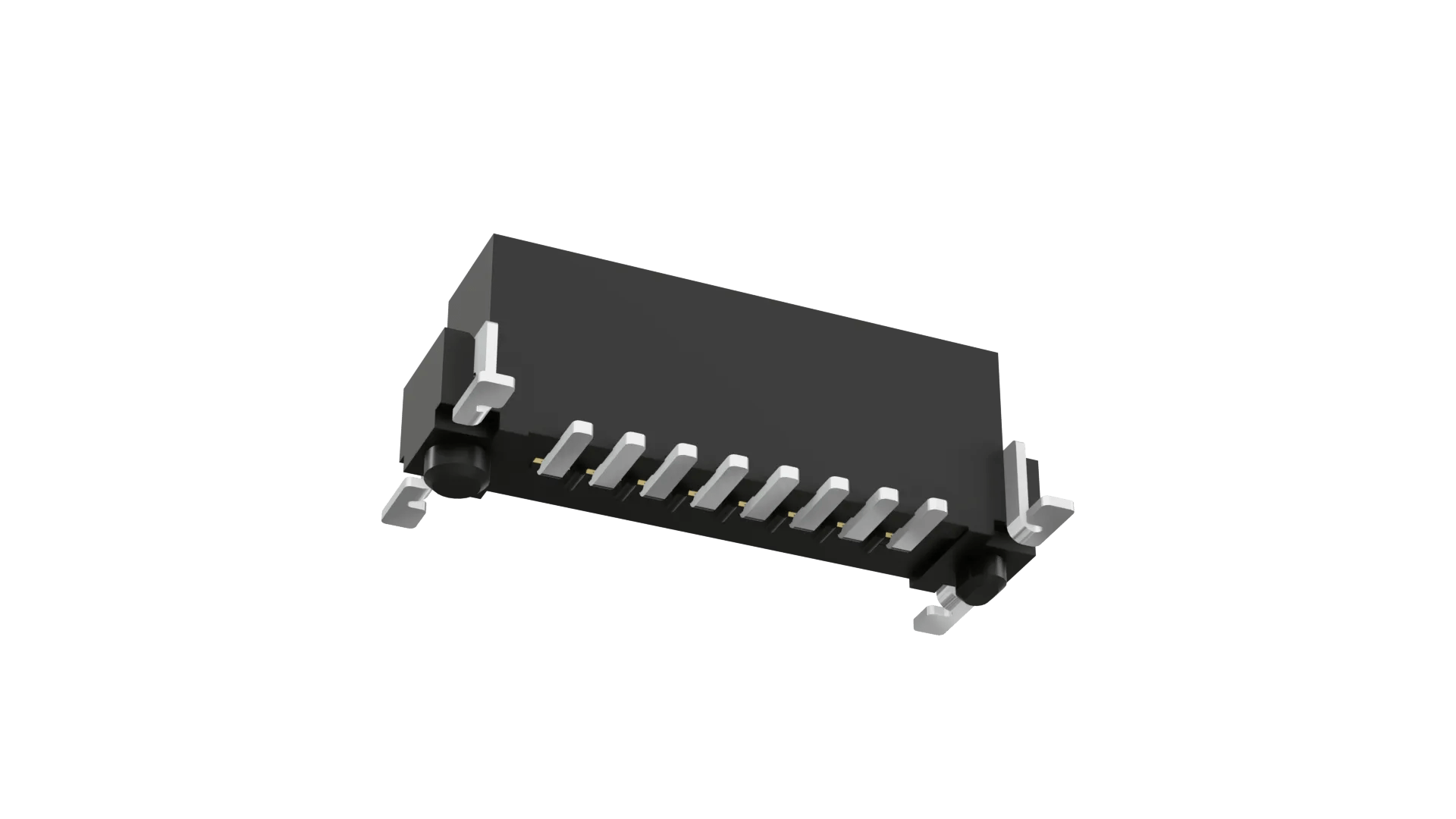

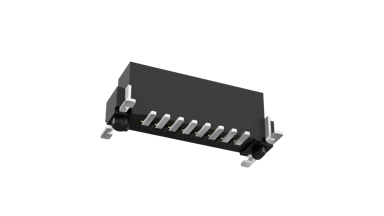

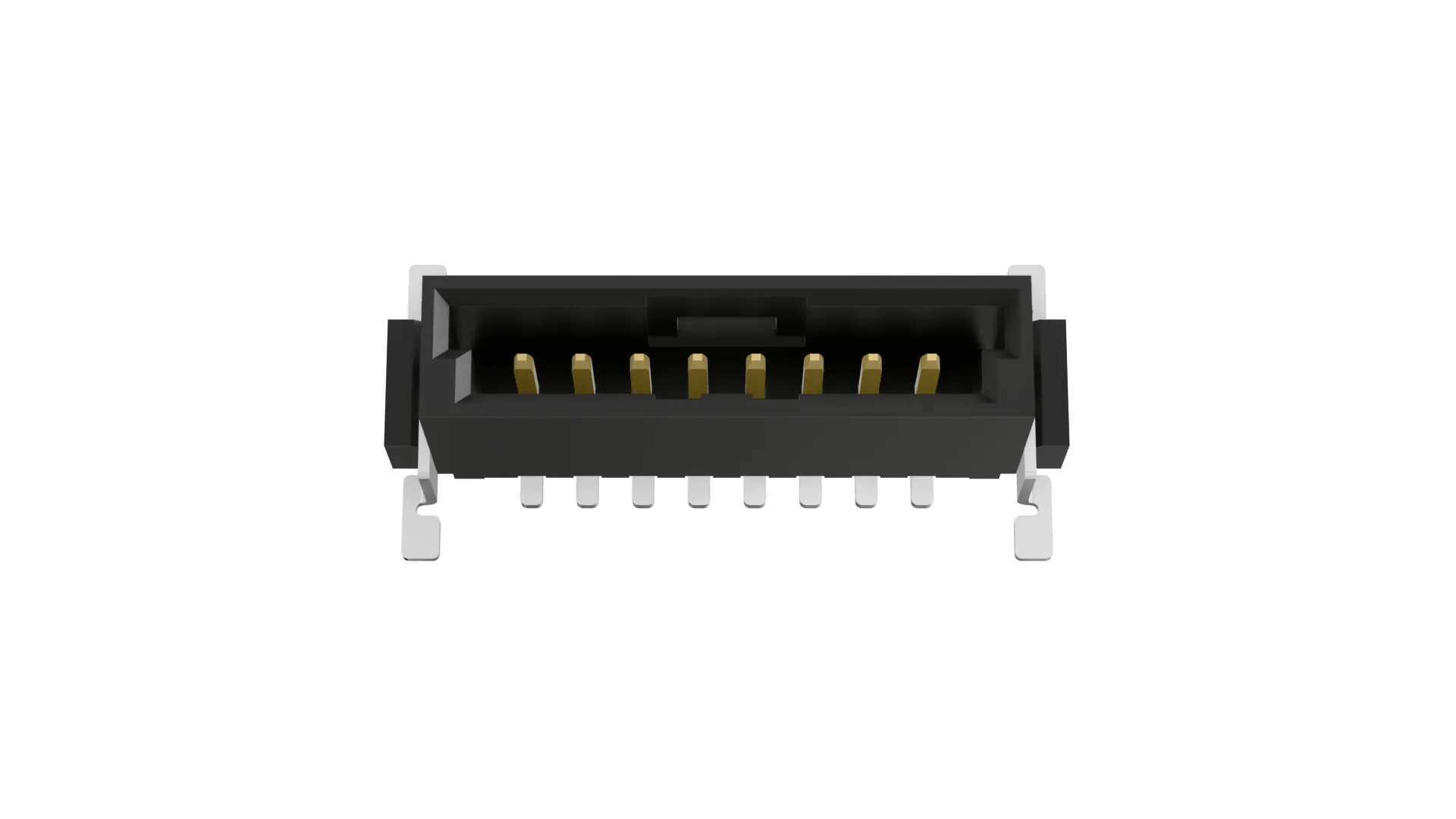

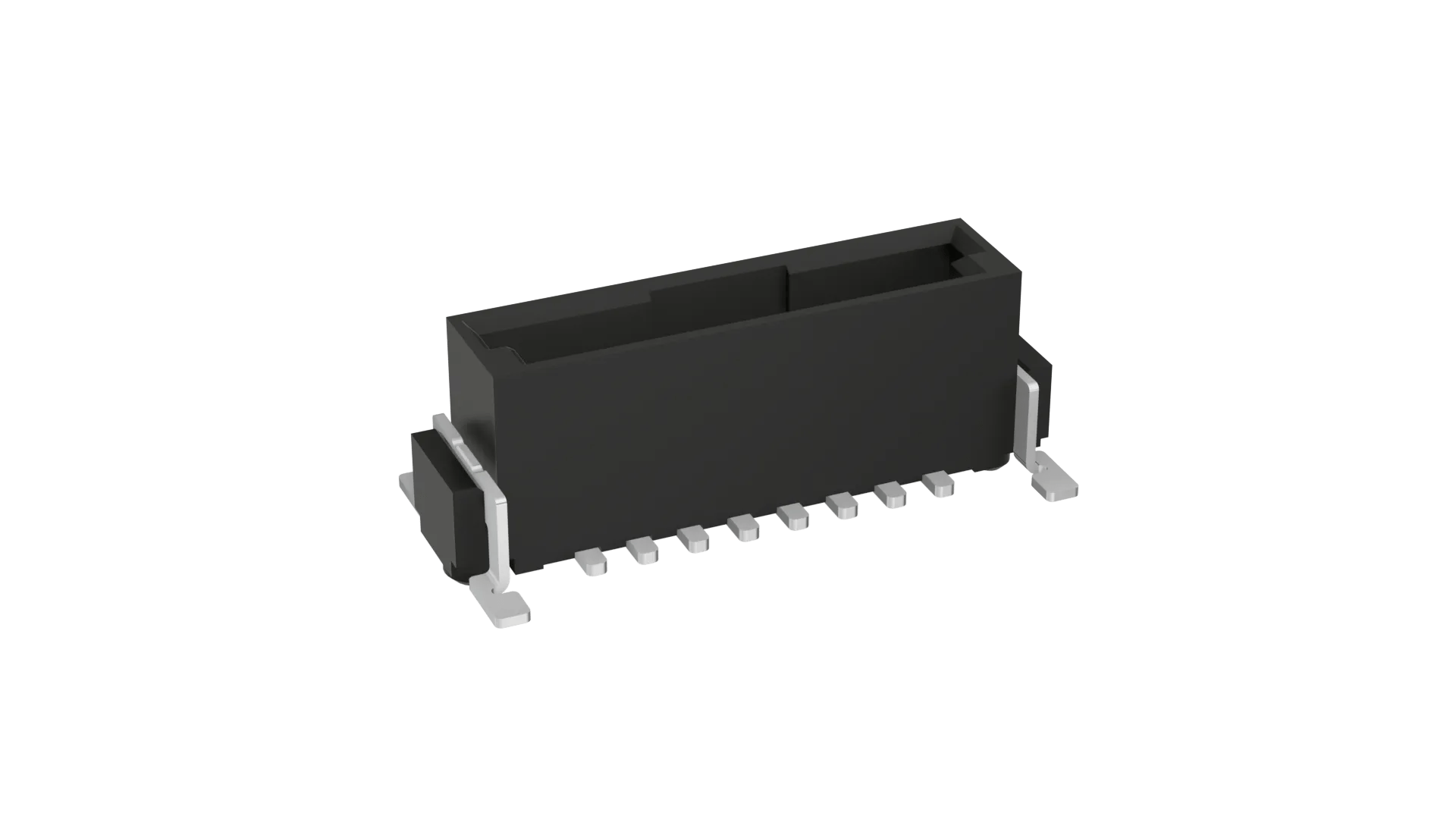

1.27mm (.05") pitch male plug Single Row straight (vertical), shrouded and polarized surface mount connector - 8 contacts. Housing includes location pegs to assist with placement on the PCB. SMT hold-down tabs for added PCB retention. Latching mechanism for additional mating retention.
Board stacking connectors for 90 degree board-to-board connection. Packaged in Tape and Reel, with Pick & Place caps. Gold finish on contact areas, Tin finish on terminations.
For complete pin numbering or pin out information, see Component Specification C047XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Number of Rows
1
Connector Orientation
Straight
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
8
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
1.2A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
Polyamide (Nylon) 9T
Base Material of Contact
Chromium Zirconium Copper
Flammability Rating
UL94V-0
Packaging Style
Tape and Reel
Finish / Plating on Termination
100% Tin over Nickel
Housing Colour
Black
Dimensions
Contact Pitch
1.27mm (0.05")
Weight
0.335g
Dimensions
15.18 x 7.00 x 5.95
Height of Connector above PCB
5.25mm
Downloads
Technical Documentation
Technical Drawing Datasheet - M55-300R.pdf
C047XX Component Specification - Kontrol M55 Series (1.27mm Pitch Industrial connectors)
Outgassing data for Harwin products (plastics)
Product Information
Product Training Module - Overview Guide to the Kontrol (M55 Series) High Performance range
Product Datasheet - KONTROL: M55 range (BBi)
Test Reports
Test Report HT060 - Kontrol (M55 series) - General (Electrical + Mechanical and Environmental)
Test Report HT064 - Kontrol (M55 Series) - Comparison to competitor product
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M55-300 series
Harwin REACH Statement - M55-3000842R
RoHS Declaration - M55-3000842R
