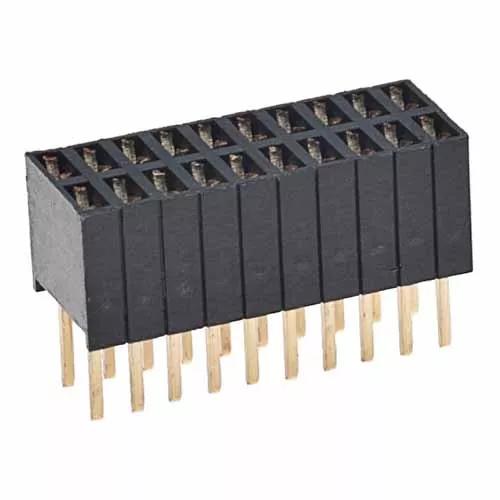

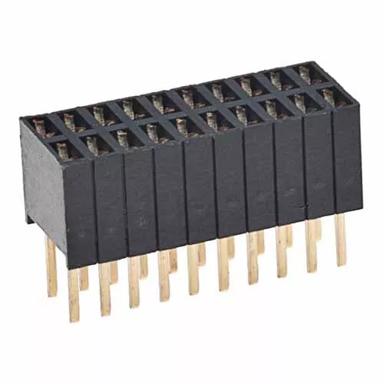

5+5 Pos. Female DIL Vertical Throughboard Conn.
1.27 x 2.54mm (0.05" x 0.1") Pitch PCB Connector - Archer M52 Board-To-Board
- Double Row, 3mm PC Tail, 4.6mm connector height – 10 contacts (5+5).
- Gold finish on contact area and termination.
- 2.54mm (0.1″) pitch applies between rows of contacts. Compatible with 0.46mm square mating pins.
EU RoHS Status:
1.27 x 2.54mm (0.05" x 0.1")
PC Tail / Throughboard
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
6.75 x 5.00 x 7.60
Height of Connector above PCB:
Length of Throughboard Tail:
1,658 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
M52-5100545 CAD Model (ZIP file containing STP and IGES)Download
