M52-5051045

10 Pos. Female SIL Vertical SMT Conn.

1.27 x 2.54mm (0.05" x 0.1") Pitch PCB Connector - Archer M52 Board-To-Board

Order Sample

Add to Favorites

Loading… Check availability

4 similar products View products

Traceparts account required

Product Description

Single Row Surface Mount, 6mm connector height – 10 contacts.
Gold finish on contact area and termination. No location pegs.
Compatible with 0.46mm square mating pins.

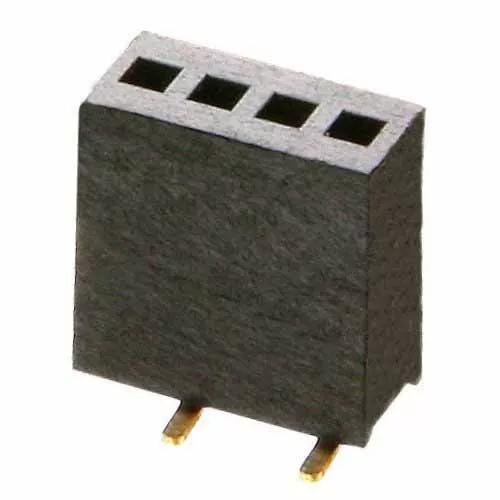

M52-5051045 - 10 Pos. Female SIL Vertical SMT Conn.

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27 x 2.54mm (0.05" x 0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.46mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.331g

Overall Dimensions (L x W x D) in mm:

13.10 x 3.90 x 6.00

Height of Connector above PCB:

6.00mm

Mating Profiles:

Catalog page - Archer M52 Specification, Mating Profiles
