M52-5000445

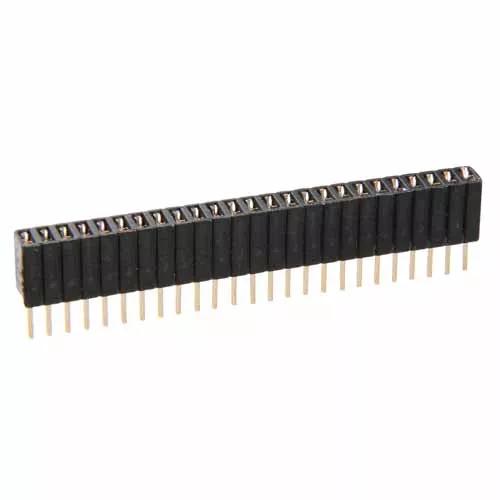

4 Pos. Female SIL Vertical Throughboard Conn.

1.27 x 2.54mm (0.05" x 0.1") Pitch PCB Connector - Archer M52 Board-To-Board

  • Single Row, 3mm PC Tail, 4.6mm connector height – 4 contacts.
  • Gold finish on contact area and termination.
  • Compatible with 0.46mm square mating pins.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27 x 2.54mm (0.05" x 0.1")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.46mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

Yes

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

4

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.158g

Overall Dimensions (L x W x D) in mm:

5.48 x 2.50 x 7.60

Height of Connector above PCB:

4.60mm

Length of Throughboard Tail:

3.00mm
