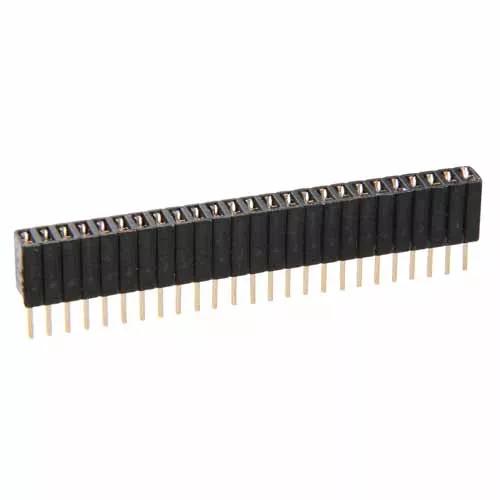

1.27 x 2.54mm (0.05" x 0.1") Pitch PCB Connector - Archer M52 Board-To-Board
Single Row, 3mm PC Tail, 4.6mm connector height - 3 contacts.
Gold finish on contact area and termination.
Compatible with 0.46mm square mating pins.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Entry Style:
Top Entry
Mating Pin Size:
0.46mm square
Number of Rows:
1
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
Yes
Number of Signal Contacts:
3
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1A per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 6T
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
1.27 x 2.54mm (0.05" x 0.1")
Weight:
0.119g
Dimensions:
4.21 x 2.50 x 7.60
PC Tail Length:
3.00mm
Height of Connector above PCB:
4.60mm
Downloads
Technical Drawing / Datasheet - M52-500.pdf
C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)
Outgassing data for Harwin products (plastics)
Catalog page - Archer M52 Specification + Mating Profiles
Product Training Module - Overview Guide to the Harwin Archer range
Product Datasheet - ARCHER: M50 and M52 ranges (BBi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M52-500 series
RoHS - M52-5000345
