Home > M52-040023W2545
Active

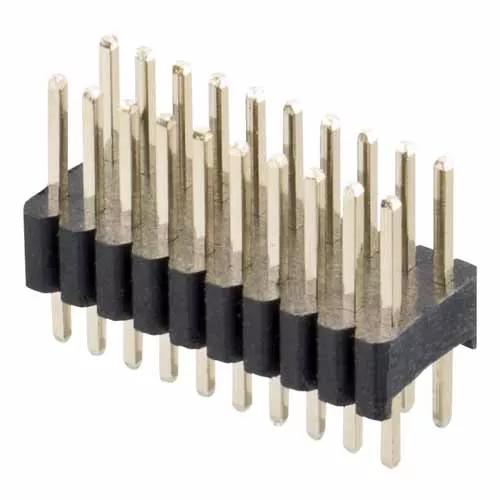

M52-040023W2545

25+25 Pos. Male DIL Vertical Throughboard Conn.

1.27 x 2.54mm (0.05" x 0.1") Pitch PCB Connector - Archer M52 Board-To-Board

  • Single Row, 2.3mm PC Tail, 4mm mating pin height – 50 contacts (25+25).
  • Gold finish on contact area and termination.
  • 2.54mm (0.1″) pitch applies between rows of contacts. 0.46mm square pin.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27 x 2.54mm (0.05" x 0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.46mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.353g

Overall Dimensions (L x W x D) in mm:

31.75 x 5.00 x 8.80

Height of Connector above PCB:

6.50mm

Length of Throughboard Tail:

2.30mm

Availability

366 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 142
Distributor Farnell
Location Europe
Quantity (Updated Daily) 73
Distributor Newark
Location USA
Quantity (Updated Daily) 73
Distributor Genalog
Location Europe
Quantity (Updated Daily) 44
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 34

Questions & Answers Ask a Question

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M52-040023WXX45.pdf

ZIP

M52-040023W2545 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M52-040023WXX45 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin Archer range

OTHER DOWNLOADS

PDF

3D PDF file - M52-040023W2545_3D.pdf

PDF

Catalog page - Archer M52 Male Throughboard

PDF

Catalog page - Archer M52 Specification, Mating Profiles

PDF

Product Summary - Archer range, PCB and IDC Connectors

PDF

Outgassing data for Harwin products (plastics)
