Home > M52-040023W0545
Active

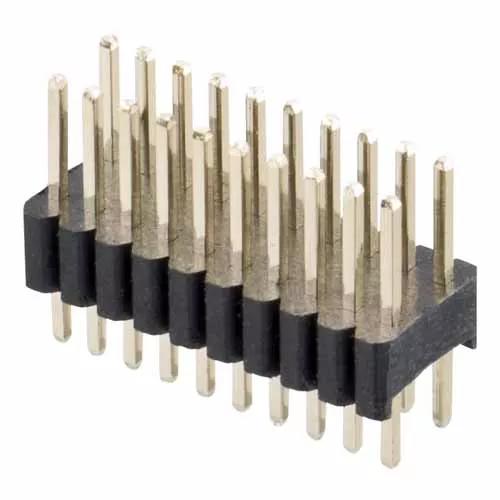

M52-040023W0545

5+5 Pos. Male DIL Vertical Throughboard Conn.

1.27 x 2.54mm (0.05" x 0.1") Pitch PCB Connector - Archer M52 Board-To-Board

  • Single Row, 2.3mm PC Tail, 4mm mating pin height – 10 contacts (5+5).
  • Gold finish on contact area and termination.
  • 2.54mm (0.1″) pitch applies between rows of contacts.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27 x 2.54mm (0.05" x 0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.46mm square

Current Rating:

1A

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.271g

Overall Dimensions (L x W x D) in mm:

6.35 x 5.00 x 8.80

Height of Connector above PCB:

6.50mm

Length of Throughboard Tail:

2.30mm

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status4146
Digi-Key
Global
Status270
Farnell
Europe
Status133
Harwin
Europe
Status1500
Mouser Electronics Inc
Global
Status444

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.

Was this answer helpful?

68% found this helpful

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M52-040023WXX45.pdf

ZIP

M52-040023W0545 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M52-040023WXX45 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin Archer range

OTHER DOWNLOADS

PDF

3D PDF file - M52-040023W0545_3D.pdf

PDF

Catalog page - Archer M52 Male Throughboard

PDF

Catalog page - Archer M52 Specification, Mating Profiles
