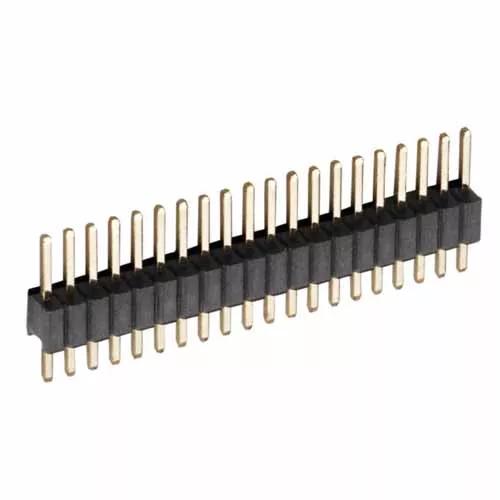

M52-040023V2045
20 Pos. Male SIL Vertical Throughboard Conn.
1.27 x 2.54mm (0.05" x 0.1") Pitch PCB Connector - Archer M52 Board-To-Board
2,040 in stock Check availability
2 similiar products View products
Samacsys account required
No login is required
Product Description
- Single Row, 2.3mm PC Tail, 4mm mating pin height – 20 contacts.
- Gold finish on contact area and termination.
- 0.46mm square pin.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27 x 2.54mm (0.05" x 0.1")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
0.46mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
Yes
Number of Rows:
1
Number of Signal Contacts:
20
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
Polyamide (Nylon) 6T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.538g
Overall Dimensions (L x W x D) in mm:
25.40 x 2.50 x 8.80
Height of Connector above PCB:
6.50mm
Length of Throughboard Tail:
2.30mm
Mating Profiles:
Frequently Asked Questions Ask a Question
How do I cut down this pin header?
There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
