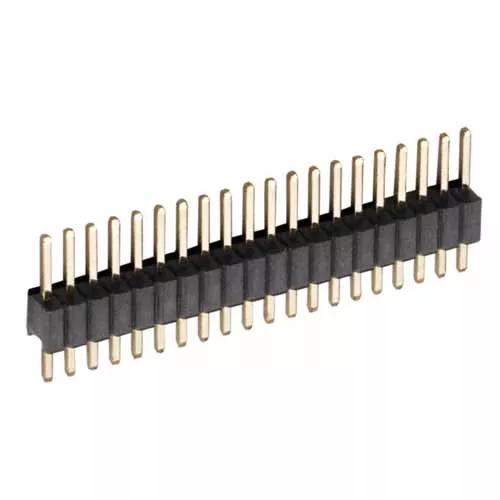

10 Pos. Male SIL Vertical Throughboard Conn.
1.27 x 2.54mm (0.05" x 0.1") Pitch PCB Connector - Archer M52 Board-To-Board
- Single Row, 2.3mm PC Tail, 4mm mating pin height – 10 contacts.
- Gold finish on contact area and termination.
- 0.46mm square pin.
EU RoHS Status:
1.27 x 2.54mm (0.05" x 0.1")
PC Tail / Throughboard
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
12.70 x 2.50 x 8.80
Height of Connector above PCB:
Length of Throughboard Tail:
5,322 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
How do I cut down this pin header?
There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
M52-040023V1045 CAD Model (ZIP file containing STP and IGES)Download
