M52-040000P1045

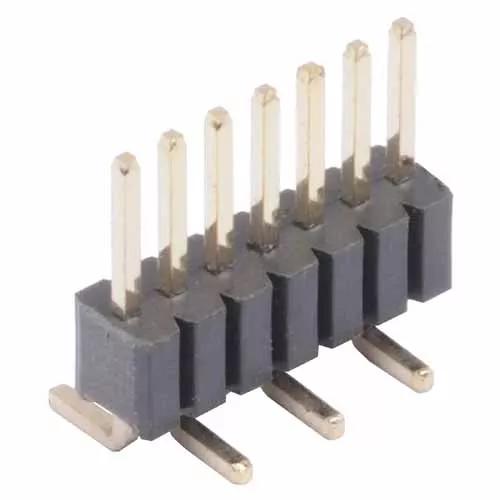

10 Pos. Male SIL Vertical SMT Conn.

1.27 x 2.54mm (0.05" x 0.1") Pitch PCB Connector - Archer M52 Board-To-Board

  • Single Row Surface Mount, 4mm mating pin height – 10 contacts.
  • Gold finish on contact area and termination. No location pegs.
  • 0.46mm square pin.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27 x 2.54mm (0.05" x 0.1")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.46mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.287g

Overall Dimensions (L x W x D) in mm:

12.70 x 5.00 x 7.77

Height of Connector above PCB:

7.77mm

Availability

2,565 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1607
Distributor Anglia
Location Europe
Quantity (Updated Daily) 810
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 148

Questions & Answers Ask a Question

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
