M50-9111342

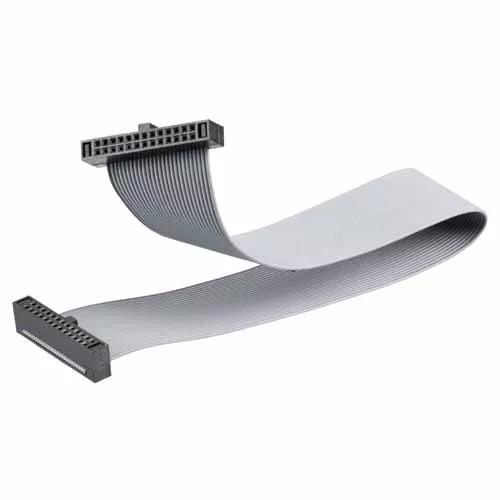

13+13 Pos. Female DIL Cable Assembly, 300mm, double-end

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Female-to-Female IDC Cable Assembly (Socket to Socket), 300mm cable (0.635mm pitch ribbon) – 26 contacts (13+13).
  • Manufactured with M50-3301342 IDC connectors. Gold finish on contact areas.
  • Ribbon cable is 0.635mm pitch, 30AWG to UL2678.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Mating Pin Size:

0.4mm square

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

7.975g

Overall Dimensions (L x W x D) in mm:

306.10 x 20.71 x 5.10

Availability

371 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 300
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 71

Questions & Answers Ask a Question

Do the cables connect PIN 1 to PIN 1 of the connectors at the two ends and so on?

Yes, these cable assemblies are contact 1 to contact 1, contact 2 to contact 2 and so on.
