M50-9110542

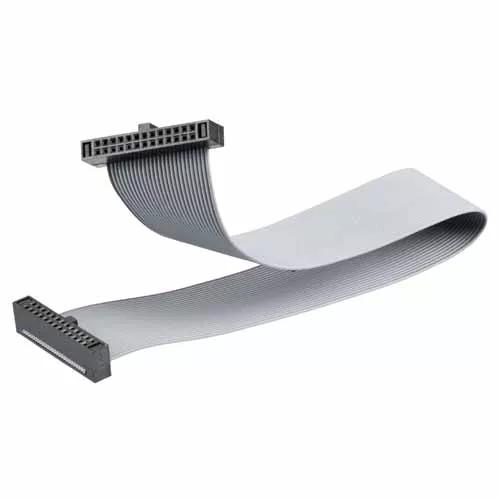

5+5 Pos. Female DIL Cable Assembly, 300mm, double-end

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Female-to-Female IDC Cable Assembly (Socket to Socket), 300mm cable (0.635mm pitch ribbon) – 10 contacts (5+5).
  • Manufactured with M50-3300542 IDC connectors.
  • Ribbon cable is 0.635mm pitch, 30AWG to UL2678.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Mating Pin Size:

0.4mm square

Current Rating:

0.5A

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

3.193g

Overall Dimensions (L x W x D) in mm:

306.10 x 10.55 x 5.10

Availability

Distributor Location Quantity
Anglia
Europe
Status177
Farnell
Europe
Status413
Mouser Electronics Inc
Global
Status29
Newark
USA
Status124

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M50-91X.pdf

ZIP

M50-9110542 CAD Model (ZIP file containing STP and IGES)

PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

PDF

C049XX Component Specification - Cable Assembly Specifications for all product groups

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (04-Dec-2019) including 201 SVHC (16-Jul-2019), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for M50-911 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin Archer range

OTHER DOWNLOADS

PDF

Catalog page - Archer M50 IDC Female Cable Connectors, Cable Assemblies

PDF

Catalog page - Archer M50 IDC Specification, Mating Profiles
