M50-9102542

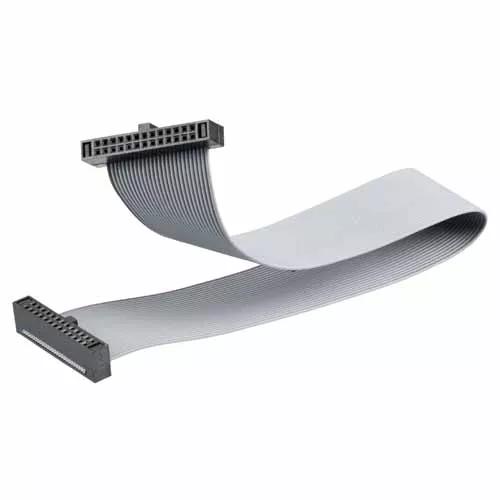

25+25 Pos. Female DIL Cable Assembly, 150mm, double-end

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Female-to-Female IDC Cable Assembly (Socket to Socket), 150mm cable (0.635mm pitch ribbon) – 50 contacts (25+25).
  • Manufactured with M50-3302542 IDC connectors. Gold finish on contact areas.
  • Ribbon cable is 0.635mm pitch, 30AWG to UL2678.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Mating Pin Size:

0.4mm square

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

8.458g

Overall Dimensions (L x W x D) in mm:

156.10 x 35.95 x 5.10

Availability

568 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
