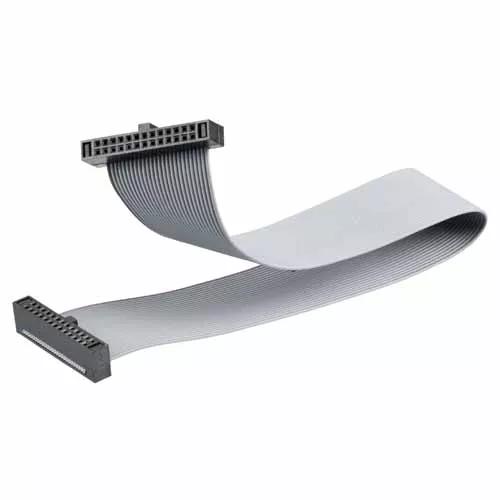

17+17 Pos. Female DIL Cable Assembly, 150mm, double-end
1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
- Female-to-Female IDC Cable Assembly (Socket to Socket), 150mm cable (0.635mm pitch ribbon) – 34 contacts (17+17).
- Manufactured with M50-3301742 IDC connectors. Gold finish on contact areas.
- Ribbon cable is 0.635mm pitch, 30AWG to UL2678.
EU RoHS Status:
Mating Pin Size:
0.5A per contact
-40°C to +105°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
156.10 x 25.79 x 5.10
399 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
Do the cables connect PIN 1 to PIN 1 of the connectors at the two ends and so on?
Yes, these cable assemblies are contact 1 to contact 1, contact 2 to contact 2 and so on.
M50-9101742 CAD Model (ZIP file containing STP and IGES)Download
