M50-9101342

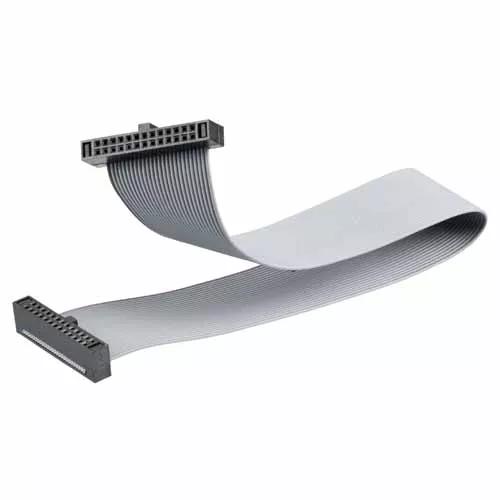

13+13 Pos. Female DIL Cable Assembly, 150mm, double-end

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

Order Sample

Add to Favorites

771 in stock Check availability

4 similiar products View products

Traceparts account required

Product Description

Female-to-Female IDC Cable Assembly (Socket to Socket), 150mm cable (0.635mm pitch ribbon) – 26 contacts (13+13).
Manufactured with M50-3301342 IDC connectors. Gold finish on contact areas.
Ribbon cable is 0.635mm pitch, 30AWG to UL2678.

M50-9101342 - 13+13 Pos. Female DIL Cable Assembly, 150mm, double-end

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Mating Pin Size:

0.4mm square

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

4.496g

Overall Dimensions (L x W x D) in mm:

156.10 x 20.71 x 5.10

Mating Profiles:

Catalog page - Archer M50 IDC Specification, Mating Profiles

Frequently Asked Questions Ask a Question

Yes, these cable assemblies are contact 1 to contact 1, contact 2 to contact 2 and so on.
