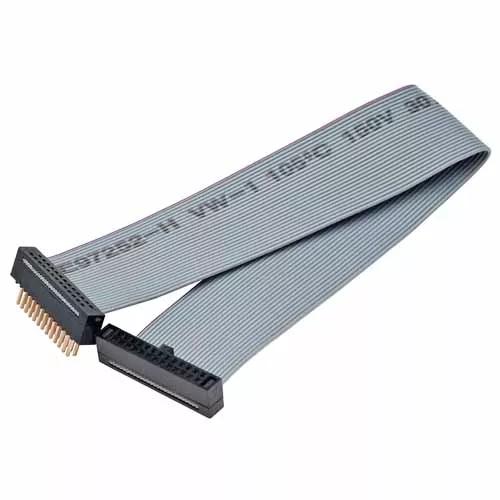

1.27mm (0.05") Pitch DIL Female-to-Male IDC Ribbon Cable Assembly (Socket to DIP Transition), 300mm cable, 20+20 contacts

BBi

Traceparts account required

M50-9022042

1.27mm (0.05") Pitch DIL Female-to-Male IDC Ribbon Cable Assembly (Socket to DIP Transition), 300mm cable, 20+20 contacts


1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Female-to-Male IDC Cable Assembly (Socket to DIP Transition), 300mm (12") long cable (0.635mm pitch ribbon) - 40 contacts (20+20).

  • Manufactured with M50-3302042 and M50-3802042 IDC connectors. Gold finish on contact areas.

  • Ribbon cable is 0.635mm pitch, 30AWG to UL2678.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Mating Pin Size:

    0.4mm square

  • Number of Rows:

    2

  • Connector Orientation:

    Angled

  • Country of Origin:

    CN

  • Side Stackable:

    No

  • Number of Signal Contacts:

    40

  • Operating Temperature:

    -40°C to +105°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    0.5A per contact

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PBT

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    1.27mm (0.05")

  • Weight:

    12.487g

  • Dimensions:

    306.10 x 29.60 x 8.20

Downloads

    Product Information

  • Catalog page - Archer M50 IDC Specification + Mating Profiles

  • Product Datasheet - ARCHER: M50 and M52 ranges (BBi)

  • Product Training Module - Overview Guide to the Harwin Archer range

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Technical Documentation

  • Technical Drawing / Datasheet - M50-90X.pdf

  • C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M50-9022042

  • Material composition for M50-902 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
