M50-9021742

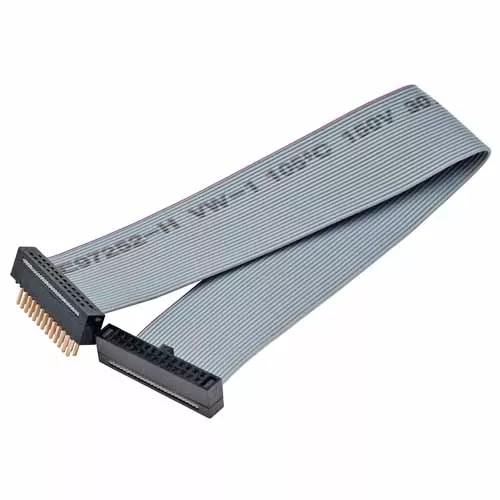

17+17 Pos. Male DIL Cable Assembly, 300mm, Female 2nd end

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Female-to-Male IDC Cable Assembly (Socket to DIP Transition), 300mm cable (0.635mm pitch ribbon) – 34 contacts (17+17).
  • Manufactured with M50-3301742 and M50-3801742 IDC connectors.
  • Ribbon cable is 0.635mm pitch, 30AWG to UL2678.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male & Female

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Mating Pin Size:

0.4mm square

Current Rating:

0.5A

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

34

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

10.643g

Overall Dimensions (L x W x D) in mm:

306.10 x 25.79 x 8.20

Availability

Limited availability or made-to-order
Distributor Location Quantity
Anglia
Europe
Status50
Mouser Electronics Inc
Global
Status254

*Stock available: contact distributor to purchase
