M50-9021042

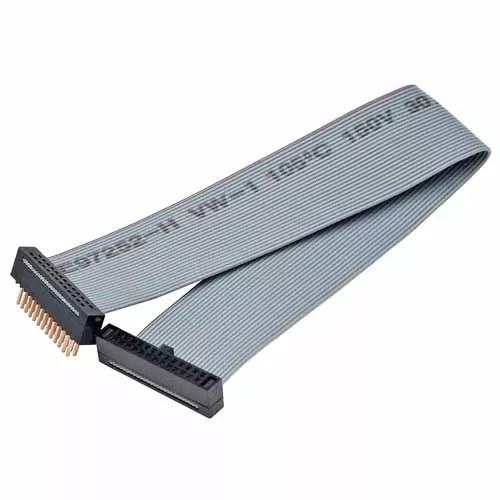

10+10 Pos. Male DIL Cable Assembly, 300mm, Female 2nd end

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Female-to-Male IDC Cable Assembly (Socket to DIP Transition), 300mm cable (0.635mm pitch ribbon) – 20 contacts (10+10).
  • Manufactured with M50-3301042 and M50-3801042 IDC connectors. Gold finish on contact areas.
  • Ribbon cable is 0.635mm pitch, 30AWG to UL2678.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male & Female

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Mating Pin Size:

0.4mm square

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

6.341g

Overall Dimensions (L x W x D) in mm:

306.10 x 16.90 x 8.20

Availability

387 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 96
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 57
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 34

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 200

Questions & Answers Ask a Question

Do the cables connect PIN 1 to PIN 1 of the connectors at the two ends and so on?

Yes, these cable assemblies are contact 1 to contact 1, contact 2 to contact 2 and so on.

Can cable assembly M50-9021042 be used alongside this connector and have M50-3651042R on the other end of FRC cable?

The female end of M50-9021042 will mate with the male PCB connector M50-3651042R. You would need to use a different connector from the M50 series to mate with the male connection on the end of the M50-9021042, or solder the male end directly to a PCB. The M50-3111042 should be suitable, but please note we have not specifically tested this connection. If you need further assistance, do please contact one of our Experts.

Can I know the pin numbering for this connector?

For this range, we do not specify any particular pin numbering system. You are free to use any convention you prefer, or use your own. There may be small indents on the housings that you can use to signify a number 1 pin, and the ribbon cable will have line 1 marked in red. You can also find information on pin numbering on our Support article on this topic.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M50-90X.pdf

ZIP

M50-9021042 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

PDF

C049XX Component Specification - Cable Assembly Specifications for all product groups

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M50-902 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin Archer range

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

OTHER DOWNLOADS

PDF

Catalog page - Archer M50 IDC Male Cable Connectors, Cable Assemblies

PDF

Catalog page - Archer M50 IDC Specification, Mating Profiles

PDF

Product Summary - Archer range, PCB and IDC Connectors
