  • M50-9020542 - 5+5 Pos. Male DIL Cable Assembly, 300mm, Female 2nd end

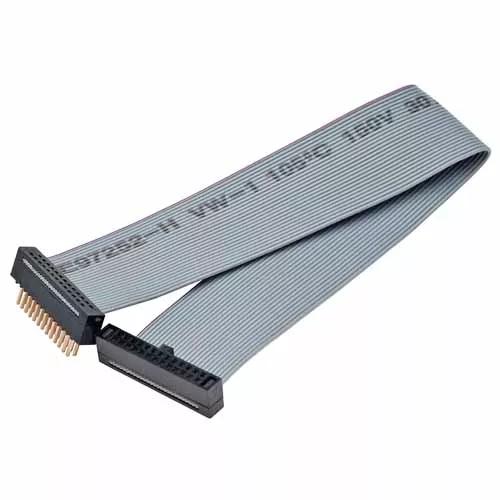

Representative image of product family.

M50-9020542

5+5 Pos. Male DIL Cable Assembly, 300mm, Female 2nd end

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Female-to-Male IDC Cable Assembly (Socket to DIP Transition), 300mm cable (0.635mm pitch ribbon) - 10 contacts (5+5).
  • Manufactured with M50-3300542 and M50-3800542 IDC connectors.
  • Ribbon cable is 0.635mm pitch, 30AWG to UL2678.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Information

Specification

+
Product Type: 1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
Contact Pitch: 1.27mm (0.05")
Contact Gender: Male & Female
Connector Orientation: Angled
Connection Type: Cable Assembly
Mating Pin Size: 0.4mm square
Current Rating: 0.5A
Operating Temperature: -40°C to +105°C

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PBT
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 3.269g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 10
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
