M50-9012542

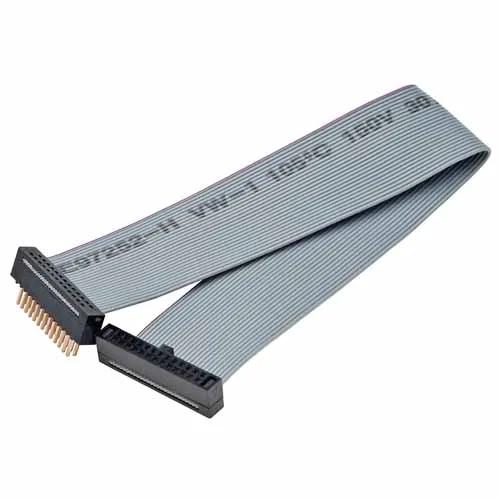

25+25 Pos. Male DIL Cable Assembly, 150mm, Female 2nd end

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Female-to-Male IDC Cable Assembly (Socket to DIP Transition), 150mm cable (0.635mm pitch ribbon) – 50 contacts (25+25).
  • Manufactured with M50-3302542 and M50-3802542 IDC connectors.
  • Ribbon cable is 0.635mm pitch, 30AWG to UL2678.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male & Female

Connector Orientation:

Angled

Connection Type:

Cable Assembly

Mating Pin Size:

0.4mm square

Current Rating:

0.5A

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

8.854g

Overall Dimensions (L x W x D) in mm:

156.10 x 35.95 x 8.20

Availability

Limited availability or made-to-order
Distributor Location Quantity
Anglia
Europe
Status50
Digi-Key
Global
Status177
Mouser Electronics Inc
Global
Status299

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M50-90X.pdf

ZIP

M50-9012542 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

PDF

C049XX Component Specification - Cable Assembly Specifications for all product groups

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M50-901 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin Archer range

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

OTHER DOWNLOADS

PDF

Catalog page - Archer M50 IDC Male Cable Connectors, Cable Assemblies

PDF

Catalog page - Archer M50 IDC Specification, Mating Profiles
